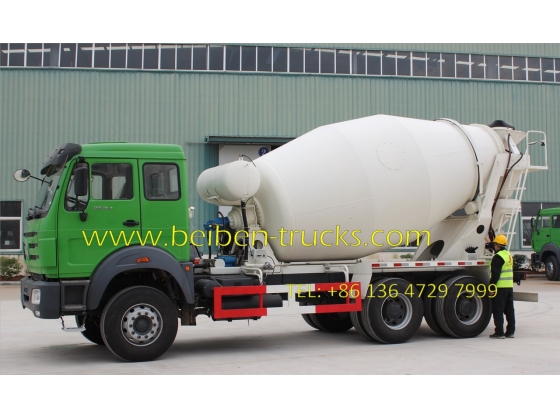

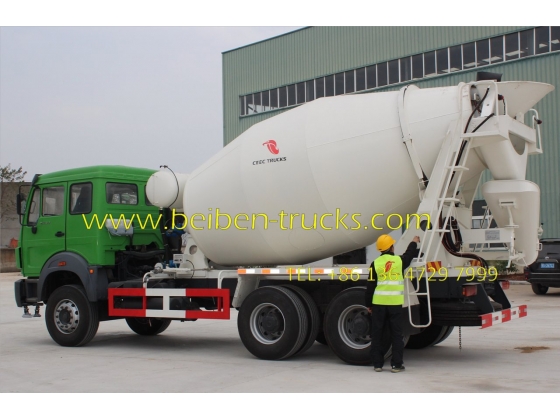

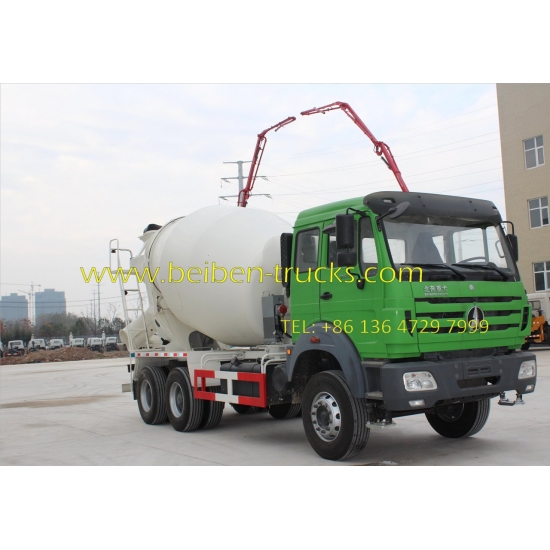

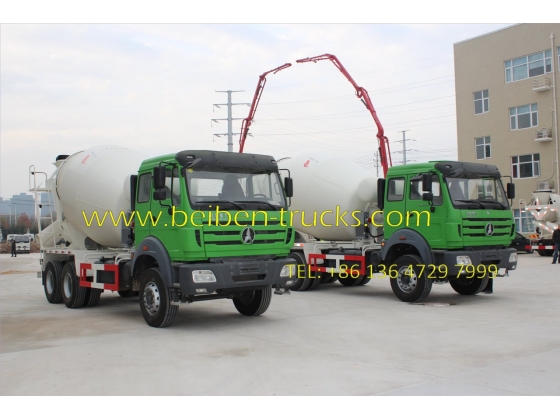

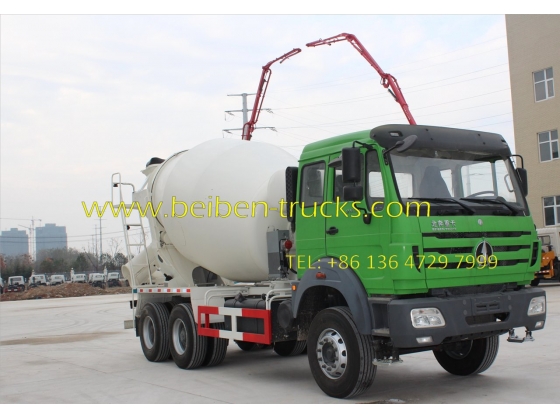

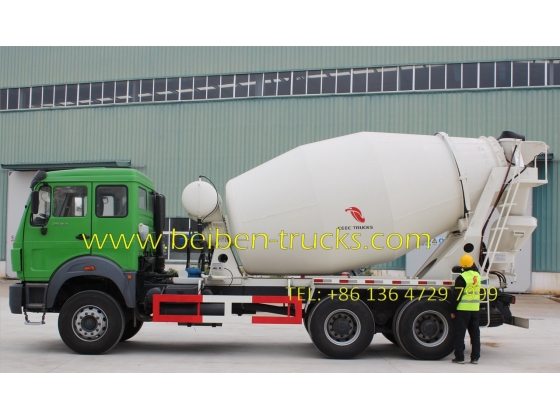

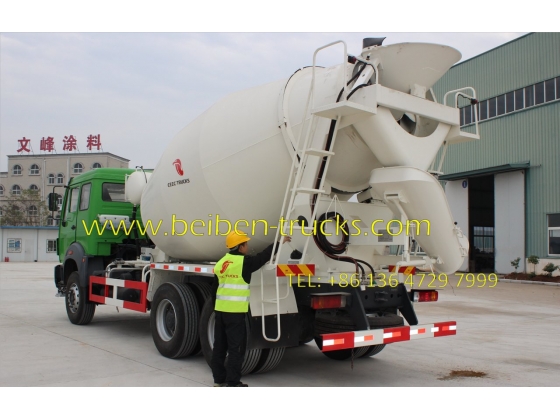

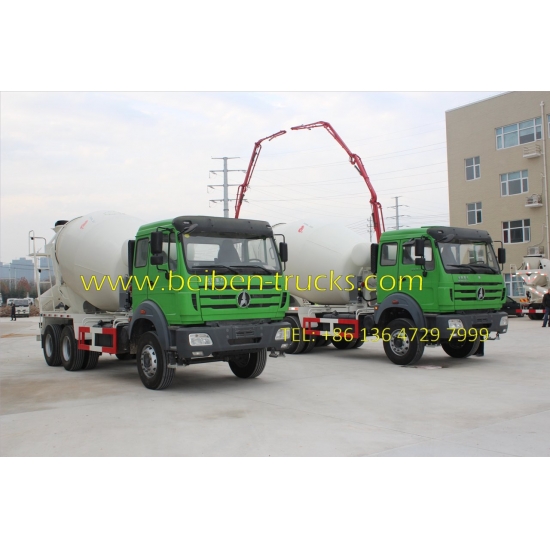

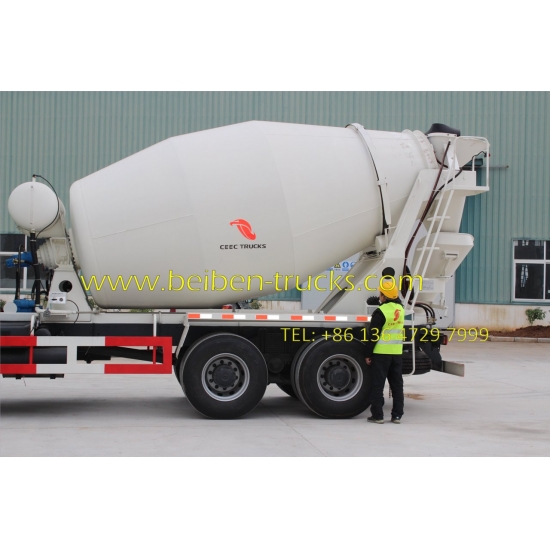

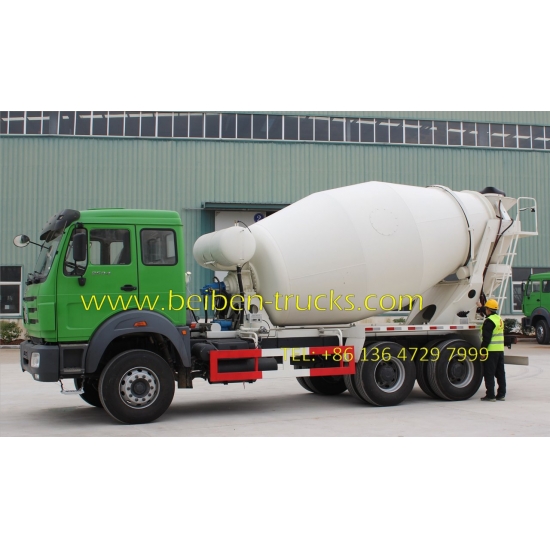

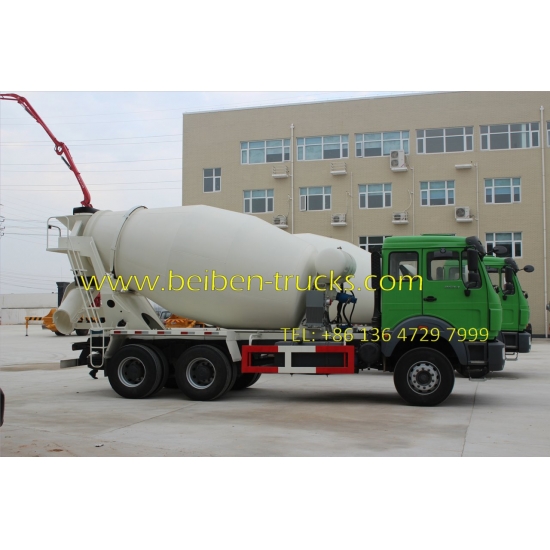

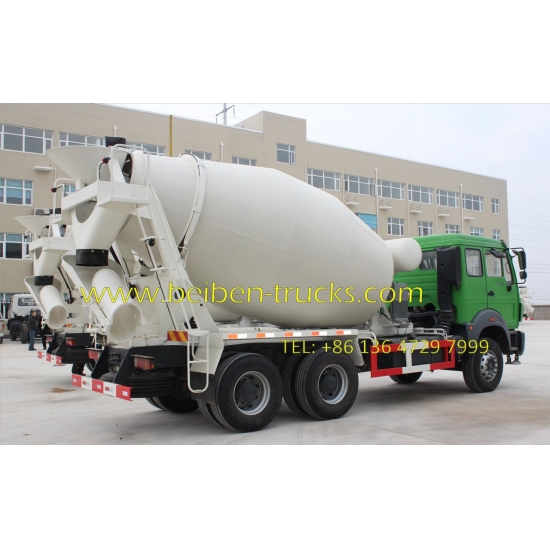

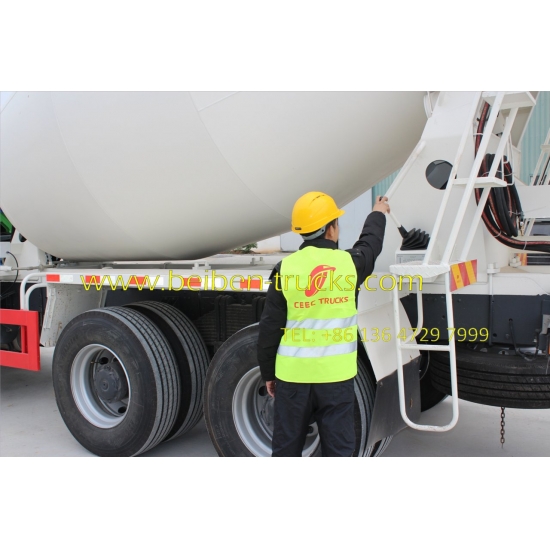

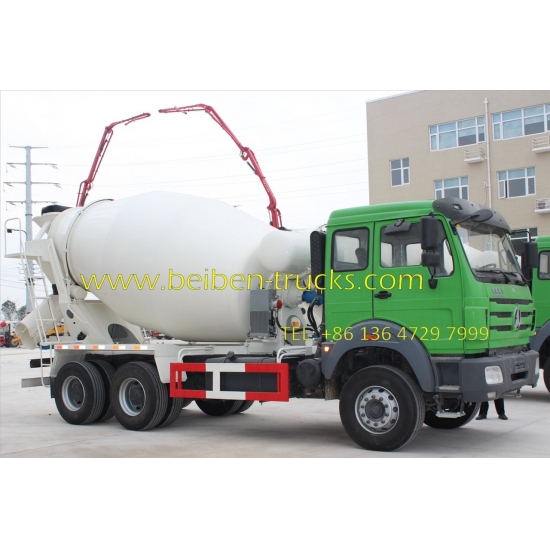

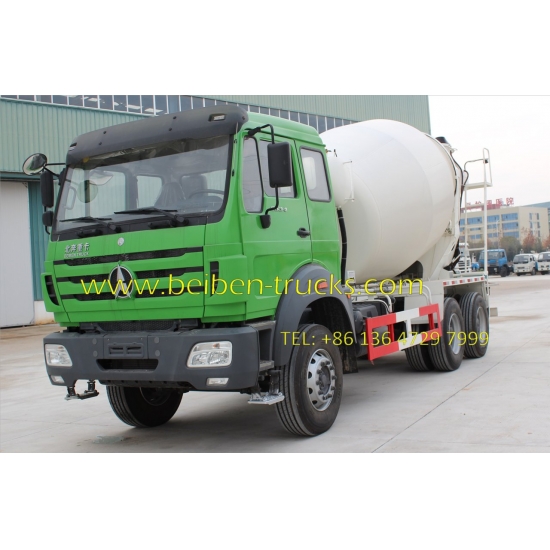

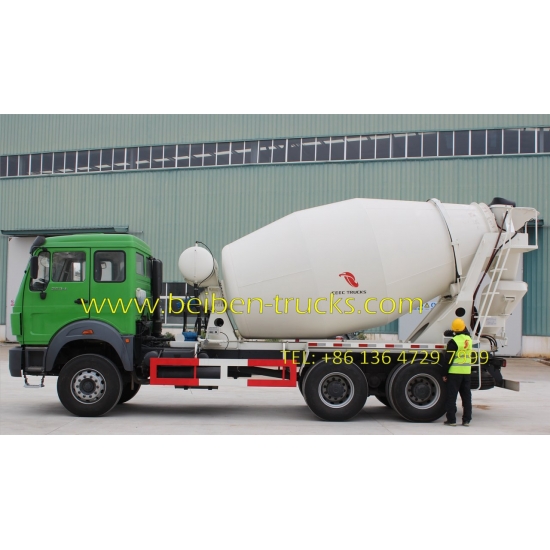

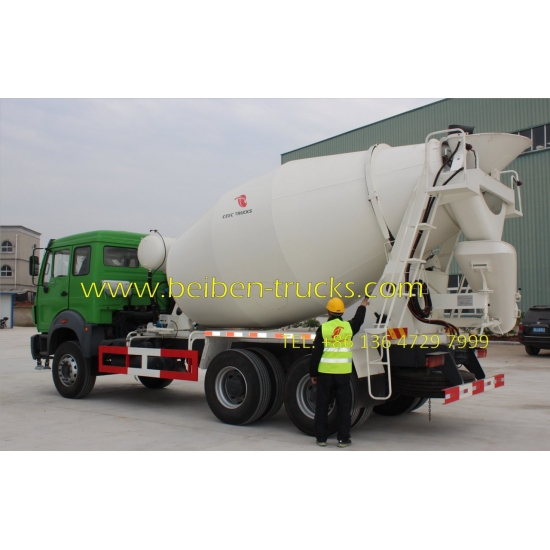

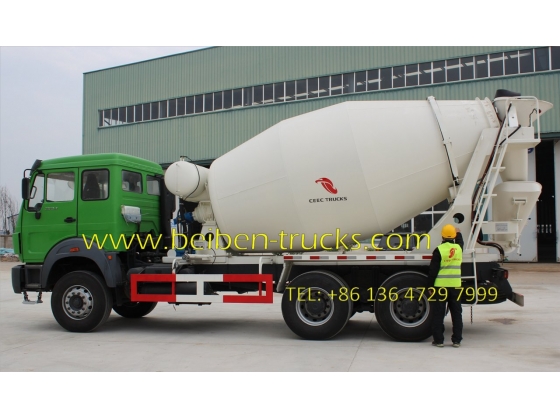

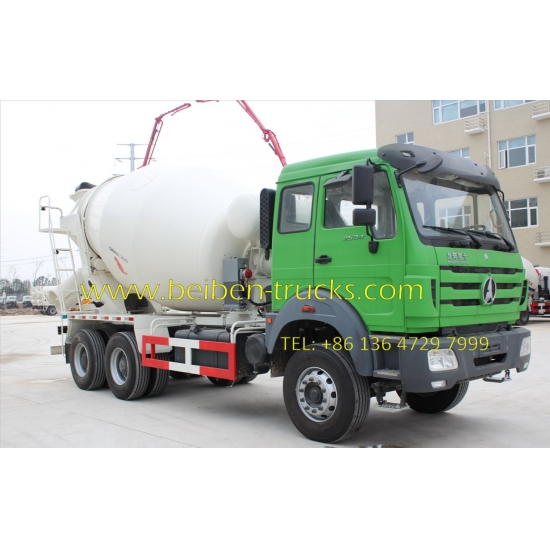

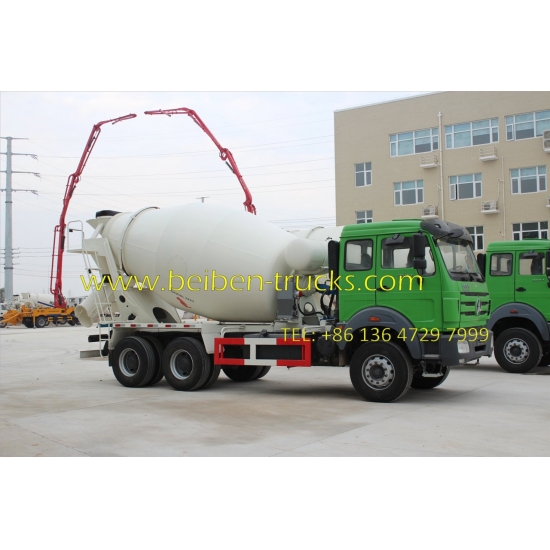

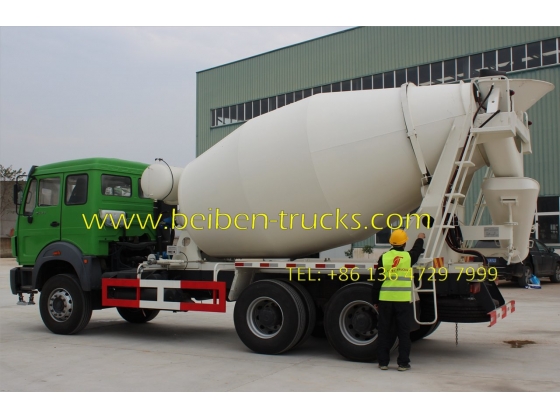

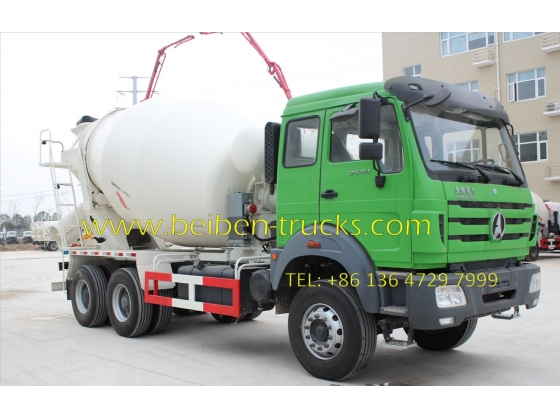

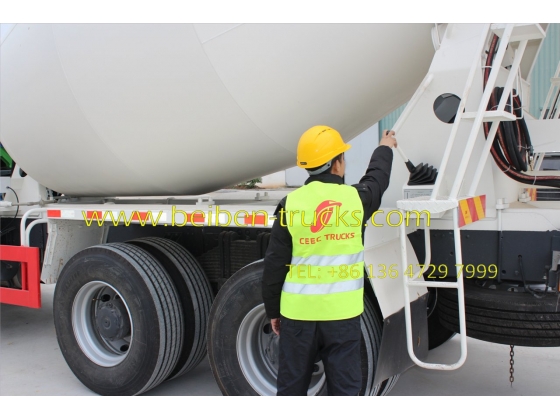

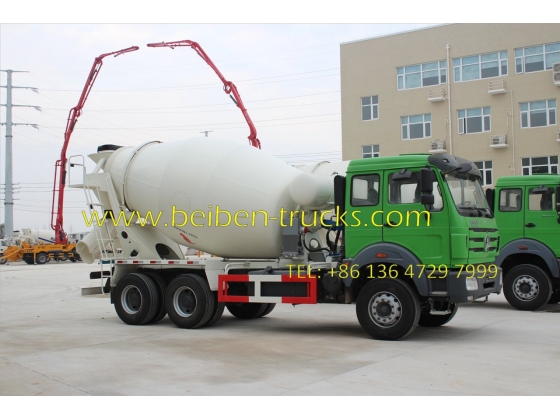

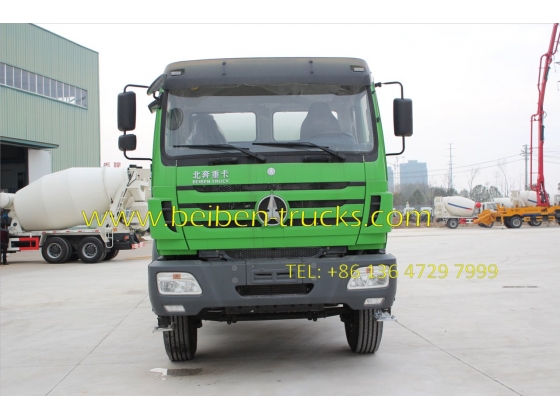

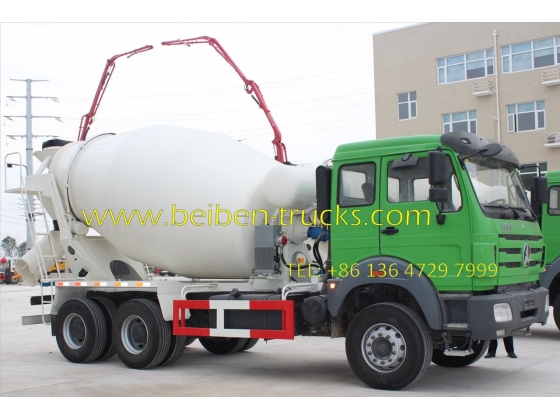

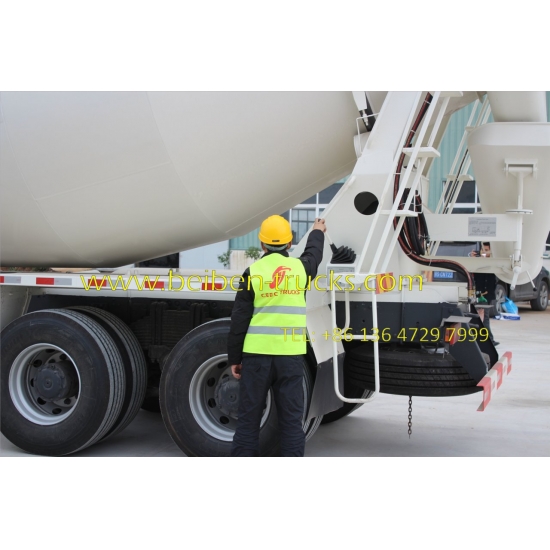

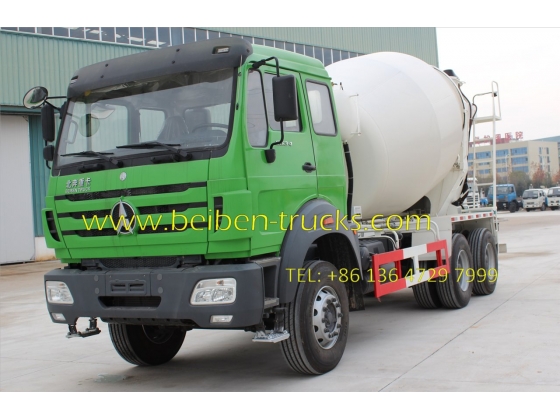

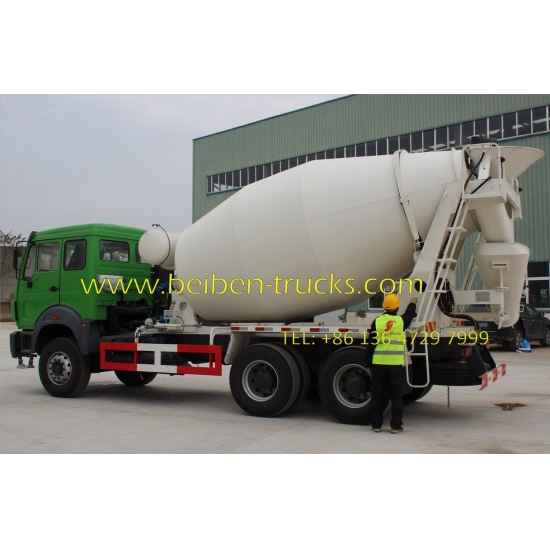

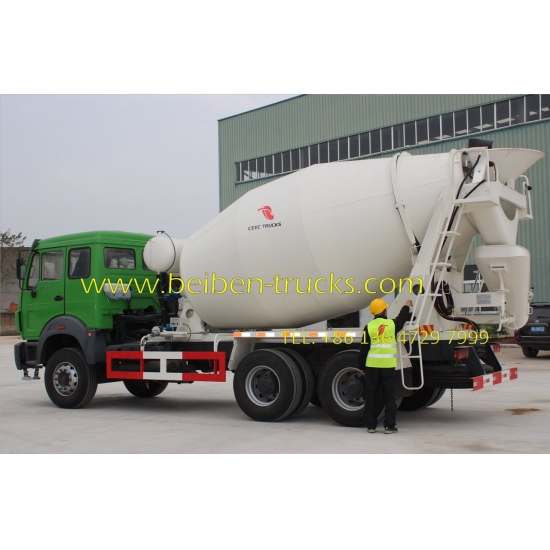

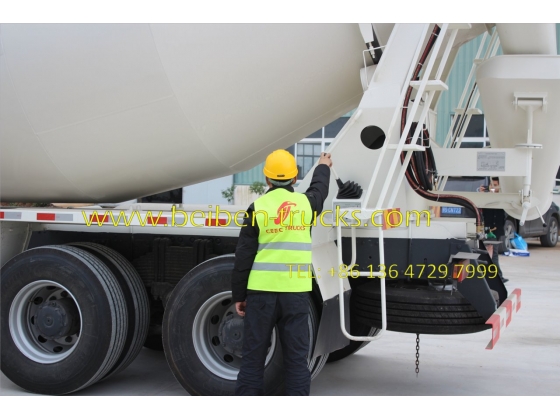

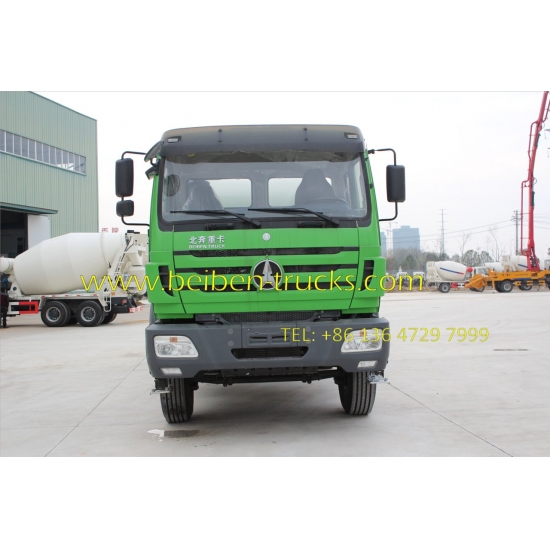

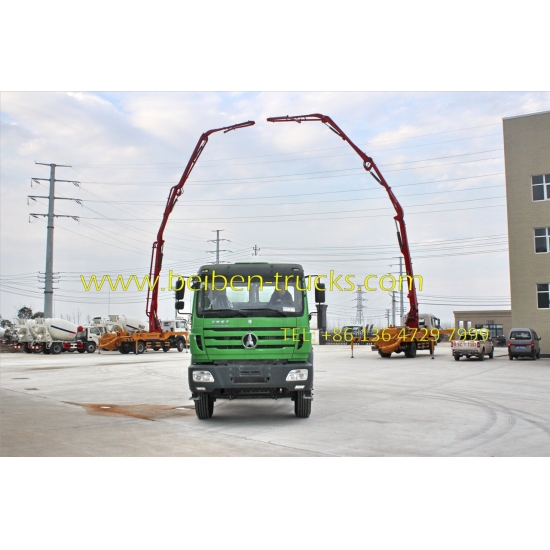

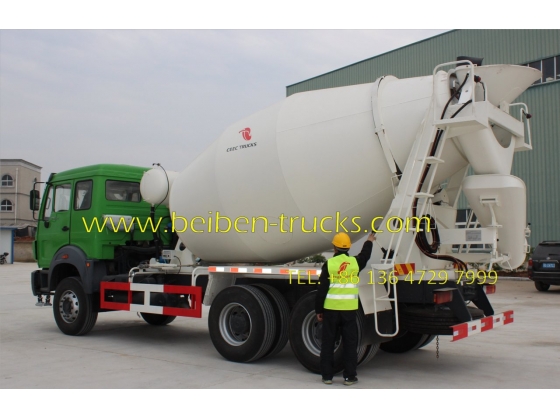

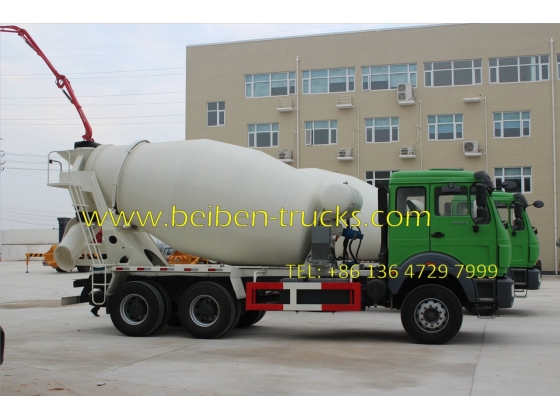

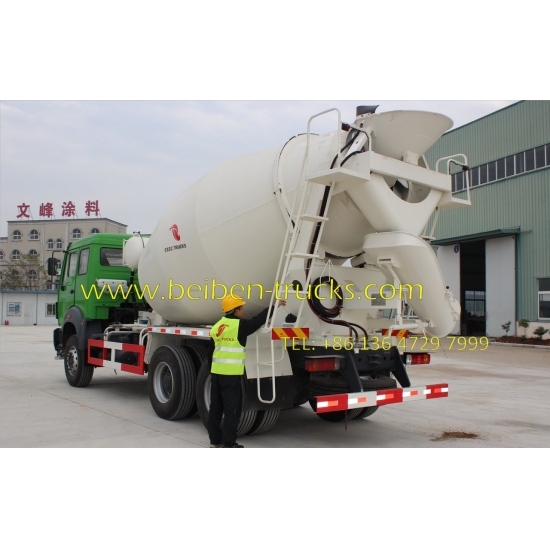

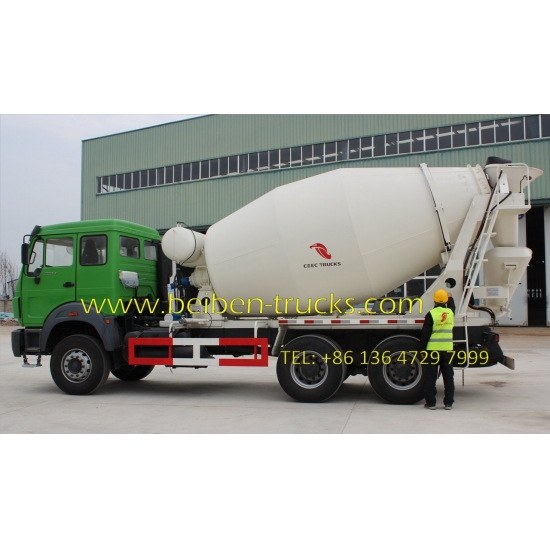

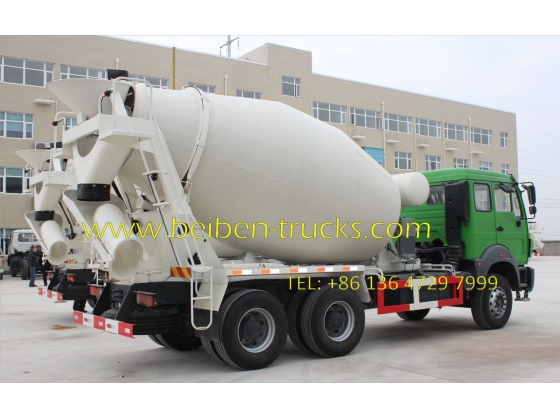

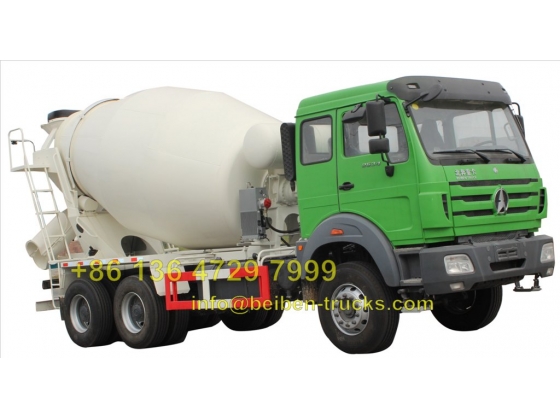

Beiben 10 CBM transit mixers
Beiben 10 CBM cement mixer truck
Function:
◆ High quality Concrete transportation

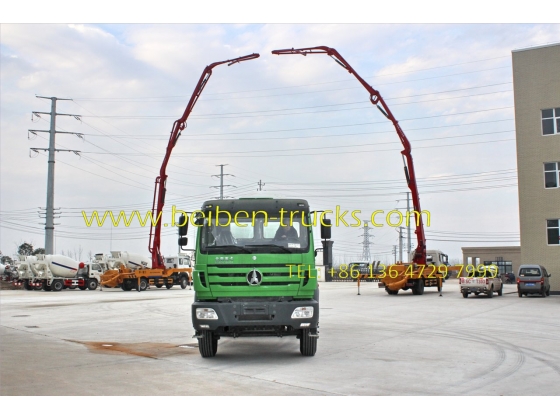

◆ Equipped with concrete pump truck, concrete bathing plant.
◆ Municipal road construction
◆ High way construction, replace benz mixer truck fleet.
Feature:
Key Features:
◆ World-class Beiben mixer truck Chassis, High power and Fuel efficiency, Reliability, Uptime
◆ The hydraulic system adopts Germany Rexroth, America EATON, Italy ARK, America Sauer for beiben concrete mixer truck
◆ Comfortable, spacious cabin with heating and air conditioning, high-grade stereo and sleep area.

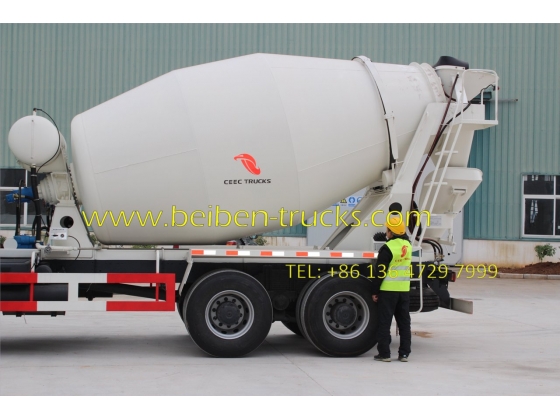

◆ The mixing drum is made from the special close grain high-hardness steel plate B520JJ which is produced by Shanghai Baosteel and its service life can last 8-10 years;
◆ Equipped with the large diameter hopper, it can realize the quickly feeding, not plugging and spilling, and it is easy to clean;
◆ The optimized design of mixing drum ensure the concrete residue ratio is less than 1%;
◆ Mixer coverage 3cbm, 5cbm,6cbm, 8cbm, 10cbm, 12cbm, 14cbm, 16cbm.
Similar key words: Beiben 10 CBM concrete mixer trucks, also named as beiben 10 CBM transit mixer truck, beiben 10 CBM concrete drum mixer truck, beiben cement mixer with 10 CBM drum. With more than 10 years experience on manufacturing mixer truck, we endeavour to designing and producing beiben 10 CBM transit mixer truck, north benz 10 CBM concrete mixer truck. As the most professional beiben concrete mixer truck manufacturer in china, CEEC TRUCKS continue supply foreign customer with beiben 8 CBM, 9 CBM, 10 cbm, 12, 14 cbm CEMENT MIXER TRUCKS.
More than 15 years experience on producing beiben concrete mixer trucks, beiben 8 CBM concrete mixer truck, beiben 9 CBM, 10 CBM transit mixer trucks. Supply original EATON, BONGLIFILI,ARK,TOP brand mixer truck upper stucture parts. As the most professional beiben concrete transportation trucks manufacturer in china, we will ensure the super quality and best price for all beiben truck customer.
The best north benz mixer truck supplier from china baotou beiben heavy duty trucks. The most professional beiben 6*4 concrete mixer truck work experience on beiben 2527,2628,2632,3630,2629,2634,2638 mixer trucks. Currently, we supply beiben LHD transit mixer truck with 2534 cabin, beiben RHD mixer truck with 2534 cabin.
| Beiben 2534 BY /6×4/3450+1450/Short Cab/LHD | ||||||
| Dimension | 9300*2500*3900mm | |||||
| Approaching angle/Departure angle | 26/20° | |||||
| Overhang(front/rear) | 1410/2640mm | |||||
| Wheel base | 3800+1450mm | |||||
| Max speed | 80km/h | |||||
| Curb weight | 13650kg | |||||
| Loading capacity | 11220kg | |||||
| Slope climbing capability | Max.40% | |||||
| Engine | Model | WP10.340E32，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection | ||||
| Displacement | 9.726L/Diesel | |||||
| Stroke | 126/130mm | |||||
| Max. power | 250/2200 (kw/rpm) | |||||
| Max.torque | 1350/1200-1600（Nm/rpm） | |||||
| Emission stantard | EuroⅢ | |||||
| Fuel tanker capacity | 300L | |||||
| Clutch | ∮430, Single dry frictional disc，Hydraulic boosting | |||||
| Gearbox | 9T-160, mechanism,9 forward gears,1 reverse gear, manual operated, with synchronizer | |||||
| Gear ratio of gear box | 12.60/8.39/6.31/4.64/3.43/2.45/1.84/1.35/1.00 R: 11.02 | |||||
| Suspension system | Front | Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs | ||||
| Rear | Non-free standing stablization spring, balance suspension system, 13pcs | |||||
| Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system | ||||
| Assistant brake | Engine exhaust brake | |||||
| Park brake | Potential springs pressing on middle and rear wheels | |||||
| Steering system | TAS85,whole circulation in ball, hydraulic booster | |||||
| Frame | Fish belly shape, variable width, variable sections | |||||
| Front axle (Mercedes Technology) | Double-shoe pneumatic brake, non-driving steering axle | |||||
| Middle and Rear axle (Mercedes Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle | |||||
| Tyre | 12.00R20 Radial | |||||
| Electrical system | Battery | 2X12V/135Ah | ||||
| Generator | 28V-35A | |||||
| Starter | 5.4Kw/24V | |||||
| Cabin |
NG80B Long cabin with single sleeper; Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back with arm seat for driver, high back seat for co-driver; With inner A/C |
|||||
| Main technical parameters of Beiben concrete mixer | ||||||
| Drum performance parameter | Geometric Volume m3 | 15.5 m3 | ||||
| Effective Volume m3 | 10 m3 | |||||
| Filling Ratio % | 64.5% | |||||
| Gradient of the Drum ° | 15° | |||||
| Filling speed m3/min | ≥3 | |||||
| Discharging Speed m3/min | ≥2 | |||||
| Surplus Ration % | <1% | |||||
| Range of Slump mm | 20～300 | |||||
| Hydraulic System | Pump | Eaton 54 (ACA542337R) | ||||
| Motor | Eaton 54 (HHD542337R) | |||||
| Gear Box | PMB6sp | |||||
| Water supply system | Volume of water tank | 400L | ||||
| Water supply type | Air pressure Type | |||||
Beiben transit mixer truck
