Dimension

7540*2500*3600mm

Approaching angle/Departure angle

16/60°

Overhang(front/rear)

1515/825mm

Wheel base

3450+1450mm

Max speed

110km/h

Curb weight

8800kg

Max towing weight

40000kg

Max loading on fifth wheel, Permitted(kg)

16070kg

Slope climbing capability

Max.40%

Engine

Model

WP12.460N，water-cooled, four-stoke, exhaust brake, direct injection, turcharged intercooled, ECU Common Rail

Displacement

11.596L/Diesel

Stroke

126/155mm

Max. power

411/1900 (kw/rpm)

Max.torque

2110/1000-1400（Nm/rpm）

Emission stantard

EuroIII

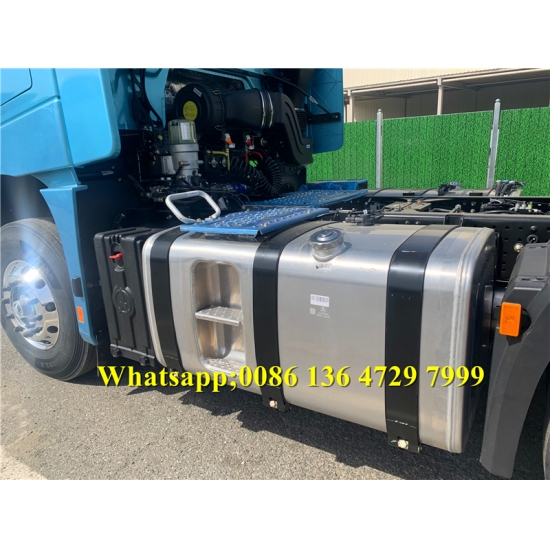

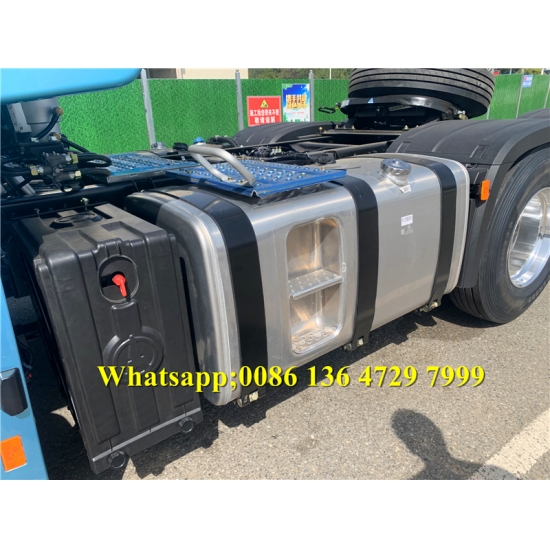

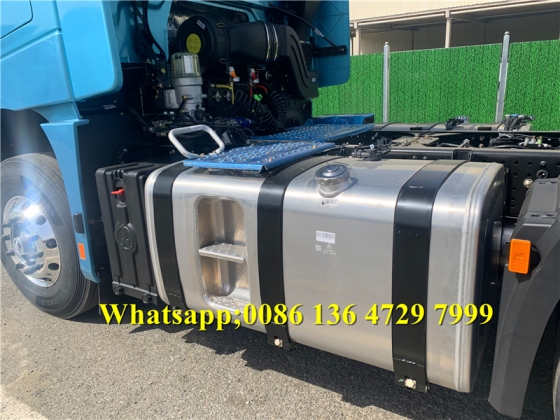

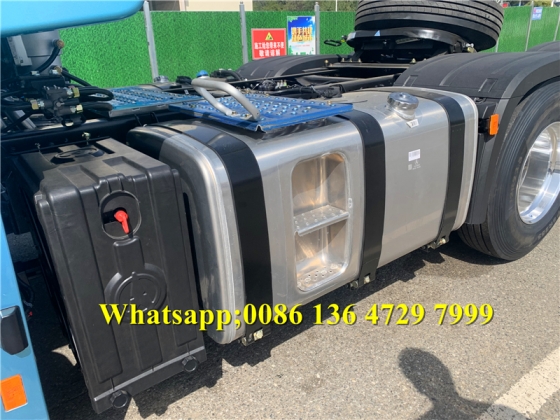

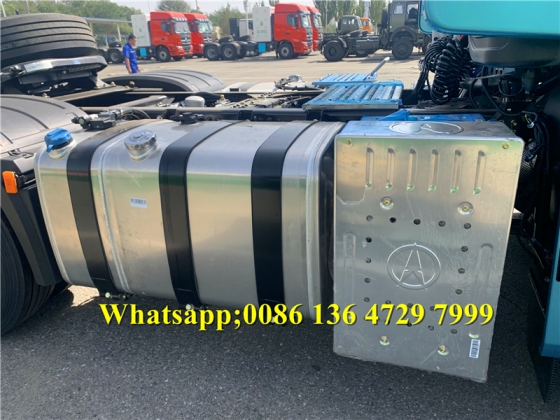

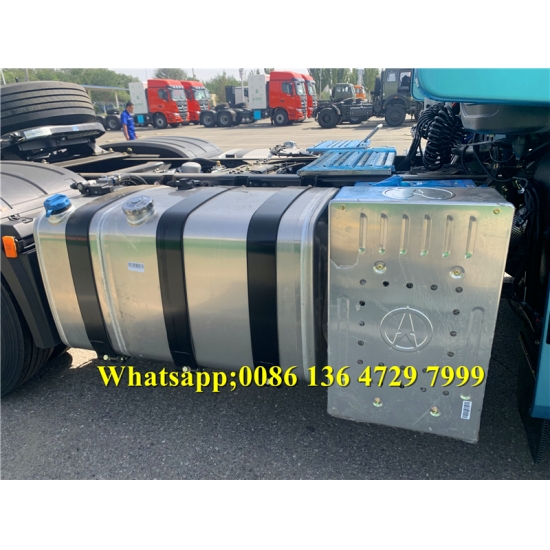

Fuel tanker capacity

400L

Clutch

∮430, Single dry frictional disc，Hydraulic boosting

Gearbox

12JS200T, mechanism,12forward gears,2 reverse gear, manual operated

Gear ratio of gear box

15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33

Suspension system

Front

Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 13pcs

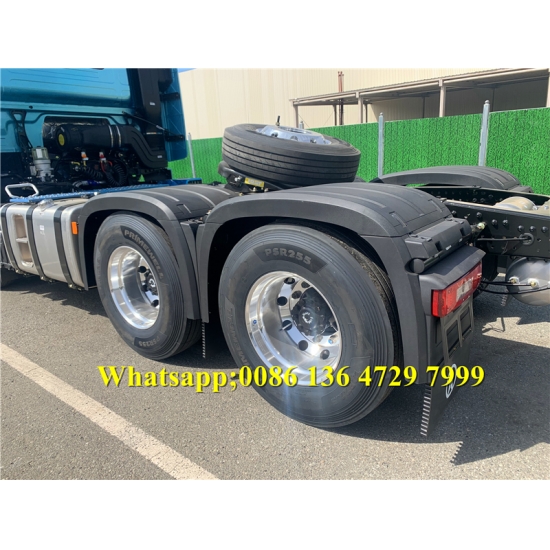

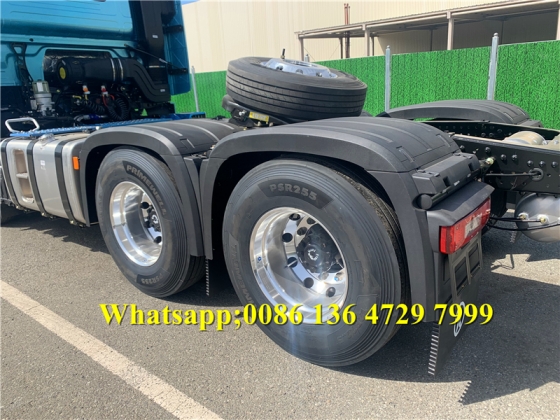

Rear

Non-free standing stablization spring, balance suspension system, 13pcs

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

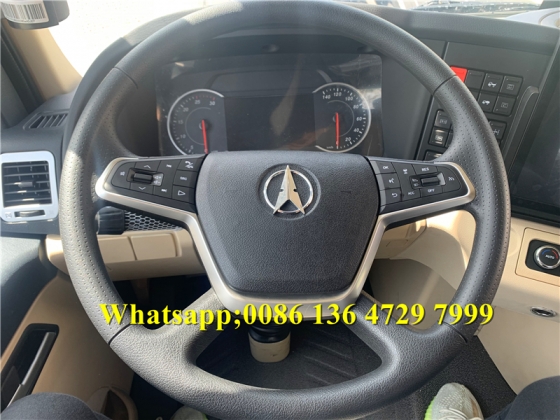

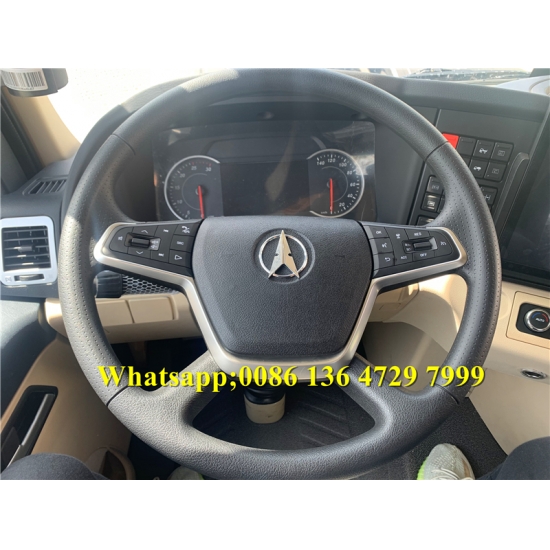

Steering system

TAS85,whole circulation in ball, hydraulic booster

Frame

Fish belly shape, variable width, variable sections

The Fifth wheel

Model

JOST ∮90 single direction

Height of fifth wheel(mm) (unload)

1410

Radius of front gap (mm)

2300

Radius of rear slew (mm)

2600

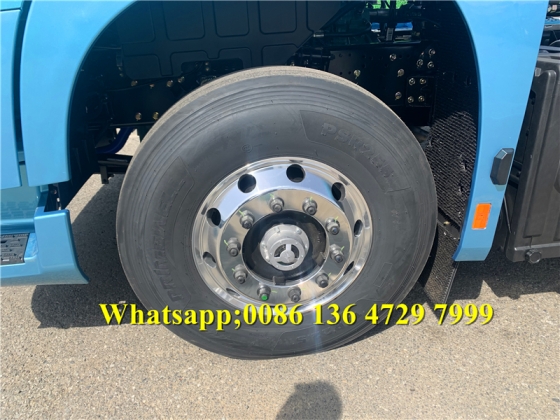

Front axle (Mercedes Technology)

Double-shoe pneumatic brake, non-driving steering axle

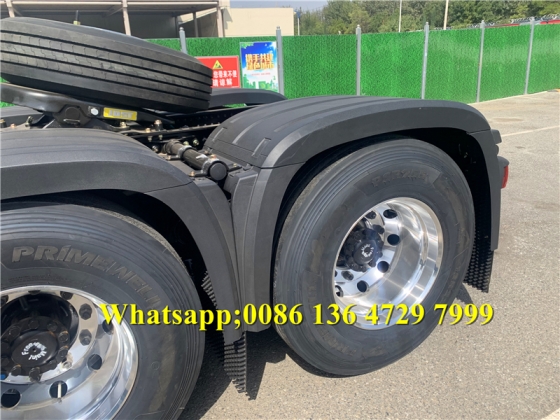

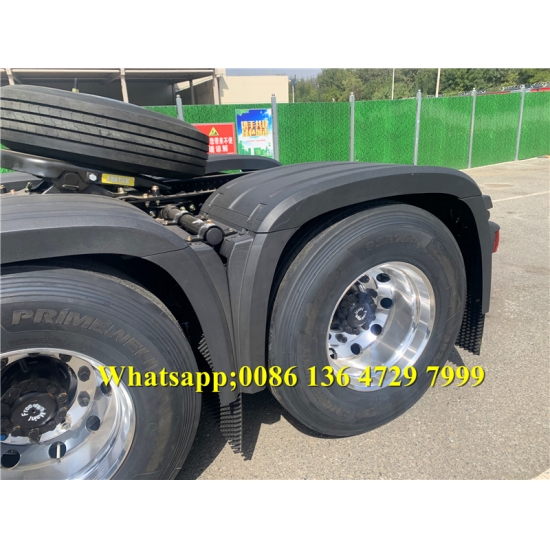

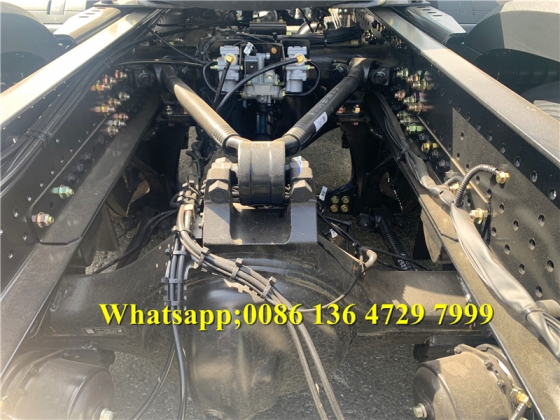

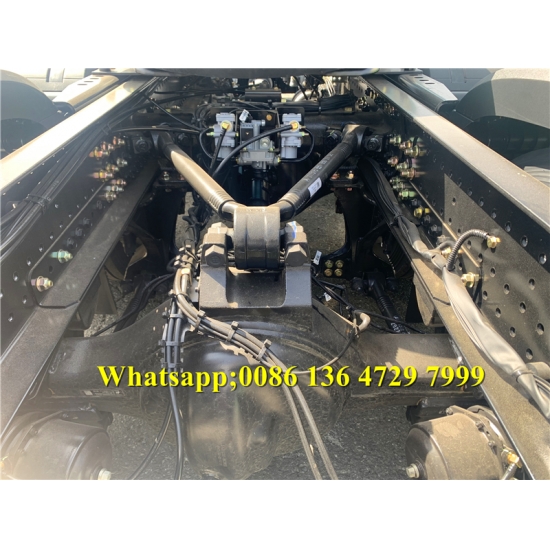

Middle and Rear axle (Mercedes Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

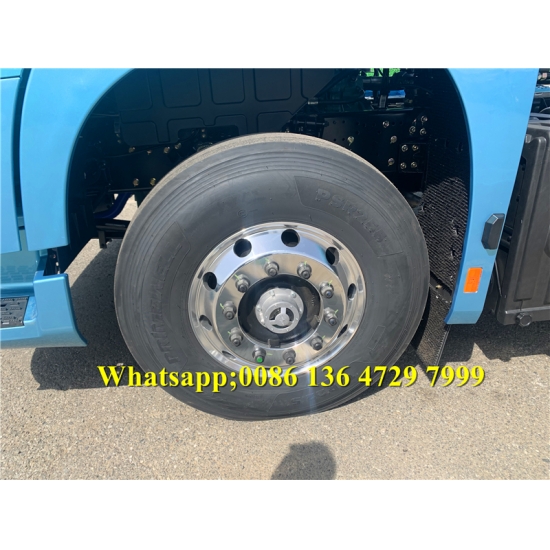

Tyre

12.00-R20

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

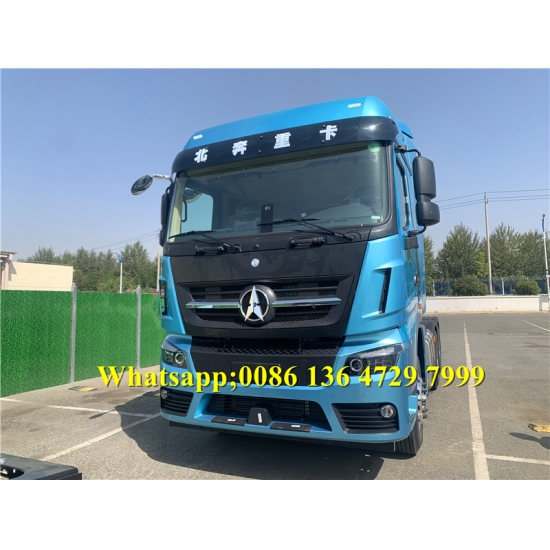

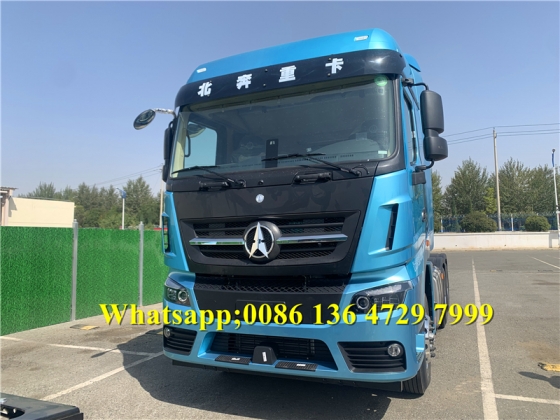

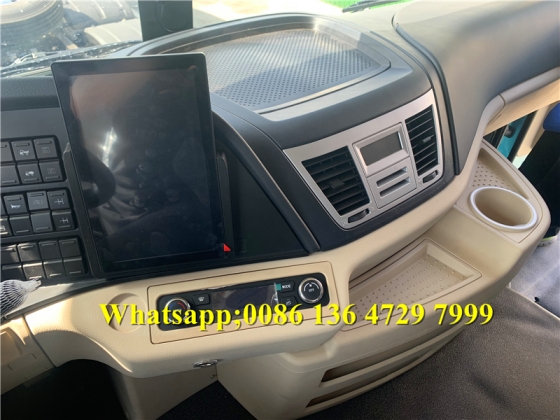

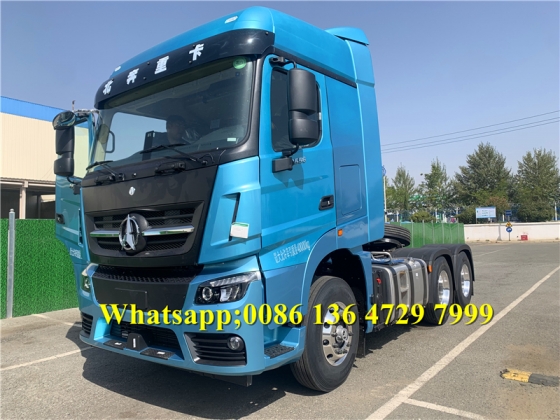

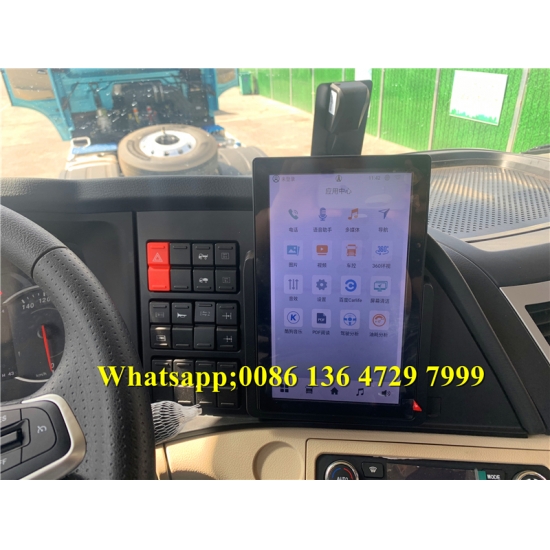

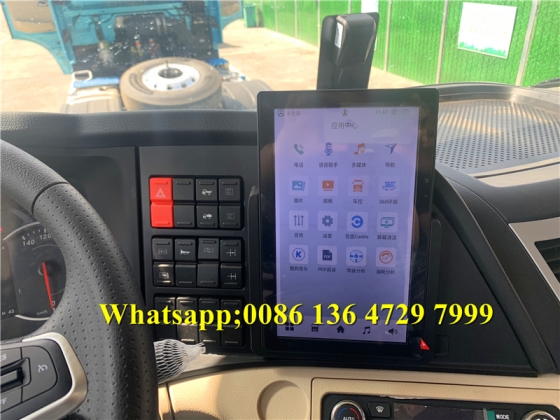

Cabin

V3 Long-high roof cabin with double sleepers
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;

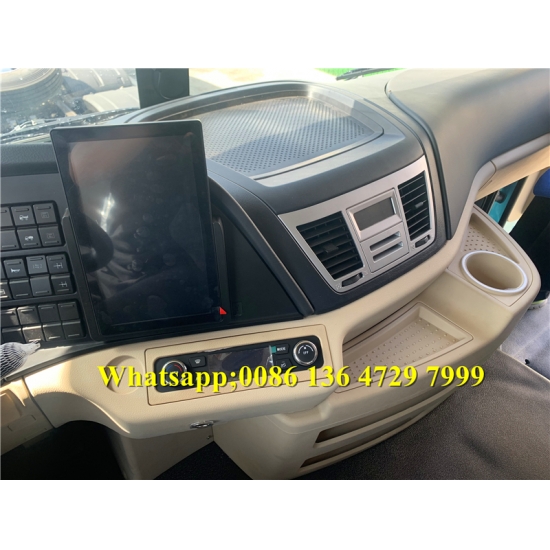

With inner A/C
