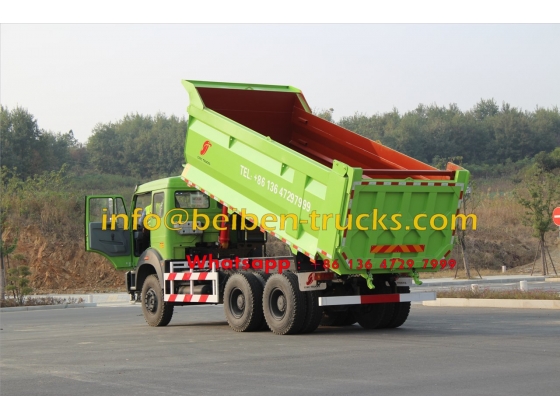

Good quality Beiben 310hp 6X4 10 wheel dump truck for hot sale
Product Details
Good quality Beiben 310hp 6X4 10 wheel dump truck for hot sale
Advantages
1.The competitive price compared with similar products.
2.Good product quality since it is the famous brand in China.
3.we can arrange our engineers to provide repaire service on abroad.
Packaging & Shipping
Nude or container
Product Description
| Model | 2531KY | |
| Drive type | 6X4 | |
| Weight | Complete kerb mass(kg) | 12200 |
| GVW(kg) | 25000 | |
| Dimensions | Max.lengh(mm) | 8290/8530 |
| Max.width(mm) | 2500 | |
| Max.height(mm) | 3464 | |
| Front/Rear overhang(Chassis) | 1410/1630,1410/1870 | |
| Wheel base (mm) | 3800+1450 | |
| Track width(mm) | 1995/1800/1800 | |
| Performance | Max.speed(km/h) | 80 |
| Approach/Departure angle(°) | 26/32 | |
| Engine | Brand | WEI CHAI |
| Model | WP10.290E32 | |
| Power(KW/HP) | 228/310 | |
| Max.Torque(N.M)/rpm | 1250N.M/1200-1600RPM | |
| Displacement(L) | 9.726 | |
| Emission Standards | Euro III | |
| Transmission | Brand | FAST |
| Model | 9JS150A | |
| Control type | Manual | |
| Gear shift | 9-forward and 1 reverse speeds | |
| Clutch | Type | Single plate,diaphragm spring |
| Diameter(mm) | φ430 | |
| Action | Mechanical type,hydraulic and pneumatic operation | |
| Braking | Service brake | Bra |
| Park brake | Potential springs pressing on middle and rear wheels | |
| Auxiliary | WEVB | |
| Option | ABS | |
| Steering | Type | ZJ120D |
| Chassis | Type | Fish belly, various width, various sections, side beam structure,Strengthened frame |
| Dimensions(mm) | 300X90X8+6+8 | |
| Suspension | the number of leaf spring | 10+13 |
| Axles | Front axle | 7500kg |
| Rear axle | 13000kg double reduction driving axles | |
| Ratio | 5.921 | |
| Tyres | Type(Standard) | 12.00R20 |
| Option | 12.00R20/12.00-20/11.00R20/12R22.5 | |
| Fueltank | Tank capacity(L) | 300 |
| Material | Iron | |
| Option | 400L(iron) | |
| Cab | ||
| NG80B shortcabin,2 persons. | ||
| other | Platform dimensions(mm) | 5800X2300X1100 |
