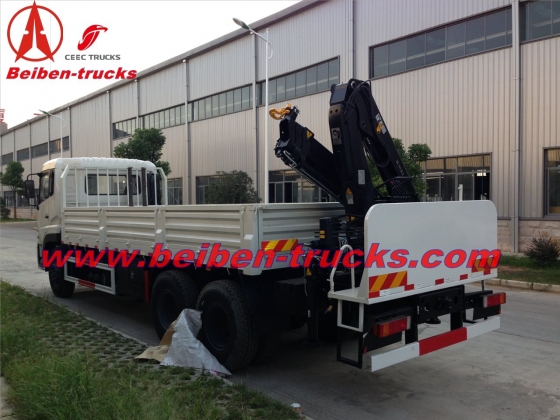

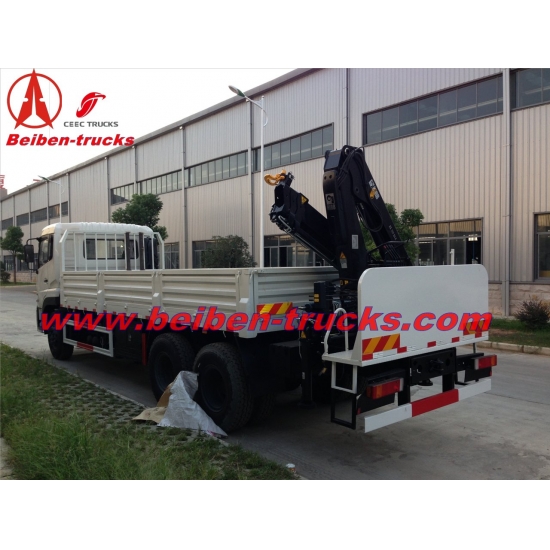

6.3 ton Beiben V3 truck mounted crane

Product Details

DurableHydraulic Beiben V3 6300kg Truck Mounted Crane , BeibenTruck Mounted KnuckleBoom Crane


Model

SQ6.3ZK3Q

Unit

Max Lifting Moment

13.23

t.m

Max Lifting Capacity

6300

kg

Recommend Power Needed At Recommend Oil Flow

18

kw

Max Oil Flow of Hydraulic System

25

L/min

Rated Pressure Of Hydraulic System

28

MPa

Oil Tank Capacity

90

L

Rotation Angle

(360°) All Rotation

°

Crane Weight

2226

kg

Installation Space

1050

mm

Applications:

It can be applied on most common Commercial Truck-mounted Cranes. Rangecovers light to medium crane. With small mounting size and weight to save yourpayload, minimizing loading and unloading time, is the best choice of truckmounted crane facilities.

Specifications:

Sales No.

1630PZ

Dimensionmm)

Long

8990


Wide

2500


High

3500

Wheel basemm

5500

Drive

4×2

Engine

Model

WP10.300N

Cabin

NG80B/ short cab

Clutchmm

Φ430

Front Axle

7.5T

Rear/Mid Axle

Model/speed radio

Double Reduction Driving Axle /5.263

Steering System

ZF8098

Braking System

Dual Circulation Air Brake System

Fuel TankL

400L

Frame/mm

317×70×8.5+7

Tire

12.00R20

Front/Rear Overhang

1410/2055

Transmission

Fuller 9JS135

Curb Weightkg)

7900

Max loading Weight(kg)

7950

Max Speedkm/h)

90
