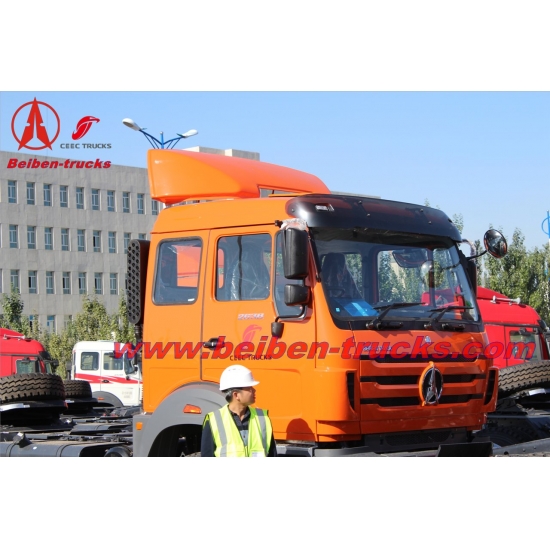

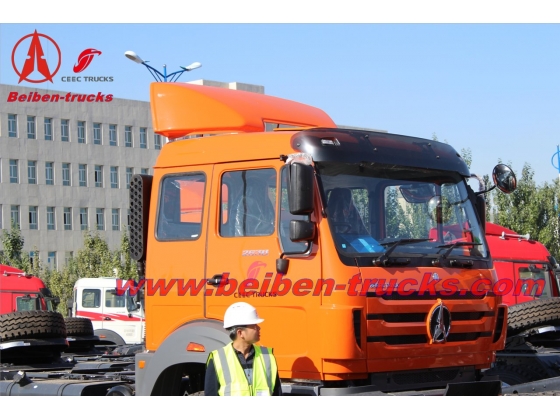

6x4 420hp ND42502B34J7 North Benz truck price
1.shortest delivery time
2.more competitive price
3.reliable and high efficient performance
4.good after-sales service
Product Description
Vehicle Specifications |
Model |
ND42502B34J7 2540SZ |
|
Traction 4X2,6X4,8X4 |
6X4 |
||
Power |
400HP |
||
Weight Parameter |
Complete Vehicle Kerb Mass(kg) |
8800 |
|
Maximum authorized total mass (kg) |
25000 |
||
Dimension Parameter |
External Dimensions(mm) |
Length (mm) |
7240 |
Width(mm) |
2500 |
||
Height(mm) |
3600,3940,3880,3540 3500,3200,3440,3140 |
||
wheelbase(mm) |
3450+1450 |
||
Performance Parameter |
Maximum Speed(km/h) |
90 |
|
Maximum Gradeability(%) |
35 |
||
Turning diameter(m) |
16 |
||
Recommended Configuration |
Engine |
Engine Type |
WP12.400E32 |
Rated power(kW)/Rev(r/min) |
294/2200 |
||
Horse power/(hp) |
400HP |
||
Torque(N*m)/Rev(r/min) |
2000/1300-1400 |
||
Transmission |
12JS200T |
||
gearbox |
12forward gears 2backward gears |
||
Clutch(mm) |
430 |
||
Axle |
Front Axle |
Benz-7.5t |
|
Rear Axle |
Benz-13t |
||
Axle load-bearing |
Front axle |
7.5t |
|
Front axle |
13t x2 |
||
Fuel Tank(L) |
400 |
||
Track(mm) |
1995/1800,1800 |
||
Front overhang/rear overhang(mm) |
1515/825 |
||
Type |
12.00R20 |
||
Cabin |
Sleeper |
two sleeper |
|
OTHER |
ABS |
optional |
|
COLOR |
optional |
||
Horse power |
290hp,310hp,340hp,380hp 400hp and 420hp is optional |
||
Type |
Nylon,radial and tubeless is optional |
||
