BEIBEN V3 315/80R22.5 tyres tractor head trucks for sale

Product Details

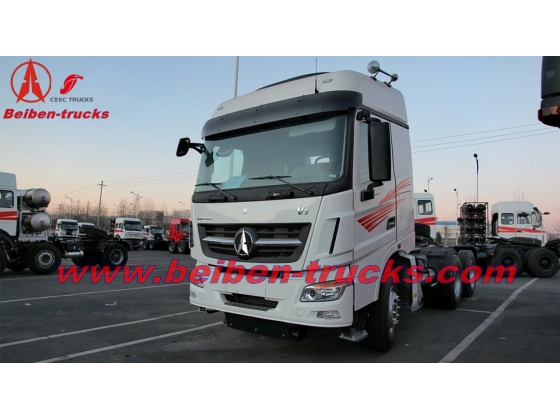

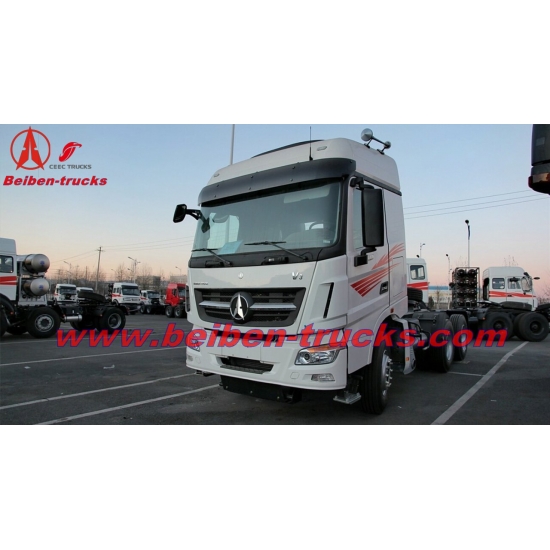

BEIBEN V3 tractor truck with 315/80R22.5 tyres





BEIBEN

TRACTOR   TRUCK

ND4251B34J7



Traction type

LHD&HD

Drive System

6×4

Cabin

V3 high   cab, air conditioner ,two sleepers

Engine

Brand

WEICHAI

Model

WD12.420 EuroII

Rated power

420hp

Engine displacement

11.596   liters

Gearbox

12JS200T

Clutch

430   Diaphragm type

Steering

TAS85/ZF8098

Axle

Front

BEIBEN   7.5T

Rear

BEIBEN   13T, double reduction axle, ratio:5.921

Max. running speed (km/h)

80

Tire

315/80R22.5

Spring

13/13

Fuel tank

400L

Kerb weight (kg)

8800

Total mass (kg)

25000

Wheel base (mm)

3450+1450

Overhang (mm) (front/rear)

1515/825

Track (mm) (front/rear)

1995/1800

Approach / departure angle(°)

16/60

Overall Dimensions(L*W*H)(mm)

7240×2500×3750

5th wheel

90#
