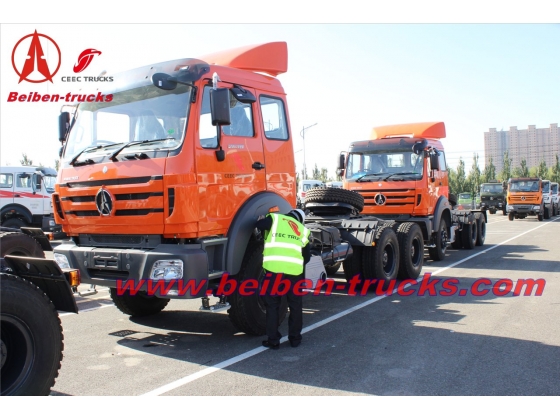

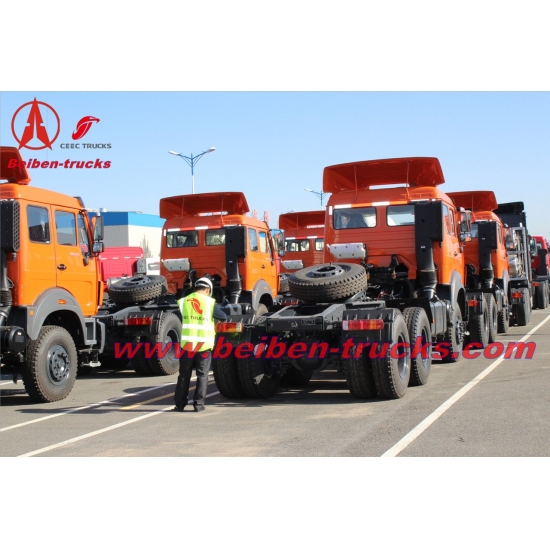

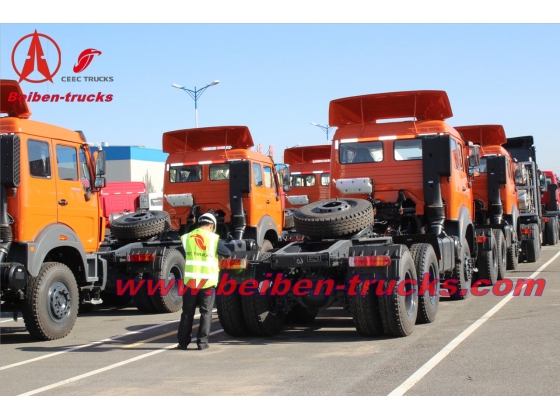

Bei ben truck head heavy tractor for quarry

Product Details

Beiben tractor truck 2642S with Benz technology for container trailer/lowbed trailer/dump trailer



Wheel base  (mm)      3 8 50+1450
Curb weight kg     9300
Engine Model

WP12.420E32 (WeiChai Engine Based on Styre technology,

made in China),water-cooled,four strokes,6 cylinders straight in line,

turbocharged, directly injection

Displacement     L 12/Diesel
Power, max   kw/rpm 308/2200
Emission  EURO3
Fuel tanker capacity   L 300
Clutch  Model

φ430, Single dry frictional disc,Hydraulic

boosting

Gearbox  Model 12JS200T
Brake system    Service brake

Brake gap can be adjusted automatically,

double circulation air

brake system

Assistant brake Engine exhaust brake
Park brake

Potential springs pressing on middle and

rear wheels

Steering system   Model ZF8098
Frame Fish belly shape, variable width, variable sections
Front axle (Mercedes Benz  Technology) Double-shoe pneumatic brake, non-driving steering axle
Middle and Rear axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor,

double reduction driving axle

Tyre     12.00R20
Electrical system Battery 2X12V/135Ah
Generator 28V-35A
Starter 5.4Kw/24V
Cab Long cab, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure.
The Fifth wheel   50/90 #single (JOST)
