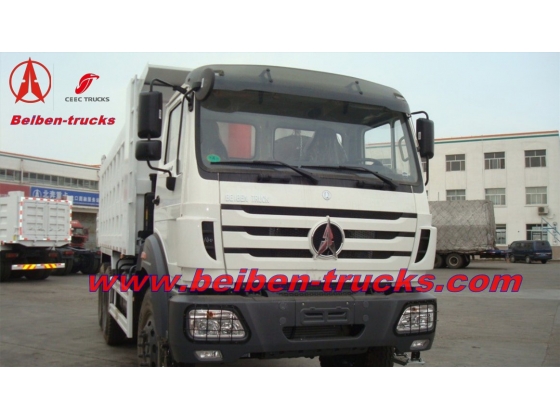

Beiben 10 wheel dump truck 30ton for off road use

Product Details

Specification of Beiben 6x4 DUMP TRUCK FOR off road


Sales No. 2634GKY
Dimension(mm) Long 8290
  Wide 2500
  High 3410
Wheel base(mm) 3800+1450
Drive 6×4
Engine Model WP10.380E32
Cabin NG80B/short cab
Clutch(mm) Φ430
Front Axle 7.5T
Rear/Mid Axle Model/speed radio Double Reduction Driving Axle /5.263
Steering System ZF8098
Braking System Dual Circulation Air Brake System
Fuel Tank(L) 400L
Frame/mm 317×70×8.5+7+8mm
Tire 315/80R22.5
Front/Rear Overhang 1410/1630
Transmission Fuller 9JS180
Curb Weight(kg) 12470
Up Body Volume(m³) 5.8mx2.3mx1.5m
Max Speed(km/h) 90
