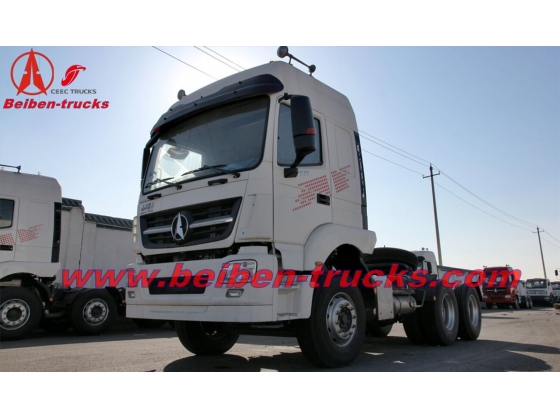

Beiben V3 6x4 380hp North Benz Truck Tractor

Product Details

Beiben V3 6x4 380hp North Benz Truck Tractor  manufacturer





BEIBEN

V3

TRACTOR   TRUCK

ND42501B34J7



Traction type

RHD

Drive System

6×4

Cabin

V3 high   cab, air conditioner ,two sleepers

Engine

Brand

WEICHAI

Model

WP10.380E32 EURIII

Rated power

380hp

Engine displacement

9.726   liters

Gearbox

12JS200T

Clutch

430   Diaphragm type

Steering

TAS85

Axle

Front

BEIBEN   7.5T

Rear

BEIBEN   13T, double reduction axle, ratio:5.921

Max. running speed (km/h)

80

Tire

12.00R20

Spring

13/13

Fuel tank

400L

Kerb weight (kg)

8800

Total mass (kg)

25000

Wheel base (mm)

3450+1450

Overhang (mm) (front/rear)

1515/825

Track (mm) (front/rear)

1995/1800

Approach / departure angle(°)

16/60

Overall Dimensions(L*W*H)(mm)

7240×2500×3750

5th wheel

90#
