Products

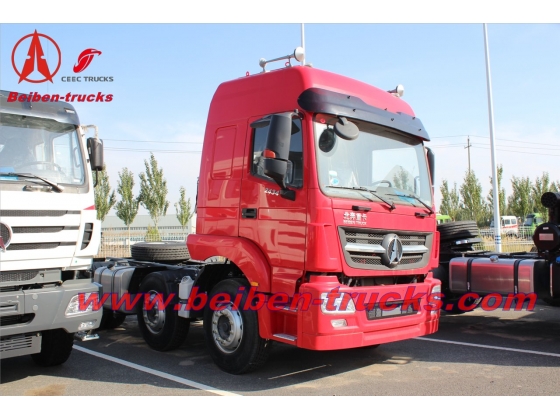

Beiben V3 6x4 Tow Tractor new truck prices With WEICHAI Engine
Product Details
Beiben V3 6x4 Tow Tractor new truck prices With WEICHAI Engine
1.shortest delivery time
2.more competitive price
3.reliable and high efficient performance
4.good after-sales service
Product Description
| Cab | middle length cab, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure. Inner A/C | ||||
| Kerb weight | 8800kg | ||||
| Gross Vehicle Weight | 25000kg | ||||
| Wheelbase(mm) | 3300+1350 | ||||
| Engine | Brand: | WEICHAI | |||
| Model: | WP10.336 | WP10.375 | WP12.375 | WP10.380E32 | |
| Power (kw/hp): | 247/336 | 276/375 | 276/375 | 280/380 | |
| Max torque(N.m/rpm): | 1250/1200-1600 | 1460/1200-1600 | 1630/1200-1200-1500 | 1600/1800 | |
| Displacement (L): | 9.726 | 9.726 | 11.596 | 9.726 | |
| Transmission | Brand:FAST GEAR Model:9JS150A 9-forward &1-reverse gears | ||||
| Clutch | Single dry frictional disc,Hydraulic boosting | ||||
| Steering | Model:ZJ120D | ||||
| Brake | Service brake:Brake gap can be adjusted automatically, double circulation air brake system Assistant brake:Engine exhaust brake Park brake:Potential springs pressing on middle and rear wheels | ||||
| Frame | Fish belly shape,variable width, variable section side beam structure | ||||
| Front axle (Mercedes Benz Technology) | 7.5 ton non-driving steering axle | ||||
| Middle and Rear axle (Mercedes Benz Technology) | 485Single reduction driving axle | ||||
| Tyre | 12.00R20 | ||||
| Fuel tanker capacity L | 400 | ||||
| Speed Ratio | 4.625 | ||||
| Leaf spring quantity | 3/4 | ||||
