Beiben V3 6x4 tractor truck head With WEICHAI Engine

Product Details

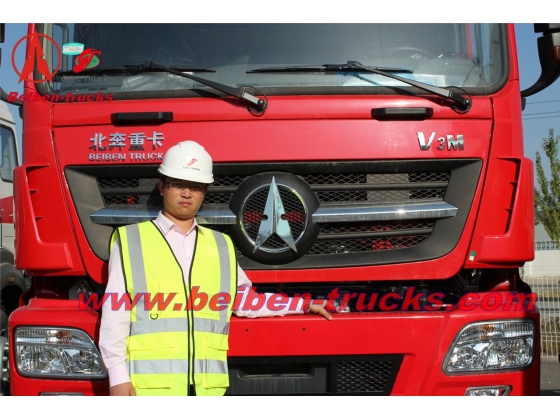

Beiben V3 6x4 tractor truck head With WEICHAI Engine



Product Description


Cab middle length cab, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure. Inner A/C
Kerb weight 8800kg
Gross Vehicle Weight 25000kg
Wheelbase(mm) 3300+1350
Engine Brand:      WEICHAI
Model: WP10.336 WP10.375 WP12.375 WP10.380E32
Power (kw/hp): 247/336 276/375 276/375 280/380
Max torque(N.m/rpm): 1250/1200-1600 1460/1200-1600 1630/1200-1200-1500 1600/1800
  Displacement (L): 9.726 9.726 11.596 9.726
Transmission Brand:FAST GEAR Model:9JS150A 9-forward &1-reverse gears
Clutch Single dry frictional disc,Hydraulic boosting
Steering Model:ZJ120D
Brake Service brake:Brake gap can be adjusted automatically, double circulation air brake system   Assistant brake:Engine exhaust brake Park brake:Potential springs pressing on middle and rear wheels
Frame Fish belly shape,variable width, variable section side beam structure
Front axle (Mercedes Benz Technology) 7.5 ton non-driving steering axle
Middle and Rear axle (Mercedes Benz Technology) 485Single reduction driving axle
Tyre 12.00R20
Fuel tanker capacity L 400
Speed Ratio 4.625
Leaf spring quantity 3/4
