Beiben power star truck 420hp tractor trucks

Product Details

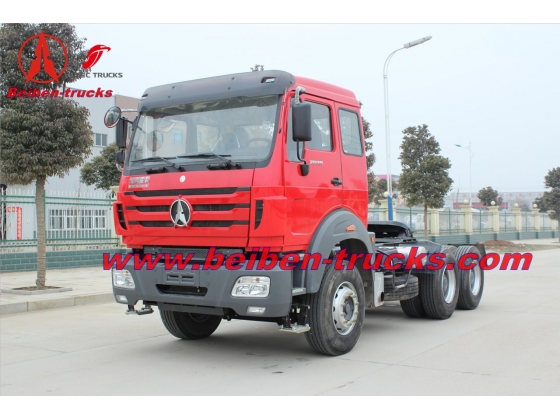

Beiben power star truck 420hp tractor trucks



Mercedes Benz technology

Engine: WEICHAI

Driving type: 6x4 double reduction driving axle



Model

ND4257B34J

Traction type

LHD/RHD

Drive System

6×4

Cabin

NG80   flat cabin, air conditioner ,one sleeper

Engine

Brand

WEICHAI

Model

WP10.420E32 EGR

Rated power

420hp

Engine displacement

9.726   liters

Gearbox

12JS200T

Clutch

430   Diaphragm type

Steering

TAS85

Axle

Front

BEIBEN   7.5T

Rear

BEIBEN 13T, double reduction axle, ratio:5.921

Max. running speed (km/h)

85

Tire

12.00R20

Spring

13/13

Fuel tank

400L

Kerb weight (kg)

9200

Total mass (kg)

25000

Wheel base (mm)

3450+1450

Overhang (mm) (front/rear)

1410/825

Track (mm) (front/rear)

1995/1800

Approach / departure angle(°)

26/64

Overall Dimensions(L*W*H)(mm)

7135×2495×3180

5th wheel

90#
