Beiben tractor truck&mercedes technology 6x4 Beiben Truck

Product Details

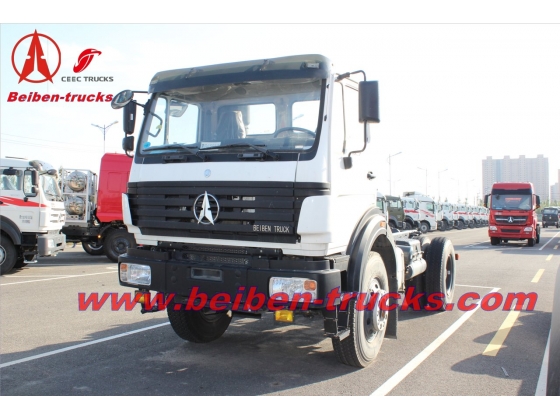

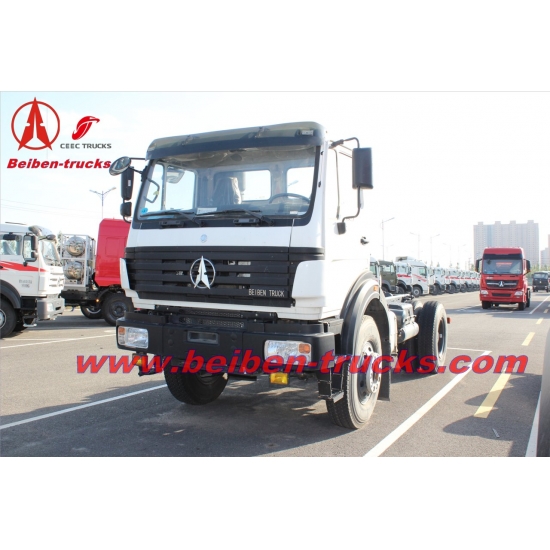

Beiben tractor truck&mercedes technology 6x4 Beiben Truck



Beiben Tractor Truck 6×4(Based on Benz Design platform)



BEIBEN

TRACTOR   TRUCK

ND4258B34J



Traction type

LHD

Drive System

6×4

Cabin

NG80 flat   cabin, air conditioner ,one sleeper

Engine

Brand

WEICHAI

Model

WP12.420E32 EuroIII

Rated power

420hp

Engine displacement

9.726   liters

Gearbox

12JS200T

Clutch

430   Diaphragm type

Steering

TAS85

Axle

Front

BEIBEN   7.5T

Rear

BEIBEN   13T, double reduction axle, ratio:5.921

Max. running speed (km/h)

85

Tire

12.00R20

Spring

13/13

Fuel tank

400L

Kerb weight (kg)

9200

Total mass (kg)

25000

Wheel base (mm)

3450+1450

Overhang (mm) (front/rear)

1410/625

Track (mm) (front/rear)

1995/1800

Approach / departure angle(°)

26/64

Overall Dimensions(L*W*H)(mm)

6935×2495×3180

5th wheel

90#
