Benz copy BEIBEN V3 10 wheel tractor head trucks

Product Details

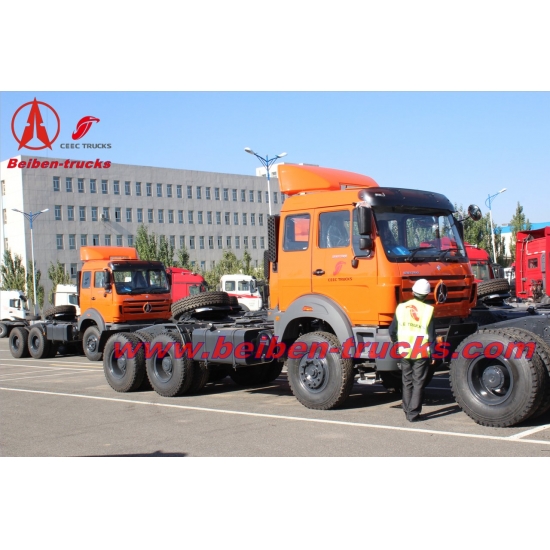

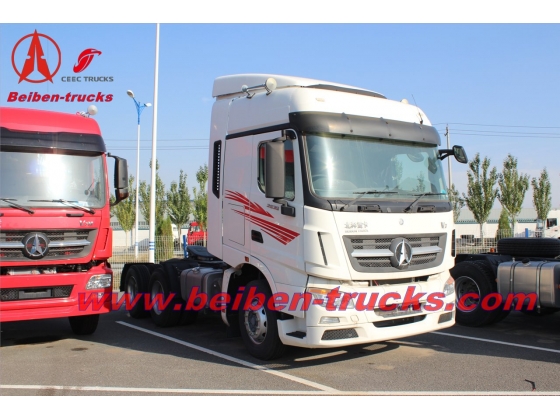

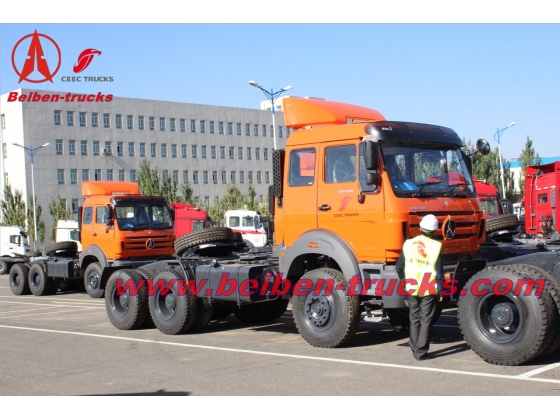

Benz copy BEIBEN V3 10 wheel tractor head trucks



For HIGHLAND BEIBEN V3

Weichai 380hp,420hp Big Trailer Truck Head

Engine: WEICHAI Driving

type: 6x4



Traction type

6×4

Drive System

LHD,RHD

Cabin

V3 high   cab, air conditioner ,two sleepers

Engine

Brand

WEICHAI

Model

WD12.420 EuroII

Rated power

420hp

Engine displacement

11.596   liters

Gearbox

12JS200T

Clutch

430   Diaphragm type

Steering

TAS85   power steering

Axle

Front

BEIBEN   7.5T

Rear

BEIBEN   13T, double reduction axle, ratio:5.921

Max. running speed (km/h)

85

Tire

12.00R20

Spring

13/13

Fuel tank

400L

Kerb weight (kg)

8800

Total mass (kg)

25000

Wheel base (mm)

3450+1450

Overhang (mm) (front/rear)

1515/825

Track (mm) (front/rear)

1995/1800

Approach / departure angle(°)

16/60

Overall Dimensions(L*W*H)(mm)

7240×2500×3750

5th wheel

90#
