Brand new North benz tractor head heavy truck

Product Details

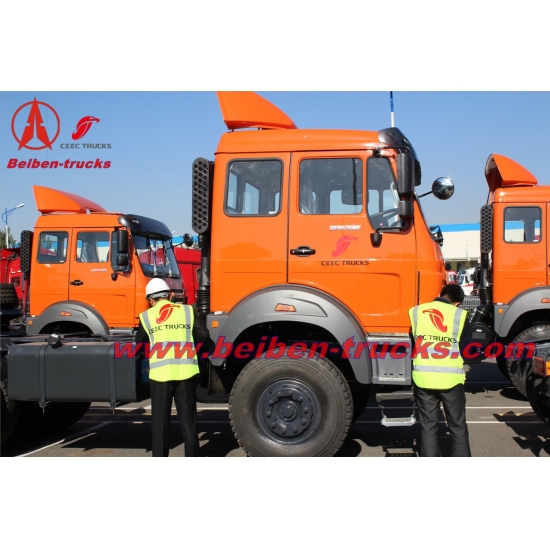

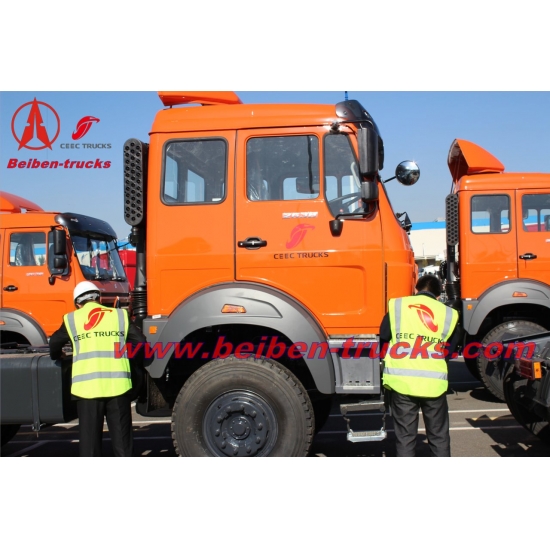

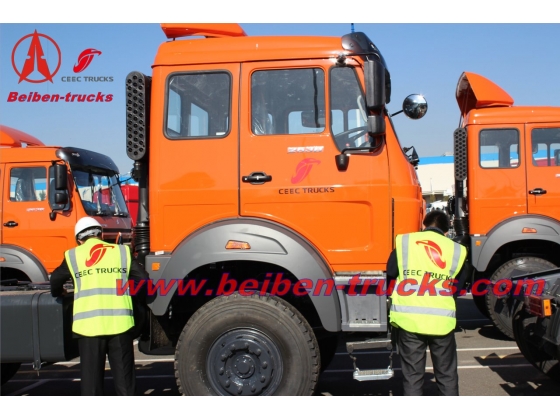

NORTH BENZ TRACTOR HEAD 4X2 BEIBEN HEAVY TRUCK



Tractor Truck

Driving type: 4X2 Based on Benz Design platform

Cabin

BENZ technology cab, single sleeper, Manual Window, with air-conditioning

Engine

Diesel, 4-stoke Direct injection,6-cylinder in line, radiator, Turbo-charging.

Model:

WP10, 12

European technology WEICHAI



MAX Horse power:

340-420HP

Gear box



Applied American technology



Model:

FAST (Fuller technology)



Speed:

9speed,1reverse

Axle(front/rear)

Front axle

Benz technology 5.5ton front axle

Tandem

Benz strengthened axle (punching-welding axle housing)

(Driving axle)

single reduction driving axle, inter-wheel differential lock

Clutch

D430 diaphragm type

Brake

Service brake: Double circuit pneumatic brake



Parking brake: Spring-Power drum brake





Steering

TAS85, driver sit at the left hand side (right hand is optional)

Frame

300mmx80mmx 8mm (inner: 275mm*70mm*5 mm )

Tyre

6+1 spare tyre with wheel



12.00-20 nylon tire

Suspension system: Leaf spring type



Front/Rear

9/13

Overall dimension(mm): 5995x2500x3180(Length x width x height)

Wheelbase

3500mm

Track:





Front/Rear

2045/1800



Approach/Departure angle

16/40



Front /Rear overhang

1410/1085



Max speed

110km/h

Kerb weight:

6800kg

Diesel tank

300L
