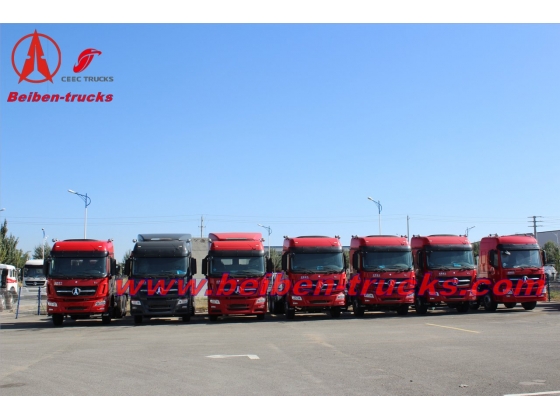

High Quality 440HP Beiben V3 6x4 truck head

Product Details

High Quality 440HP Beiben V3 6x4 truck head


Model

ND42500B34J7

Traction type

6X4

Driving type

LHD

Driver's cab

Long high cabin, double sleeper bunk, A/C

Dimensions in (mm)

Wheel base(mm): 3450+1450



Overall size(mm): 7240x2500x3600

Engine

Maker: Weichai



Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & intercooling



Engine model: WP12.440(440hp)



Emission Standard: EURO3



Maximum output: 1920NM /1200-1500 rpm



Number of cylinder:6



Displacement: 9.726L

Clutch

430mm, hydraulically operating with air assistance

Transmission

Brand: FAST

Model: 12JS200T(12 speeds)

Steering

TAS85

Front Axle

Benz technology 7.5ton

Rear Axle

Benz 13ton double reduction driving axle,Ratio:4.2

Types

12.00R20 Radial tyre

No. of tyre

10+1(spare)

Fifth wheel

3.5’(90#)

Fuel tank(L)

400 Aluminium

Electrics

Operating voltage: 24V, negative grounded

Weight in kg

Kerb weight  8800kg



Total mass   25000kg

Performance

Maximum driving speed(km/h) 110
