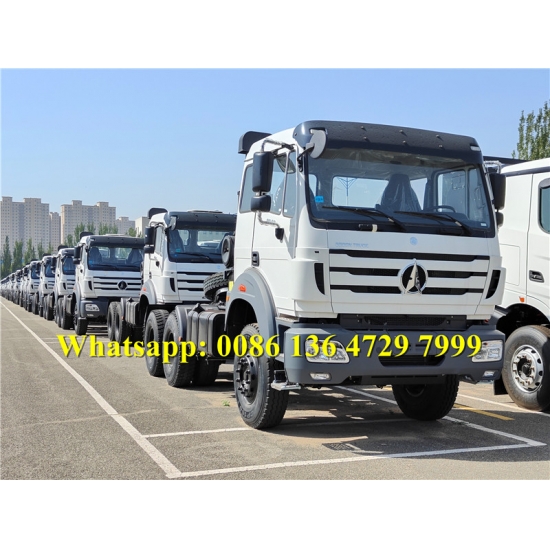

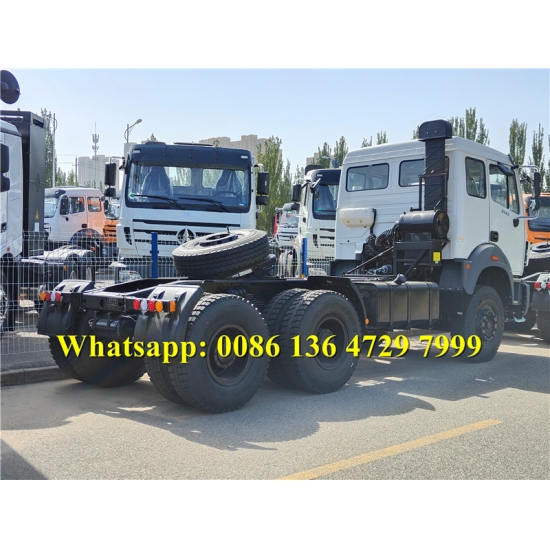

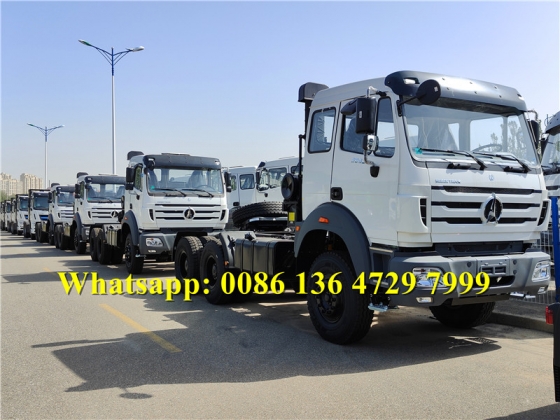

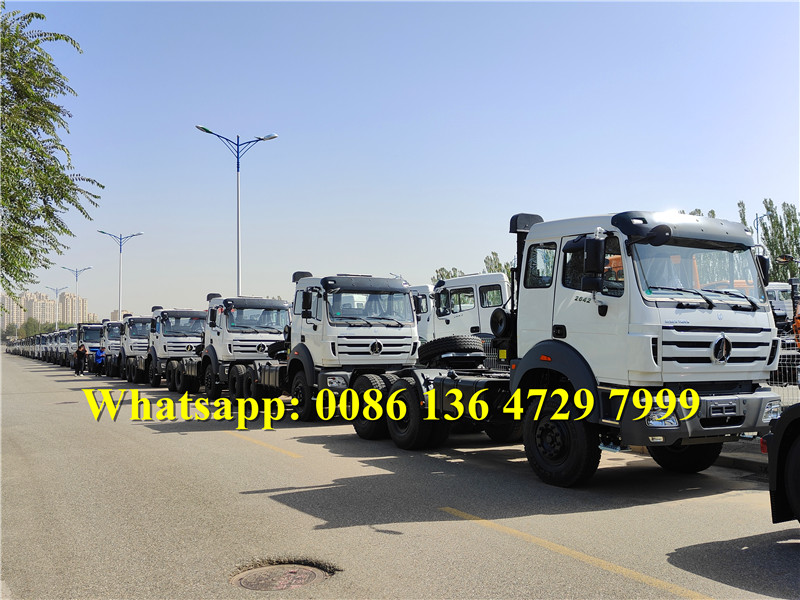

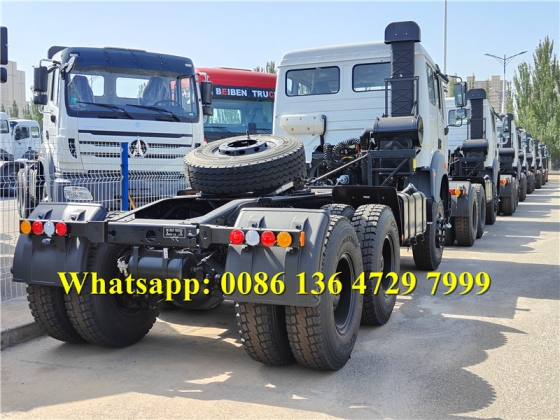

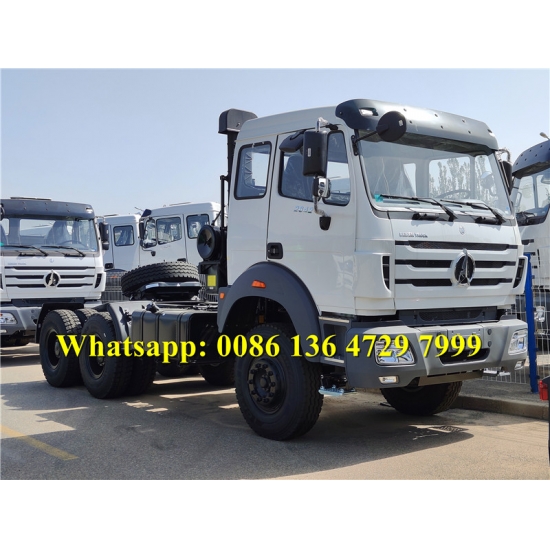

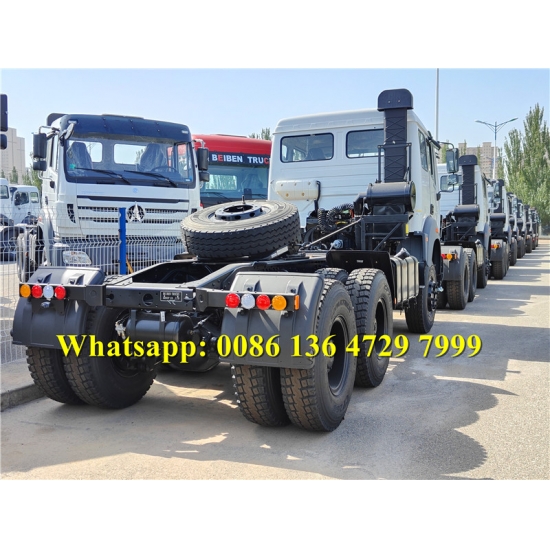

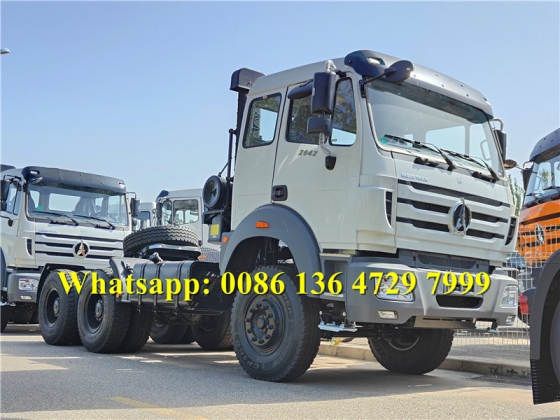

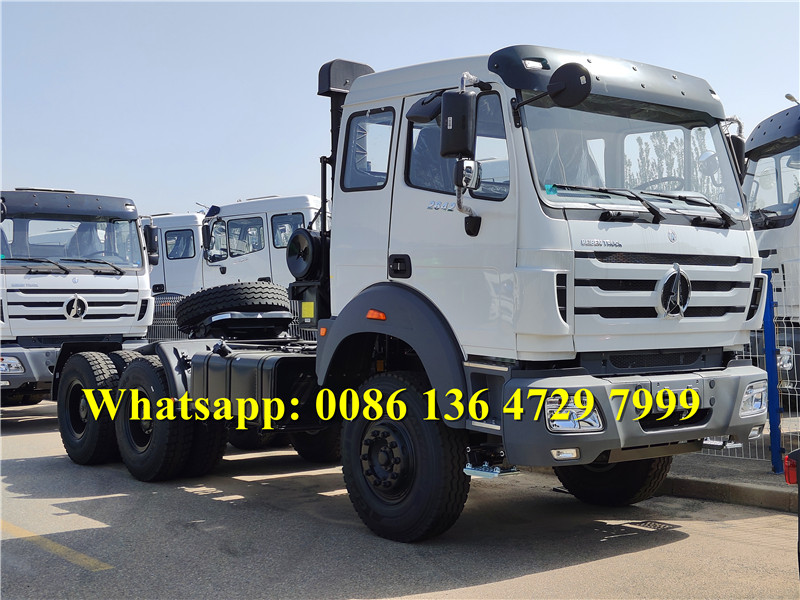

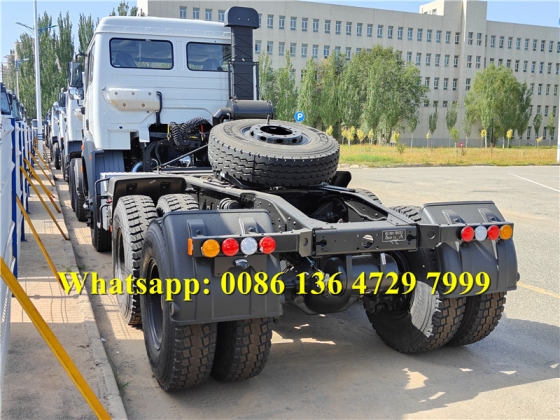

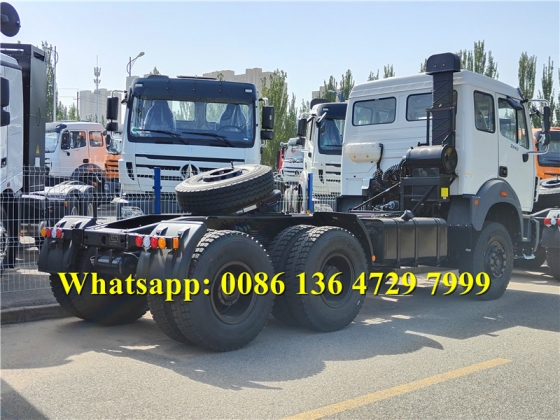

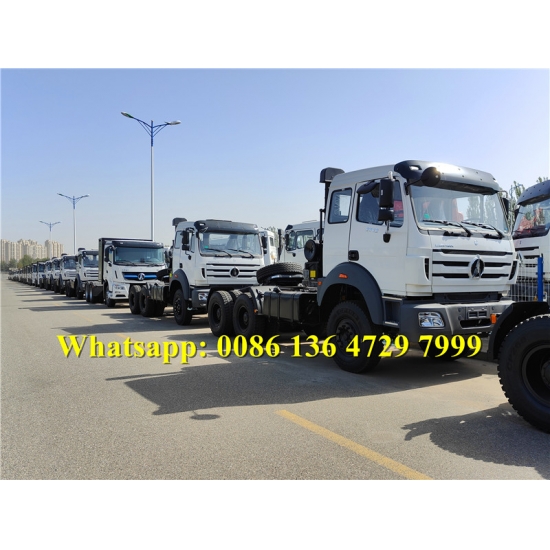

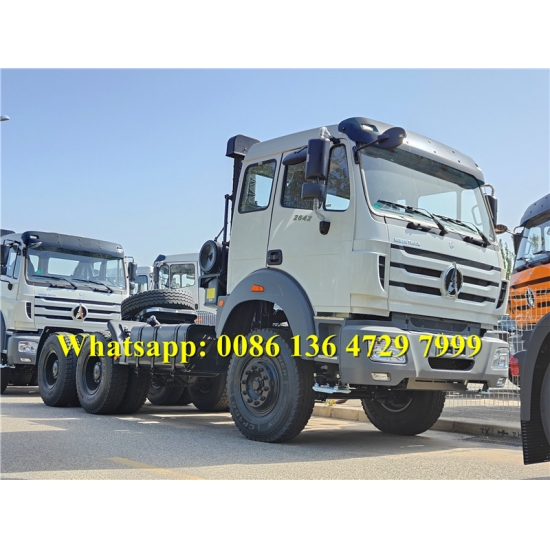

Mongolia beiben 2642 tractor truck
Mongolia beiben 2642 tractor truck
Beiben 2642 tractor trucks, also called as beiben 2642 towing truck head, beiben 2642 prime mover, beiben 2642 trailer truck, beiben 2642 trailer head.
Beiben 2542SZ /6×4/3450+1450/Long Cab/LHD |
||
Dimension |
7136*2495*3180mm |
|
Approaching angle/Departure angle |
26/64° |
|
Overhang(front/rear) |
1410/825mm |
|
Wheel base |
3450+1450mm |
|
Max speed |
90km/h |
|
Curb weight |
9200kg |
|
Max towing weight |
36900kg |
|
Max loading on fifth wheel, Permitted(kg) |
15670kg |
|
Slope climbing capability |
Max.40% |
|
Engine |
Model |
WP12.420E32,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection |
Displacement |
9.726L/Diesel |
|
Stroke |
126/130mm |
|
Max. power |
308/2200 (kw/rpm) |
|
Max.torque |
1460/1200-1600(Nm/rpm) |
|
Emission stantard |
EuroⅢ |
|

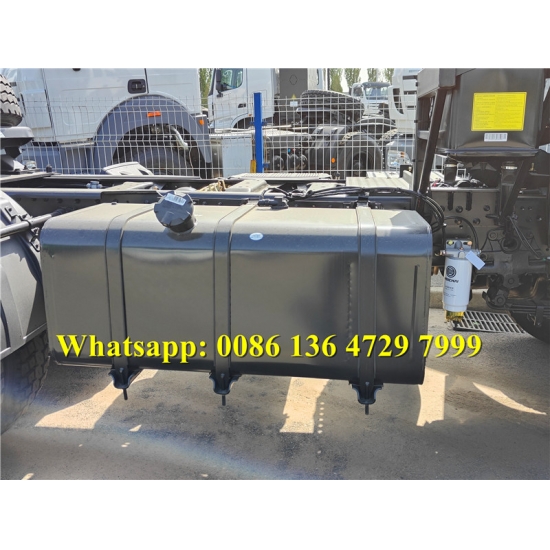

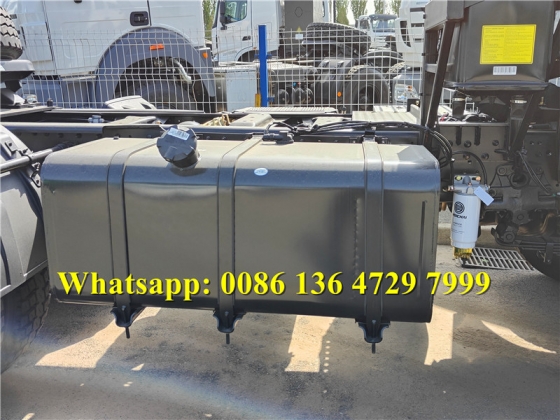

Fuel tanker capacity |
400L |
|
Clutch |
∮430, Single dry frictional disc,Hydraulic boosting |
|
Gearbox |
12JS200T, mechanism,12forward gears,2 reverse gear, manual operated |
|
Gear ratio of gear box |
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33 |
|

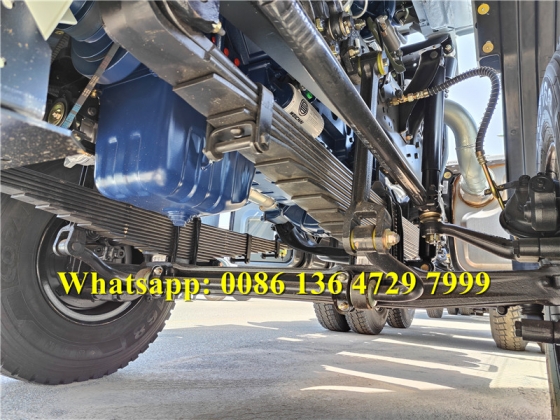

Suspension system |

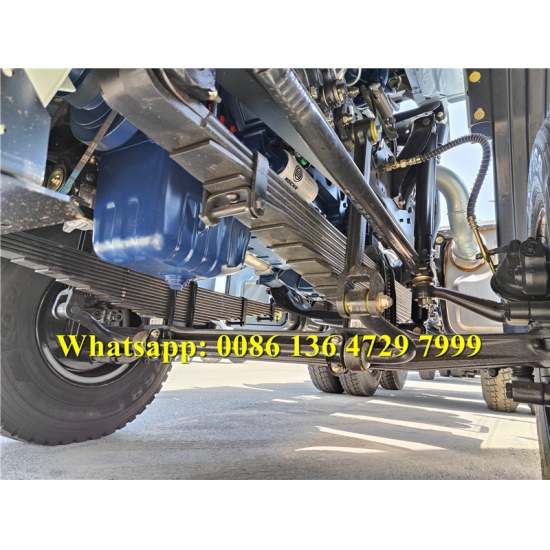

Front |
Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 13pcs |

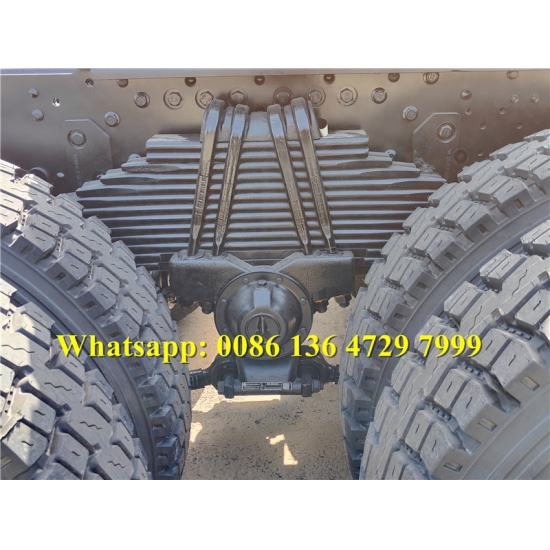

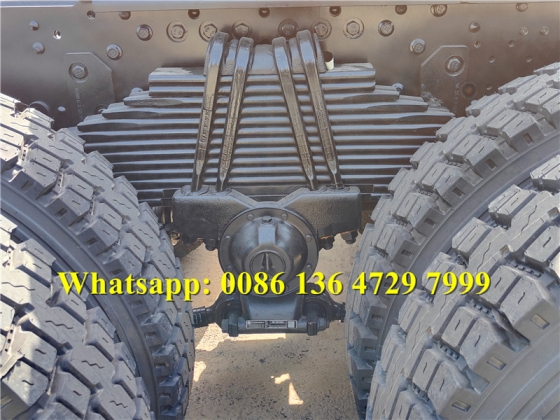

Rear |
Non-free standing stablization spring, balance suspension system, 13pcs |
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
Assistant brake |
Engine exhaust brake |
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
Steering system |
TAS85,whole circulation in ball, hydraulic booster |
|
Frame |
Fish belly shape, variable width, variable sections |
|

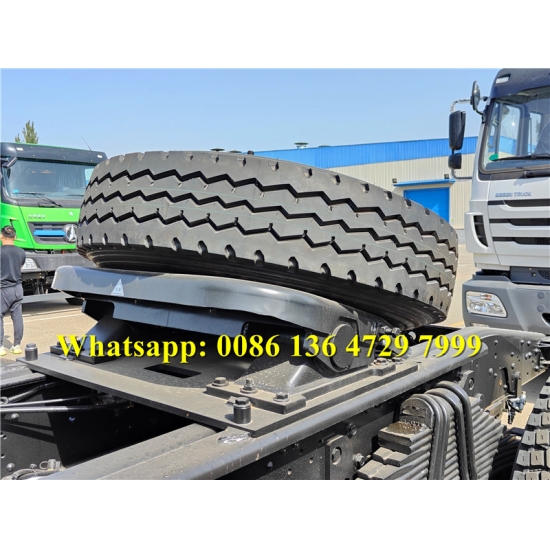

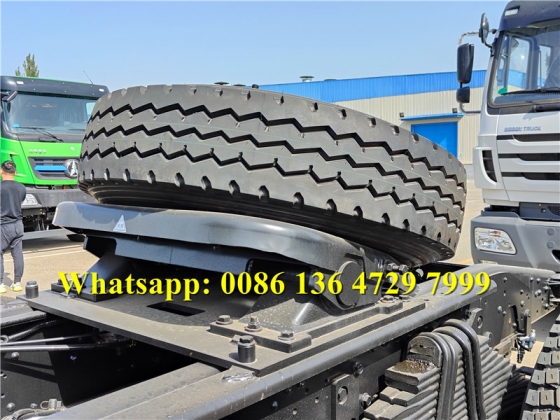

Model |
JOST ∮90 single direction |
|
Height of fifth wheel(mm) (unload) |
1410 |
|
Radius of front gap (mm) |
2300 |
|
Radius of rear slew (mm) |
2600 |
|
Front axle (Mercedes Technology) |
Double-shoe pneumatic brake, non-driving steering axle |
|
Middle and Rear axle (Mercedes Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle |
|
Tyre |
12.00-R20 |
|
Electrical system |
Battery |
2X12V/135Ah |
Generator |
28V-35A |
|
Starter |
5.4Kw/24V |
|
Cabin |
NG80B
Long-Flat roof cabin with single sleeper |
Mongolia beiben 2642 tractor truck supplier, more than 25 years on exporting beiben trucks.
