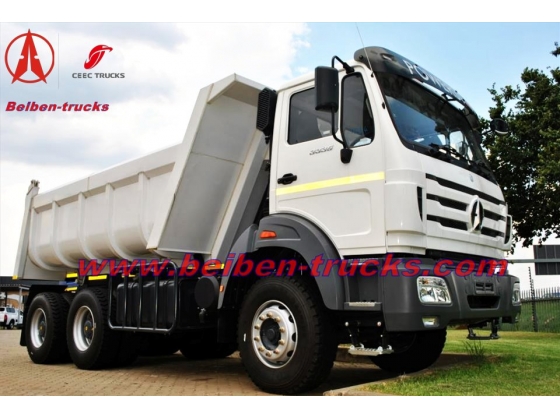

NORTH BENZ tipper 10 wheeler dump truck

Product Details

NORTH BENZ DUMP TRUCK WITH HIGH CAPACITY FOR OFF ROAD



Sales No. 2634GKY
Dimension(mm) Long 8250
  Wide 2500
  High 3690
Wheel base(mm) 3800+1450
Drive 6×4
Engine Model WP10.340E32
Cabin NG80B/Long cab
Clutch(mm) Φ430
Front Axle 7.5T
Rear/Mid Axle Model/speed radio Double Reduction Driving Axle /5.263
Steering System ZF8098
Braking System Dual Circulation Air Brake System
Fuel Tank(L) 400L
Frame/mm 317×70×8.5+7+8mm
Tire 12.00R20
Front/Rear Overhang 1410/1590
Transmission Fuller 9JS150TA
Curb Weight(kg) 12470
Up Body Volume(m³) 5.6mx2.3mx1.3m
Max Speed(km/h) 90

PreviousBeiben 6x4 mining tipper/dump truck for mining

NextBeiben NG80 6x4 dump truck 10 wheel tipper
