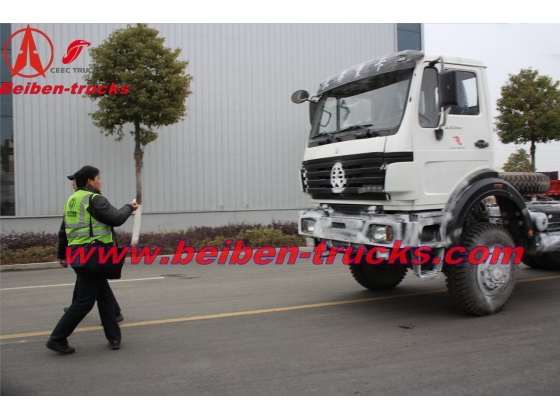

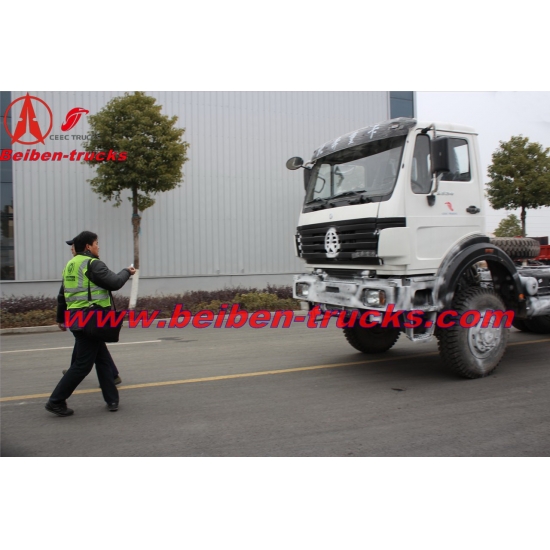

North-Benz 6x4 type Mercedes-benz Technology tractor truck
1.SInce 1980s
2.Mercedes-Benz Technology
3.Weichai/Cummins Engine
4.ZF Steering
Wheel base (mm) |
3850+1450 |
||||
Curb weight kg |
9300 |
||||
Engine |
Model |
WD12.420(WeiChai Engine Based on Styre technology, made in China),water-cooled,four strokes,6 cylinders straight in line,turbocharged, directly injection |
|||
Displacement L |
12/Diesel |
||||
Power, max kw/rpm |
420Hp 309/2200 |
||||
Emission |
EUROII |
||||
Fuel tanker capacity L |
300 |
||||
Clutch |
Model |
φ430, Single dry frictional disc,Hydraulic boosting |
|||
Gearbox |
Model |
Fuller 9JS180 |
|||
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|||
Assistant brake |
Engine exhaust brake |
||||
Park brake |
Potential springs pressing on middle and rear wheels |
||||
Steering system |
Model |
ZF8098 |
|||
Frame |
Fish belly shape, variable width, variable sections |
||||
Front axle (Mercedes Benz Technology) |
Mercedes-Benz technology double-shoe pneumatic brake, non-driving steering axle |
||||
Middle and Rear axle (Mercedes Benz Technology) |
Mercedes-Benz double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle |
||||
Tyre |
12.00R20 |
||||
Electrical system |
Battery |
2X12V/135Ah |
|||
Generator |
28V-35A |
||||
Starter |
5.4Kw/24V |
||||
Cab |
Long cab, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure. |
||||
The Fifth wheel |
90#single (JOST) |
