North Benz/Beiben 15ton dump truck 2527K

Product Details

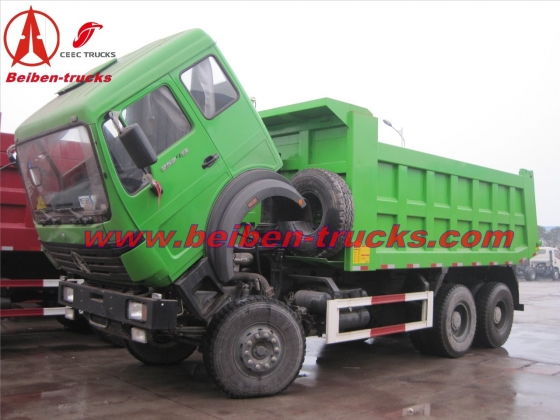

North Benz/Beiben tipper truck 2527K 15ton load capacity


2527KY /6×4/4450+1450/short Cab/LHD
Dimension 8100*2500*3430mm
Upper body inner dimension 6500x2300x1050 sand body, Hyva hydralic lifting system,thickness: bottom 8mm, side 6mm
Approaching angle/Departure angle 26/45°
Overhang(front/rear) 1410/1800mm
Wheel base 4450+1450mm
Max speed 85km/h
Curb weight 12190kg
Loading capacity 12680kg
Slope climbing capability Max.40%
Engine Model WP10.270,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection
Displacement 9.726L/Diesel
Stroke 126/130mm
Max. power 198/2200 (kw/rpm)
Max.torque 1350/1200-1600(Nm/rpm)
Emission stantard EuroⅢ
Fuel tanker capacity 300L
Clutch 430, Single dry frictional disc,Hydraulic boosting
Gearbox 9JS150A, mechanism,9 forward gears,1 reverse gear, manual operated,
Gear ratio of gear box 12.57/8.39/6.15/4.59/3.4/2.47/1.81/1.35/1.00 R:13.14
Suspension system Front Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs
Rear Non-free standing stablization spring, balance suspension system, 13pcs
Brake system Service brake Brake gap can be adjusted automatically, double circulation air brake system
Assistant brake Engine exhaust brake
Park brake Potential springs pressing on middle and rear wheels
Steering system ZJ120D,whole circulation in ball, hydraulic booster
Frame Strengthened Streight beam
Front axle (Mercedes Technology) Double-shoe pneumatic brake, non-driving steering axle
Middle and Rear axle (Mercedes Technology) Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
Tyre 12.00R20 Radial
Electrical system Battery 2X12V/135Ah
Generator 28V-35A
Starter 5.4Kw/24V
Cabin

NG80B cabin

Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back with arm seat for driver, high back seat for co-driver; With inner A/C
