North Benz off road tractor truck 380hp beiben truck head

Product Details

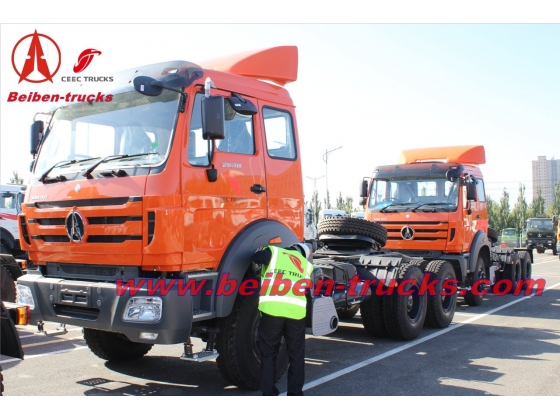

NORTH BENZ OFF ROAD TRACTOR TRUCK



380hp 6x4 Beiben Tractor Truck

Model

ND42509B32J

Driving type

6 x 4

Total mass (kg)

25000

Curb weight (kg)

8800

Rated towing weight (kg)

40000

Wheelbase (mm)

3200+1350

Outline dimensions (L*W*H)(mm)

7060x2500x3700

Max. Speed (km/h)

80

Max. Gradeability (%)

35

Fuel consumption under certain conditions (L/100km)

30

Engine model

WP10.380E32

Engine make

Weichai power

Engine power (kw)

309kw (420hp)

Clutch

Single plate large diaphragm spring Φ430mm clutch

Transmission

Manual , 12 speed

Number of steel plate spring (front / rear)

Left 3 right 4 / Left 9 right 13

Steering gear

Chinese brand

Tire

12.00R20 315/80R22.5

Emission standard

Euro 2
