beiben V3 Heavy Duty 6x4 truck tractor

Product Details

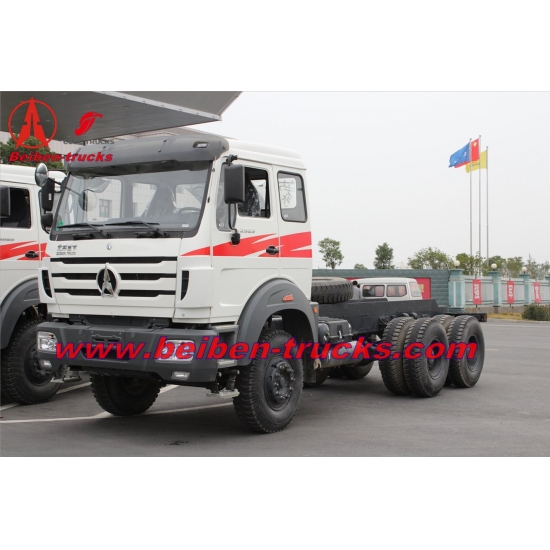

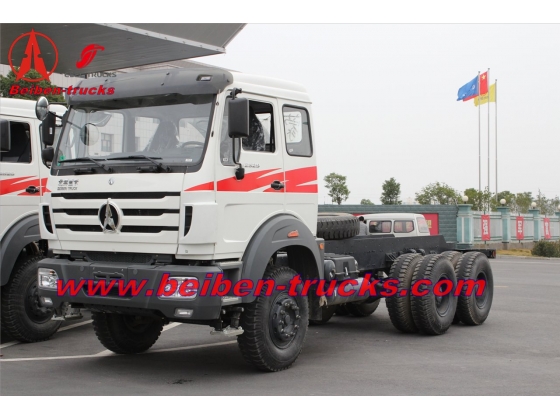

Beiben V3 Heavy Duty 6x4  truck tractor
Product Description




Vehicle Specifications

Model

ND42502B34J7 2540SZ

Traction 4X2,6X4,8X4

6X4

Power

480HP

Weight Parameter

Complete Vehicle Kerb Mass(kg)

8800

Maximum authorized total mass (kg)

25000

Dimension Parameter

External Dimensions(mm)

Length (mm)

7240

Width(mm)

2500

Height(mm)

3600,3940,3880,3540

3500,3200,3440,3140

wheelbase(mm)

3450+1450

Performance Parameter

Maximum Speed(km/h)

90

Maximum Gradeability(%)

35

Turning diameter(m)

16

Recommended Configuration

Engine

Engine Type

WP12.400E32

Rated power(kW)/Rev(r/min)

294/2200

Horse power/(hp)

400HP

Torque(N*m)/Rev(r/min)

2000/1300-1400

Transmission

12JS200T

gearbox

12forward gears

2backward gears

Clutch(mm)

430

Axle

Front Axle

Benz-7.5t

Rear Axle

Benz-13t

Axle load-bearing

Front axle

7.5t

Front axle

13t  x2

Fuel Tank(L)

400

Track(mm)

1995/1800,1800

Front overhang/rear overhang(mm)

1515/825

Type

12.00R20

Cabin

Sleeper

two sleeper

OTHER

ABS

 optional

COLOR

 optional

Horse power

290hp,310hp,340hp,380hp

400hp and 420hp is optional

Type

Nylon,radial and

tubeless is optional
