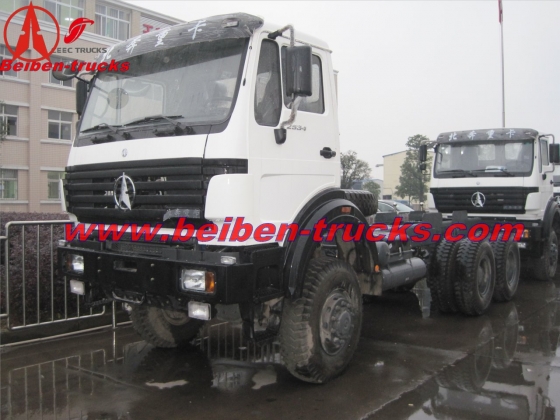

beiben brand new tractor truck/china benz tractor truck

Product Details
Mercedes Benz technology
Engine: WEICHAI
Driving type: 6x4
double reduction driving axle

mercedes benz tractor heads/beiben tractor heads/ beiben truck price

Wheel base  (mm)

3800

Curb weight kg

7320

Gross towing trailer weight  (kg)

35550

Engine



Model

WP10.270,water-cooled,four strokes,6 cylinders straight in line,turbocharged, directly injection

Displacement     L

9.726/Diesel

Bore / stroke     (mm)

126/130

Power, max   kw/rpm

276/2200

Torque, max  Nm/rpm

1250/1400-1600

Emission

EURO3

Fuel tanker capacity  L

400

Clutc

Model

GFX420, Single dry frictional disc,Hydraulic boosting

Gearbox

Model

12JS160T

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

Model

ZF 8098,whole circulation in ball type, hydraulic boosting

Frame

Fish belly shape, variable width, variable sections

Front axle (Mercedes Benz  Technology)

Double-shoe pneumatic brake, non-driving steering axle



Middle and Rear axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle



Tyre

12.00R20

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cab

Long cab

Full steel skeleton structure, covered with double layer steel plate;

Can be tipped forwardly;

The Fifth wheel

50#Single
