Products

congo beiben 2642 truck chassis

  • FOB Price

    $63,000-$69,000

  • Production time

    30 days

  • Payment terms

    T/T

enquiry
Product Details
Product Details

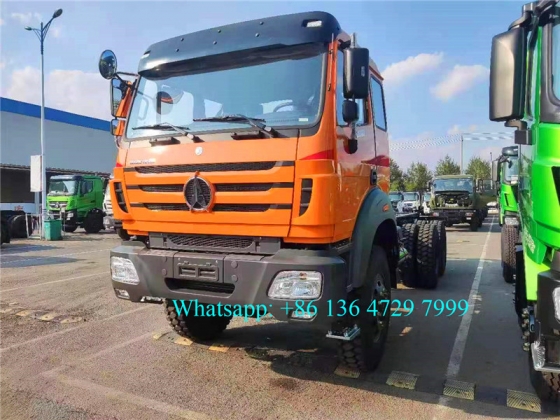

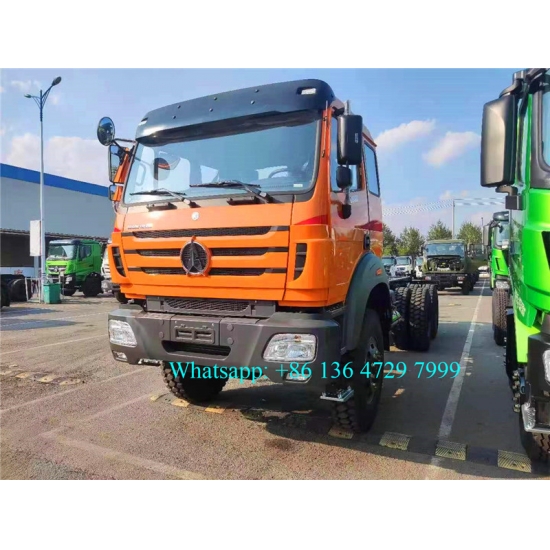

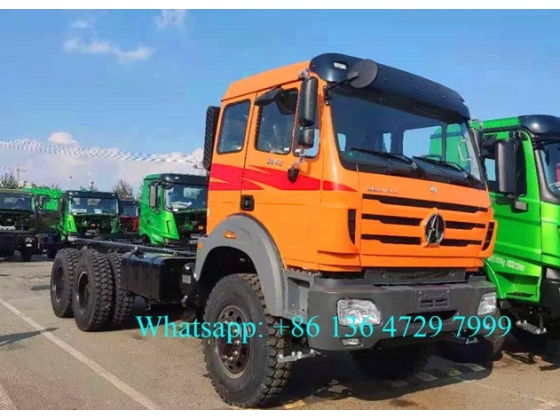

                                                               congo 2642 truck chassis

 congo beiben 2642 truck




 Applications:

   Congo beiben 2642 truck chassis, also called as congo 2642 cargo truck, congo 6*6 truck 420 hp engine, congo beiben 6 wheel drive truck.  This beiben heavy duty truck 6*6 drive chassis can  loading, transporting and discharging heavy duty material , also can be used in for extremely road and weather situation, can be used in wild area, off road area.



Congo beiben 2642 truck chassis apply germany benz technology device, with extremely work performance.



The north benz 6*6 cargo truck Box material optional: Manganese steel & Carbon steel, which is safe and durable.



 Key Features:



---- Beiben 2642 chassis, 6*6 off road system

---- Military quality , Mercedes benz technology

---- 12JS200T transmission, super combination.

---- Original benz technology axle

---- 12.00R24 tyre, suitable for congo road



 Specifications:



Beiben 6*6 truck chassis

Model

ND1255B44J

Driver's cab

Long cabin, one sleeper

Engine

Maker: North Benz

Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling,turbo-charging & inter cooling

Engine model: WP12.420NE32
EURO II/EUROIII emission standard

Maximum output:420hp@2200rpm

Number of cylinder:6

Displacement: 11.726L

Clutch

Single-plate dry coil-spring clutch,diameter 420mm,hydraulically operating with air assistance

Transmission

Fuller 12JS200T transmission.

Front Axle

Mercedes Benz, drum brake

Rear Axle

Mercedes Benz double reduction drive axle, ratio=5.2

Steering

ZF8098

Wheel & Types

Rims:8.5-20

Tyre:12.00R24

Optional: 12R22.5//315/80R22.5

Radial tire is optional

Electrics

Operating voltage: 24V,negative grounded

Dimensions in mm

Wheel base : 4450+1450

Overall size: 10250x2500x3385

Weight in kg

Kerb. mass: 9800 kg

Total mass: 25000kg

Performance

Maximum driving speed(km/h) 85

Body in mm

7000x2300x800

The manufacture reserves the right of technical alteration/change for better improvement prior notice

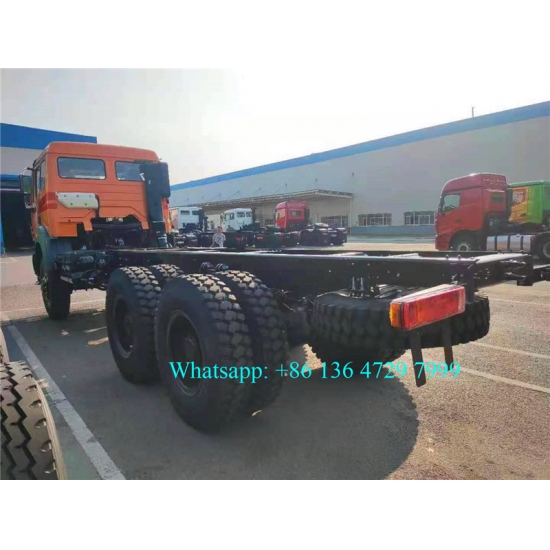

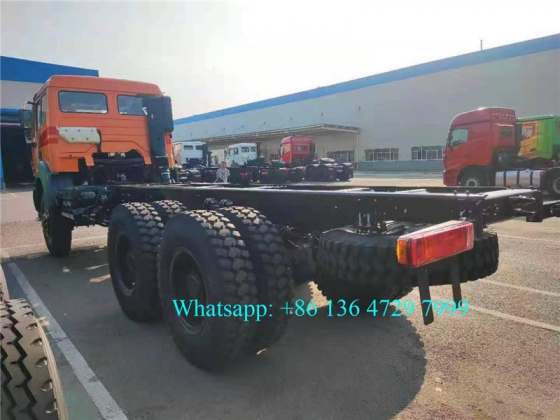

beiben 2642 truck chassis

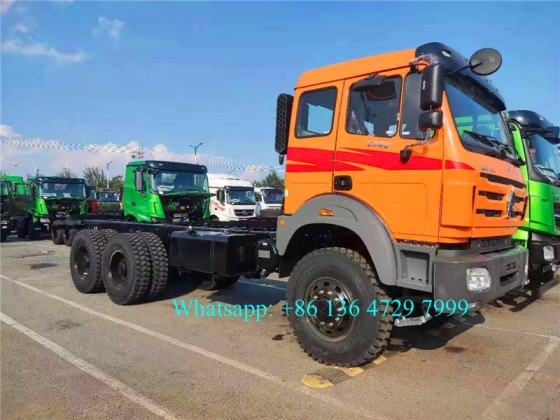

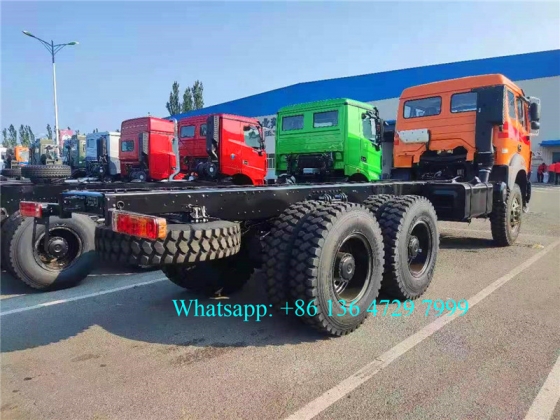

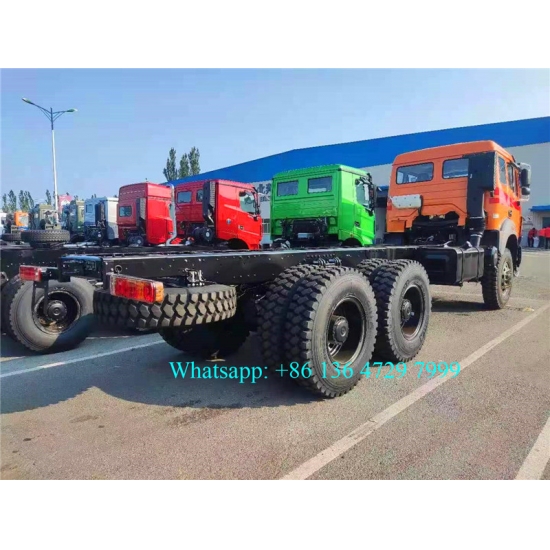

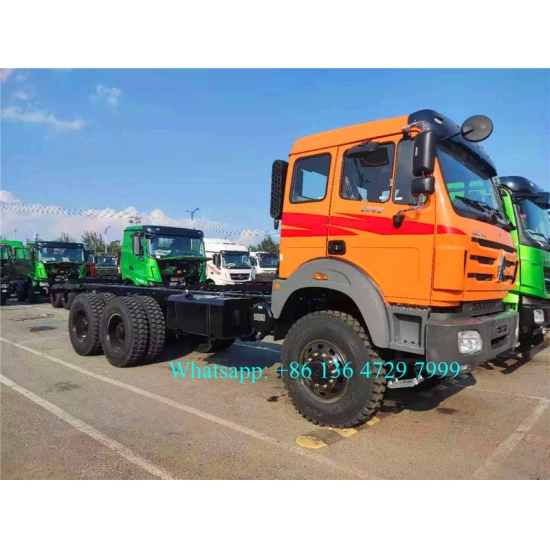

Beiben 2642 off road truck system, 6*6 drive system.

beiben 2642 truck chassis

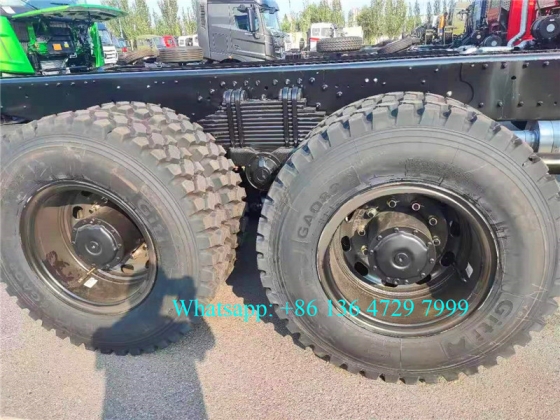

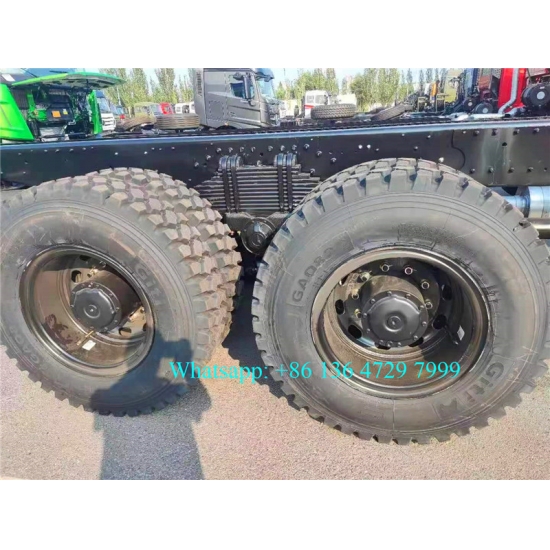

beiben heavy duty suspension system, 4 U-BOLT system for overloading.
