Products

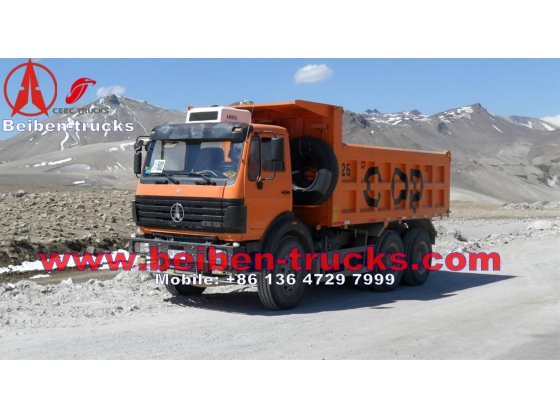

Beiben 336hp dump truck North Benz 10 wheeler tipper truck

Product Details

BEBEN 340hp 10 wheeler dump truck good price



Wheel base  (mm)

3800+1450

Curb weight kg

12220

Upper body Dimension(Lx W x H)

5800×2300×1500   sand body

Engine



Model

WD615.44,water-cooled,four strokes,6 cylinders straight in line,turbocharged

Power, max   kw/rpm

235/2200

Max torque

1250/1100-1600

Emission standard

EUROII

Fuel tanker capacity   L

300

Clutch

Model

GFX420, Single dry frictional disc,Hydraulic boosting

Gearbox

Model

BEIBEN 5S-112GP(With 9 forward gears,1 reverse gear; Under the license from ZF Germany)

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

Model

ZF8098,whole circulation in ball type, hydraulic boosting

Frame

Fish belly shape, variable width, variable sections

Front axle (Mercedes Benz  Technology)

Double-shoe pneumatic brake, non-driving steering axle



Middle and Rear axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle



Tyre

12.00R20

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cab

Short cab, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure.Can be tipped forwardly; Inner A/C
