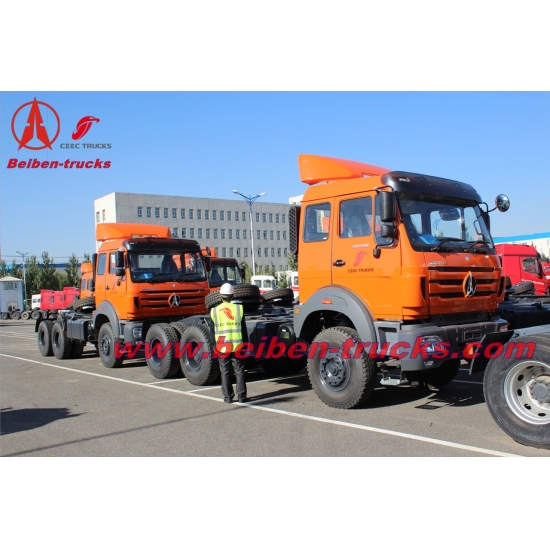

Beiben 6x4 40ton tractor heads Beiben Tractor Truck 6x4 40ton high quality tractor head
Beiben 6x4 40ton tractor heads Beiben Tractor Truck 6x4 40ton high quality tractor head
BEIBEN TRACTOR TRUCK ND4253B34J |
|
|
Traction type |
LHD |
|
Drive System |
6×4 |
|
Cabin |
NG80 flat cabin, air conditioner ,one sleeper |
|
Engine |
Brand |
WEICHAI |
Model |
WP12.440 (EuroIII Common Rail) |
|
Rated power |
440hp |
|
Engine displacement |
11.596 liters |
|
Gearbox |
12JS200T |
|
Clutch |
430 Diaphragm type |
|
Steering |
TAS85/ZF8098 |
|
Axle |
Front |
BEIBEN 7.5T |
Rear |
BEIBEN 13T, double reduction axle, ratio:5.921 |
|
Max. running speed (km/h) |
85 |
|
Tire |
12.00R20 |
|
Spring |
13/13 |
|
Fuel tank |
400L |
|
Kerb weight (kg) |
9200 |
|
Total mass (kg) |
25000 |
|
Wheel base (mm) |
3450+1450 |
|
Overhang (mm) (front/rear) |
1410/625 |
|
Track (mm) (front/rear) |
1995/1800 |
|
Approach / departure angle(°) |
26/64 |
|
Overall Dimensions(L*W*H)(mm) |
7135×2495×3340 |
|
5th wheel |
90# |
