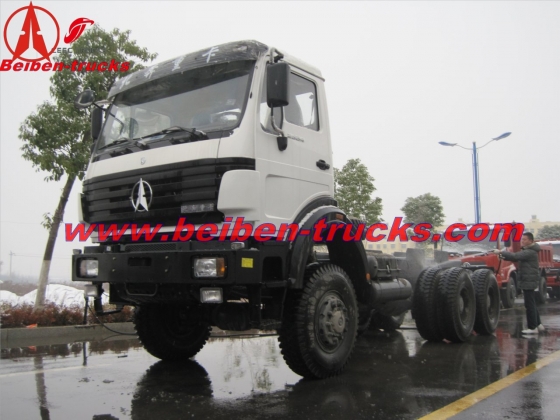

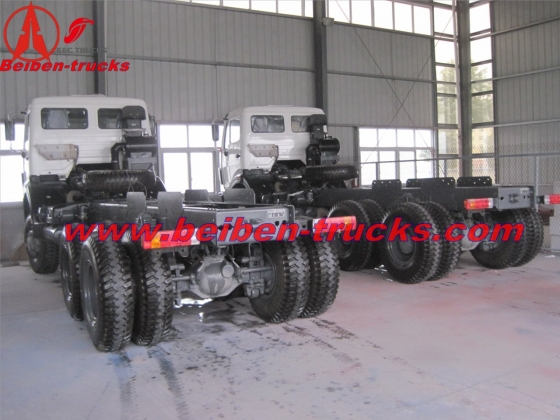

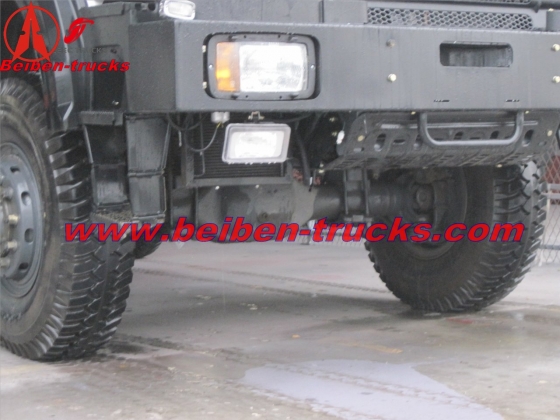

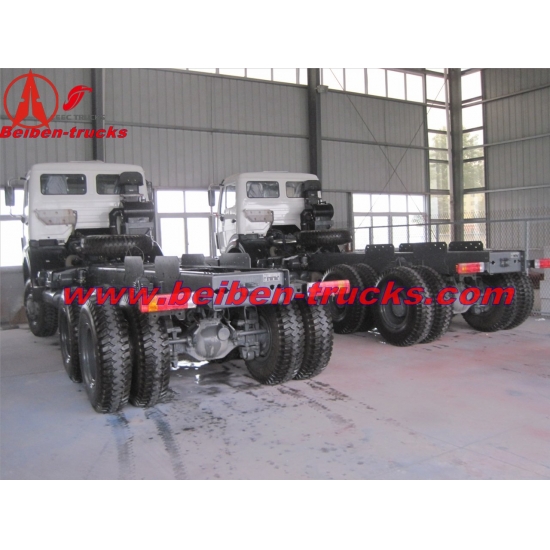

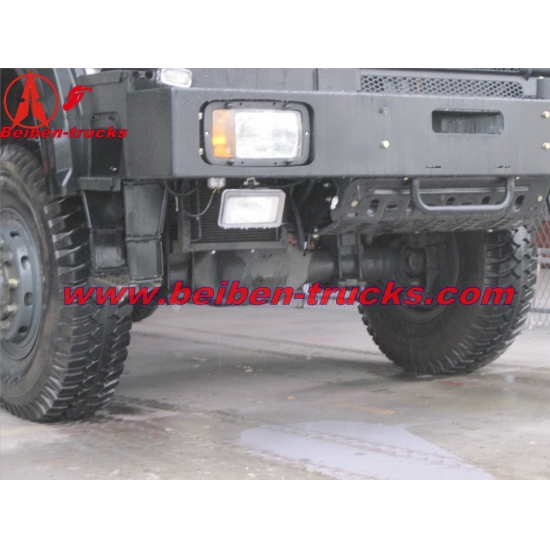

Beiben Tractors 6x4 North Benz Tractor Trailer Head
Beiben Tractors 6x4 North Benz Tractor Trailer Head
Tractor Trucks on Hot Sale –NORTH BENZ, SINOTRUK, SHACMAN, IVECO, FAW … …
Trucks on Hot Sale– Dump truck, tractor truck, concrete mixing truck, etc.
Advantages:
1. We own trucks with Euro 2/ Euro 3/Euro 4 emission standard, major in tractor truck, dump truck, oil tank, concrete mixer truck, special truck etc.
2. Engine Model: WEICHAI, CUMMINS; Power scope: 270HP-480HP; Drive model: 4x2, 6x2, 6x4, 8x4, etc.
3. According to different area and road situation, we will recommend the suitable product for you.
Engine:
Engine |
Brand |
WEICHAI |
Model |
WD10.375 |
|
Power (kw/HP) |
275/ 375 |
|
Max. torque (N.m)/rpm |
1460/1200-1600 |
|
Displacement (L) |
9.726 |
|
Emission standard |
Euro III |
Axle:
Axles |
Brand |
NORTH BENZ |
Front axle |
7500kg |
|
Rear axle |
BENZ strengthened axle, (punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock) |
|
Ratio |
5.263 |
Specifications and main performance:
Model |
North Benz Tractor Truck ND4251B34J7-2538SZ |
|
Driving type |
6x4 |
|
Weight |
Complete kerb mass (kg) |
9700 |
Total mass (kg) |
25000 |
|
Dimensions |
LxWxH (mm) |
7240x2500x3600 |
Front/rear overhang(chassis) |
1410/825 |
|
Wheel base (mm) |
3450+1450 |
|
Track width (mm) |
1995/1800/1800 |
|
Performance |
Max. speed ( km/h) |
100 |
Max. Grad ability (%) |
33 |
|
Approach/Departure angle(°) |
26/ 60 |
|
Transmission |
Brand |
FULLER |
Model |
12JS200TA |
|
Control type |
Manual |
|
Gear shift |
12-forward and 2-reverse speeds |
|
Optional |
---- |
|
Clutch |
Type |
Spring plate, diaphragm spring |
Diameter (mm) |
D-430 |
|
Brakes |
Type |
Drum |
Service brake |
With dual-circuit compressed air brake |
|
Park brake |
Power spring brake acting on rear wheel |
|
Auxiliary brake |
WEVB |
|
Optional |
ABS |
|
Steering |
Type |
TAS85,D50 |
Chassis |
Type |
Ladder structure with parallel straight 300x800x(8+7) |
Suspension |
Front suspension |
Longitudinal leaf spring |
Rear suspension |
Inverted leaf spring stabilizator suspension |
|
Tyres |
Type(standard) |
315/80R22.5 |
Optional |
12.00R20/11.00R20/11.00-20/12R22.5 |
|
Fuel tank |
Tank capacity (L) |
400 |
Material |
Metal/ Aluminum |
|
Electrics |
Type |
24V |
Starter |
5.58kw (24V) |
|
Generator |
1.54kw (28V55A) |
|
Battery |
2x135Ah |
|
Cab |
Type |
Mercedes Benz, two sleeper, long cabin, latest design, high roof |
Equipments |
hydraulic suspension, hydraulic seats cab, 2 sleeper bed, A/C |
|
Optional |
Electric windows, electricity heated, GPS/ CD, |
|
Other |
The fifth wheel |
2 inch/ 3.5 inch |
Why choosing us:
Price |
Competitive price (we have established a good relationship with the domestic manufacturers such as Shacman/ SINOTRUK/ North Benz/ Iveco Genlyon etc.) |
Quality |
Quality insurance( Assembly line production, international standard and strict quality control system) |
Delivery time |
Short delivery time (we have 4 warehouses of more than 1000 square meters) |
Customer Service |
Always at your service whenever you need( Trade Manager/ mobile phone 24 hours on) |
