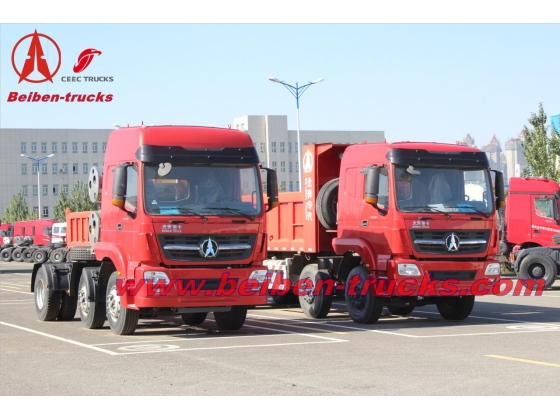

Hot Sale Beiben V3 4x2 tractor truck price new truck Algeria
1.shortest delivery time
2.more competitive price
3.reliable and high efficient performance
4.good after-sales service
Descriptions
This truck is designed for long-haul transportation; Combined with different semitrailer, it can used to load different bulk cargo on the premise of good road condition, one notable advantage of this truck is double rear axle, a fuel-saving accessory of this truck. Tire: Tubeless tire,heat dispersion design. Transmission: 9JS150, 11gears, 9 forward gears, 2 backward gears. One luxury sleeper in cab, humanity design, more comfortable.
For more details and information, please read the following items.
SPECIFICATIONS FOR TRACTOR TRUCK |
|||
Vehicle Specifications |
Model |
ND41808A35J7 |
|
Traction 4X2,6X4,8X4 |
4X2 |
||
Power |
290HP |
||
Weight Parameter |
Complete Vehicle Kerb Mass(kg) |
7020 |
|
Maximum authorized total mass (kg) |
34850 |
||
Dimension Parameter |
External Dimensions(mm) |
Length (mm) |
5995 |
Width(mm) |
2495 |
||
Height(mm) |
3340,3790 |
||
wheelbase(mm) |
3500 |
||
Performance Parameter |
Maximum Speed(km/h) |
90 |
|
Maximum Gradeability(%) |
35 |
||
Turning diameter(m) |
16 |
||
Recommended Configuration |
Engine |
Engine Type |
WP10.290E32 |
Rated power(kW)/Rev(r/min) |
213/2200 |
||
Horse power/(hp) |
290 |
||
Torque(N*m)/Rev(r/min) |
1160/1200-1600 |
||
Transmission |
9JS119B |
||
gearbox |
9forward gears 2backward gears |
||
Clutch(mm) |
430 |
||
Axle |
Front Axle |
Benz-7.5t |
|
Rear Axle |
Benz-13t |
||
Axle load-bearing |
Front axle |
7.5t |
|
Front axle |
13t |
||
Fuel Tank(L) |
400 |
||
Track(mm) |
2045/1800,1838 |
||
Front overhang/rear overhang(mm) |
16/40 |
||
Type |
12.00R20 |
||
Cabin |
Sleeper |
none sleeper |
|
OTHER |
ABS |
optional |
|
COLOR |
optional |
||
Horse power |
290,310, 340 ,380, 420 is optional) |
||
Type |
nylon(radial and tubeless is optional) |
||
