New Beiben NG80 truck tractor for high land

Product Details

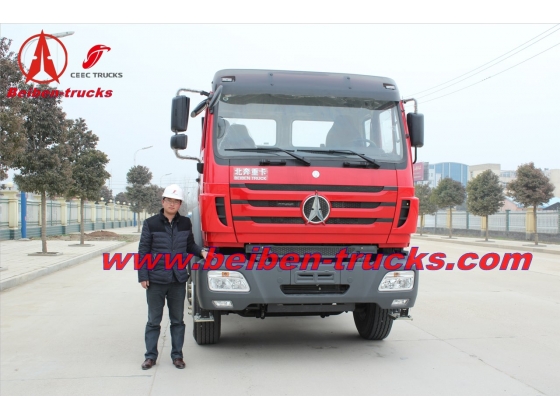

New Beiben NG80  truck tractor for high land



Mercedes Benz technology

Engine: WEICHAI

Driving type: 6x4 double reduction driving axle



Model

ND4257B34J

Traction type

LHD/RHD

Drive System

6×4

Cabin

NG80   flat cabin, air conditioner ,one sleeper

Engine

Brand

WEICHAI

Model

WP10.380E32 EGR

Rated power

380hp

Engine displacement

9.726   liters

Gearbox

12JS200T

Clutch

430   Diaphragm type

Steering

TAS85

Axle

Front

BEIBEN   7.5T

Rear

BEIBEN 13T, double reduction axle, ratio:5.921

Max. running speed (km/h)

85

Tire

12.00R20

Spring

13/13

Fuel tank

400L

Kerb weight (kg)

9200

Total mass (kg)

25000

Wheel base (mm)

3450+1450

Overhang (mm) (front/rear)

1410/825

Track (mm) (front/rear)

1995/1800

Approach / departure angle(°)

26/64

Overall Dimensions(L*W*H)(mm)

7135×2495×3180

5th wheel

90#
