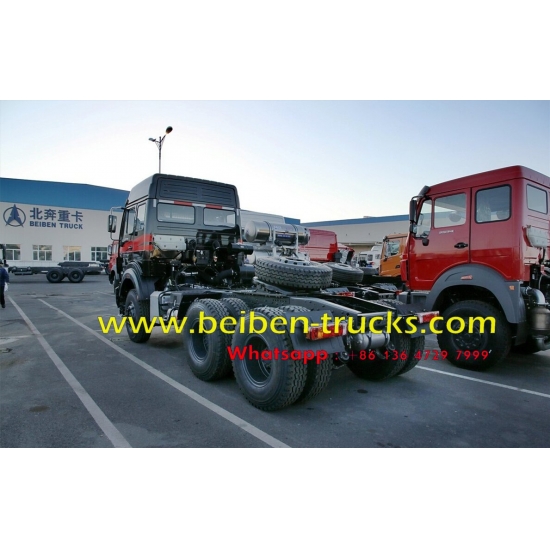

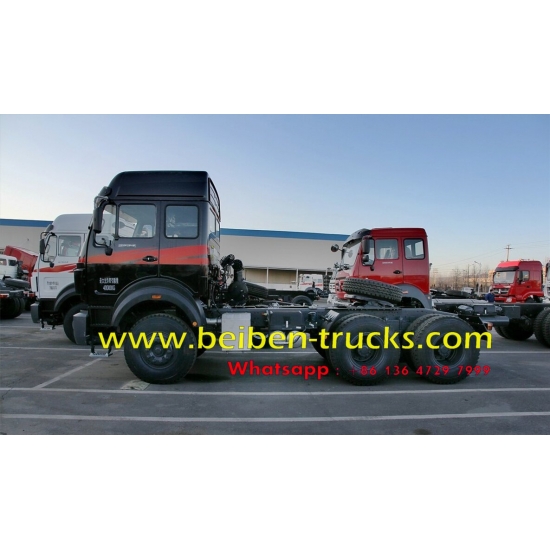

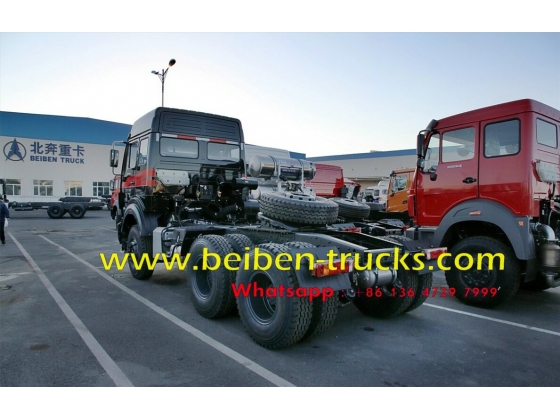

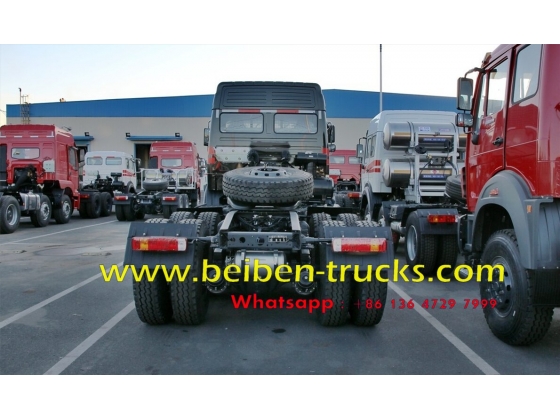

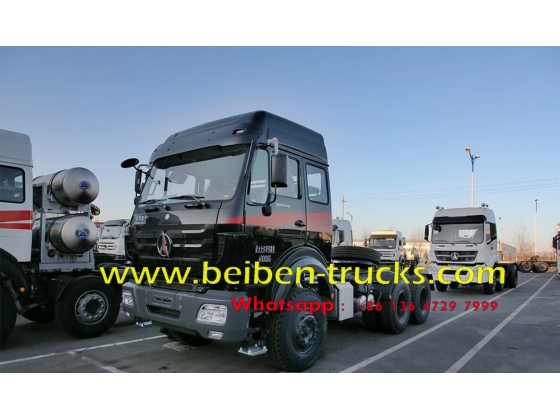

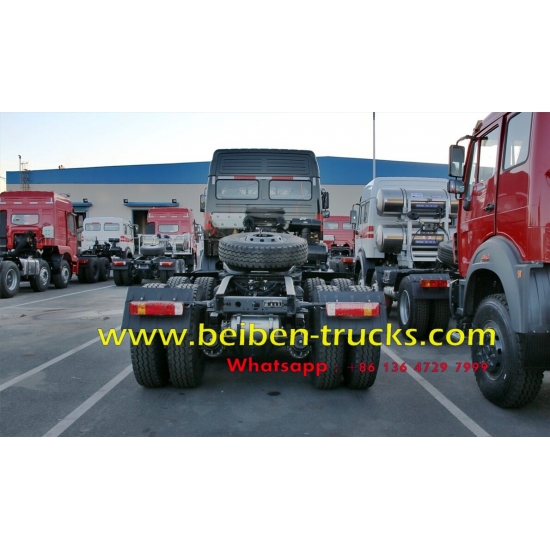

Beiben 2534 tractor truck for congo
-
FOB Price
$39,500-45,600
-
Production time
30 days
-
Payment terms
T/T, West union
1.World famous Bezn technology tractor truck,
2.Mercedez-benz technology
3.CONGO best quality beiben tractor truck spplier
4.Genuine beiben tractor truck parts service
5.Congo local agent

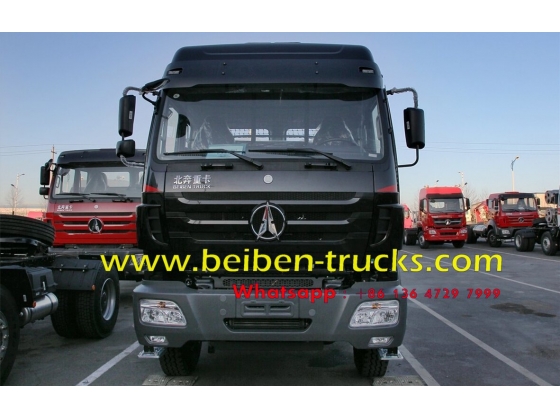

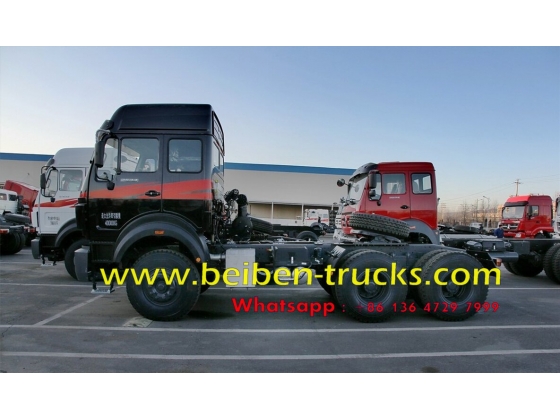

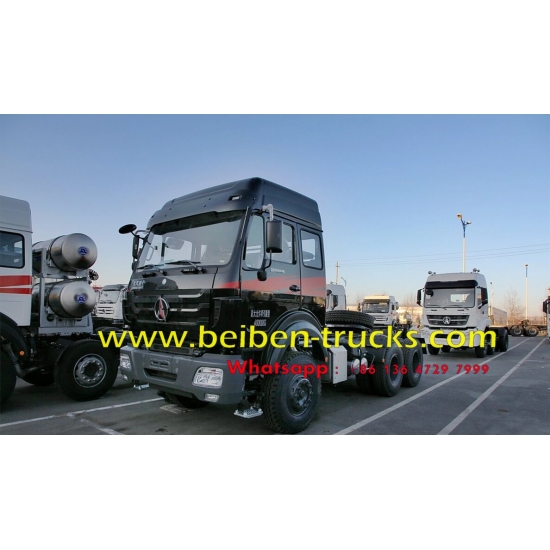

2016 year Beiben 2534 tractor truck for CONGO On Sale
Congo 6x4 tractor truck(Mercedes Benz technology)
Germnay benz truck Traction type: 6X4
Driving type: LHD (RHD is option)

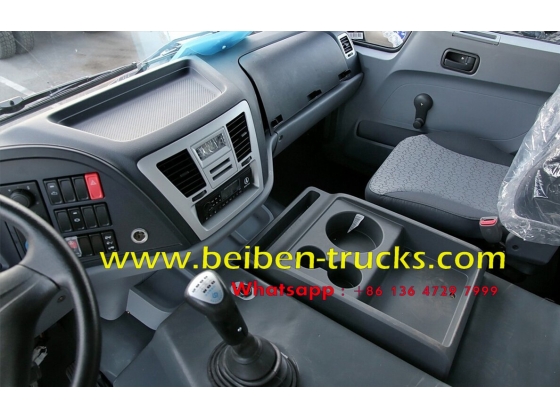

Cabin: North Benz (One Sleeper)
As the best beiben camions tracteur supplier for congo customer,we aim at to be the most professinal beiben NG80B tractors supplier on beiben 340 hp engine tractor trucks, beiben 340 hp engine tractor truck, beiben 420 hp engine tractor truck for congo country.
We provide original beiben 340 Hp tractor truck, 380 hp, 420 hp tractor truck for CONGO , pointe noire , brazaville, kinshasa, Matati . The most competetive price for congo beiben tractor trucks.
Our congo local agent on beiben NG80 tractors will dedicate ourselves to the whole perfect solution for customer's logistic arragement. Beiben trucks , for your success.
Bei Ben new NG80B tractor trucks is with attractive appearance, and specific heavy tractor truck metallic framework + stressed-skin construction, possessing security of same level of European automobiles, which fulfils European ECER29 safety and regulatory requirements; stamping molding of frame only once ensures girder strength.
CONGO 2016 year beiben tractor truck on SALE
6x4 drive, 340 Hp engine, 12 shift transmission,Euro 2
Industries application
Construction, Mining
and quarries, Heavy duty material transportation Dry Bulk, Building Material, Waste
Agriculture, Freight，Plant Hire, Military
Great quantity china Beiben NG80 right hand drive tractor trucks with customer LOGO, which we have exported to South africa.
|
2534SZ /6×4/3450+1450/Long Cab/LHD |
||
|
Dimension |
6935*2495*3180mm |
|
|
Approaching angle/Departure angle |
26/64° |
|
|
Overhang(front/rear) |
1410/625mm |
|
|
Wheel base |
3400+1450mm |
|
|
Max speed |
90km/h |
|
|
Curb weight |
9200kg |
|
|
Max towing weight |
39600kg |
|
|
Max loading on fifth wheel, Permitted(kg) |
15670kg |
|
|
Slope climbing capability |
Max.40% |
|
|
Engine |
Model |
WP10.340E32，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection |
|
Displacement |
9.726L/Diesel |
|
|
Stroke |
126/130mm |
|
|
Max. power |
276/2200 (kw/rpm) |
|
|
Max.torque |
3500/1200-1600（Nm/rpm） |
|
|
Emission stantard |
EuroⅢ |
|
|
Fuel tanker capacity |
400L |
|
|
Clutch |
∮430, Single dry frictional disc，Hydraulic boosting |
|
|

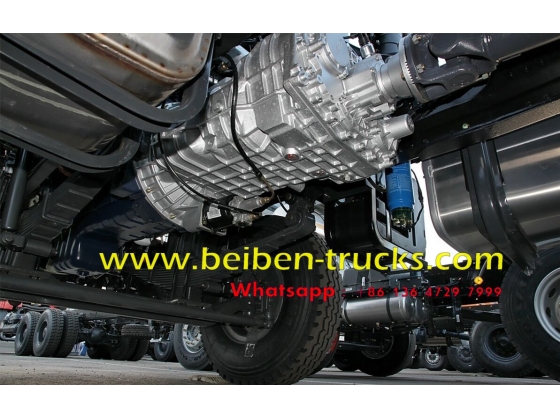

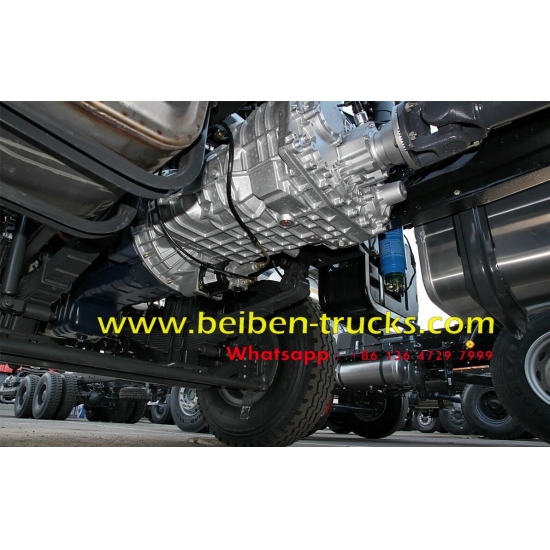

Gearbox |
12JS160T, mechanism,12forward gears,2 reverse gear, manual operated |
|
|
Gear ratio of gear box |
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.10/1.64/1.28/1.00 R:14.86/3.33 |
|
|

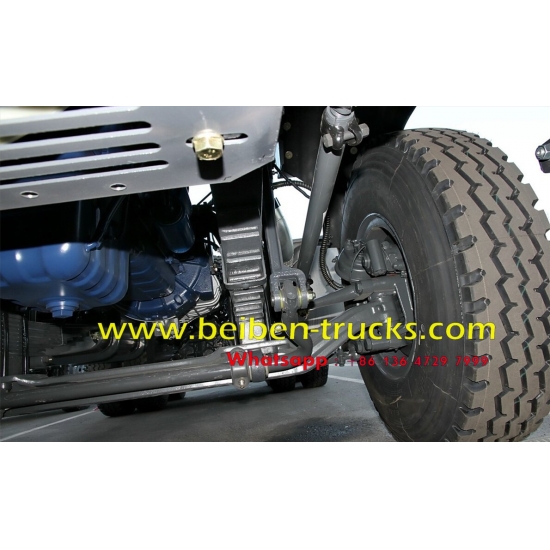

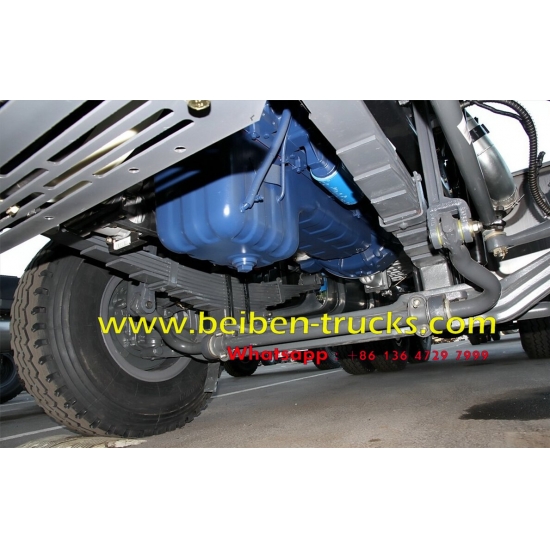

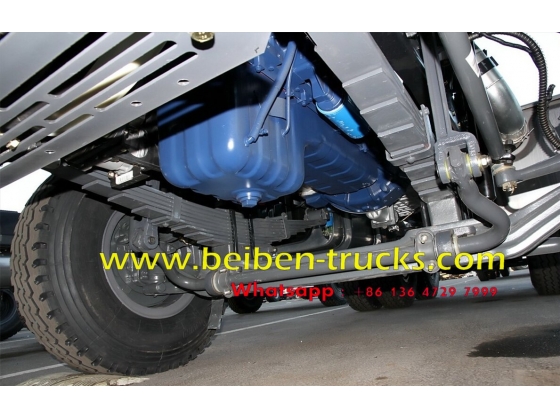

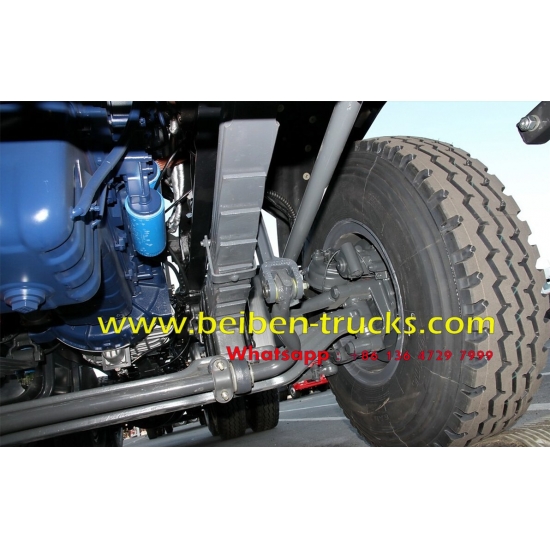

Suspension system |

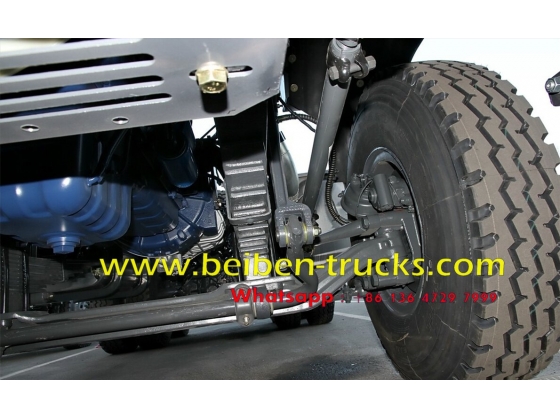

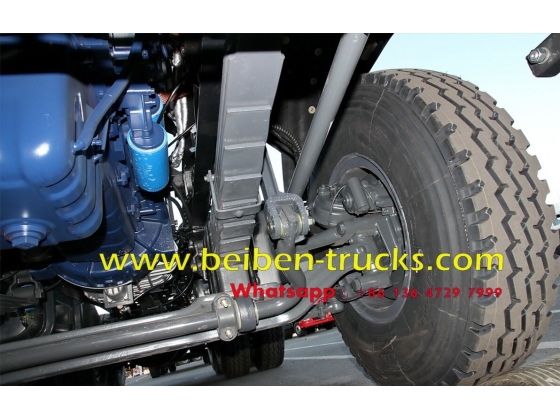

Front |
Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 13pcs |
|

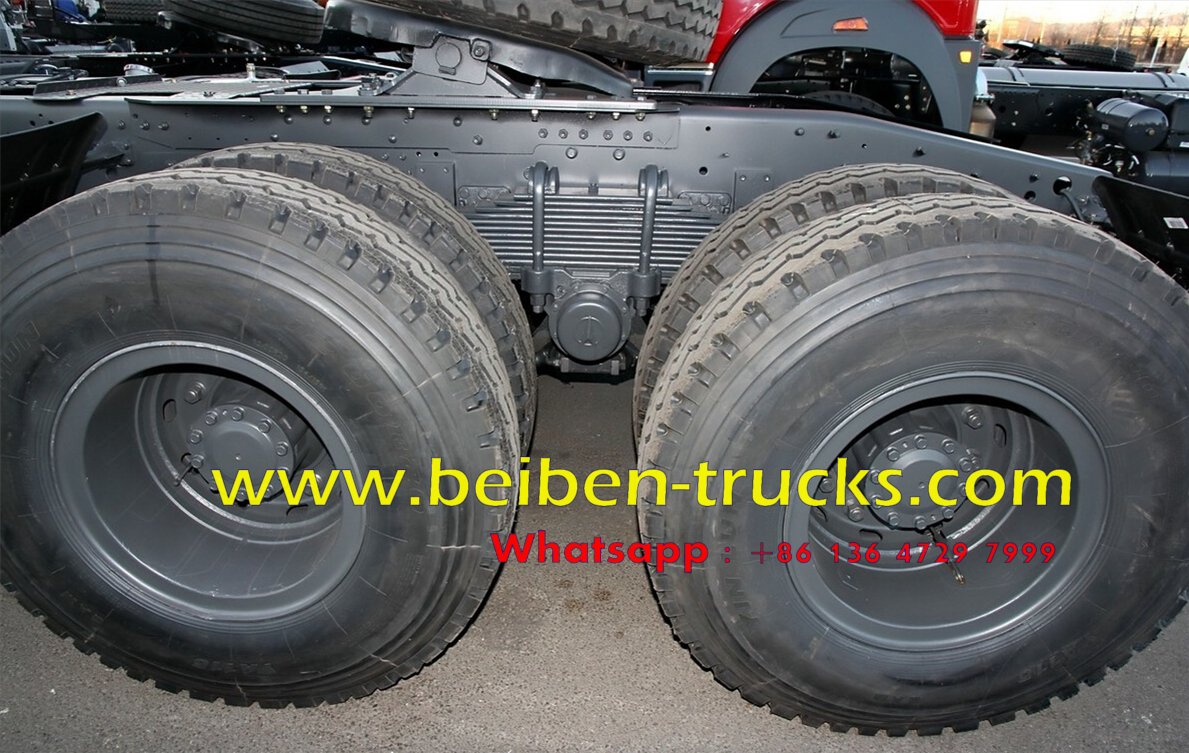

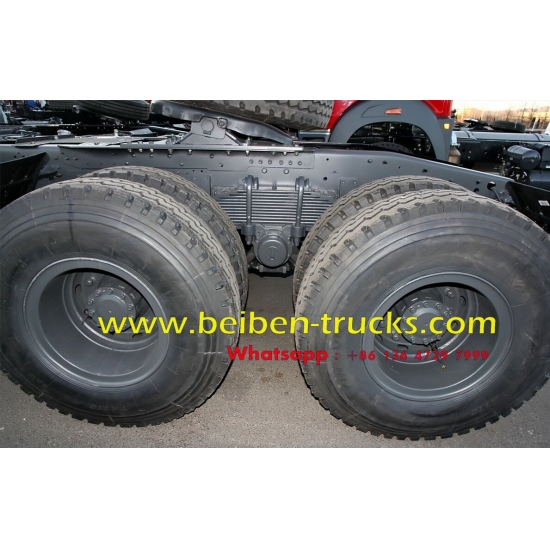

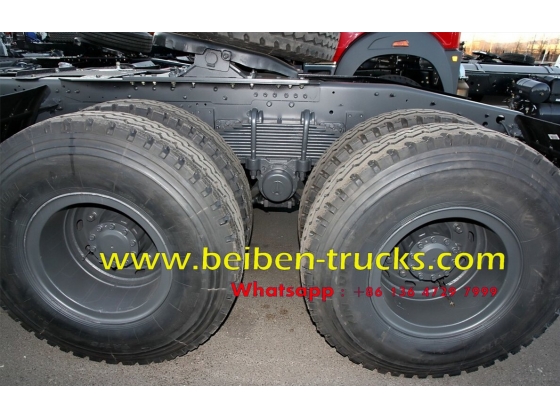

Rear |
Non-free standing stablization spring, balance suspension system, 13pcs |
|
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
|

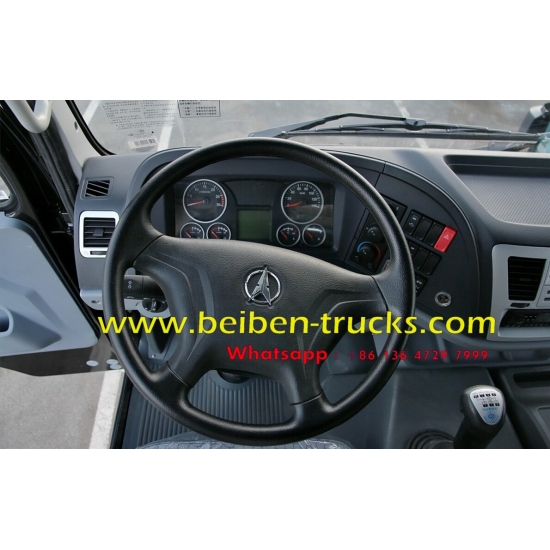

Steering system |
ZS8098,whole circulation in ball, hydraulic booster |
|
|
Frame |
Fish belly shape, variable width, variable sections |
|
|
Model |
JOST ∮90 single direction |
|
|
Height of fifth wheel(mm) (unload) |
1410 |
|
|
Radius of front gap (mm) |
2300 |
|
|
Radius of rear slew (mm) |
2600 |
|
|

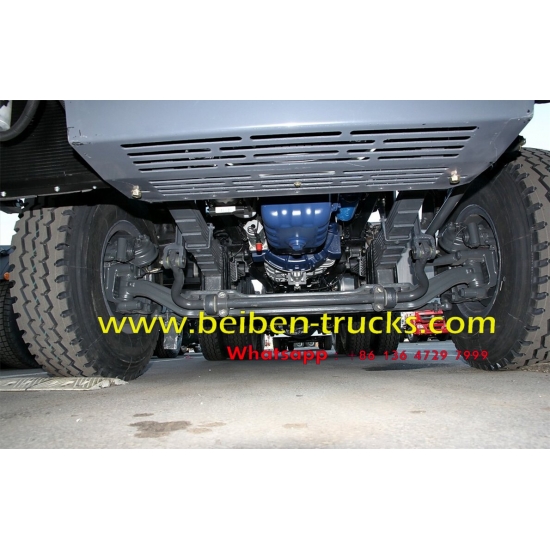

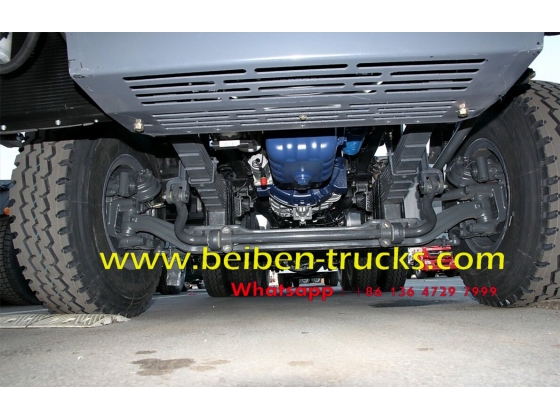

Front axle (Mercedes Technology) |
Double-shoe pneumatic brake, non-driving steering axle |
|
|

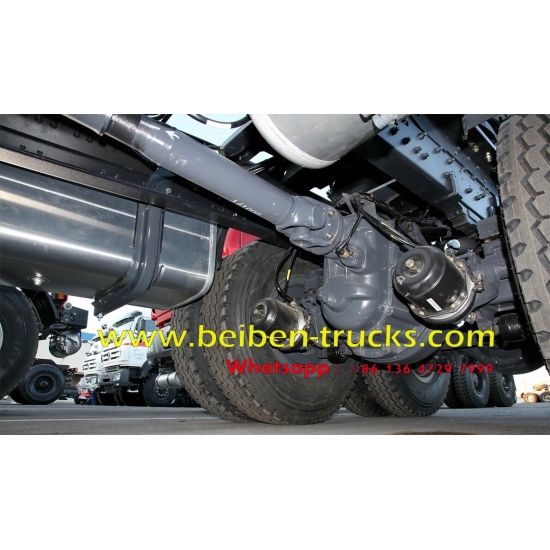

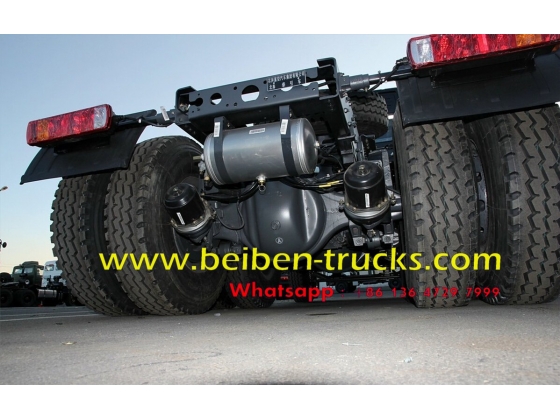

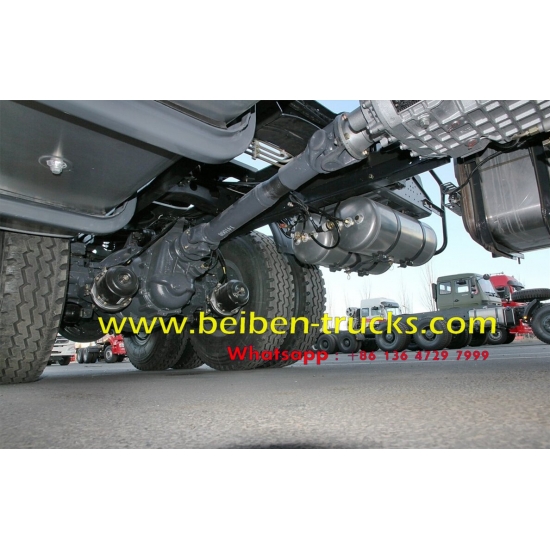

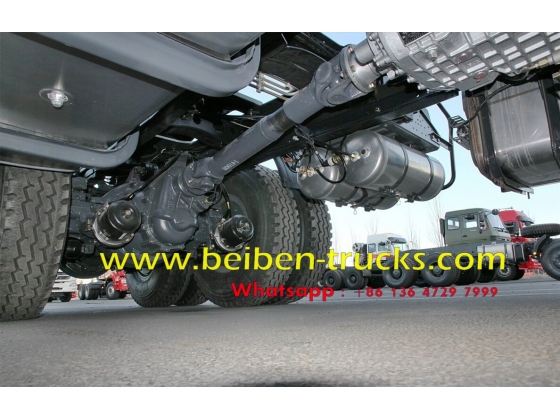

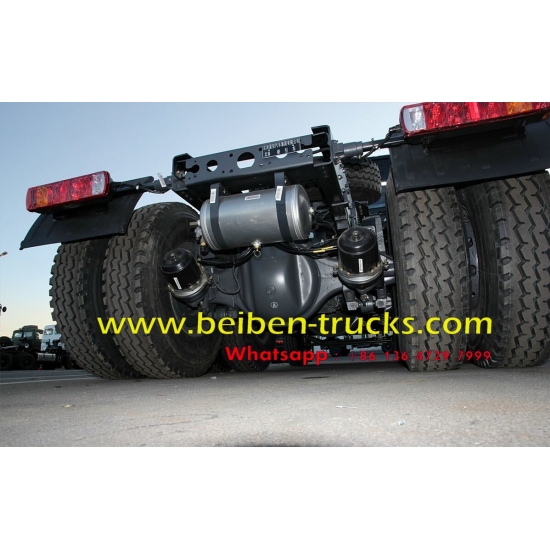

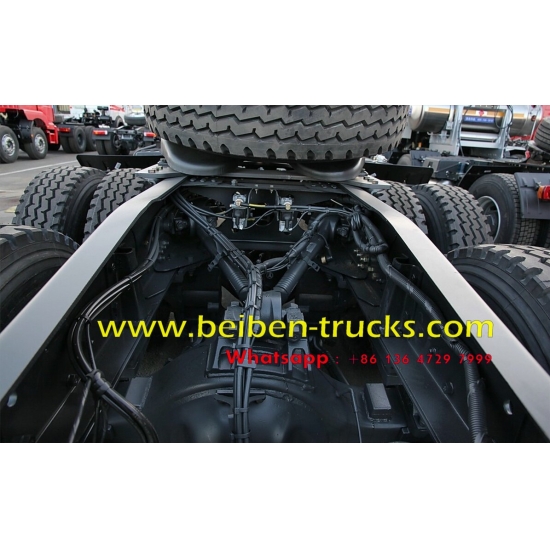

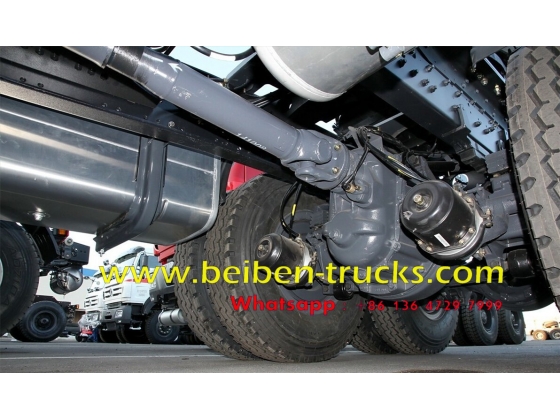

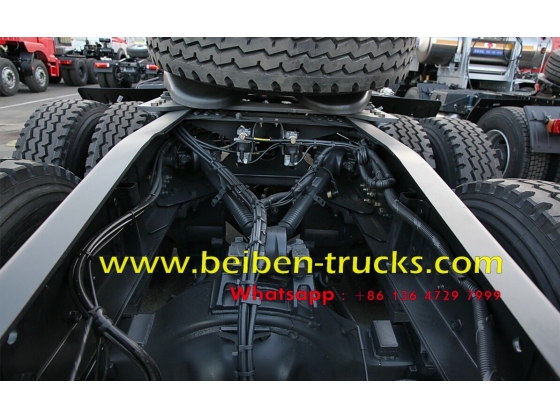

Middle and Rear axle (Mercedes Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle |
|
|
Tyre |
12.00/R20 |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-35A |
|
|
Starter |
5.4Kw/24V |
|
|

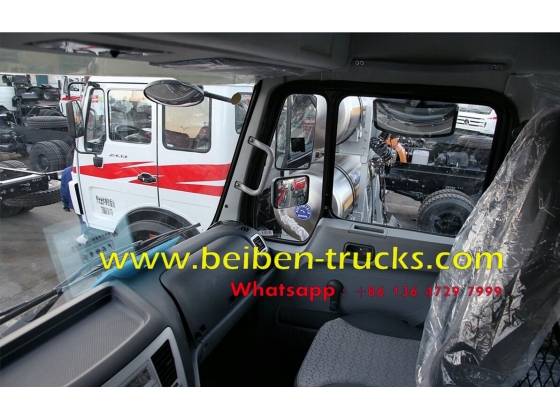

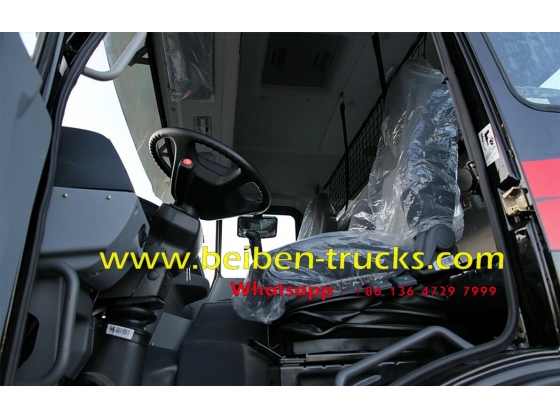

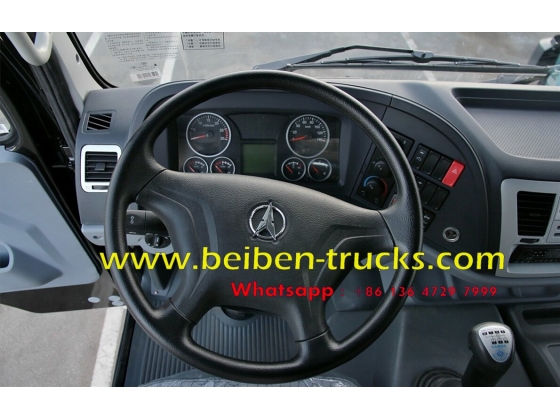

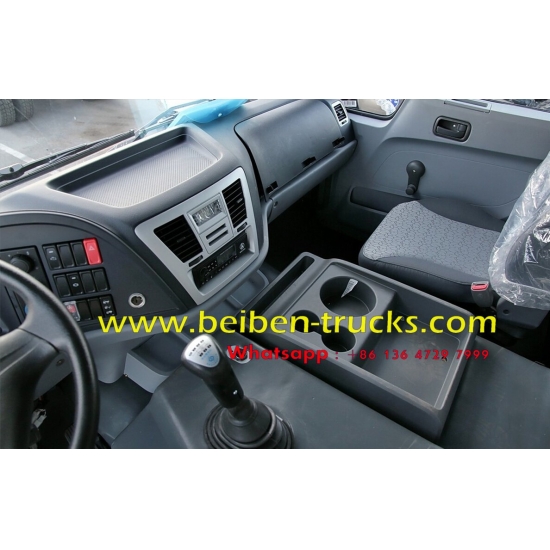

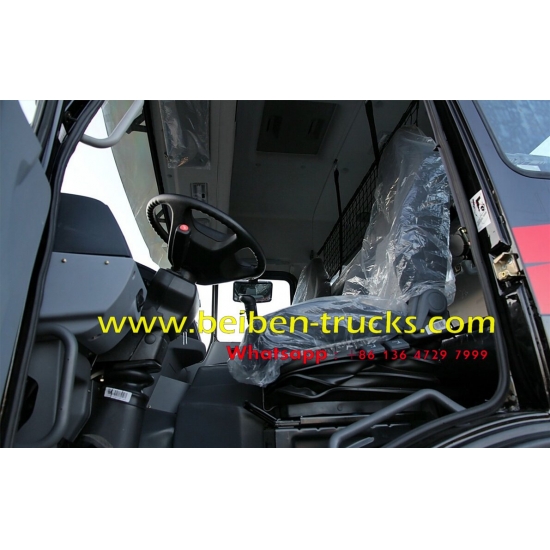

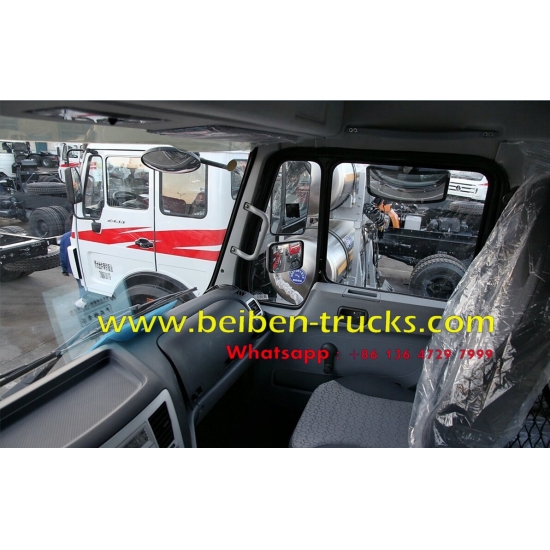

Cabin |
NG80B
Long-Flat roof cabin with single sleeper |
|
Beiben tractor truck and semitrailer
Beiben Construction trucks
Beiben all wheel drive trucks
| Model | Engine Model | Rated Power | Payload | Driving Mode |
| Beiben 1834S |
WD615.34 | 340Hp | 40Ton | 4x2 |
| Beiben 2538 | WP10.380 | 380 Hp | 45 Ton | 6x4 |
| Beiben 2634 | WP10.340 | 340 Hp | 40Ton | 6x4 |
| Beiben 2642 | WP12.420 | 420 Hp | 48 Ton | 6x4 |
| Beiben 2642 | WP10.420 | 420 Hp | 50 Ton | 6x4 |
| Beiben 2638S | WP 10.380 | 380 hP | 48 T | 6x4 |
| Beiben 2638 | WP10.380 | 380 Hp | 45 Ton | 6x4 |
| Beiben 2638S | WP 10.380 | 380 hP | 50 T | 6x4 |
| Beiben2642 | WP 10.420 | 420 Hp | 60 T | 6x4 |
| Beiben 2542S | WP12.420E32 | 420 Hp | 50 T | 6x4 |
| Beiben 1630A | WP10.300N | 300 Hp | 30 T | 4x4 |
| Beiben 2534 | WP 10.336 | 336 Hp | 50 Ton | 6x6 |
| Beiben 2638 | WP10.380 | 380 Hp | 50 Ton | 6x4 |
| Model | Engine Model | Rated Power | Payload | Driving Mode |
| Beiben 2548 | WP12.480N | 480 Hp | 100 Ton | 6*4 |
| Beiben 2642 | WP12.420N | 420 Hp | 55 Ton | 6*4 |
| Beiben 2542 | WP12.420E32 | 420 Hp | 70 Ton | 6*4 |
| Beiben 2534 | WP10.336 | 336 Hp | 40 Ton | 6*4 |
| Beiben 2534 | WP10.340 | 340 Hp | 45 Ton | 6*4 |
| Beiben 2538 | WP10.380N | 380 Hp | 50 Ton | 6*4 |
