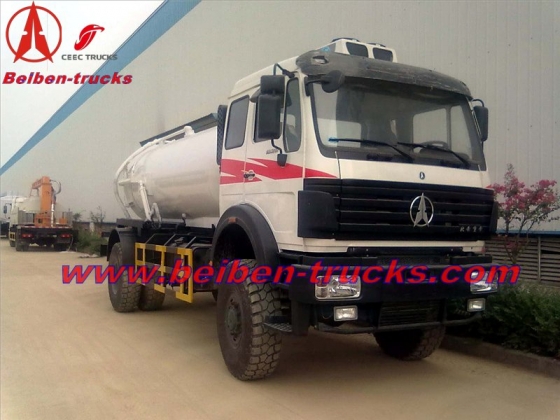

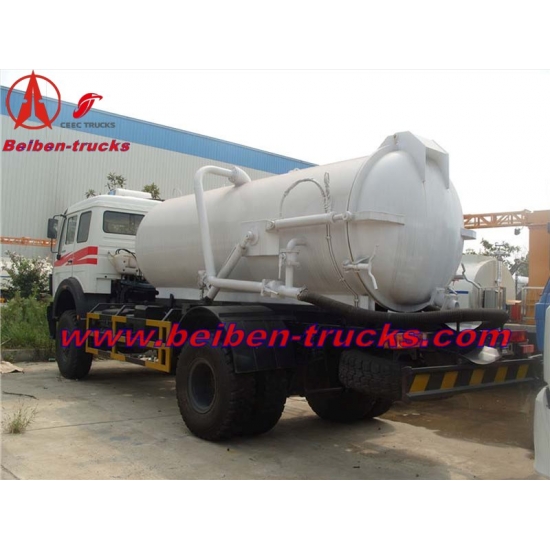

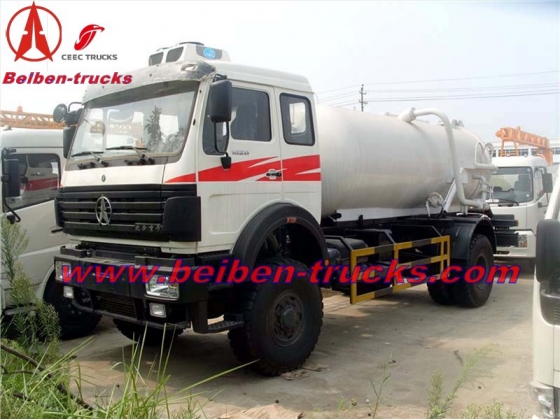

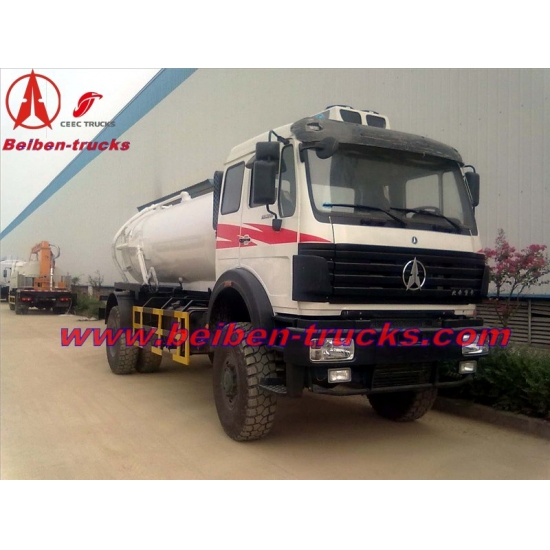

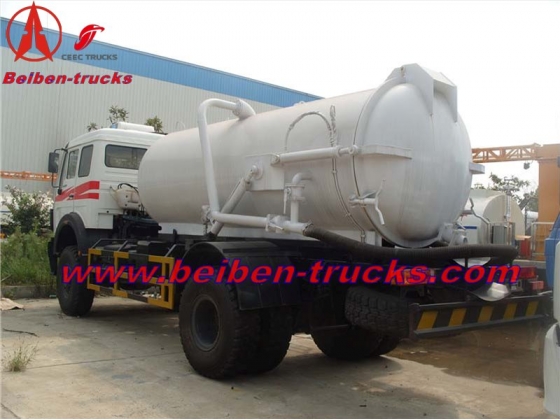

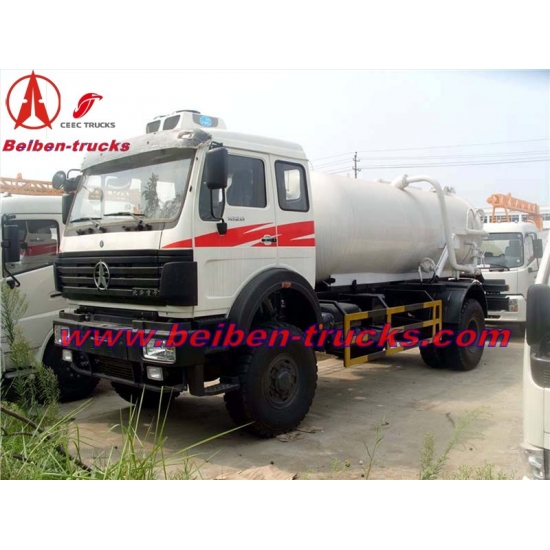

Beiben 4*2 sewage suction truck 10 CBM capacity

Product Details

Beiben 4*2 sewage suction truck 10 CBM capacity , 10,000 L vacuum tanker based on beiben 1161 truck chassis, weichai 160 hp diesel engine, fast 9 shift transmission.

We can supply best quality beiben 4*2 drive sewage tanker truck.



Chassis

ND2161E48J

Cubage (T)

7000Litres to 10,000Litres

Vehicle

Overall dimension(length/width/height)mm

8826×2500×3355

G V W(kg)

16000

Payload (kg)

7960

Kerb mass(kg)

7910

Fuel Type

Diesel

Fuel consumption(L/100km)

22

Top speed

90

Engine

Model

WP10.270

Exhaust/Power(kw)

9726cc/199kw

270HP

Manufacturer

Weichai Motor Co., Ltd.

Type

6-in-line water cool Turbo Charge engine

Chassis

Drive type

4×2

Wheelbase (mm)

4,800

Tread(front/rear)mm

1995/1800.

Front Bridge

7.5T FRONT AXLE

Number of spring axles(front/rear)

9/9+6

Tire specification

12.00-20 ; 12.00R20

Air condition

with

suction system

suction pump

Single Stage Rotary Oil Seal Vacuum Pump

special parameter

Vertical suction heihgt

≥8

working pressure

8500Pa

rotation speed

500

suction speed

98L/S

power

5.5kw

inlet diatmeter

50mm
