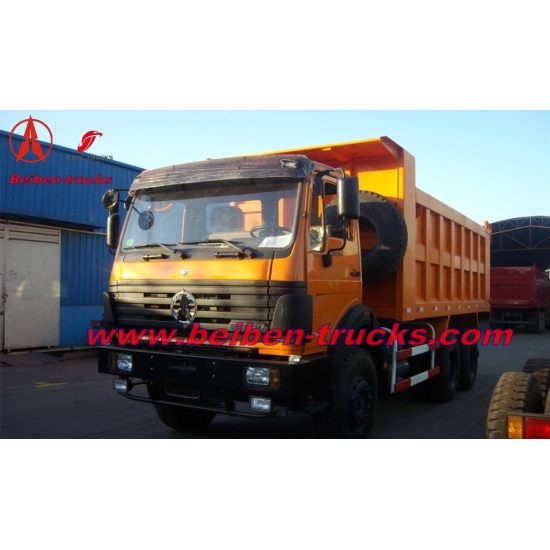

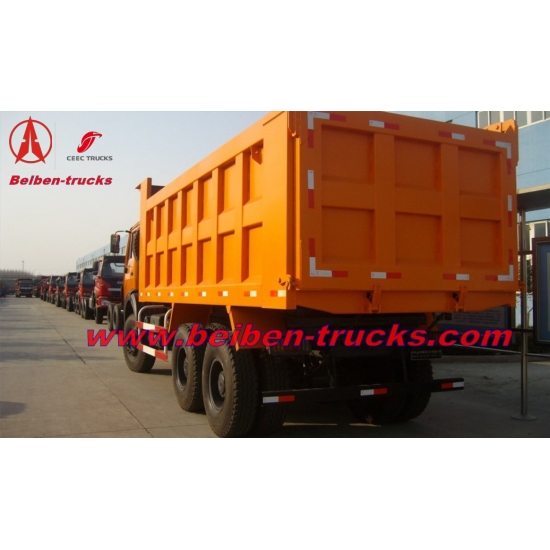

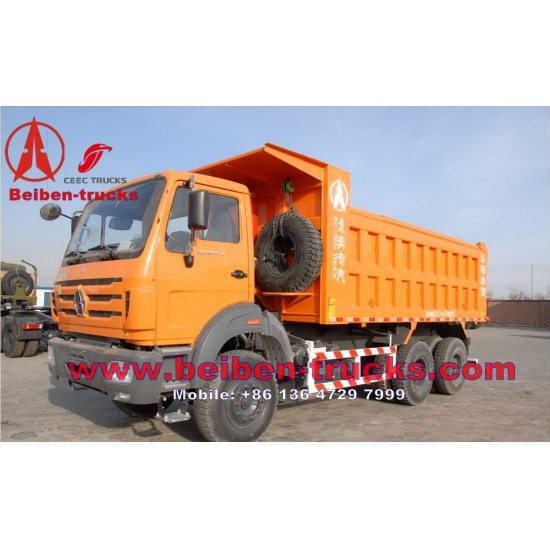

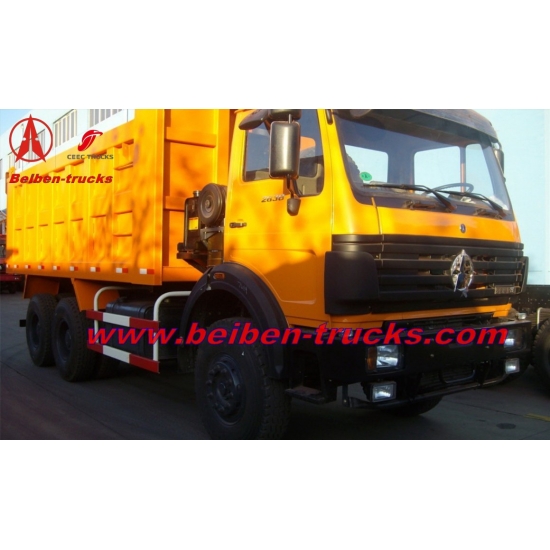

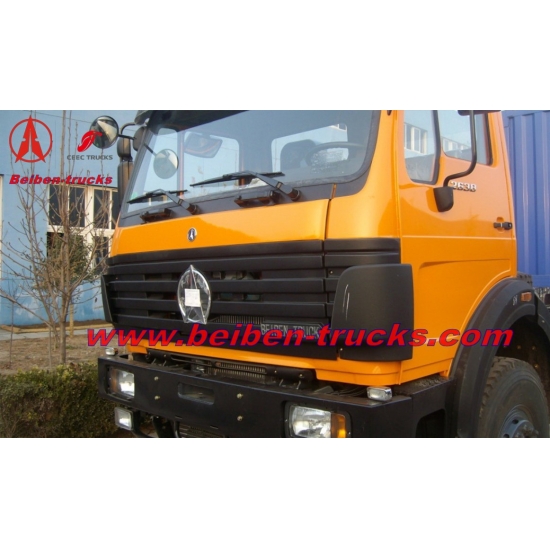

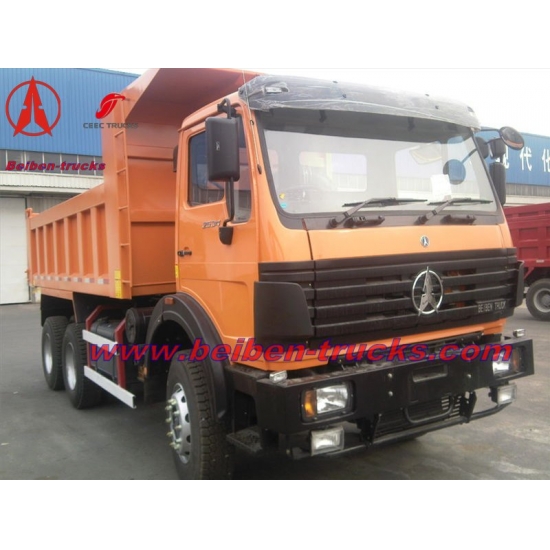

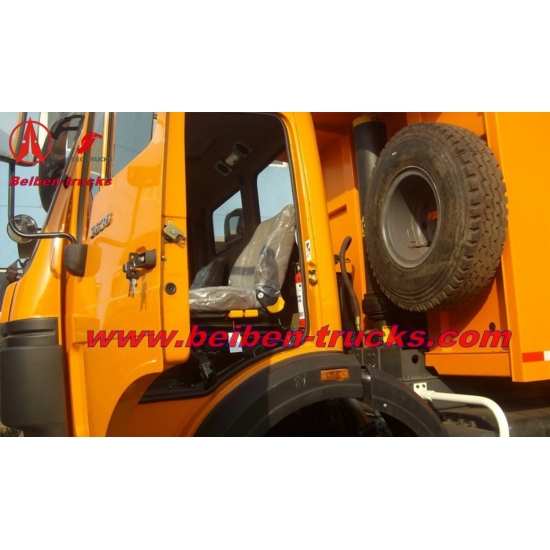

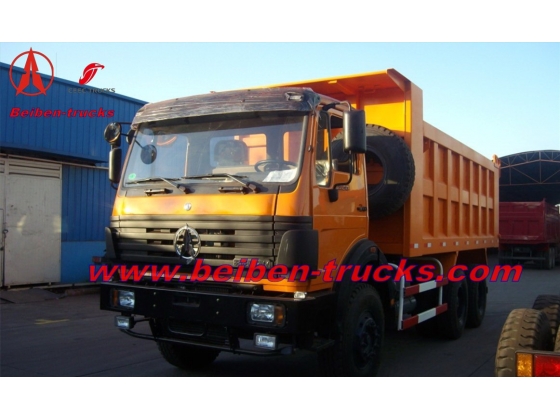

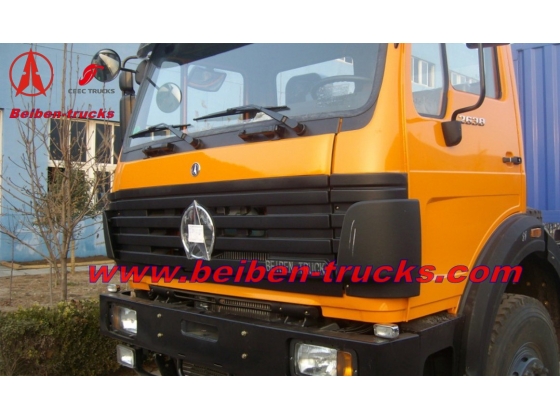

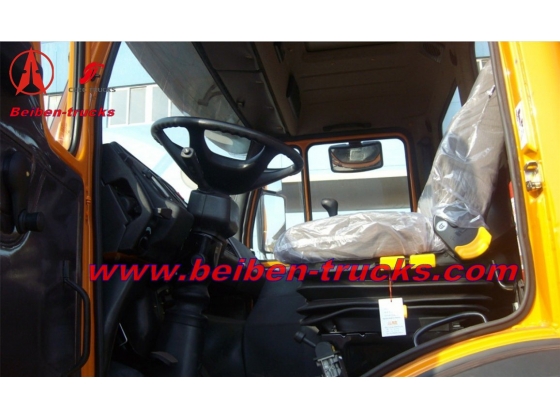

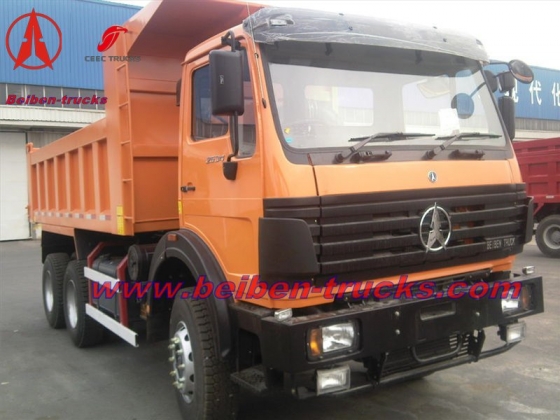

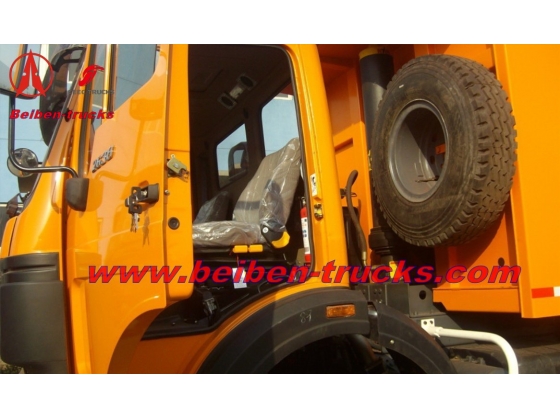

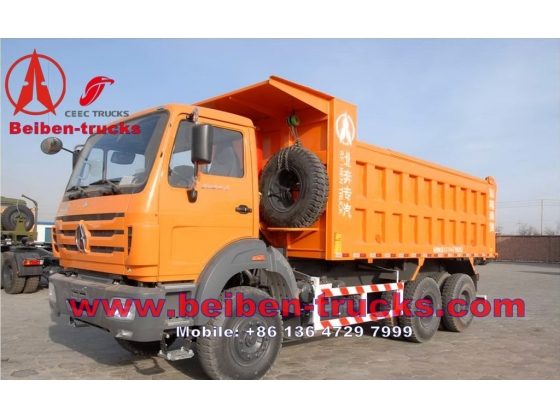

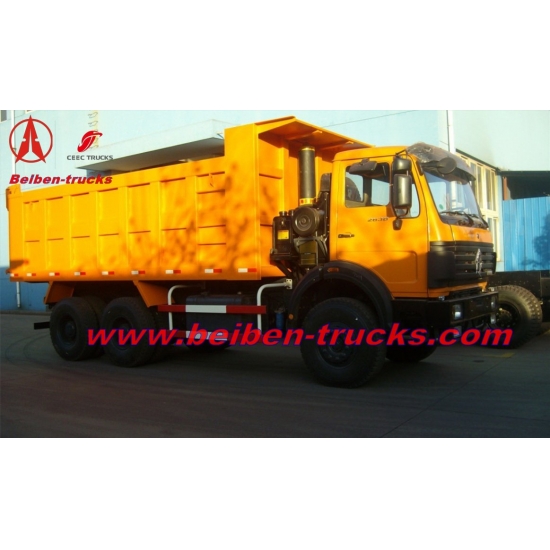

10 wheeler Beiben 380 hp dump truck

Product Details

10 wheeler North benz 380 hp dump truck is widely for transporting mine stone and construction material, more than 10 years great experience in north benz 10 wheeler dump truck manufacturing, we aim at supplying  the best quality and price for beiben 2538 10 wheeler dump trucks.

Beiben 2538 dump trucks Areas of Application and Use:

Mining area

Construction site

Municipal road construction

Transport of stone, sand, gravel

Beiben 2538K /6×4/4100+1450/Short Cab/LHD or RHD

Dimension

8880*2500*3430mm

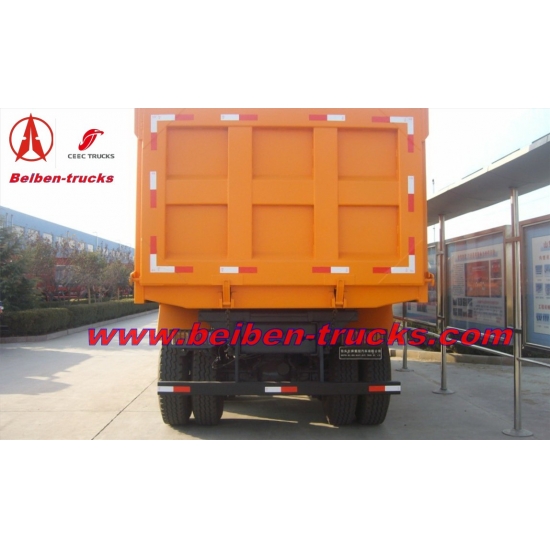

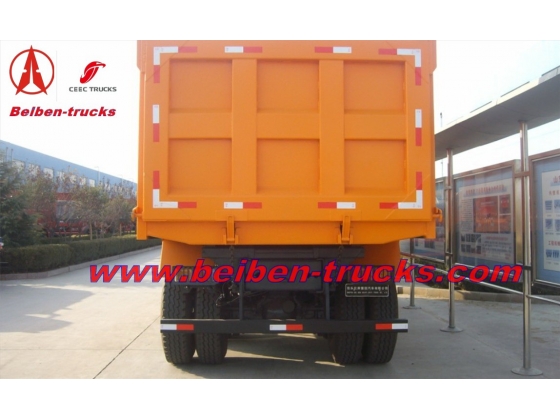

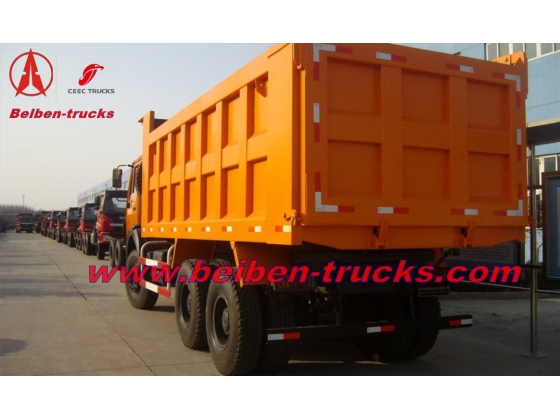

Cargo box

5600x2300x1350mm, HYVA hydraulic lifting system; thickness: bottom 8mm, side 6mm

Approaching angle/Departure angle

26/28°

Overhang(front/rear)

1410/1720mm

Wheel base

4100+1450mm

Max speed

85km/h

Curb weight

12650kg

Engine

Model

WP10.380E32, water-cooled, four strokes, 6 cylinders in line, turbocharged, directly injection


Displacement

9.726L/Diesel


Stroke

126/130mm


Max. power

280/2200 (kw/rpm)


Max.torque

1600/1800(N.m/rpm)


Emission

Euro III

Fuel tanker capacity

300L

Clutch

∮430, Single dry frictional disc,Hydraulic boosting

Gearbox

9JS180, mechanism, 9 forward gears, 1 reverse gear, manual operated

Gear ratio of gear box

12.65/8.38/6.22/4.57/3.4/2.46/1.83/1.34/1.00 R:13.22

Suspension system

Front

Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension , 10pcs


Rear

Non-free standing stabilization spring, balance suspension system, 13pcs

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system


Assistant brake

Engine exhaust brake


Park brake

Potential springs pressing on middle and rear wheels

Steering system

ZF8098 hydraulic steering with power assistance

Frame

Strengthened Straight beam

Front axle (Mercedes Technology)

Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle (Mercedes Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Tyre

315/80R22.5 tubeless tyres

Electrical system

Battery

2X12V/135Ah


Generator

28V-35A


Starter

5.4Kw/24V
