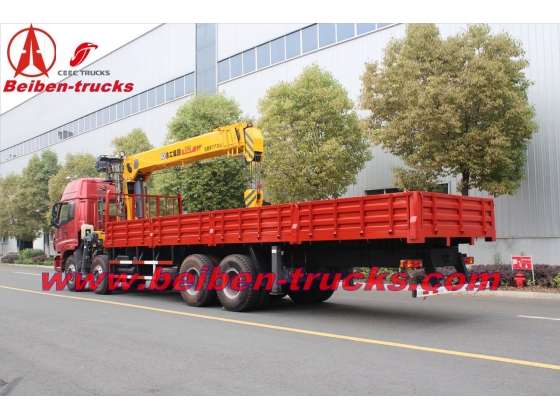

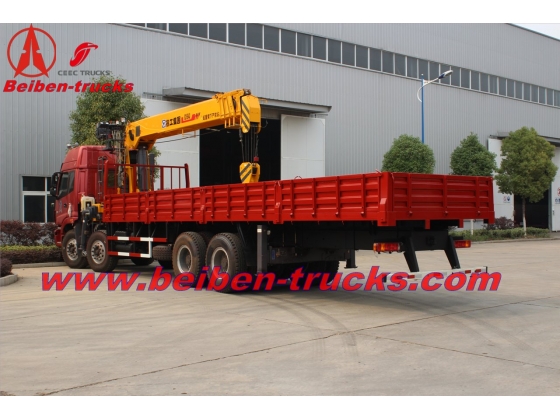

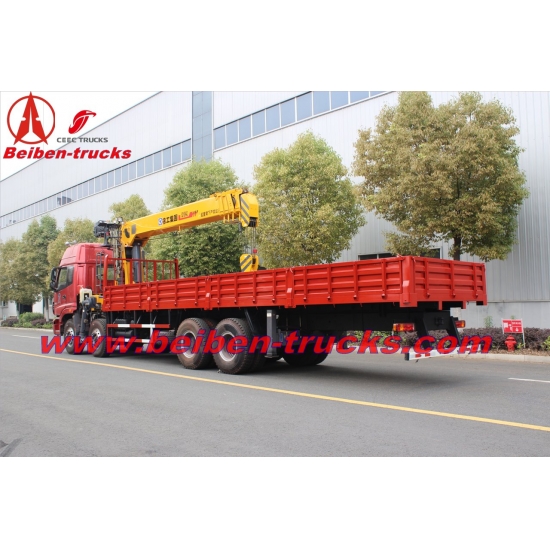

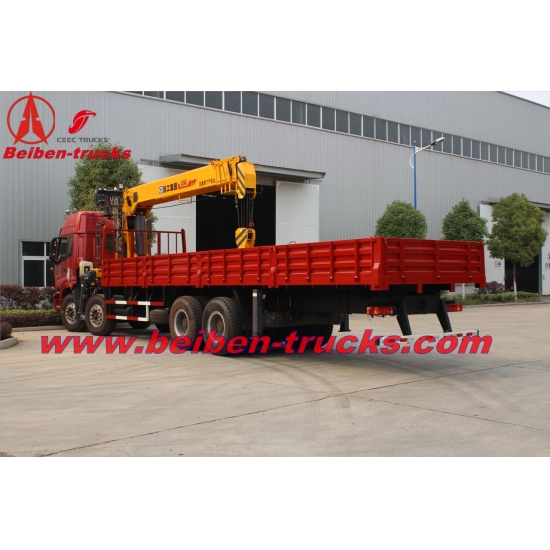

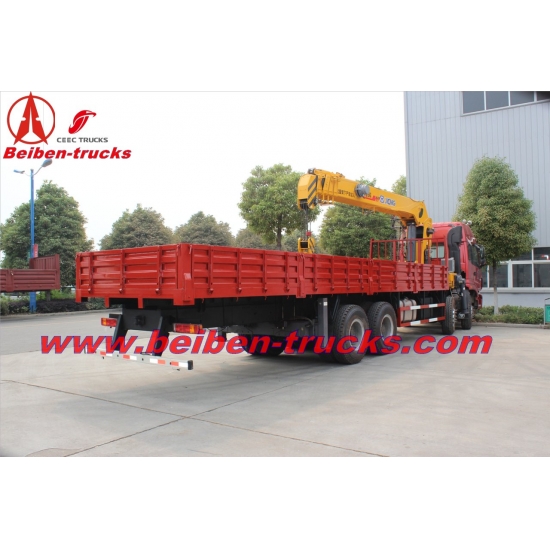

16 T north benz truck mounted crane price

Product Details

16 T north benz  truck mounted crane manufacturer

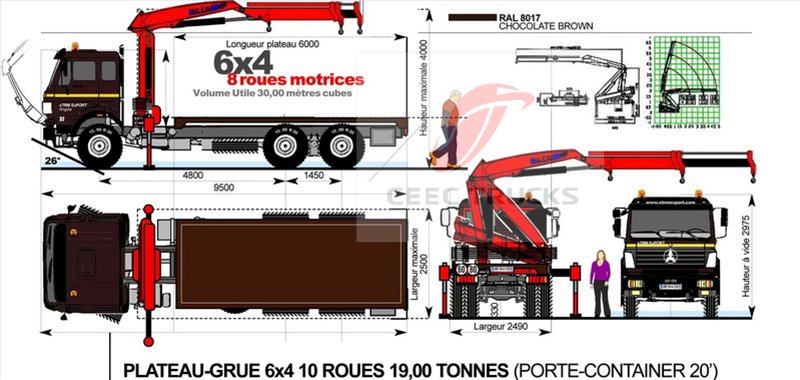

The technical parameters of 16ton truck mounted crane


The technical parameters of 16ton truck mounted crane

Main Technical Parameter

Product Name

Truck with Crane

Gross Vehicle Weight (kg)

25000

Curb Weight (kg)

15300

Rated Payload(kg)

9570

Overall Dimension(mm)

11586x2500x3500

Cargo inner dimension

7700x2300x500

Max Lifting Capacity

16,000kg at 2.5m

Cab Allowed Persons

2

Axle No.

3

Wheelbase (mm)

5650+1450

F/R Suspension(mm)

1410/3076

Axle Load(kg)

7000/18000(parallel installed)

App/Dep Angle(º)

26/15

Max Speed(km/h)

90

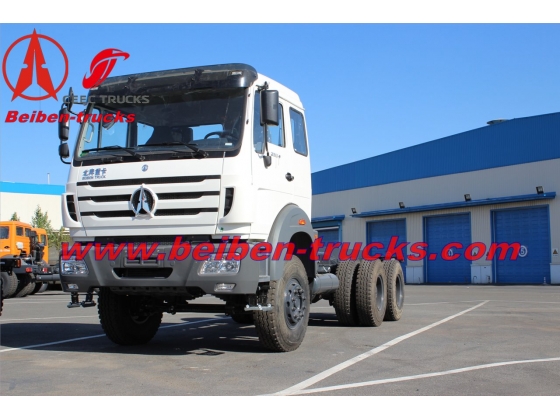

Chassis Technical Parameter

Chassis Name

Truck Chassis

Chassis Brand

North Benz

Overall Dimension (mm)

11425×2495×3180

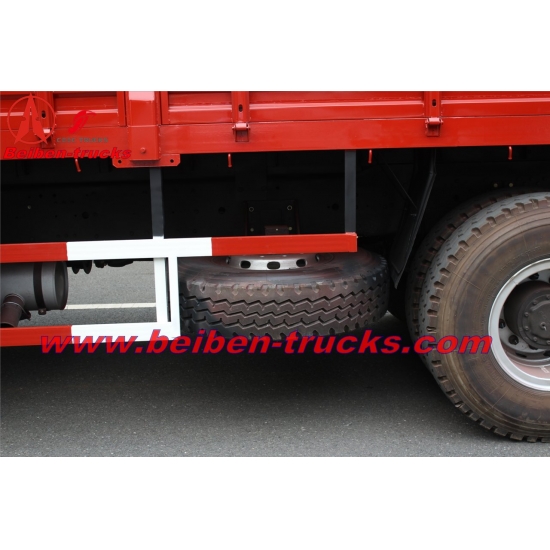

Tyre No.

10 with 1 spare tyre

App./ Dep. Angle(º)

26/17

Tyre Spec.

12.00-20

Leaf Spring No.

13/13

Front Track (mm)

1995

Fuel Type

Diesel

Rear Track (mm)

1800/1800

Drive Type

6x4

Brake System

Air brake

F/R Suspension(mm)

1410/2915

Axle Load(kg)

7000/18000(parallel installed)

Engine Technical Parameters

Engine Model

WP10.290

Emission Standard

Euro III

Power

213kw/290hp

Displacement(ml)

9726

Superstructure Parameters

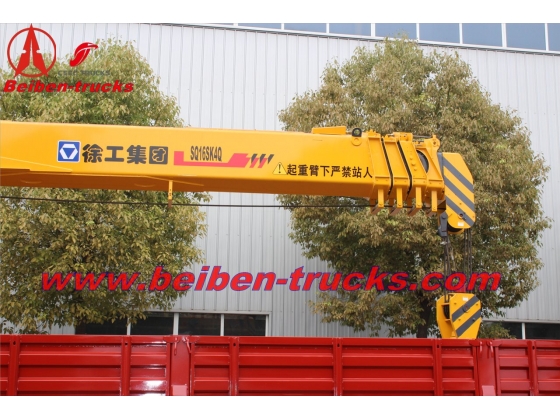

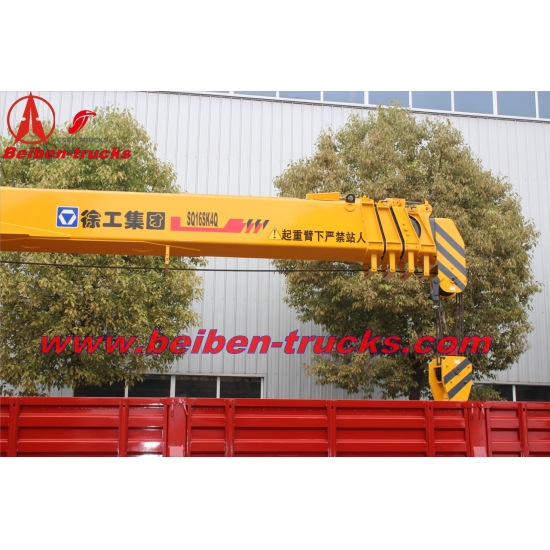

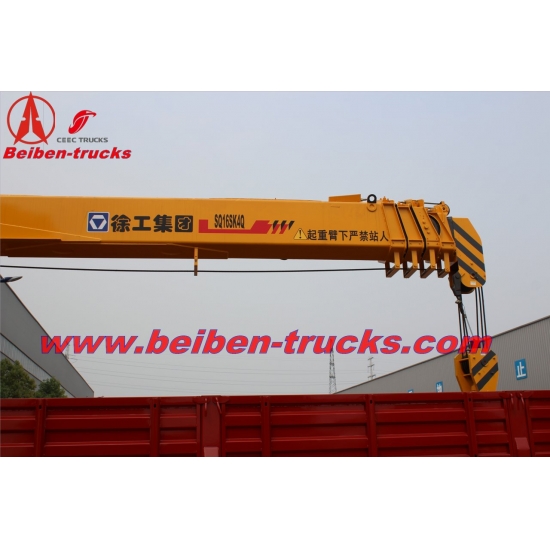

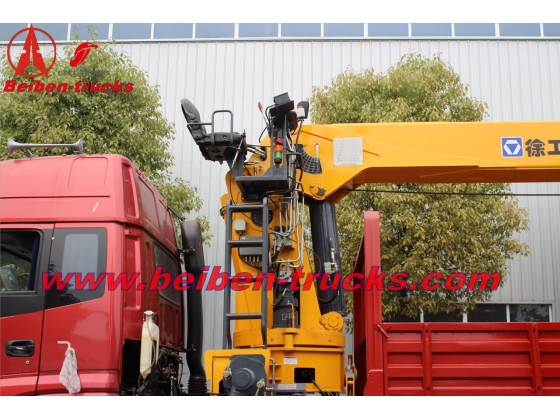

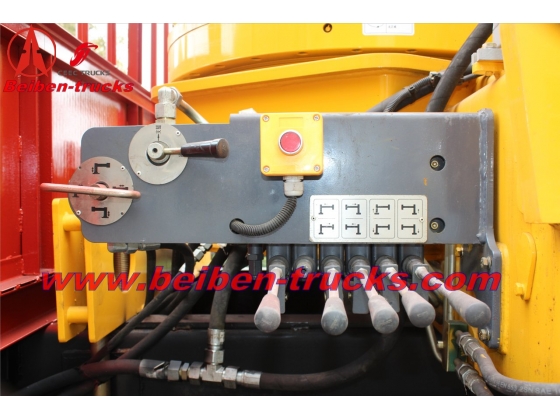

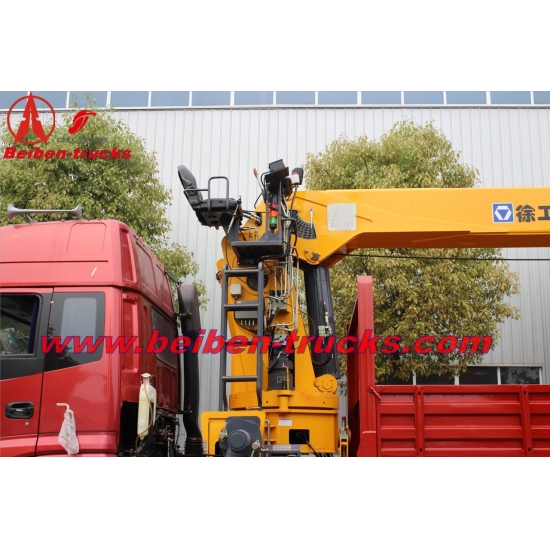

Crane Type

Knuckle boom crane

Max lifting weight(kg)

16000

Max lifting height(m)

15.5

Oil Tank Volume(L)

250
