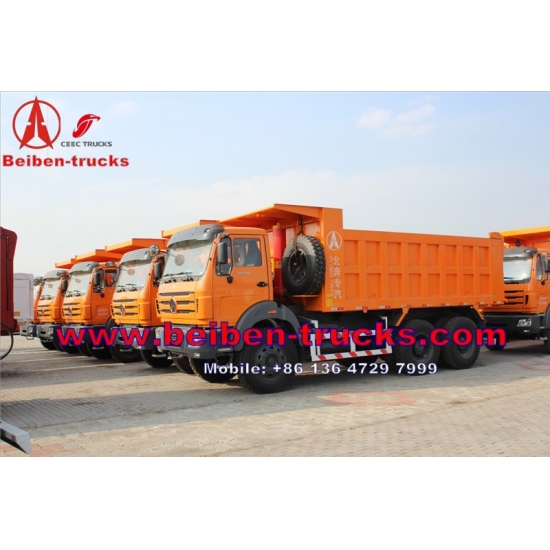

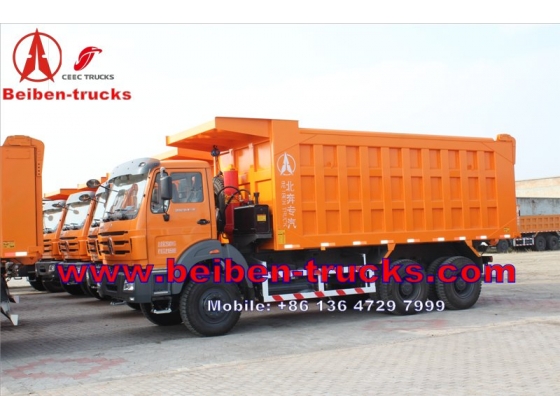

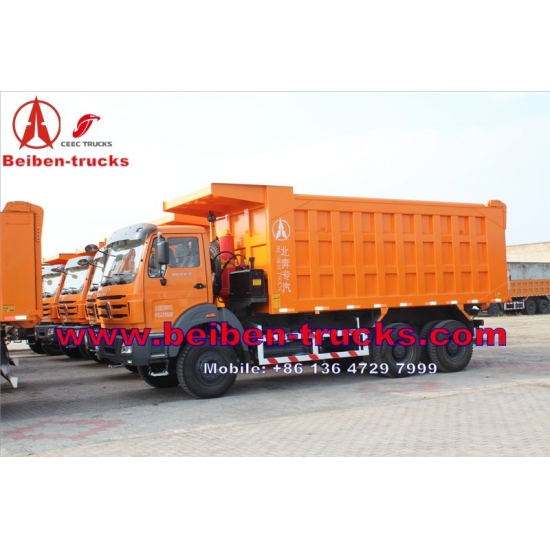

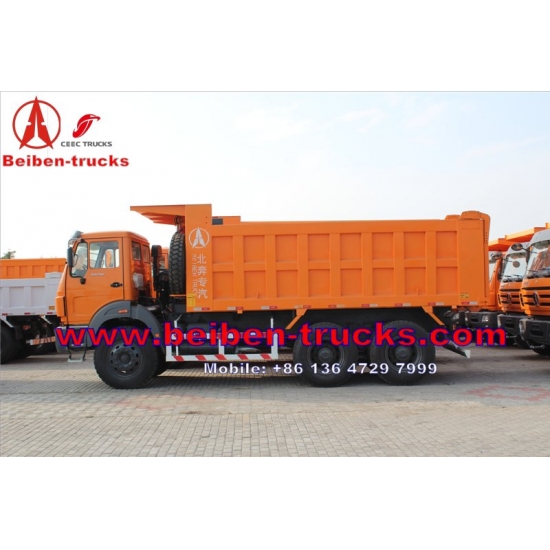

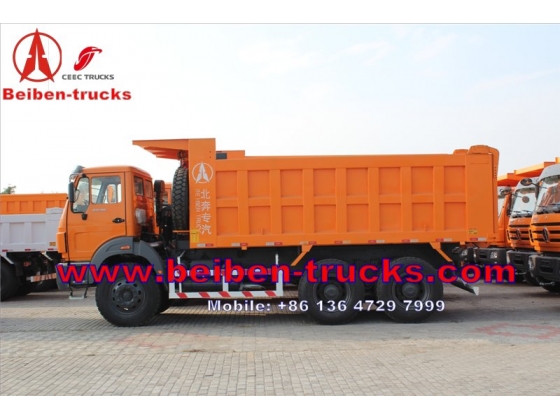

2013 New Dump Truck BEIBEN North Benz Army Trucks
Best North benz dump truck manufacturer in china
10 years beiben dump trucks field experience
Beiben china dump truck manufacturing
Mercedes-Benz Technology
Best beiben dumper
2013 New Dump Truck BEIBEN North Benz
(1) (Specifications 6x4 V3 North Benz Dump Truck
(2) Engine:WEICHAI (WORLD FAMOUS )
(3)Emission Standard:EURO3
(4) Transmission:FULLER
Specifications
6x4 V3 North Benz Dump Truck
Engine:WEICHAI
Emission Standard:EURO2/3/4
Transmission:FULLER
Steering:ZJ120D
CEEC TRUCKS plant is a heavy automobile
business unit with the approval of State Administration for Industry and
Commerce and State Development Planning Commission and is one of rare
domestic enterprises with the authority of Ministry of Commerce.
Adopting modern enterprise system, the company is a marketing enterprise of various heavy automobile brands, integrating international and domestic trade.
1. BeibenSpare parts available for 10 years
2. Engineer is available to make service overseas
3. 24hours online consultation service
1. All the beiben trucks will be made antirust before shipment
2. Different shipping method for different port, Ro-Ro Vessel, Bulk Vessel, Flat-Rack, Container, etc
3. Shipment tracking
Mercedes Benz Technology WEICHAI engine 340hp & 380hp North Benz Dump Truck
Beiben 6x4 Tipper Truck 380hp dump truck for sale
1.China 6x4/8x4 Dump Truck Beiben NG80/V3 best Tipper Truck with low price
2.Mercedes Benz Technology
3.Left hand drive/ right hand drive
4.Good parts supply
5.Short delivery time
NORTH BENZ NG80 6*4 dump truck ND3255B41J |
|
|
Traction type |
LHD/RHD |
|
Drive System |
6×4 |
|
Cabin |
NG80B Flat Cabin, Air Conditioner ,one sleeper |
|
Engine |
Brand |
WEICHAI |
Model |
WP10.380E32 EGR |
|
Rated power |
380hp |
|
Engine displacement |
9.726 liters |
|
Gearbox |
FAST 12 Speeds (12JS200T) |
|
Clutch |
430 Diaphragm type |
|
Steering |
TAS85/ZF8098 |
|
Axle |
Front |
BEIEBN 7.5 Ton |
Rear |
BEIBEN 13 Ton double reduction axle, ratio:5.921 |
|
Max. running speed (km/h) |
80 |
|
Tire |
12.00R20 |
|
Spring |
10/13 |
|
Fuel tank |
300L |
|
Kerb weight (kg) |
12220 |
|
Total mass (kg) |
25000 |
|
Wheel base (mm) |
3800+1450 |
|
Overhang (mm) (front/rear) |
1410/ 1920 |
|
Track (mm) (front/rear) |
1995/1800 |
|
Approach / departure angle(°) |
26/28 |
|
Dimensions(L*W*H)(mm) |
Overall |
8580x2500x3624 |
Dump body |
5600x2300x1500 |
|
Thickness (mm) |
Bottom 8 , front 6mm,side 4 |
|
Hydraulic lifting system |
Front lifting(Made in China) |
|
■Working principle
Beiben dump truck in great order from our plant.
The best beiben dump trucks, beiben 6*4 dump truck, beiben 8*4 dump truck manufacturer in china.
