50 CBM fuel tanker semitrailer for africa

Product Details

50 CBM fuel tanker semitrailer for africa

africa 60 CBM fuel tanker semitrailer manufacturer

Description:

This fuel tanker semi trailer, also known as oil tank trailer, is mainly used for transporting bulk liquid goods, such as diesel oil, gasoline, and sulfuric acid. It is widely used in chemical industry, metallurgy field, environmental

protection field, brewing industry, food field, pharmacy, storage and transportation field, and more.



Key Features:

More than 10years manufacturer experience, quality assurance

The tank section is designed with round, rectangle with circular arc, or oval structure, which ensures the trailer a simple structure and convenient operation.

It has a stable and reliable unloading capacity and lower gravity center.

Special requirement according to the buyer

africa 60 CBM fuel tanker semitrailer manufacturer

africa 60 CBM fuel tanker semitrailer manufacturer

africa 60 CBM fuel tanker semitrailer manufacturer

africa 60 CBM fuel tanker semitrailer manufacturer

africa 60 CBM fuel tanker semitrailer manufacturer

africa 60 CBM fuel tanker semitrailer manufacturer

africa 60 CBM fuel tanker semitrailer manufacturer

africa 60 CBM fuel tanker semitrailer manufacturer

africa 60 CBM fuel tanker semitrailer manufacturer

africa 60 CBM fuel tanker semitrailer manufacturer

africa 60 CBM fuel tanker semitrailer manufacturer

africa 60 CBM fuel tanker semitrailer manufacturer

africa 60 CBM fuel tanker semitrailer manufacturer

Detail Technical Parameters:

Manufacturer

Unit

Type

3-axle fuel tank semi-trailer can be loading 380,000Liter diesel

Weight:





Tare Weight

9.85Ton



Volume

45000L +3% expansion



Tank material

Aluminum



Thickness of shell

5mm



Thickness of dish

6mm



Inside baffles

4mm

Specification:





Compartment

3 to 5 compartments (according to buyer)





Each compartment equipped with

Aluminum Manhole cover 16" or 20"

Aluminum Emergency Bottom valve 3" with Pneumatic switch in locker

Aluminum Spill Valve 3” or 4",

Discharging Nylon hose 6m



Vapor Recovery System

Optional



Loading type

Top loading



Discharge type

Gravity discharge



Axle number

Three



Axle specs.

Original FUWA axle 13Tonlow-maintenance axles

(Optional BPW axle)



Suspension type

Heavy duty spring suspension 18*16*9mm



King Pin

50#(2.0”) traction pin JOST brand



Outside Dimensions (LxWxH)

11000×2500×1530mm



Steel Spring

10pieces

Tire:





Tire specs.

12.00R22.5



Number of Tire

12 pieces



Spare Tire Carries

1 pieces

Frame: (specs. And materials)

Main beam height is 500mm



Frame Beam

Upper plate is 14mm,  lower plate is 16mm,middle is 8 mm.

The frame will be reinforced in strength and high tensile.



Platform bed

3mm diamond steel plate



Landing Leg Support

 28T JOST 2-geared mechanical operated landing legs

Brake:





Brake Chamber

Four double and two single chamber( TKL brand  )



ABS system

STANDARD WABCO ABS System

Electrical:





Voltage

Complete 24V system in explosion proof installation



Receptacle

7 ways(7 wire harness)



Rear lighting type

Rear lighting with rear, stop, parking, direction, fog, reverse lights, side lights

Light color:

LED brand



Front marker lamp

front corner marker lamp is red,Reflector lamp is white



Side marker lamp

Orange



Rear lamp

Red



Turn signal lamp

Orange

Miscellaneous:







Painting

Exterior surface treatment by shot blasting.

Painting by high solid primer directly on the surface

Painting inside special paint booth with the cargo cabin color or the color chosen by the customer



Marking

According to the requirement of the buyer

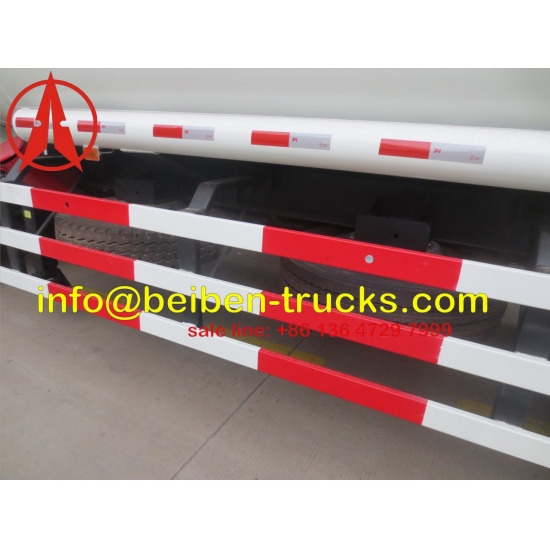

Side Guard

According to the requirement of the buyer



Tools box

1 tool box with our factory's standard matching tools









Accessories

Plastic half-circle mudguards;
Fire extinguisher 2 PCS
Pipe 1 PCS
Cranking bar 1 PCS
Gudgeon sleeve 1 PCS

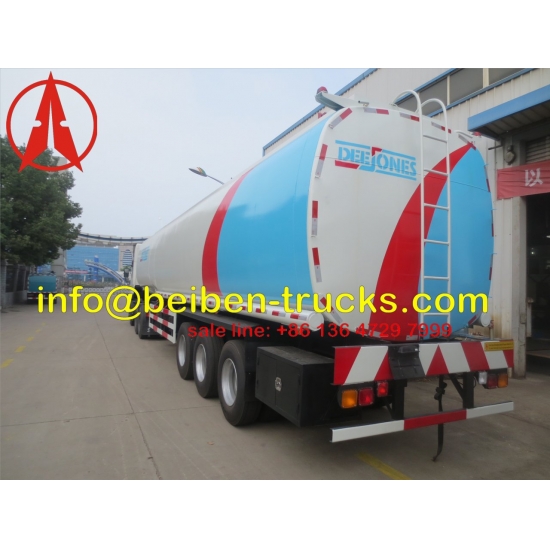

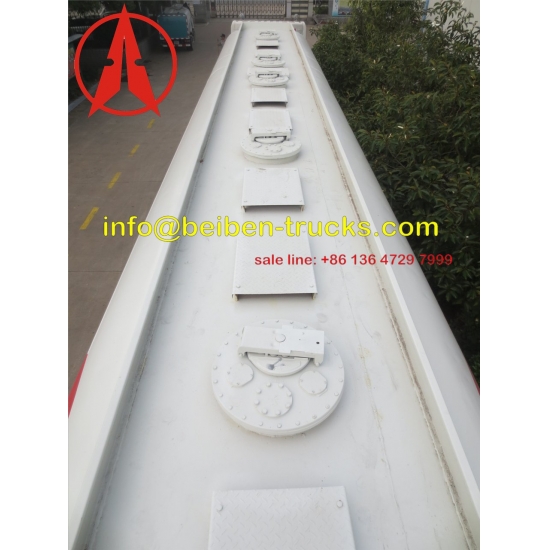

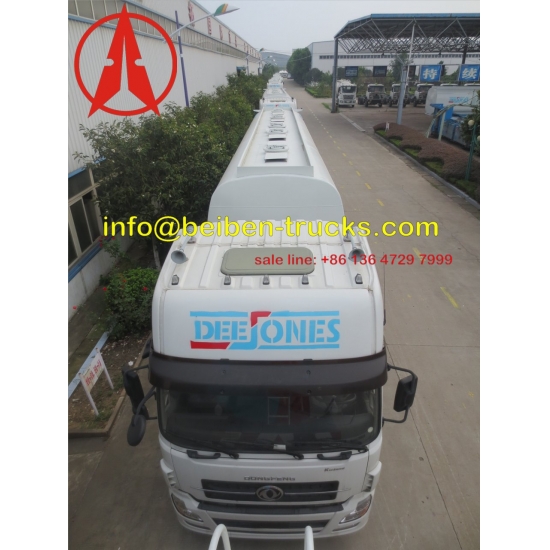

Tank Top Accessories

Ladders fixed on the front and rear; foldable handrail

Walkway with anti-slip material in the front of reach the manholes,

Not covering the complete length of the tank.
