Model

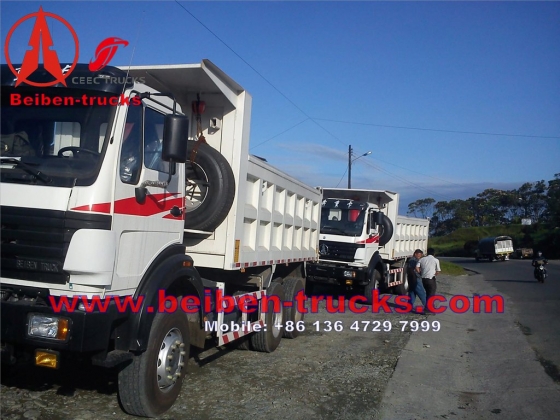

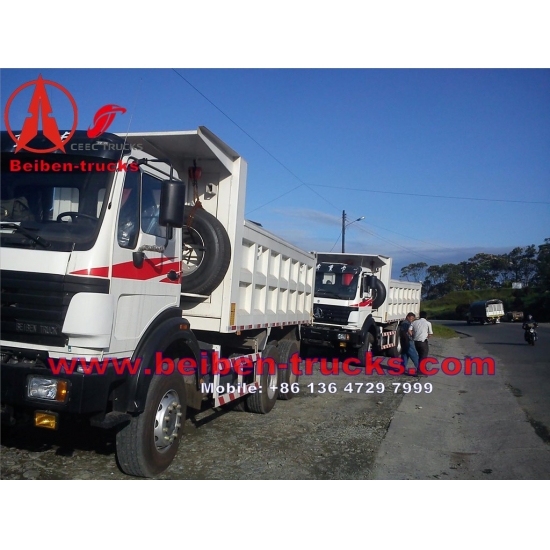

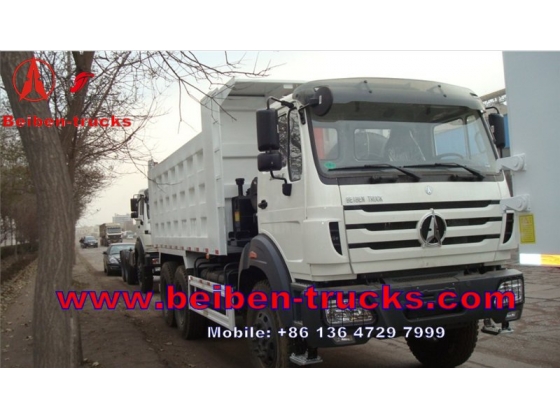

6x4 dump truck

Cabin

Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly

Engine

Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.

Model:

WP10. 380E32

WEICHAI Diesel engine

MAX Horse power:

380HP/279KW

Displacement(L):

9.726liter (Euro 2 standard)

Max torque:

1500NM@1200-1600rpm

Bore/stoke:

126mm/130mm

Gear box

Max torque:1500NM

Model:

9JS180, mechanism,9gears,1reverse gear

Speed:

9speed,1reverse

Axle(front/rear)

Front axle

Double-shoe pneumatic brake, non-driving steering axle

Tandem

Double-shoe pneumatic brake, casting, double reduction driving axle

Clutch

Single dry frictional disc,Hydraulic boosting

Brake

Service brake:Double circulation air brake system

Parking brake: Potential springs pressing on middle and rear wheels

Engine brake: Engine exhaust brake(EVB)

Steering

TAS85, driver sit at the left hand side (right hand is optional)

Electric Equipment

Operating voltage:

24Vnegative grounded

Starter:

24V,5.4KW

Alternator

28V,758W

Battery voltage

12V/135Ah,cigar lighter

Frame

Fish belly, shape, variable width, variable sections, side beam structure.

Tyre

10+1 spare tyre with rim

12.00-20 nylon tyre

Suspension system: strongthen heavy duty Leaf spring type

Front/Rear

10/13

Dump body:

Inside size of Body(mm): 5800x2300x1100 ,6x8mm, made of high intensity steel

Lifting type: Front lifter “T” type hydraulic system.

Overall dimension(mm): 8530x2500x3310(Length x width x height)

Wheelbase

3800+1350mm

Track:

Front/Rear

1995/1800

Approach/Departure angle

26/32

Front /Rear overhang

1410/1870

Max speed

90km/h

Kerb weight:

12200kg

Oil tank capacity

300L fuel tank
