BEIBEN DUMP TRUCK 6x4 380hp EURO II,BENZ axle MERCEDES BENZ technology

Product Details


Best North benz dump truck manufacturer in china

10 years beiben dump  trucks field experience

Beiben china dump truck manufacturing

Mercedes-Benz Technology

Best beiben dumper

BEIBEN DUMP TRUCK 6x4 380hp EURO II,BENZ axle MERCEDES BENZ technology

Company Information

CEEC TRUCKS plant is a heavy automobile business unit with the approval of State Administration for Industry and Commerce and State Development Planning Commission and is one of rare domestic enterprises with the authority of Ministry of Commerce.

Adopting modern enterprise system, the company is a marketing enterprise of various heavy automobile brands, integrating international and domestic trade.

Our Services

1. BeibenSpare parts available for 10 years

2. Engineer is available to make service overseas
3. 24hours online consultation service

Packaging & Shipping

1. All the beiben trucks will be made antirust before shipment

2. Different shipping method for different port, Ro-Ro Vessel, Bulk Vessel, Flat-Rack, Container, etc
3. Shipment tracking

 Beiben dump truck for africa congo


Mercedes Benz Technology WEICHAI engine 340hp & 380hp North Benz Dump Truck



North Benz NG80 WEICHAI Engine 290hp EUROIII 6x4 30-40t/ton Truck Beiben Dump Truck Tipper Truck

Cabin:

North Benz short cabin, one sleeper, A/C
Radio player(with USB), Safety belt, Adjustable air type, high back and shock absorption
Driver seat with handle and seatbelts
Dash board with all necessary gauges such as (km meter, rpm, oil pressure, temperature, air pressure,
Fuel level)
Headlight, Sun protection on cabin.



Engine:
Engine brand: Weichai
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line
With water cooling, turbo-charging & inter-cooling with exhaust valve brake.
Displacement: 9.726 liters
Max. Output: 290HP
Max torque: 1970NM@1200-1500rpm
Bore/Stroke(mm): 126/130



Clutch:
Clutch: Φ 430 Diaphragm type
Type: Single dry frictional disc, Hydraulic boosting
Gear box:
Model: Fuller 9 speeds(9JS150A), manual, 9-forward and 1 reverse speeds



Steering: ZJ120D
Brake system:
Double-circulate brake system



Axles:
Front axles: Mercedes Benz Technology 7.5 Tons
Rear axles: Benz double Reduction driving axle, Ratio: 1: 5.921(option5.263, 6.733)
Frame: Strengthened frame 300*90*8+6+8
Tyre: 12.00R20
No tyre: 10+1 spare
Spring: 10/13
Fuel tank capacity (L): 300



Weight:
Kerb. Mass: 9200 kg
Towing mass: 25000kg

 Dimensions:

Wheel base (mm): 3800+1450
Front overhang (mm): 1410
Rear overhang (mm): 1687
Front track (mm): 1995
Rear track (mm): 1808/1808
Max. Length(mm): 8347
Max. Width(mm): 250

Max. Heigh(mm): 3384

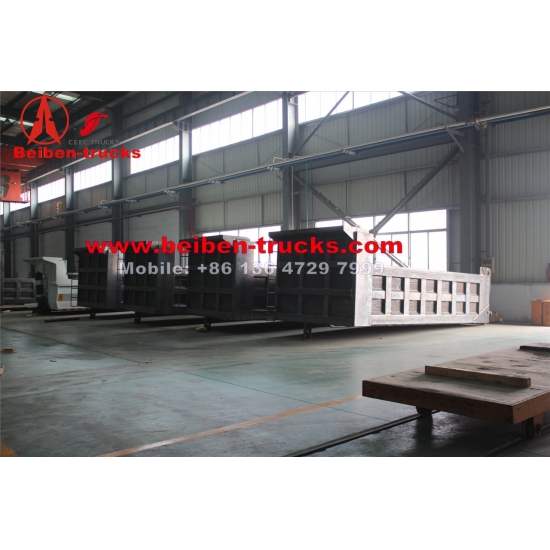

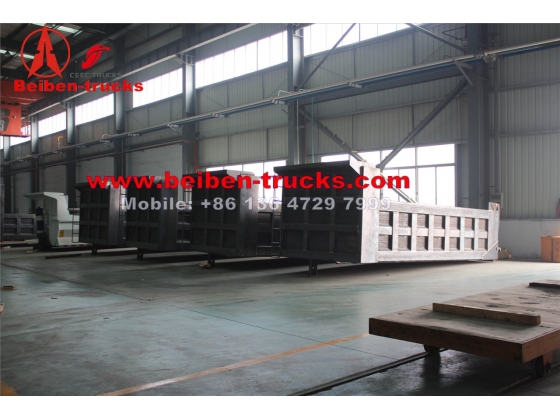

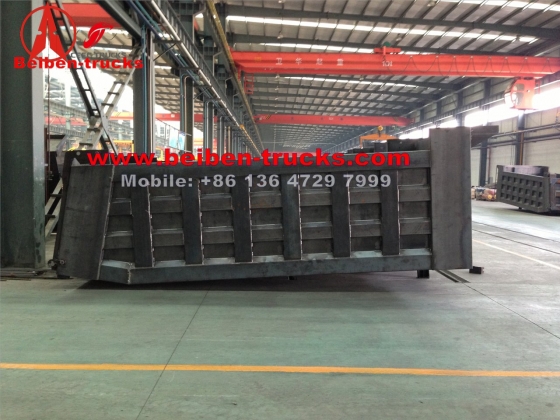

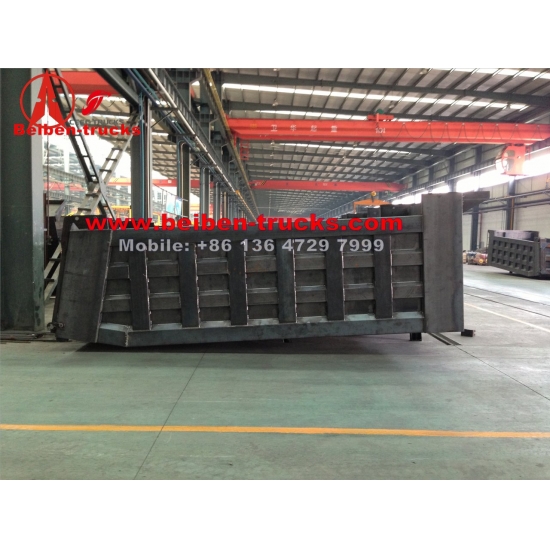

 Tipper Body

Dimension 5600*2300*1500

Capacity :19.32CBM

Thickness of body steel(mm): floor 6 front 6 side & back 4

Hydraulic System ---  F type lifting

Cylinder: Φ180x4640



















































Working principle

Light Weight Dump Truck Building new profit concept in the age of “light weight” (This series mainly refers to the light dump truck with internal length above 6.5m, classified into rectangular dump body and U-shaped dump body) Energy-saving, high effic

Light Weight Dump Truck

Beiben dump truck in great order from our plant.

north benz dump truck

north benz dump truck

north benz dump truck

north benz dump truck

The best beiben dump trucks, beiben 6*4 dump truck, beiben 8*4 dump truck manufacturer in china.

Beiben dump truck for africa congo

Beiben dump truck for africa congo

Beiben dump truck for africa congo

north benz dump truck

north benz dump truck

north benz dump truck

north benz dump truck

north benz dump truck

north benz dump truck

Beiben dump truck for africa congo

Beiben dump truck for africa congo

PreviousBEIBEN tipper truck 20T 340hp North Benz 6*4 dump truck mining truck

NextBeiben dump truck 16 CBM loading capacity

Success Cases

Algeria customer order 30 units beiben 2634 tractors

 30 set beiben 2634 prime moves are sucessfully shipped on board at tianjing seaport, china. This order take more than 3 months after CEEC TRUCKS international department team visit algeria many times.   Based on algeria customer local requirement, we make strategy for supplying the beiben 2634 tractor trucks. customers inspect these beib...

Algeria customer order 30 units beiben 2634 tractors

Beiben 2529 dumper in congo customer working site

Beiben 2529 dumper in congo customer working site, this north benz 290 hp dumper is used for transporting mine sand, and other low density materia. we supply this beiben dumper to customer in 2011 year.   Currently this beiben 25 T dump truck still work very good situation.   Our beiben dump trucks quality is very reliable and well accept...

Beiben 2529 dumper in congo customer working site

Congo, pointe noire customer inspect their beiben 2638 tractor truck and bogie suspension semitrailer

Congo pointe noire customer inspect their beiben 2638 tractor truck and bogie suspension semitrailer , these beiben 2638 tractor and 2 axle bogie suspension container semitrailer are very popular in congo, brazaville and pointe noire. We also supply the original beiben spare parts such as beiben oil fitler, fuel filter and air filter for free of ch...

Congo, pointe noire customer inspect their beiben 2638 tractor truck and bogie suspension semitrailer

Beiben 420 Hp engine heavy duty dumpers are for congo , Brazzaville

China beiben 420 hp engine, 12 wheeler 8*4 drive system dump trucks are for congo , brazzaville customer. These beiben 3142 dump trucks are all in ROCK BLACK colour as congo customer requirement.   Congo customer is very satisfied with the super quality that is the same to Germany benz truck quality. We welcome customer from congo, brazzaville...

Beiben 420 Hp engine heavy duty dumpers are for congo , Brazzaville

10 units Beiben NG80B 380 hp engine tractor trucks export to Kenya , mobassa

Kenya customer place order of 10 units beiben 380 hp engine right hand drive tractor truck.  These beiben 6*4 drive 380 hp engine tractor truck are specially with Germany Benz technology, 80% spare parts of china beiben tractor trucks can be replaced directly by BENZ 2538 tractor trucks. This original benz spare parts can ensure the excellent ...

10 units Beiben NG80B 380 hp engine tractor trucks export to Kenya , mobassa

Mogolia customer place order 30 units beiben 12 wheeler dump trucks

Mogolia customer choose us as the 30 units beiben 3134 dump trucks supplier, these 30 units beiben 12 wheeler dump trucks are the first sample order from the mogolia customer.    As the most experieced beiben dump trucks manufacturer in china, we continue supply mogolia customer with beiben 3129 dump truck, beiben 3134, beiben 3138, beibe...

Mogolia customer place order 30 units beiben 12 wheeler dump trucks
