Beiben 10 CBM transit mixer truck

Product Details

North benz 10 CBM transit mixer truck

beiben 9 CBM concrete mixer truck manufacturer

North benz 10 CBM transit mixer truck, 12 CBM concrete mixer truck, 14 CBM cement mixer truck, 16 CBM cement mixer truck supplier in china. we can design and produce the beiben concrete mixer truck up to customer's requirement. we will ensure the best quality north benz transit mixer truck for all customer. 12 months genuine beiben spare parts for all the beiben mixer trucks from our plant.

2529BY /6×4/3450+1450/Short Cab/LHD

Dimension 尺寸

8840*2500*3840mm

Approaching angle/Departure angle

26/15°

Overhang(front/rear)

1410/2530mm

Wheel base

3450+1450mm

Max speed

80km/h

Curb weight

13350kg

Loading capacity

11520kg

Slope climbing capability

Max.40%

Engine

Model

WP10.290E32water-cooledfour strokes6 cylinders in lineturbocharged, directly injection

Displacement

9.726L/Diesel

Stroke

126/130mm

Max. power

213/2200 (kw/rpm)

Max.torque

1160/1200-1600Nm/rpm

Emission stantard

Euro

Fuel tanker capacity

400L

Clutch

430, Single dry frictional discHydraulic boosting

Gearbox

9JS135T-B, mechanism,9 forward gears,1 reverse gear, manual operated, with synchronizer

Gear ratio of gear box

12.11/8.048/5.96/4.42/3.36/2.41/1.77/1.32/1.00 R: 12.66

Suspension system

Front

Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs

Rear

Non-free standing stablization spring, balance suspension system, 13pcs

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

TAS85,whole circulation in ball, hydraulic booster

Frame

Fish belly shape, variable width, variable sections

Front axle (Mercedes Technology)

Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle (Mercedes Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Tyre

12.00R20 Radial

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cabin

NG80B short cabin;
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back with arm seat for driver, high back seat for co-driver;With inner A/C

Main technical parameters of concrete mixer

Drum performance parameter

Geometric Volume m3

13.1 m3

Effective Volume m3

8 m3

Filling Ratio %

64.5%

Gradient of the Drum °

15°

Filling speed m3/min

≥3

Discharging Speed m3/min

≥2

Surplus Ration %

<1%

Range of Slump mm

20300

Hydraulic System

Pump

Eaton 54 (ACA542337R)

Motor

Eaton 54 (HHD542337R)

Gear Box

PMB6sp

Water supply system

Volume of water tank

400L

Water supply type

Air pressure Type

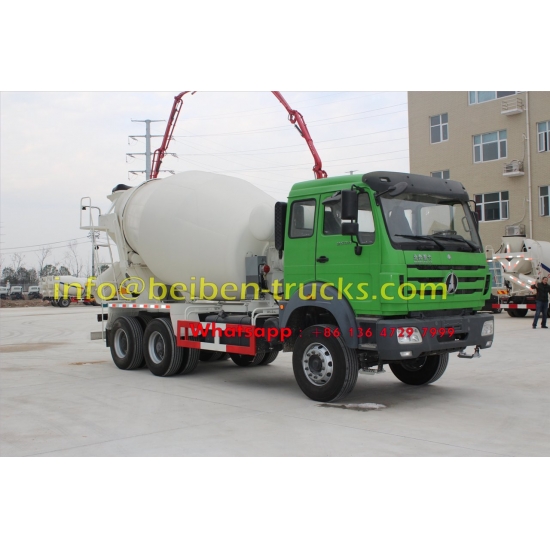

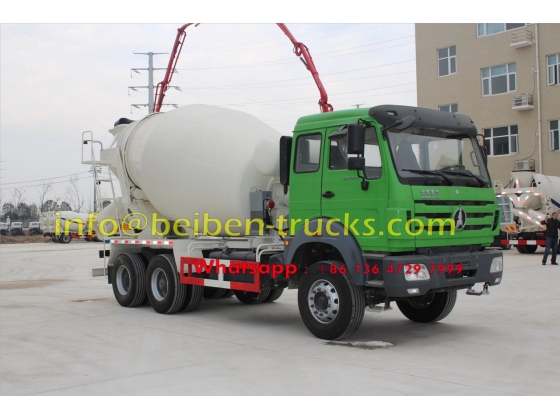

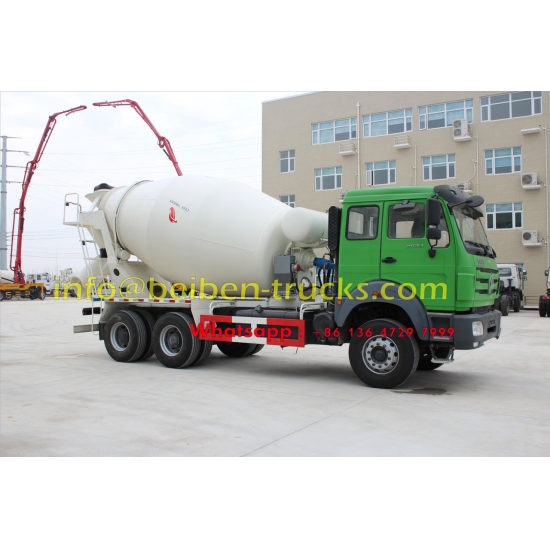

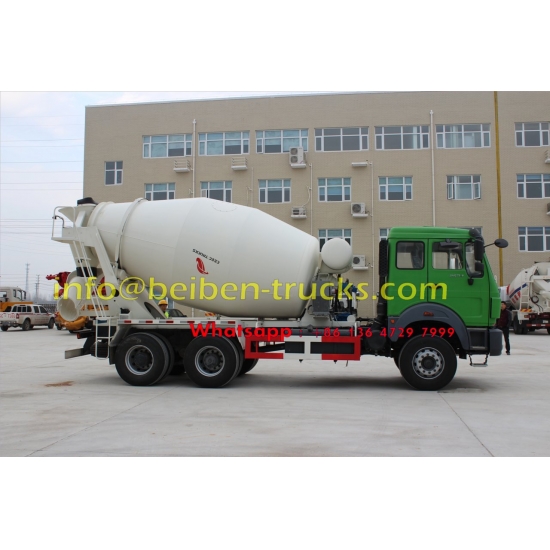

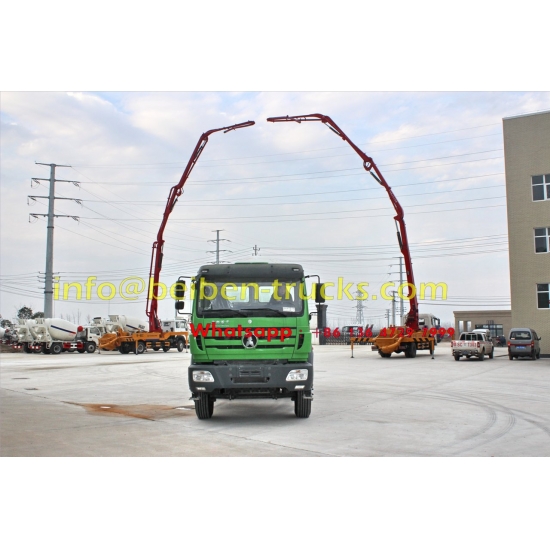

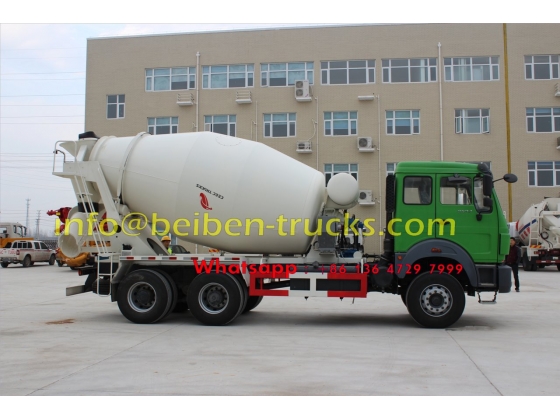

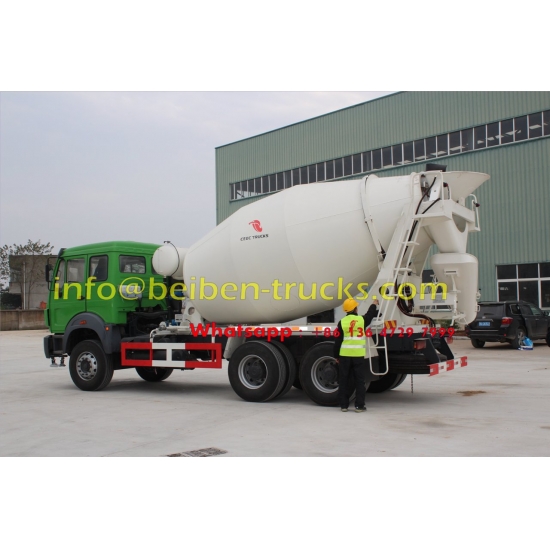

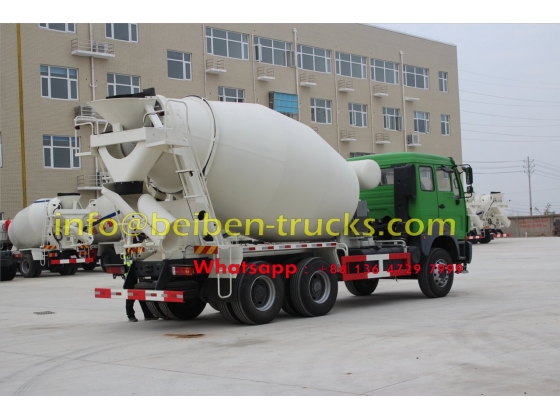

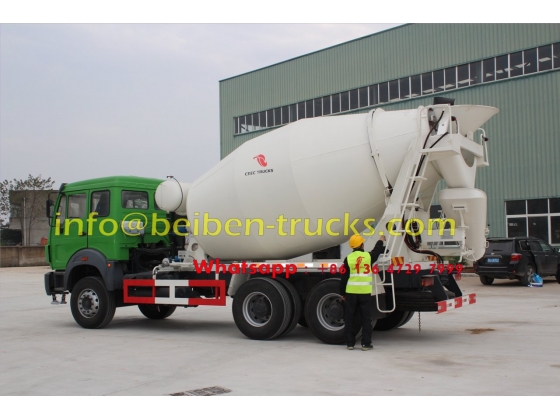

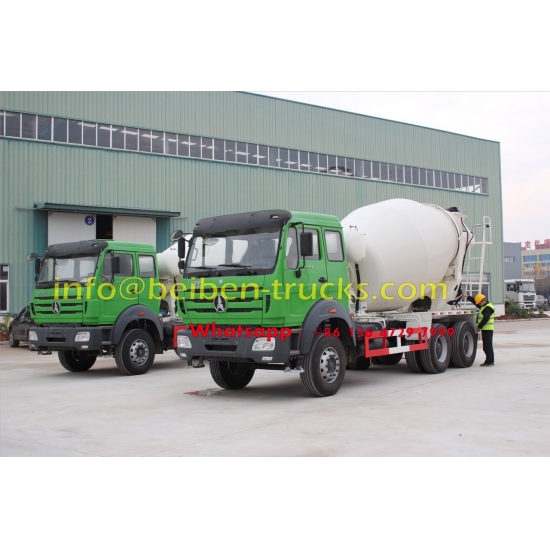

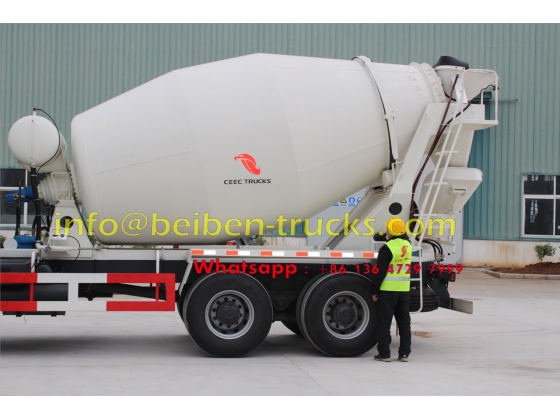

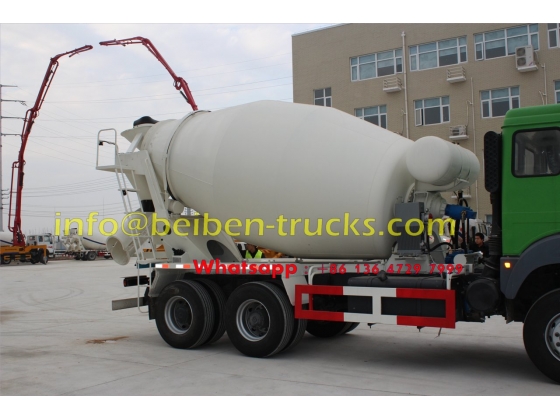

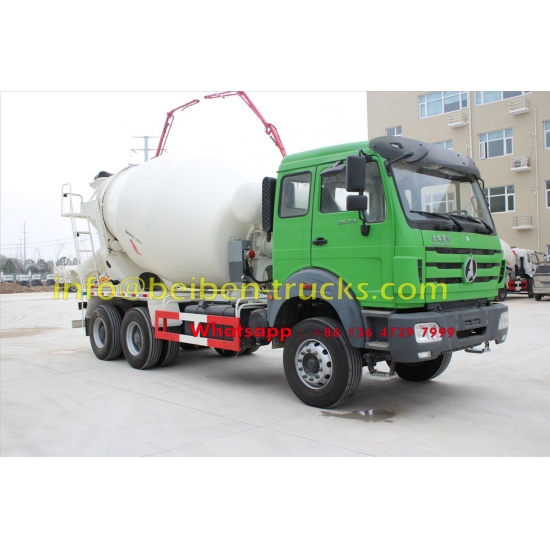

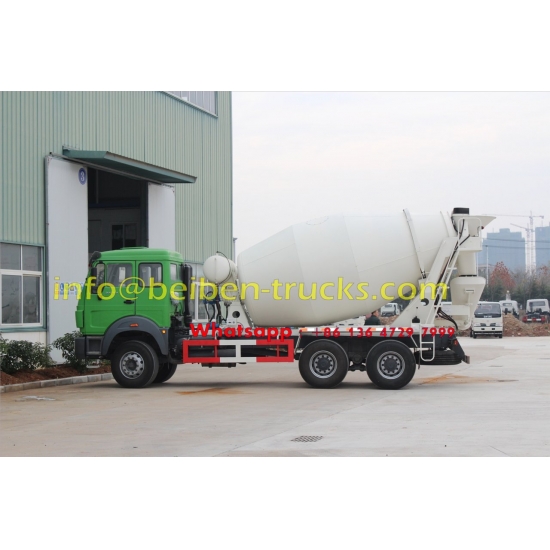

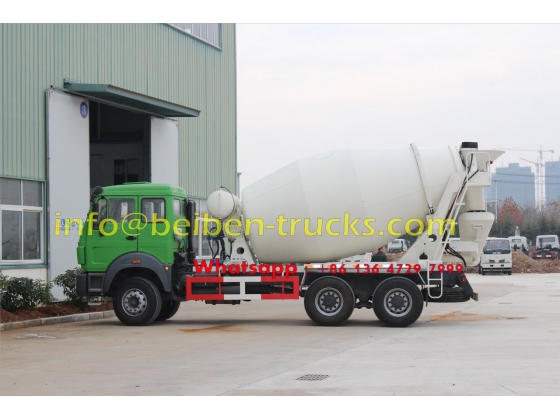

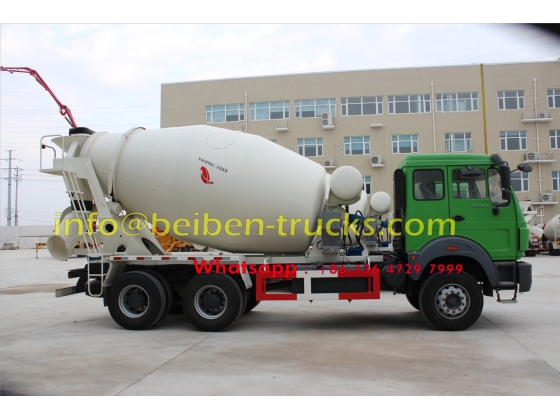

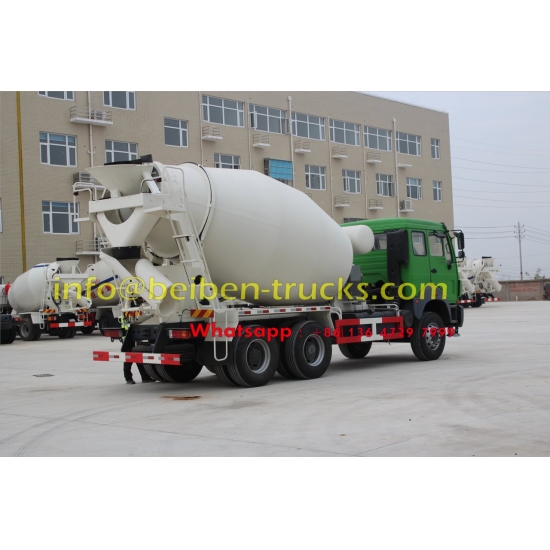

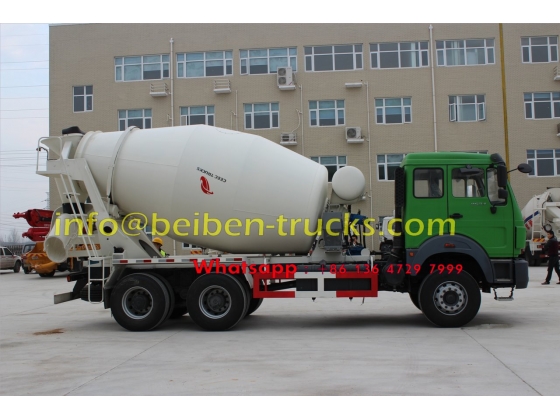

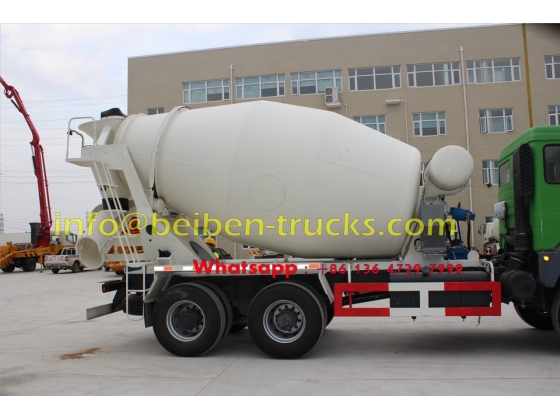

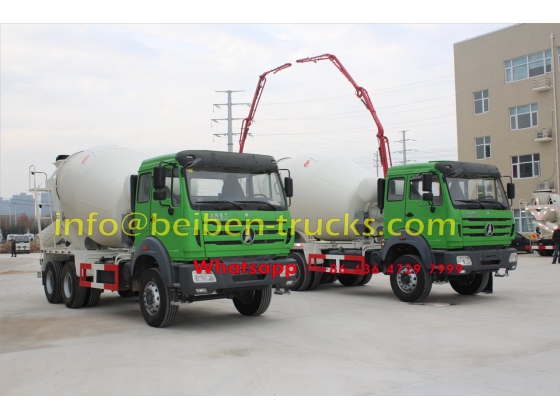

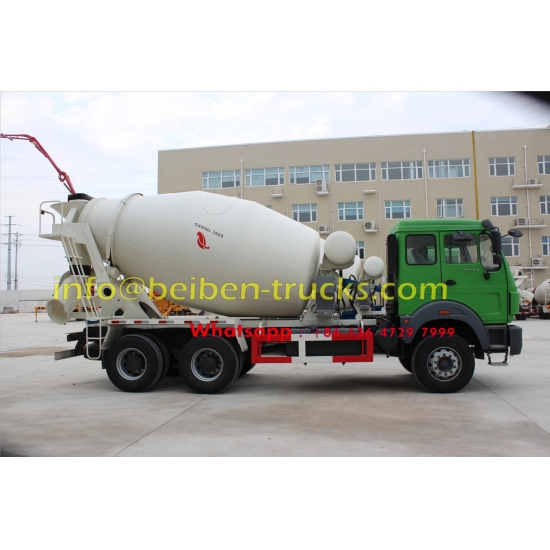

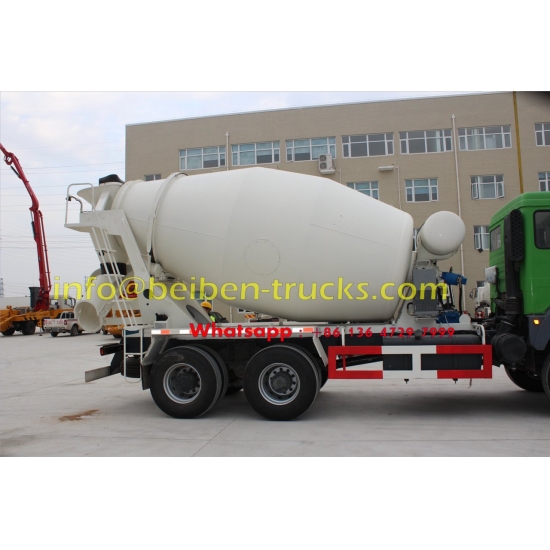

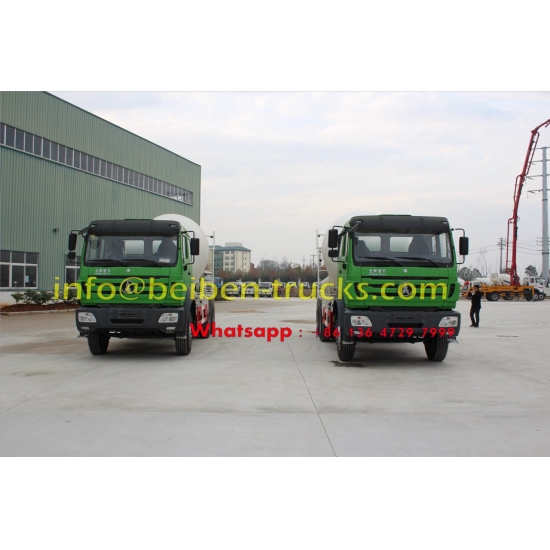

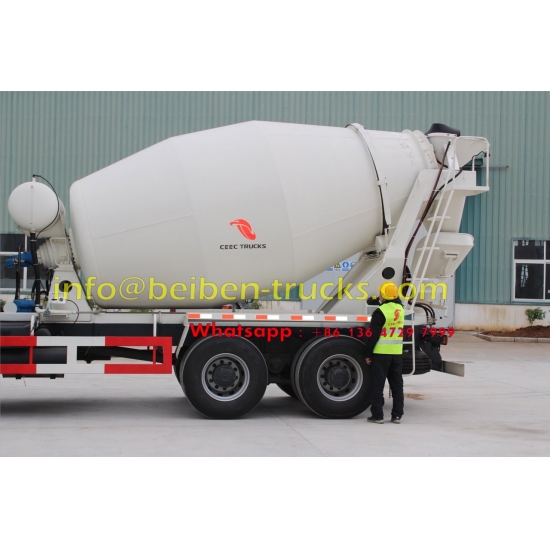

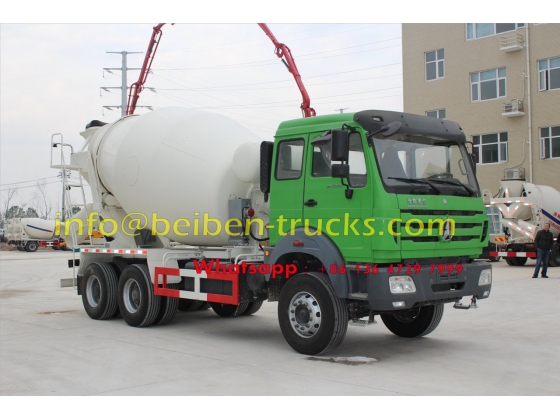

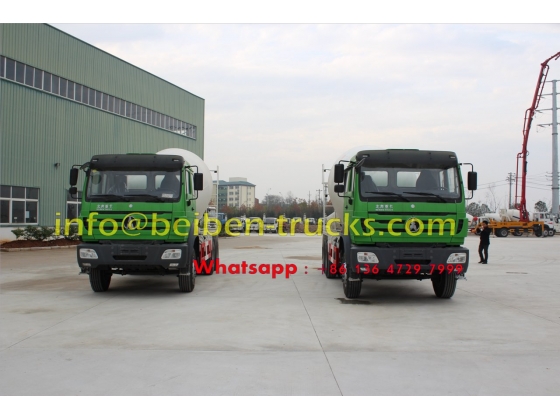

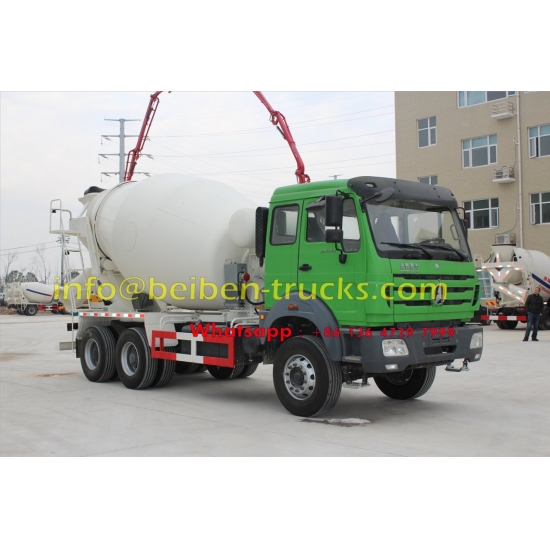

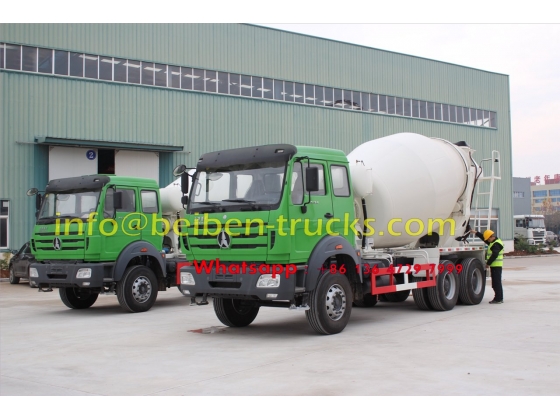

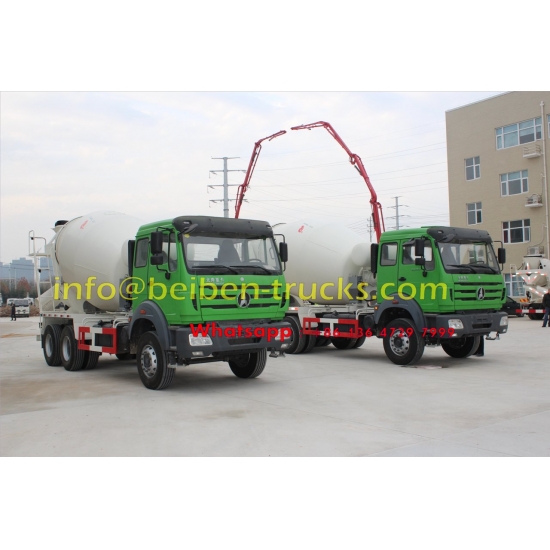

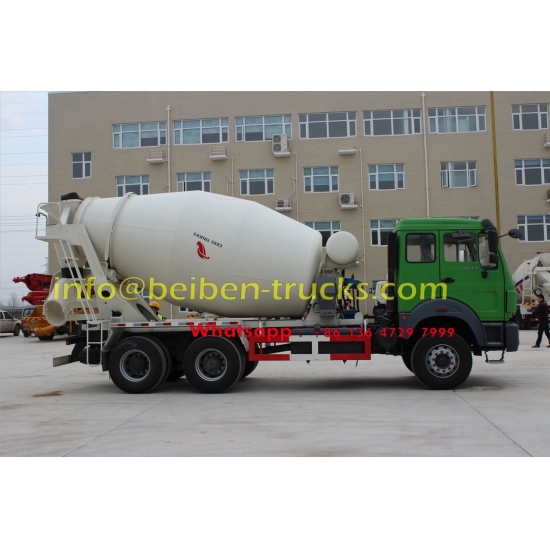

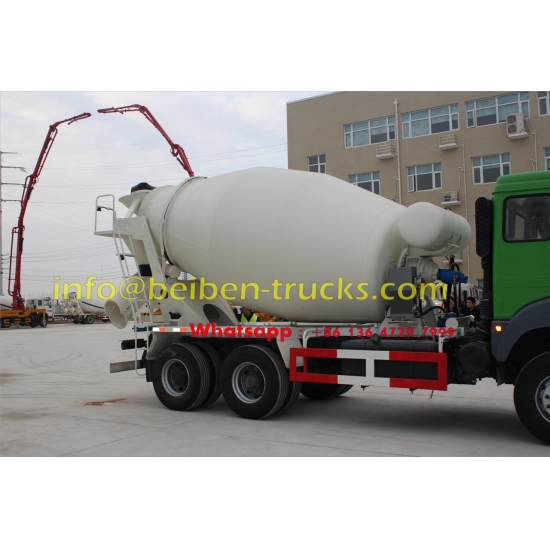

north benz 10 CBM concrete mixer truck

north benz 10 CBM concrete mixer truck

north benz 10 CBM concrete mixer truck



north benz 10 CBM concrete mixer truck

north benz 10 CBM concrete mixer truck

north benz 10 CBM concrete mixer truck

north benz 10 CBM concrete mixer truck

north benz 10 CBM concrete mixer truck

north benz 10 CBM concrete mixer truck

north benz 10 CBM concrete mixer truck

north benz 10 CBM concrete mixer truck

north benz 10 CBM concrete mixer truck

north benz 10 CBM concrete mixer truck
