Beiben 15 CBM garbage compactor truck

Product Details

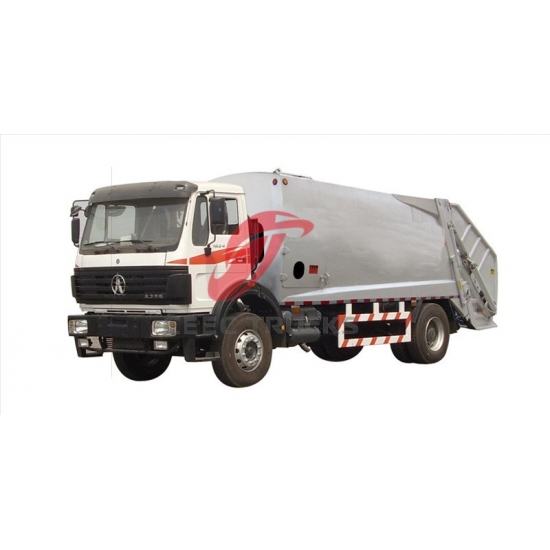

Beiben 15 CBM 4*2 drive garbage compactor truck

Best Beiben garbag compactor trucks manufacturer in china  . As the most professinal north benz wast compactor truck supplier in baotou china , we can produce the beiben 5 CBM garbage compactor truck, beiben 8 CBM garbage compactor truck, beiben 10 CBM garbage compactor truck , and beiben 16 CBM garbage compactor truck

beiben garbage compactor truck

The north benz rear loading garbage ruck can be on north benz 4*2 trucks chassis, 6*4 and 8*4 trucks chassis. Customer can choose JAPAN KATO technology system to install on these north benz trucks chassis



 We can supply beiben 5 T 4*2 wast compactor truck, beiben 6*4 drive compactor truck,, beiben 8*4 drive compactor truck.

 compactor truck,

Beiben 4*4 drive garbage compactor truck for exporting

 beiben 10 T refrigeration truck



Beiben 6*4 waste compressing truck for africa using .

Beiben V3 tractor trucks supplier



Beiben 8*4 drive garbage compactor truck manufacturer for south asia customer .

beiben 10 T refrigeration truck



China Bei Ben new NG80B truck beiben 10 T wast compactor trucks for africa congo customer using, with Excellent quality Mercedez benz technology, We can supply beiben 5 CBM , 8 CBM , 10 CBM , 12 CBM , 16 CBM, 25 CBM garbage rear loading trucks .


China beiben china north benz beiben 10 T


garbage compactor truck



Technical Parameters

Brand BEIBEN Garbage compactor  TRUCK
Vehicle model 1929GA
Cabin Full steel skeleton structure, covered with double layer steel plate
Anticorrosion treatment processes complex, anti-corrosion, durability of sustainable vehicles
Long/Day cab, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure
Persons in cab: 3
Driving 4×2
Wheel base (mm) 4800
Weight data Curb Weight(kg) 7960
Engine Model Brand WeiChai WP10.290 / Diesel, Straight in linewater-cooledturbocharged, intercooled, 6 cylinders,
Power 290HP
Emission EURO III
Rated power(kw/rpm) 213Kw/2200rpm
Transmission FAST GEAR Model:9JS135B 9-forward &1-reverse gears
Option: ZF9T-160
Clutch single disc, dry type, diaphragm spring, φ430
Frame BeiBen Unique frame, Mercedes-Benz technology, Strengthened frame
Fish belly, various width, various sections, side beam structure
Axle Front: Mercedes Benz Technology, 7.5 ton, non-driving steering axle
Rear: Mercedes Benz Technology, 13 Ton, ductile casting casing, with hub redactor, double reduction driving axle
Suspension Non-free standing stabilization spring, hydraulic shock absorber stabilization suspension
Steering ZF8098 (Original ZF technology)
Wheels and tyre size 6+1/12.00-R22.5
Fuel tank (L) 400L
Colour Metal white, multi-colored options

Beiben waste compactor truck Upper Body Specification

BitmapModel                                     UMC15
Refuse Container Capacity(m3) 15
Garbage press coefficient 0.6
Filler hopper capacityL 1500
hopper capacityL 2000
Loading Cycle times 18-22
Unloading Cycle times ≤35
Hopper cycle working times ≤60
Sewage Trough VolumeL 300
Power driven PTO
Sealing between feed in device and container Adopt hydraulic lock, without any pollution water leakage, with national patent
Container structure type Adopt arc shelly structure with smooth surface
Operational type                                           Automatic and manual
Hopper rated lifting weight kg 1200
Feed in hole dimension mm 2030*1150
Pull plate cylinder four steps cylinders bores180/150/120/90 stroke2745mm
Hydraulic pump Double coupling gear pump
Rated pressure(bar) 160
Displacement (ccrev) 63/32
Hydraulic valves Imported 5-couplings
Hydraulic oil Abrasive oil 46#
Lifting cylinder bore×stroke90X485mm
Up & Down cylinder bore×stroke100X800mm
Scraper cylinder bore×stroke80X430mm
Hopper cylinder bore×stroke63X250mm

Steel material and thickness

Container side plate 4mm/B510L
Top plate 3mm/SS400
Bottom plate 4mm/B510L
Tail gate hopper bottom plate side plate B520JJ,B520JJ
Sub-frame Material Channel steel 25# , Q235 steel, Thickness9.5mm
Uploading units Weight (kg) 6000
