Beiben 2534 concrete mixer truck

Product Details

                                               Beiben 2534 concrete mixer truck

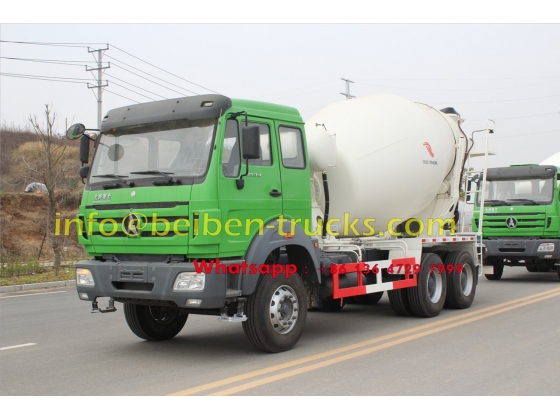

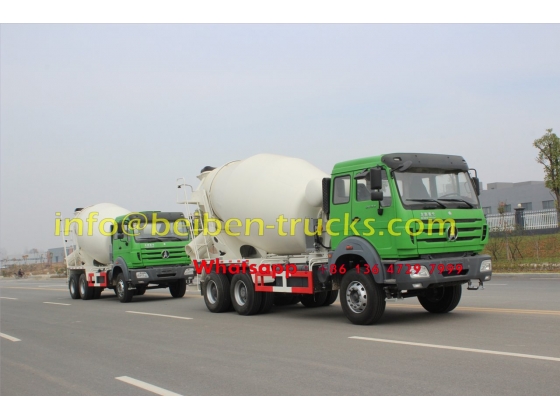

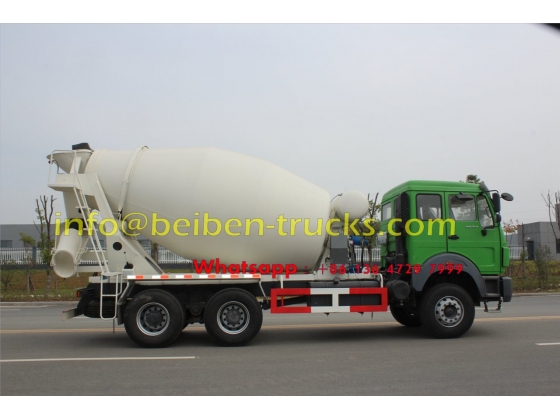

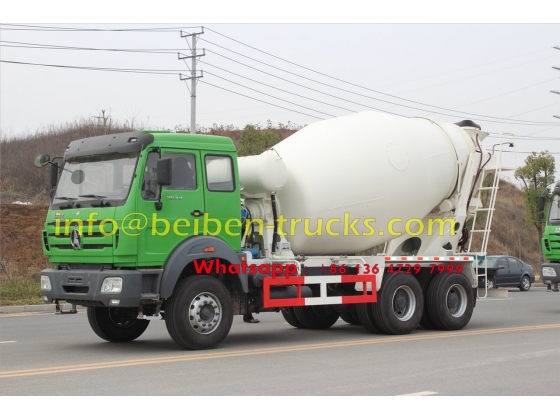

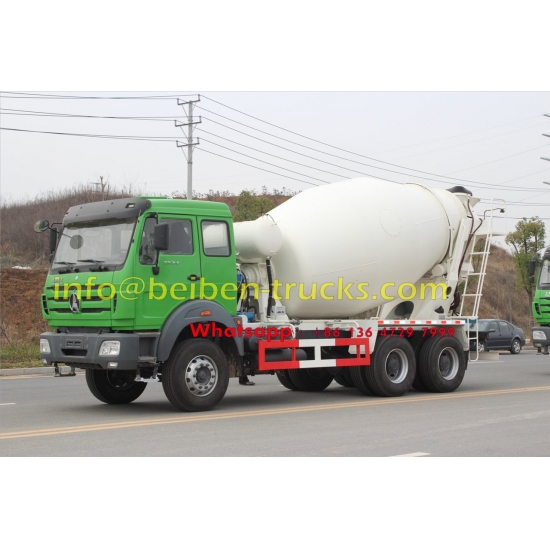

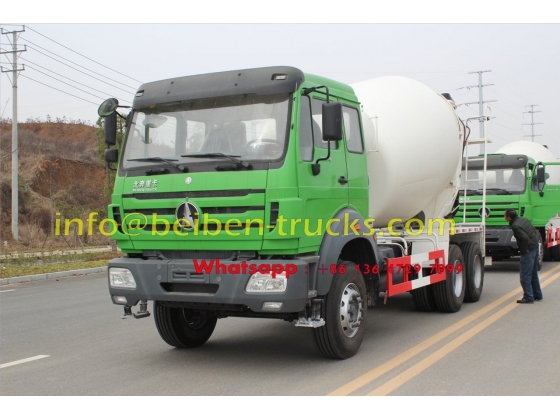

beiben 2534 mixer truck

Description:

The concrete mixer is specially designed for mixing and carrying the concrete to the construction worksites. All cement mixer trucks are constructed with high-tensile steel for endurance and resistance to friction, it’s very easy to operation.



More detail can be found on YOUTUBE: https://youtu.be/FG9XqpBREgM

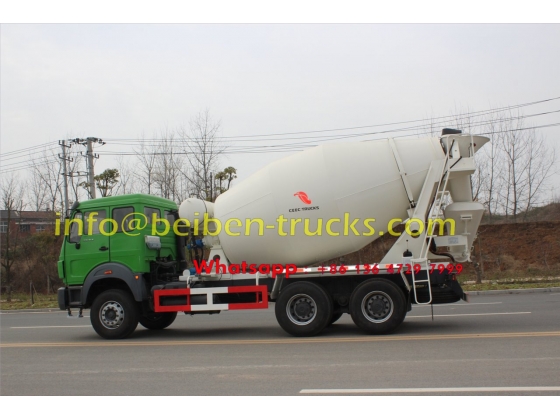

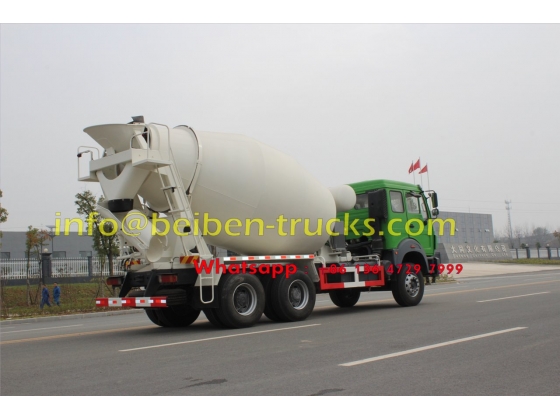

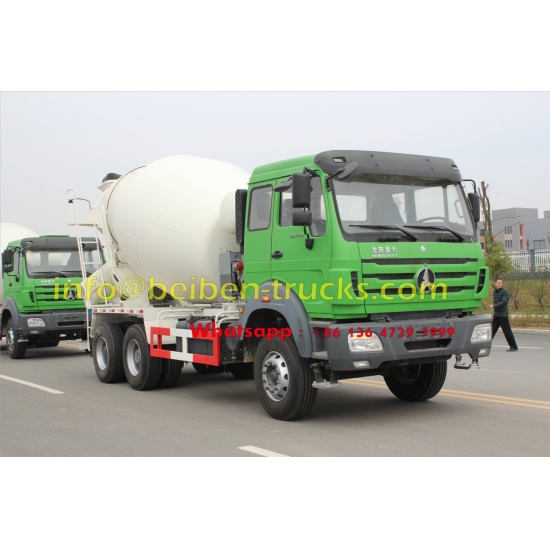

beiben 2534 mixer truck

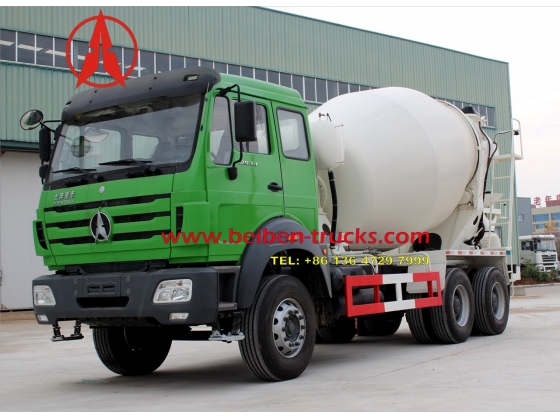

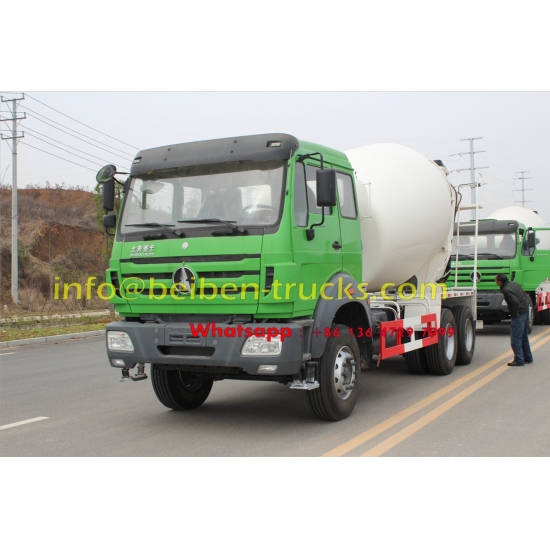

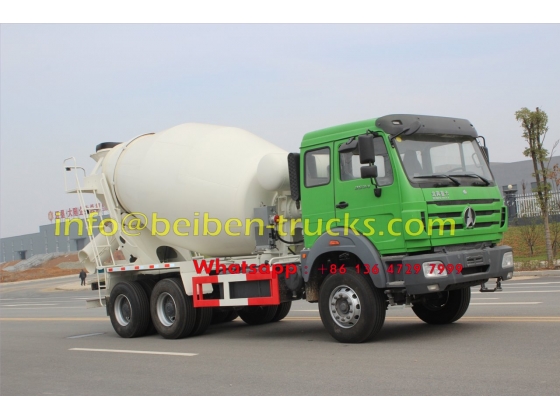

beiben 2534 mixer truck

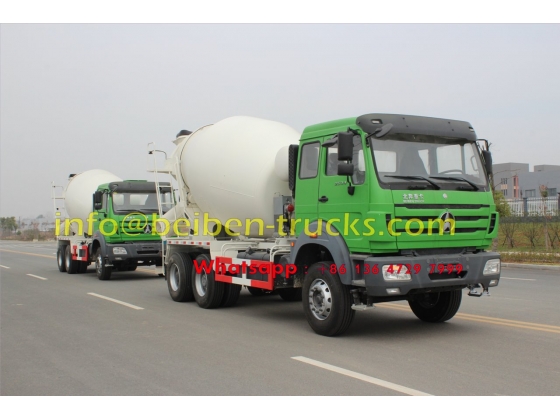

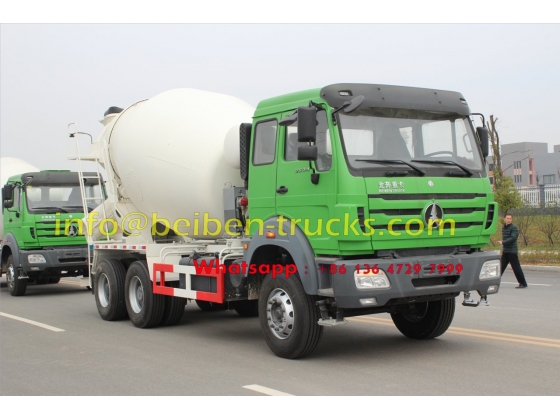

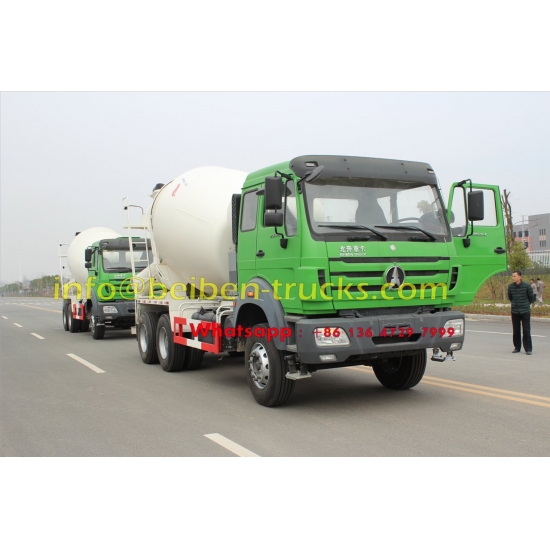

beiben 2534 mixer truck

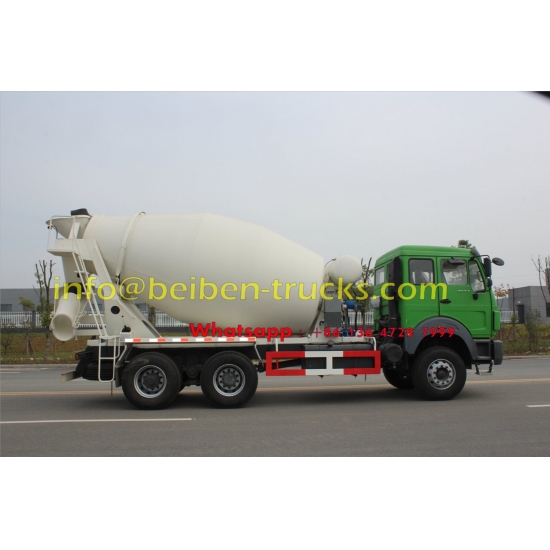

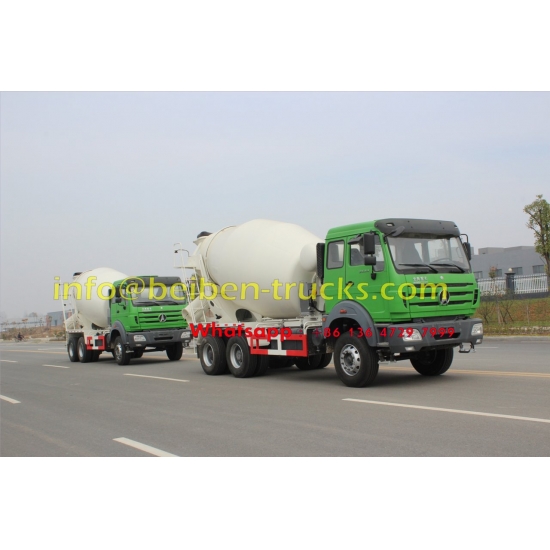

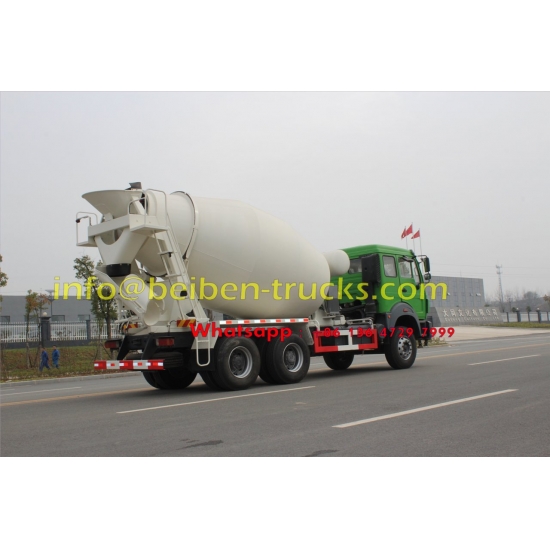

beiben 2534 mixer truck

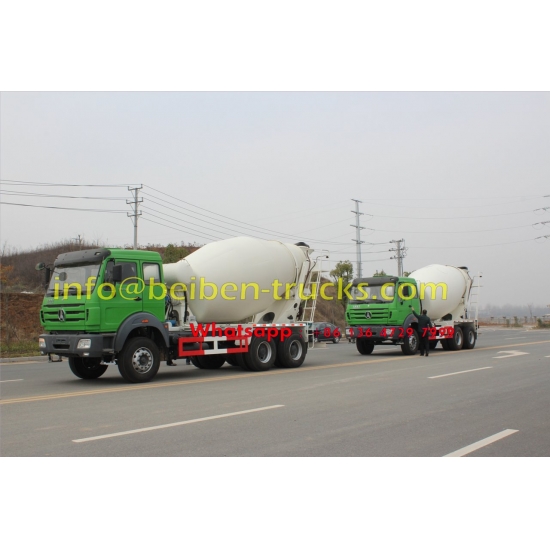

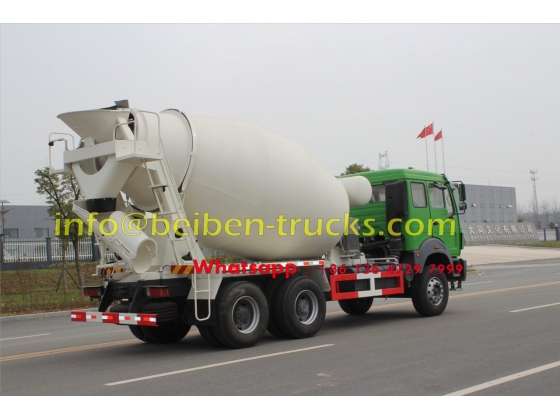

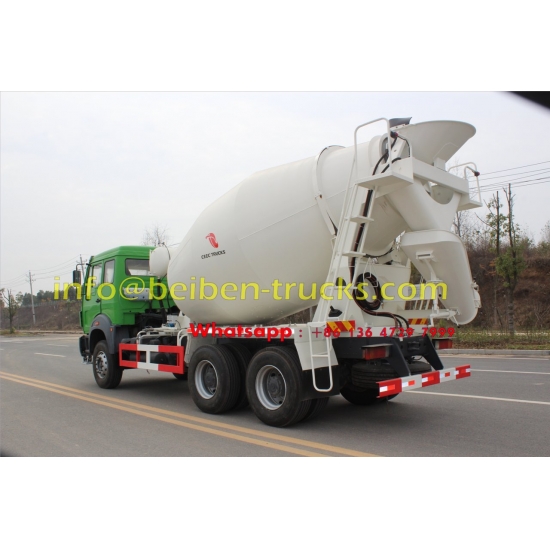

beiben 2534 mixer truck

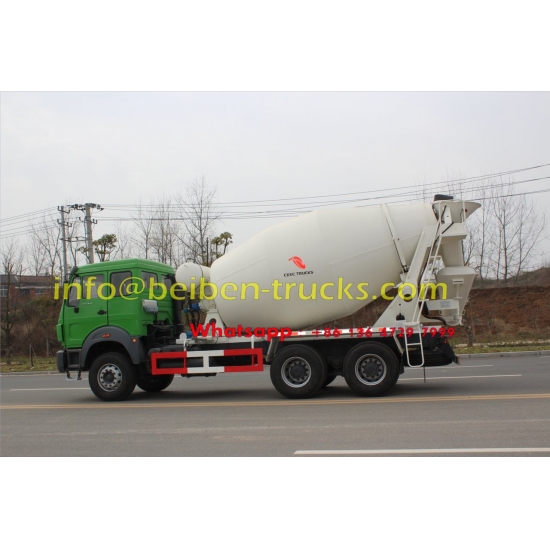

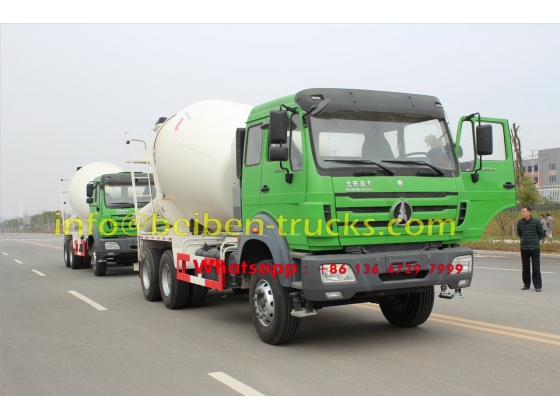

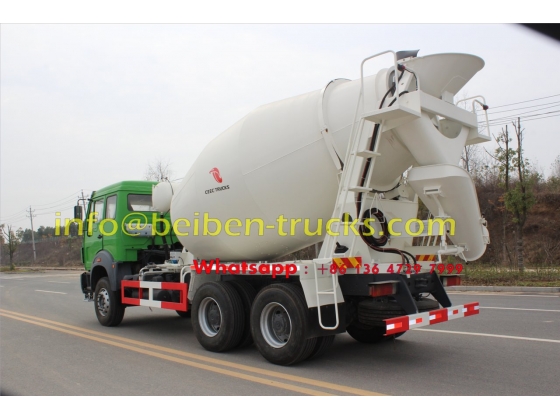

beiben 2534 mixer truck

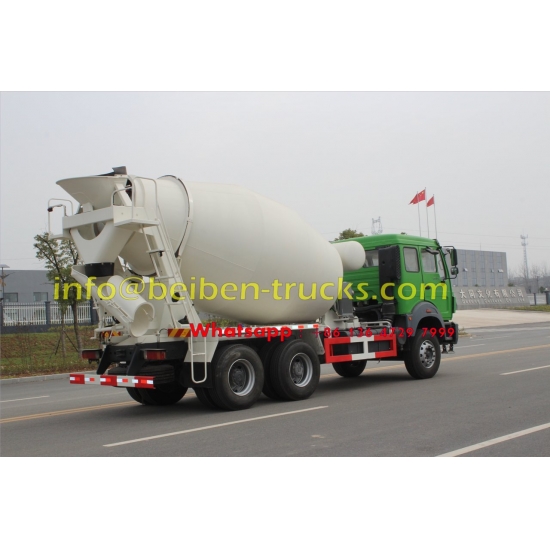

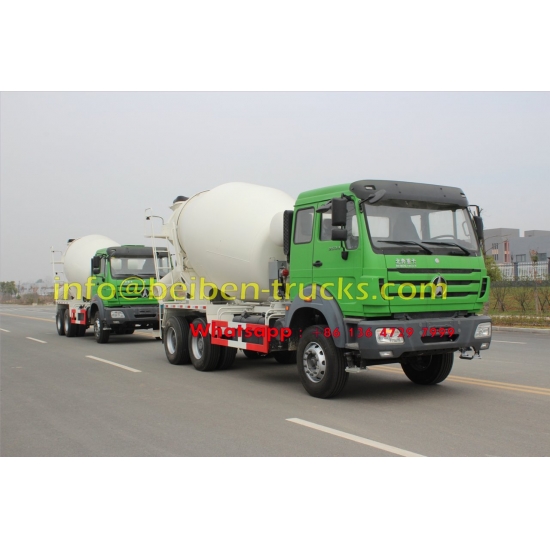

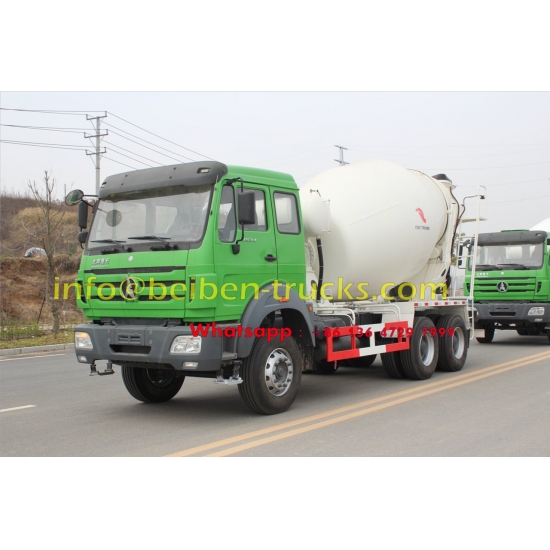

beiben 2534 mixer truck

Key Features:

   World-class Beiben Chassis, High power and Fuel efficiency, Reliability, Uptime

   The hydraulic system adopts Germany Rexroth, America EATON, Italy ARK, America Sauer;

 Comfortable, spacious cabin with heating and air conditioning, high-grade stereo and sleep area.

  The mixing drum is made from the special close grain high-hardness steel plate B520JJ which is produced by Shanghai Baosteel and its service life can last 8-10 years;

 Equipped with the large diameter hopper, it can realize the quickly feeding, not plugging and spilling, and it is easy to clean;

 The optimized design of mixing drum ensure the concrete residue ratio is less than 1%;

 Mixer coverage 3cbm, 5cbm,6cbm, 8cbm, 10cbm, 12cbm, 14cbm, 16cbm.

Description:

The concrete mixer is specially designed for mixing and carrying the concrete to the construction worksites. All cement mixer trucks are constructed with high-tensile steel for endurance and resistance to friction, it’s very easy to operation.

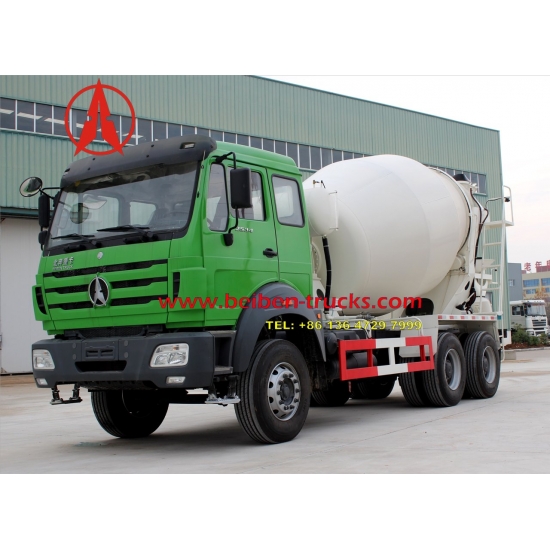

   beiben 2534 mixer truck

Key Features:

   World-class Beiben Chassis, High power and Fuel efficiency, Reliability, Uptime

   The hydraulic system adopts Germany Rexroth, America EATON, Italy ARK, America Sauer;

 Comfortable, spacious cabin with heating and air conditioning, high-grade stereo and sleep area.

  The mixing drum is made from the special close grain high-hardness steel plate B520JJ which is produced by Shanghai Baosteel and its service life can last 8-10 years;

 Equipped with the large diameter hopper, it can realize the quickly feeding, not plugging and spilling, and it is easy to clean;

 The optimized design of mixing drum ensure the concrete residue ratio is less than 1%;

 Mixer coverage 3cbm, 5cbm,6cbm, 8cbm, 10cbm, 12cbm, 14cbm, 16cbm.

 beiben 2534 mixer truck





Detail Technical Parameters:

A.  Truck:



Beiben 2534 mixer truck chassis



B.  Mixer drum:

Name

Standard configuration

  Material of tank body:

Baosteel B520JJ high strength, wear resistant steel

  Material of spiry blade:

Baosteel B520JJ high strength, wear resistant steel

  Geometric volume

14.4  m3

   Mixing concrete volume

9 m3

  Operating speed

0~14  rpm

   Feeding speed

≥3 m3/min

   Maximum Diameter inside drum

2310 mm

  Angle of inclination

12.4 degree

  Slump scope

40-210 mm

  Discharge speed

≥2 m3/min

  Discharge residual percentage

1%















C. Hydrauic system

Name

Standard configuration

 Hydraulic oil pump

EATON from America                    (Import with original packaging)

 Hydraulic Motor

EATON from America                     (Import with original packaging)

 Speed reducer

Bonglifili From Italy                           (Import with original packaging)

 Hydraulic circuit :

Close circuit

  Cooler type/tank volume

Famous KAITONG brand 25L          (optional AKG or Italy brand)
