Beiben 2534 off road fuel tanker truck

Product Details

Beiben 2534 airport  fuel tanker truck



The most professional beiben 2534 airport fuel truck manufacturer in china, this kind of beiben 340 Hp engine 10 wheeler fuel trucks can be used for refueling the small airplane in airport, it is very safe and reliblae. Compared with Germnay Benz trucks, this kind of beiben fuel tanker truck price is at least 40% lower.



Currently, our beiben oil truck plant can supply all customers with beiben 4*2,4*4, 6*4, 6*6,8*4,8*8 fuel tanker trucks, range from beiben 2527,2530,2534,2538 fuel trucks.

 CEEC TRUCKS plant is  the most professional beiben fuel trucks manufacturer, more than 15 years great experience on manufacturing beiben 2527 fuel truck, beiben 2529 fuel truck,beiben 2534 fuel truck ,beiben  2538 fuel tanker truck,beiben 3132 fuel tankers.

   The beiben fuel tanker from us can be beiben 4*2 fuel tanker, beiben 6*4 fuel tanker and beiben 8*4 fuel tankers. All the beiben fuel tanker trucks from ceec trucks plant can have long guarantee more than 12 months.



  All the fuel tanker components that we applied on beiben fuel trucks is china famous brand and reliable quality.

   Main Characteristic of CEEC TRUCKS beiben fuel tanker truck, the advantage is as follows:



* Total beiben tanker are portainted welded by automatically carbon dioxide welding. Nice surface without obvious welding line, safety and reliabiliy

* Beiben fuel tankers body could b oval or trapezoid, tank inside with subdivision board, oil baffle plate, ensure to lighten the shock in the process of transporting.

* Installed famous breath valve DN60, suitable and effective adjust the pressure in the north benz oil tankers.

*Static guiding equipment lap joint adhensive tape on the rear tank can efficiently protect static that arise in the transportation.



2530K /6×4/4100+1450/Short Cab/LHD or RHD

Dimension

8880*2500*3430mm

Cargo box

5600x2300x1350mm, HYVA hydraulic lifting system; thickness: bottom 8mm, side 6mm

Approaching angle/Departure angle

26/28°

Overhang(front/rear)

1410/1720mm

Wheel base

4450+1450mm

Max speed

85km/h

Curb weight

12650kg

Engine

Model

WP10.300E32, water-cooled, four strokes, 6 cylinders in line, turbocharged, directly injection


Displacement

9.726L/Diesel


Stroke

126/130mm


Max. power

220/2200 (kw/rpm)


Max.torque

1600/1800(N.m/rpm)


Emission

Euro III

Fuel tanker capacity

300L

Clutch

∮430, Single dry frictional disc,Hydraulic boosting

Gearbox

9JS180, mechanism, 9 forward gears, 1 reverse gear, manual operated

Gear ratio of gear box

12.65/8.38/6.22/4.57/3.4/2.46/1.83/1.34/1.00 R:13.22

Suspension system

Front

Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension , 10pcs


Rear

Non-free standing stabilization spring, balance suspension system, 13pcs

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system


Assistant brake

Engine exhaust brake


Park brake

Potential springs pressing on middle and rear wheels

Steering system

ZF8098 hydraulic steering with power assistance

Frame

Strengthened Straight beam

Front axle (Mercedes Technology)

Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle (Mercedes Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Tyre

315/80R22.5 tubeless tyres

Electrical system

Battery

2X12V/135Ah


Generator

28V-35A


Starter

5.4Kw/24V

Cabin

NG80B Long cabin one sleeper and inner A/C ;
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back with arm seat for driver, high back seat for co-driver; With inner A/C

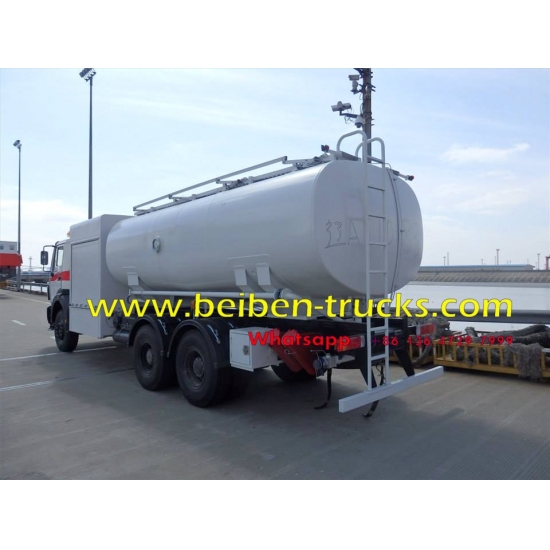

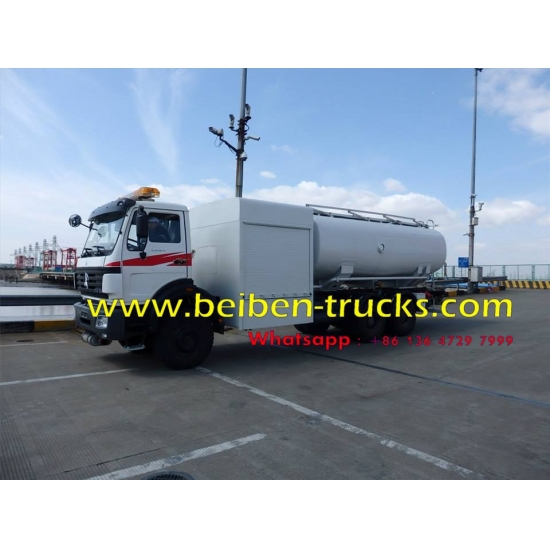

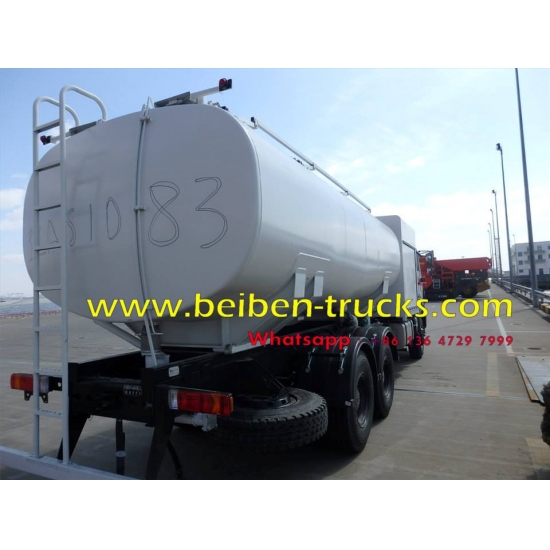

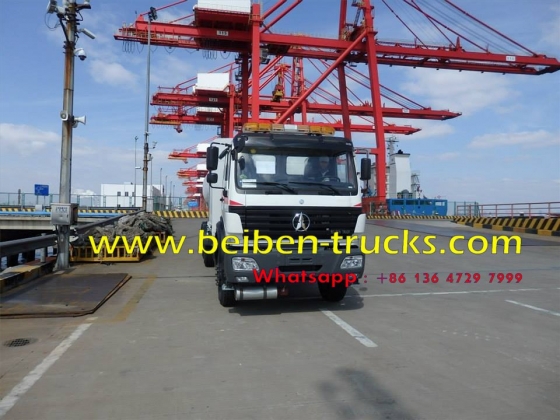

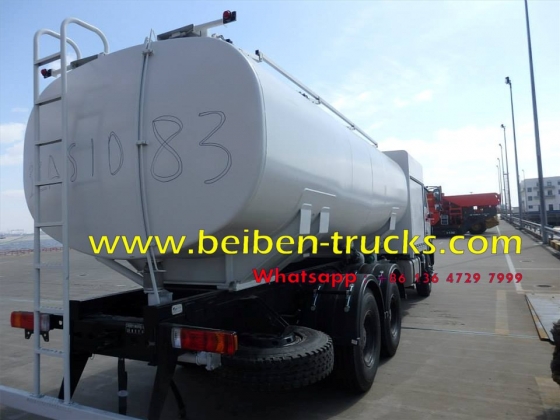

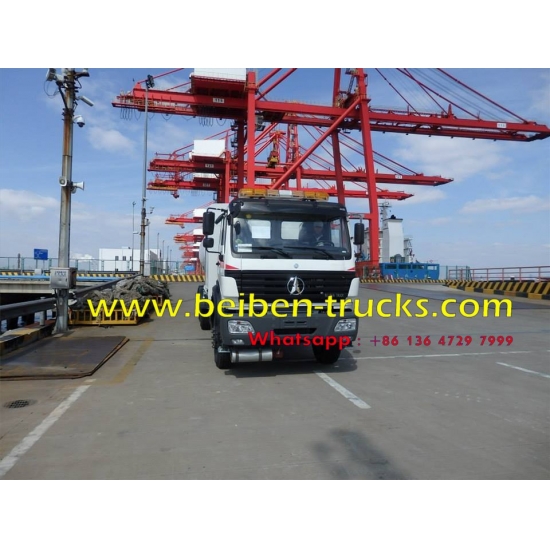

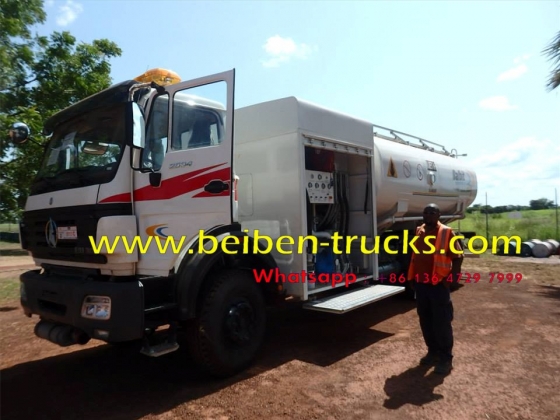

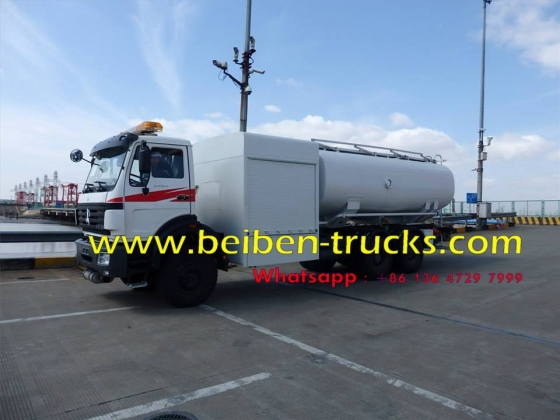

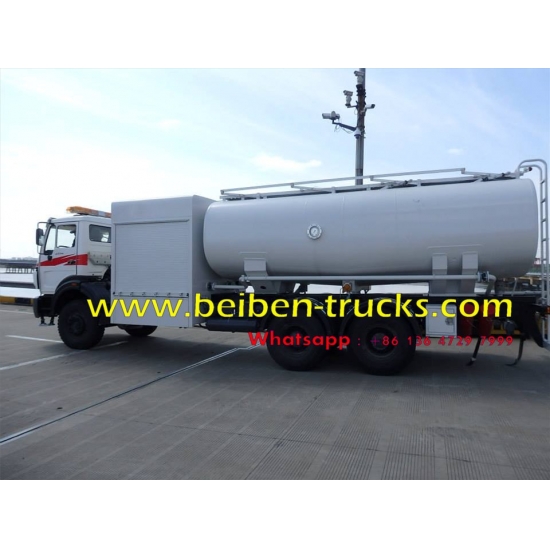

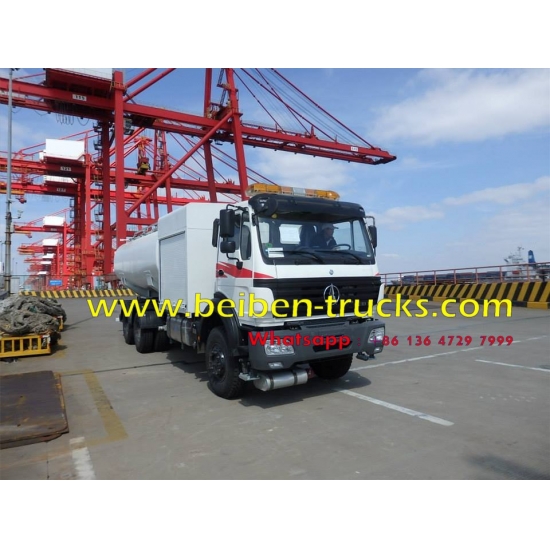

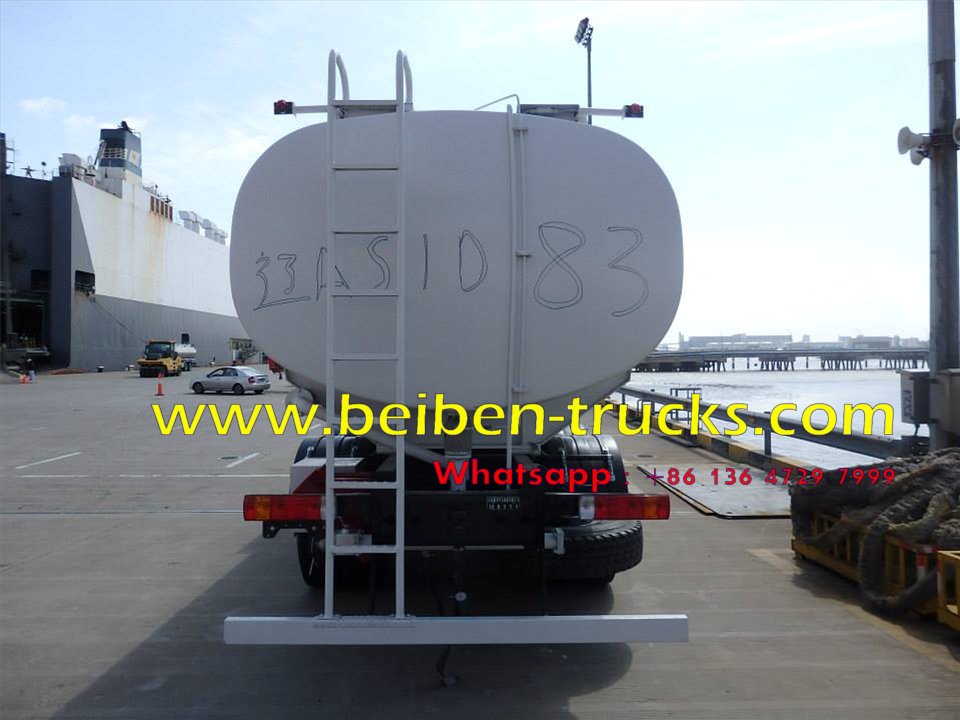

 beiben airport refueling truck

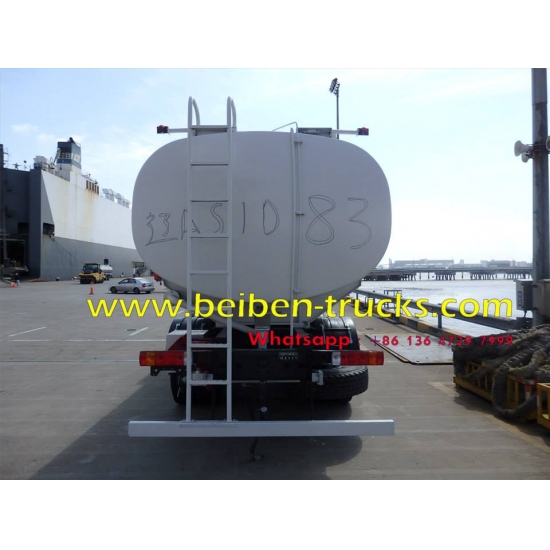

beiben airport refueling truck

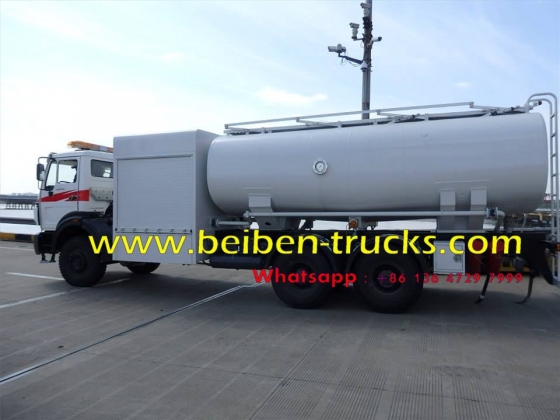

beiben airport refueling truck

beiben airport refueling truck

beiben airport refueling truck

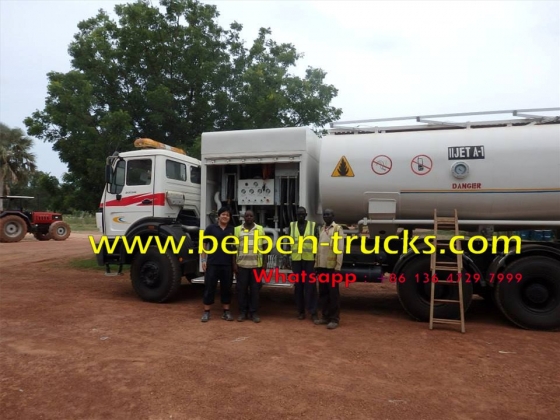

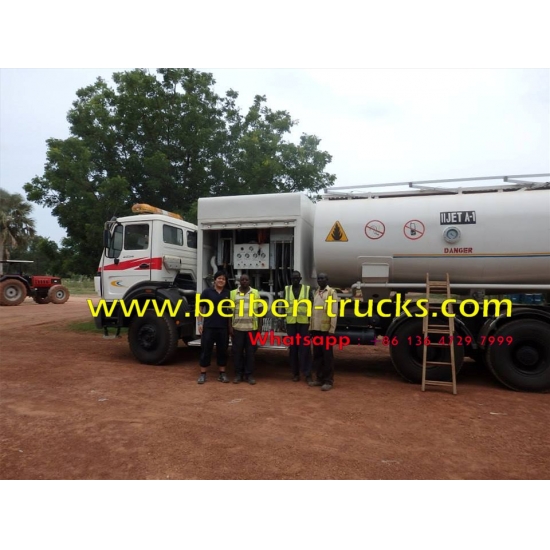

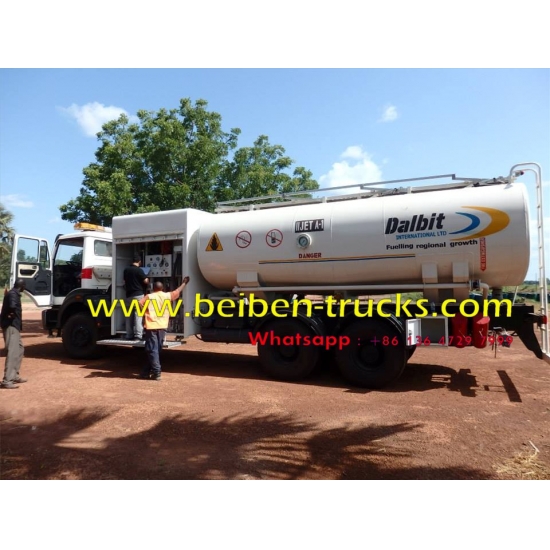

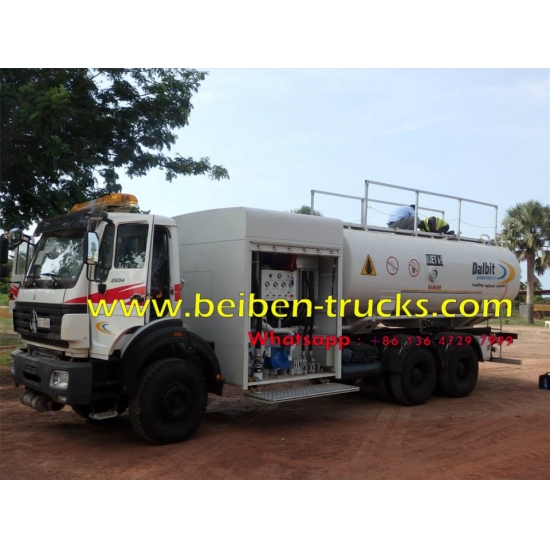

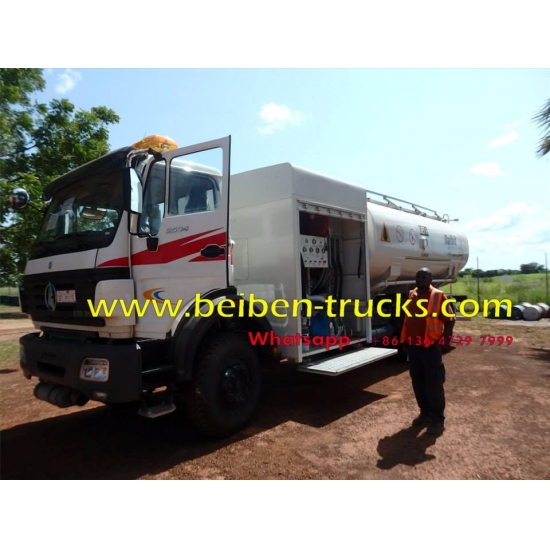

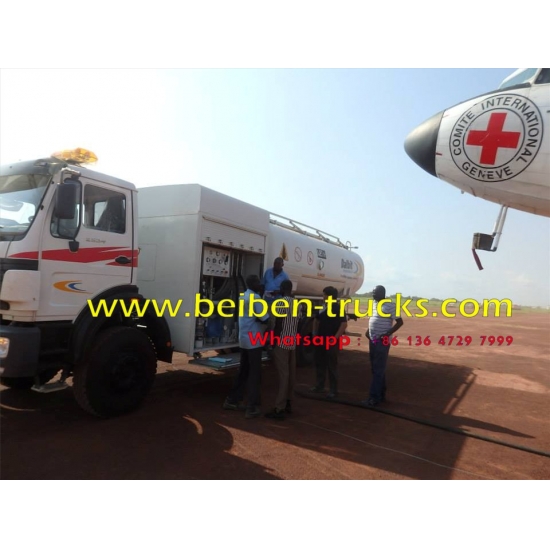

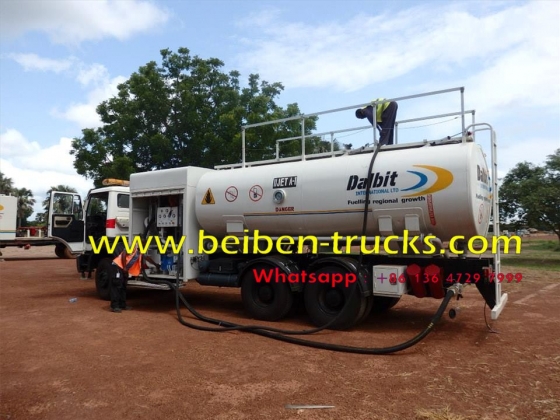

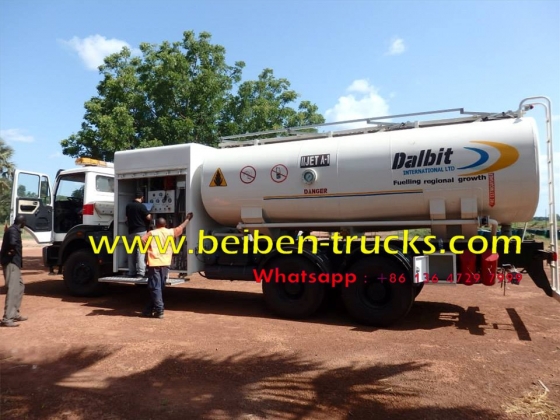

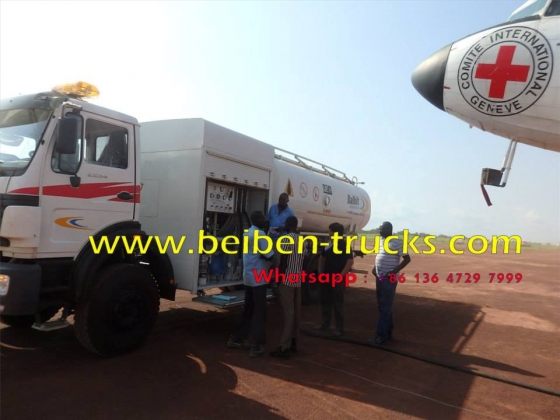

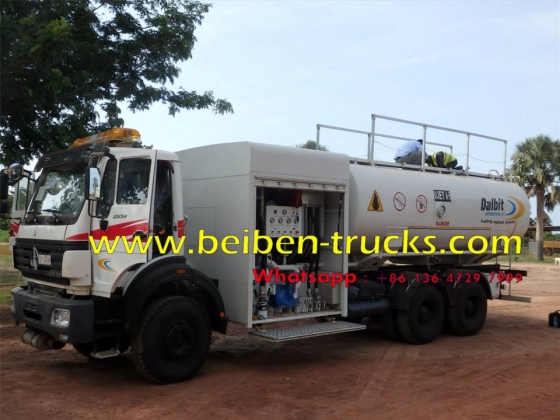

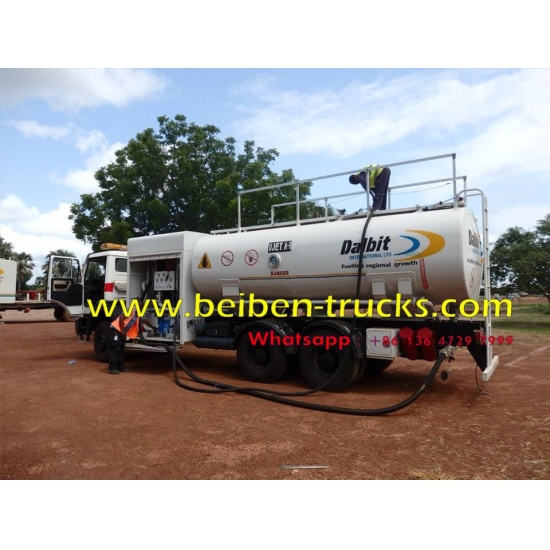

Beiben 2534 fuel tanker truck in customer's working site.

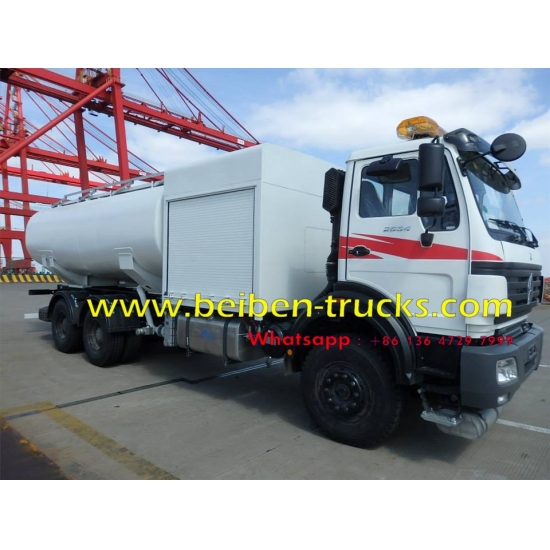

beiben airport refueling truck

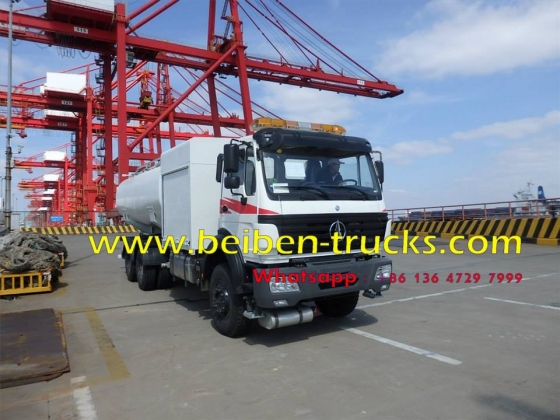

beiben airport refueling truck

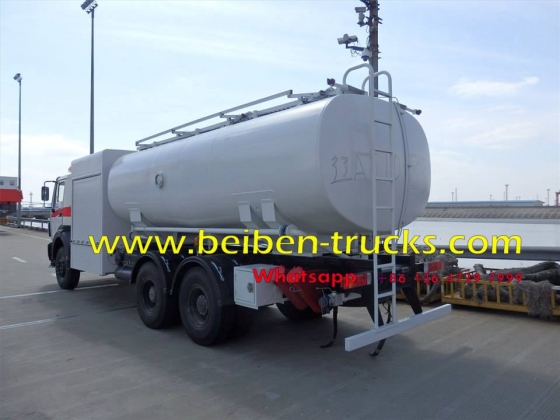

beiben airport refueling truck

beiben airport refueling truck

beiben airport refueling truck

beiben airport refueling truck

beiben airport refueling truck

beiben airport refueling truck




Name

Standard configuration

♦ Tank volume

Full capacity 10000L

♦ Transport medium

air gas

♦ Tank Material

Carbon steel(Aluminium alloy or Stainless steel are optional)

♦ Compartment plate

Nil

  Shell Body

5 mm nominal thickness

  Head

5 mm nominal thickness

  Tank shape

Ellipse

  Compartment

1 compartment (20000L)

  Shell Finish

Shot blasted with 1 antirust, 1 base coat and 1 finishing coat, the color of tank is according to customer requirement.

♦ Testing Pressure

36kPa, standard water pressure test

 Logo & Color

Any color and  logos are FREE according to our clients wish
