Vehicle Name:

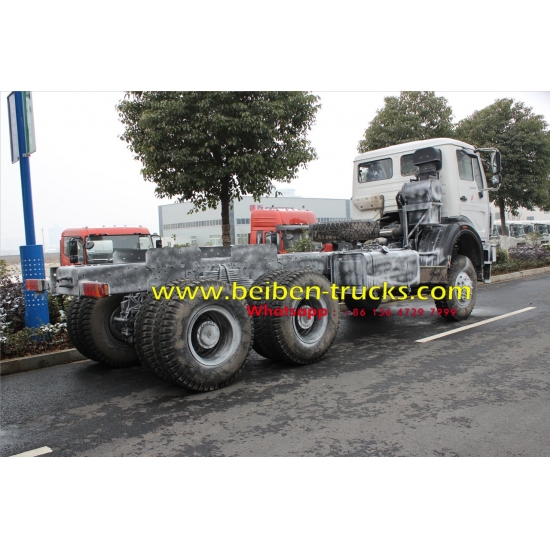

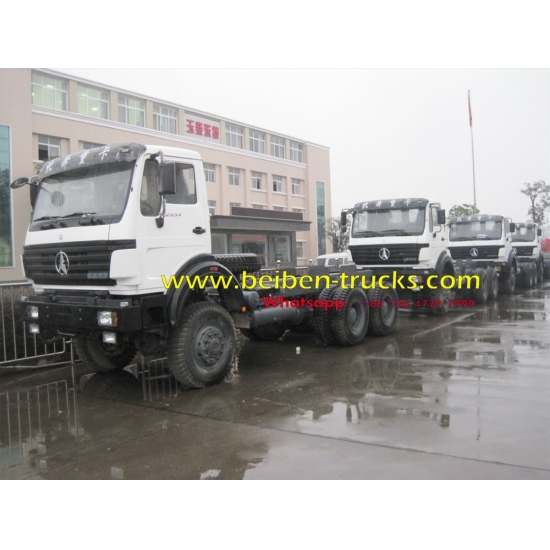

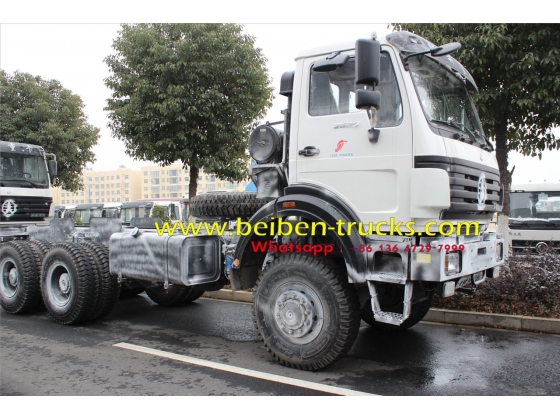

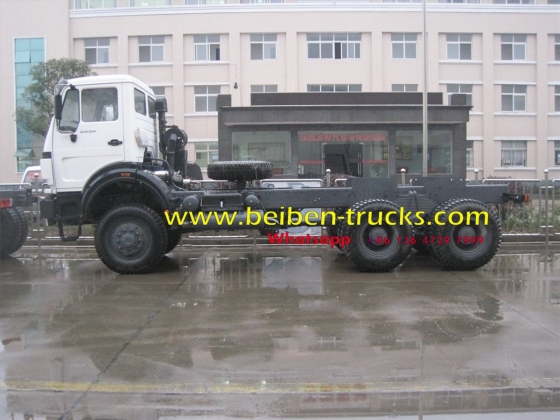

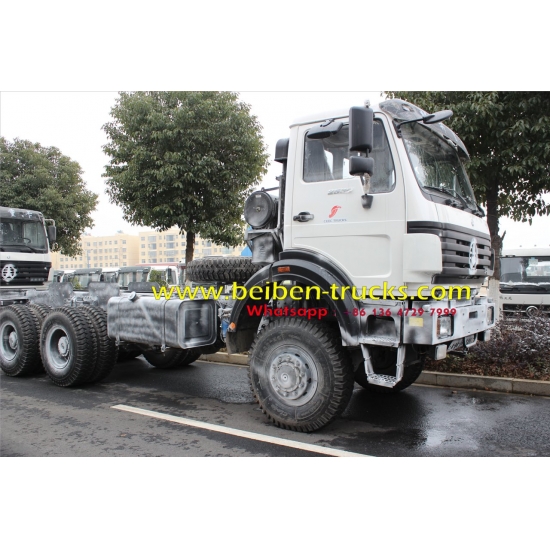

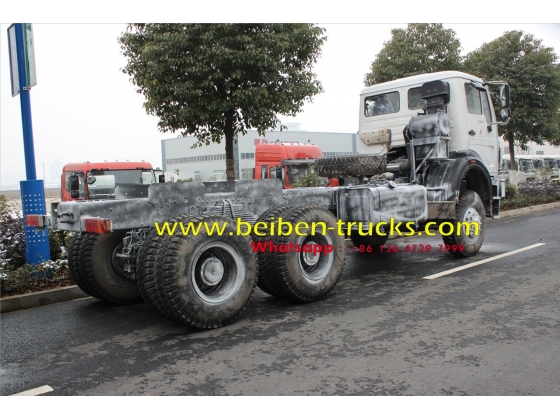

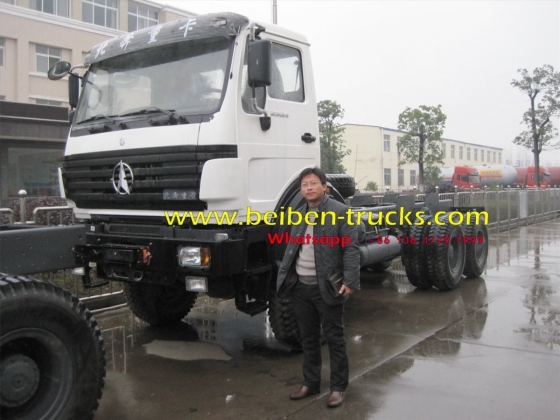

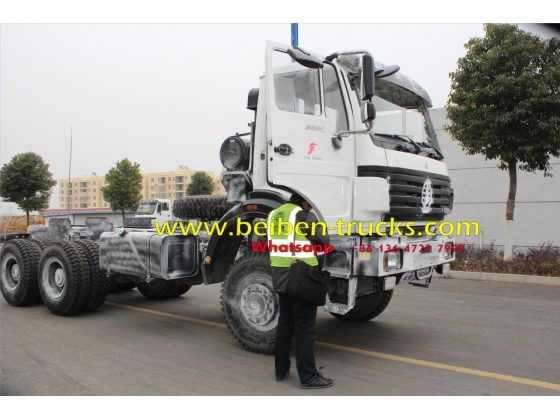

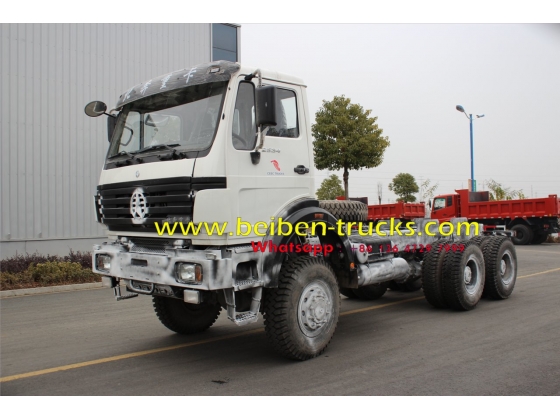

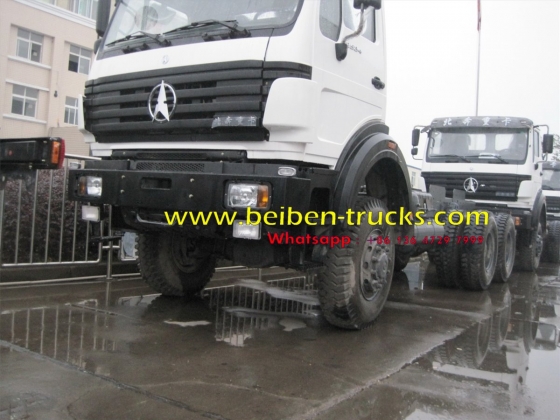

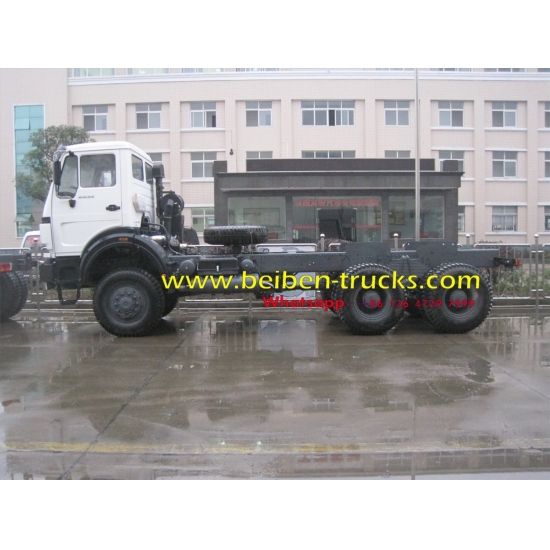

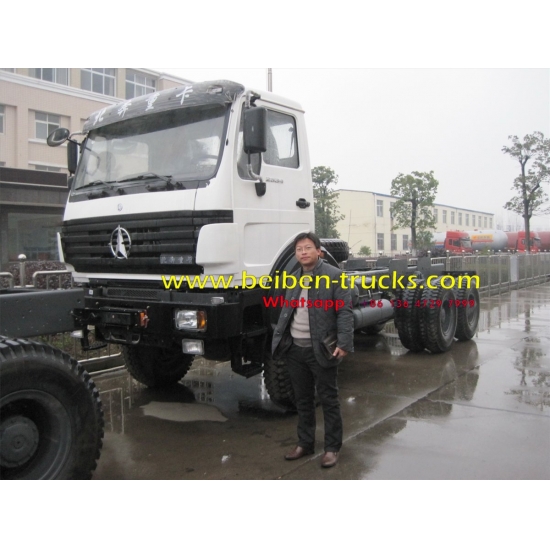

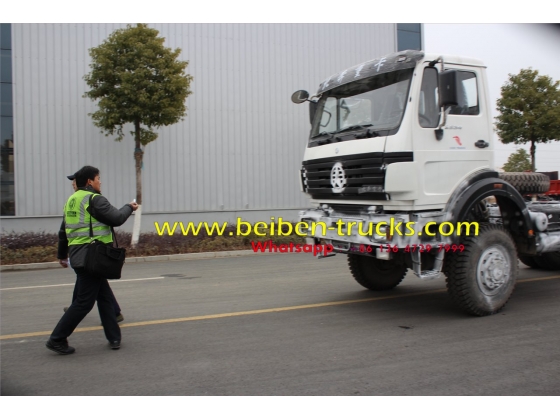

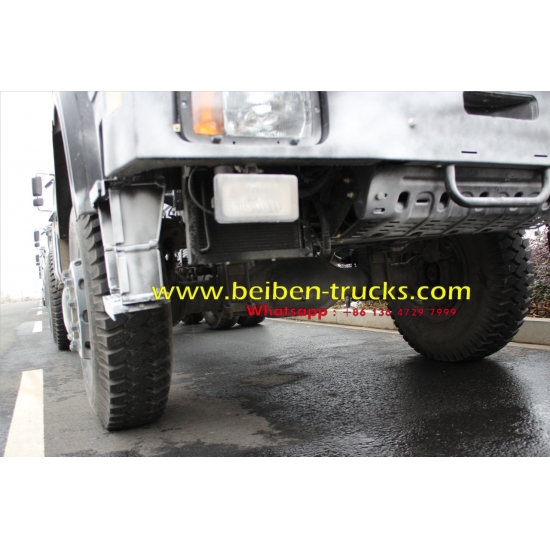

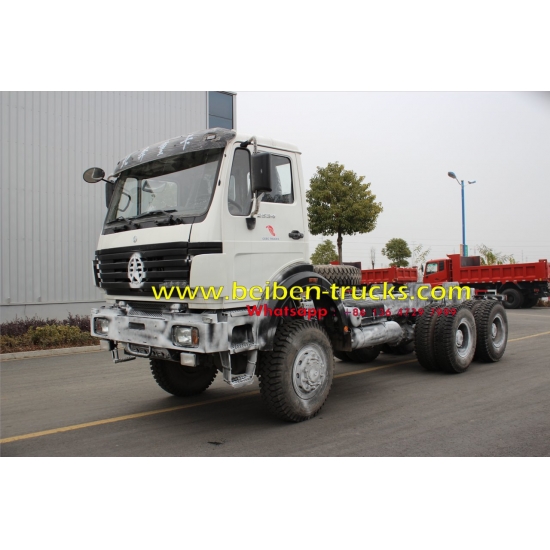

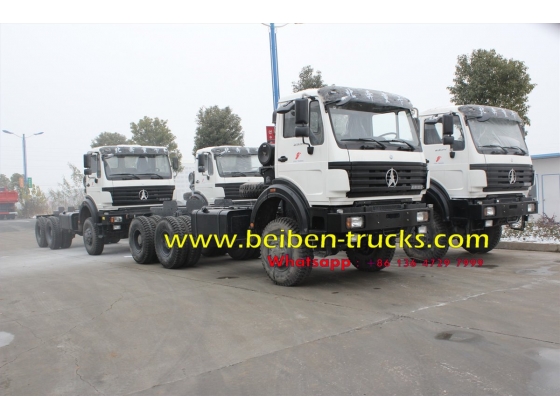

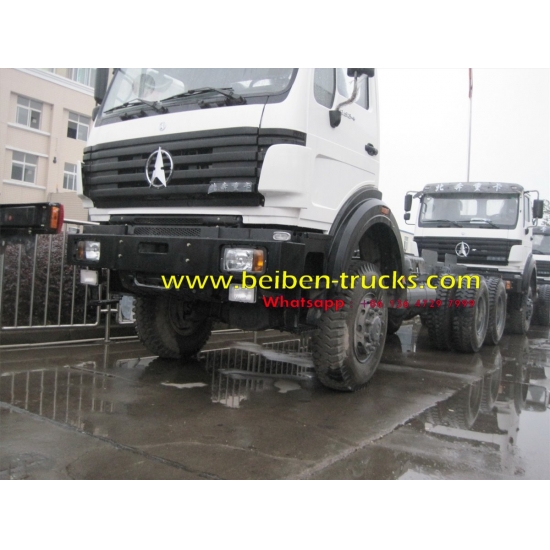

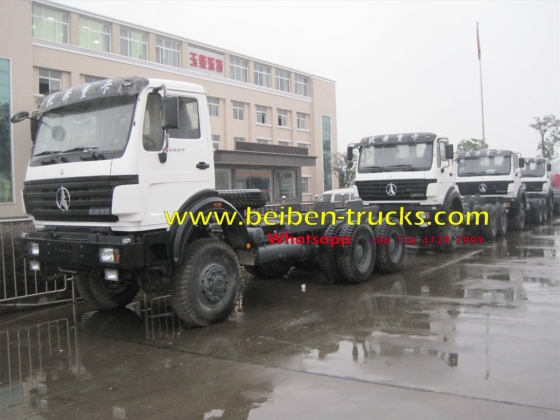

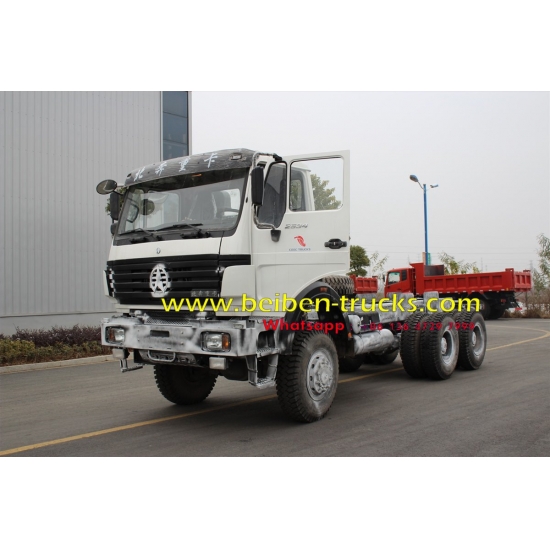

Beiben 6*6  truck chassis

Types of drive

Right hand drive (LHD )

Truck model number

2534S

Drive wheel

6×6

Engine model

WD10.340 Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & intercooling  EURO 2 engine.

Horsepower(hp)

340

Bore*stroke (MM)

126*155

Displacement (L)

11.596

Rated speed (R/min)

2200

Max torque (Nm)

1750

Max Torque speed( R/min)

1300-1600

Lowest fuel consumption (G/kw.h)

< 198

Net weight (KG)

905

Meridian tire

14.00-20

Number of tires

10 + 1(spare wheel)

Saddle types

None

Transmission types :

12JS200T , 12 shift transmission, FAST technology

Steering mechanism:

TAS85

Wheelbase (mm)

4450+1450

Cab style

Long with 2 beds, Benz technology

Air-condition

With air-condition

Cab body style

The whole steel ,The driver’s seat adjustable , high safety,lower wind resistance coefficient, Benz Technology.

Steering system

High safe and reliable, and flexible, ZF8098

Brake system

Service brake ,Can automatically adjust the brake clearance, Double air brake system , WEVB

Electric system:

Stronger load ability, high reliability and easy maintenance

Truck frame style

Fish maw shape, inequilaterally section, equal intensity, Benz technology

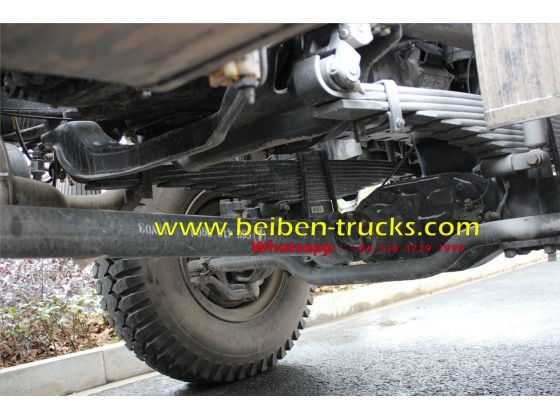

Front axle

Benz 7.0T Transaxle

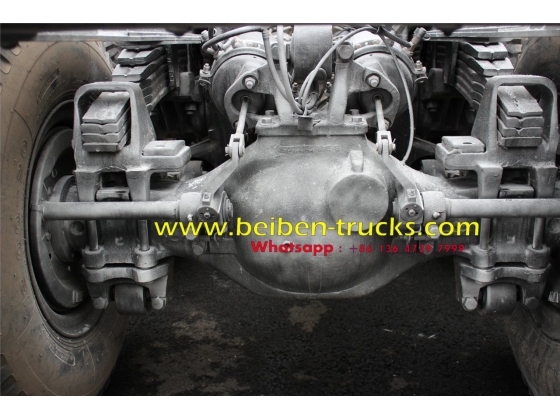

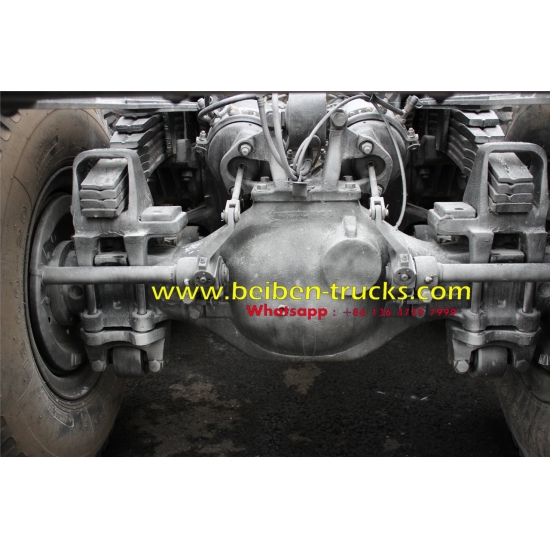

Rear axle

Benz Technology,double deceleration bridge, high efficiency, carrying large, Mercedes Benz strengthened axle (punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock)

Ratio=5.263

Electric system:

Stronger load ability, high reliability and easy maintenance,24 V

Emission standard

Eur 2 & EURO 3

Fuel tank capacity (L)

400

Optional equipment

Saddle , upper berth, ABS , squareness silencer.
