Beiben 30 T dump trucks

Product Details

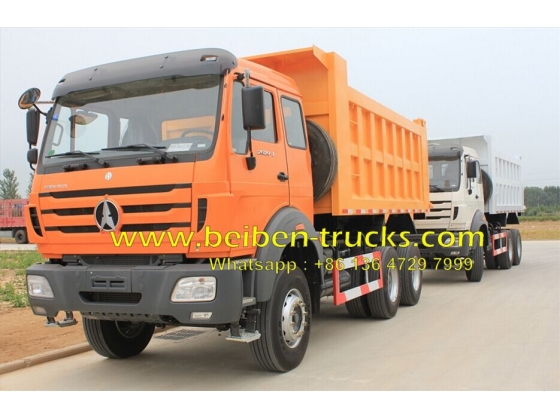

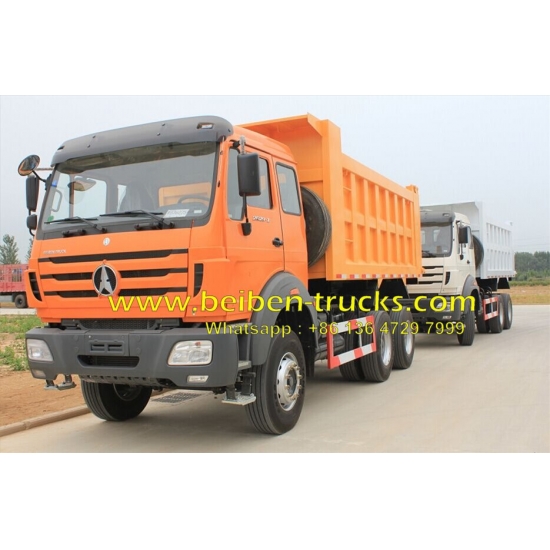

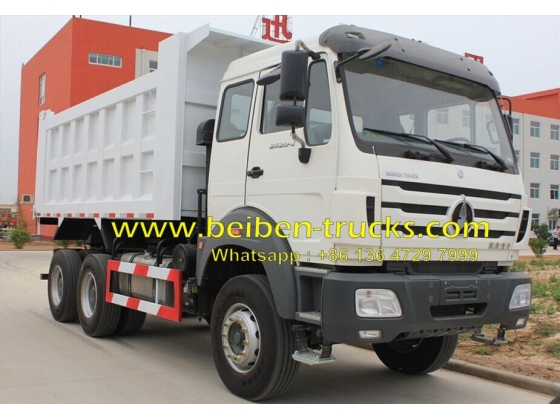

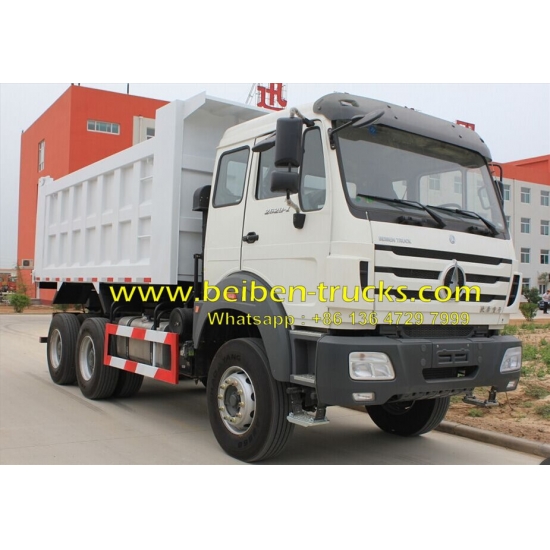

Beiben 30 T dump truck

                beiben 30 T dump truck supplier in china

More than 15 years on Beiben 30 T dump truck manufacturing , Best beiben 10 wheeler Tipper Technical Details:

CEEC beiben dumpers .has the capability to manufacture both sand and stone type, carrying bulk material, often on building sites.  Beiben 10 wheeler Tipper bodies can be made out of normal steel or hardox ,welldox  material.

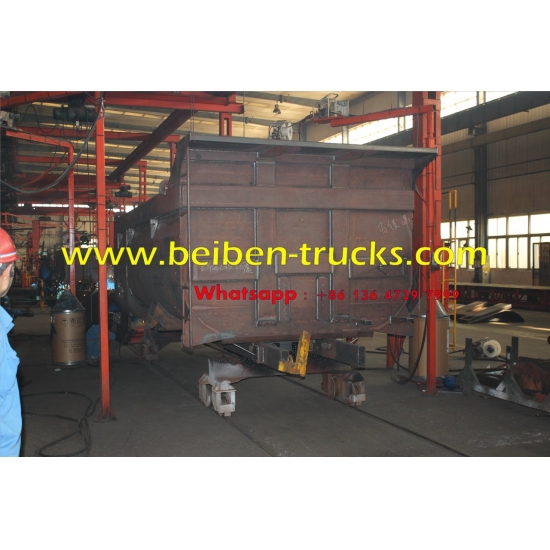

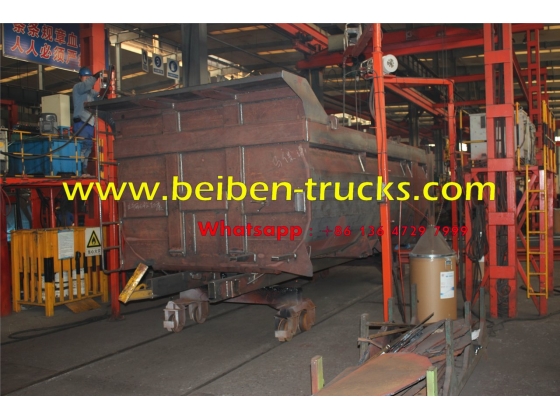

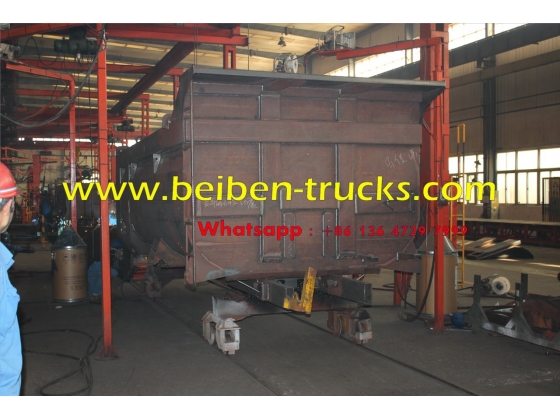

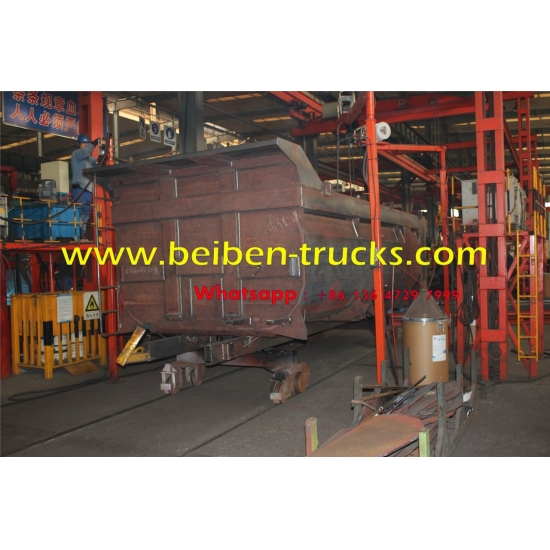

Advanced TIPPER BODY
Beiben 10 wheeler dump trucks Body is made of excellent Steel Material or Hardox, all body and Gates are being supported with vertical steel "u" type profiles considering
the capacity.Side doors can be produced either fixed or movable

Carbox dioxide protected welding ensure tipper trucks good performance and reliable quality.

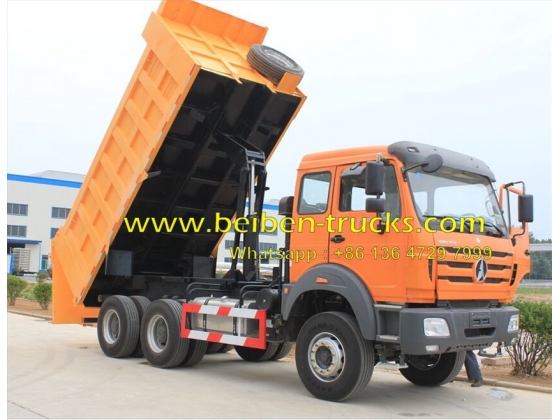

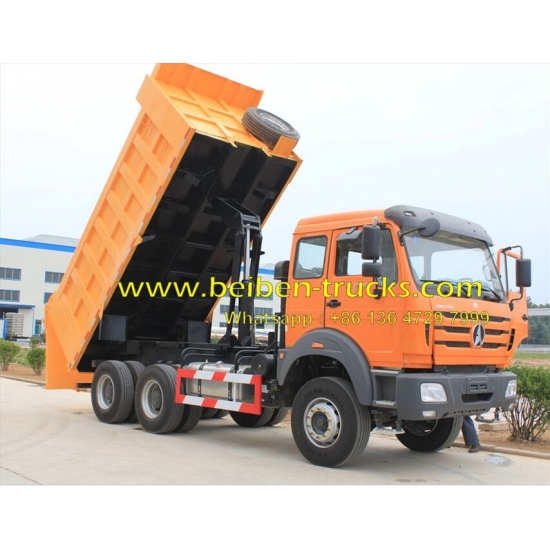

Excellent TIPPER LIFTING MECHANISM
Beiben 6*4 dump truck’s Body is being lifted from the front by telescopic type cylinder or middle lifting cylinder .

Hyva Hydraulivally system is recommended .HYVA 145, 169,191 series. Hyva oil tank,.

Perfect TIPPER HYDRAULIC INSTALLATION

Hydraulic Power is supplied by the transfer of energy from PTO to the pump.PTO is controlled from the dumpers cab.The oil tankhas normally 70

beiben 30 T dump truck supplier in china

Areas of Application and Use:

Mining area

Construction site

Municipal road construction

Transport of stone, sand, gravel

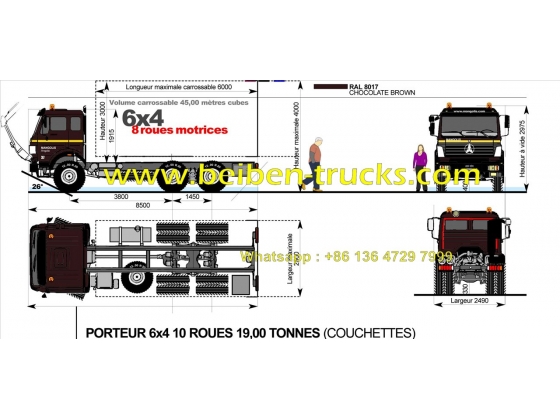

Beiben 30 T tipper trucks Technical Parameters:



2529K /6×4/4100+1450/Short Cab/LHD or RHD

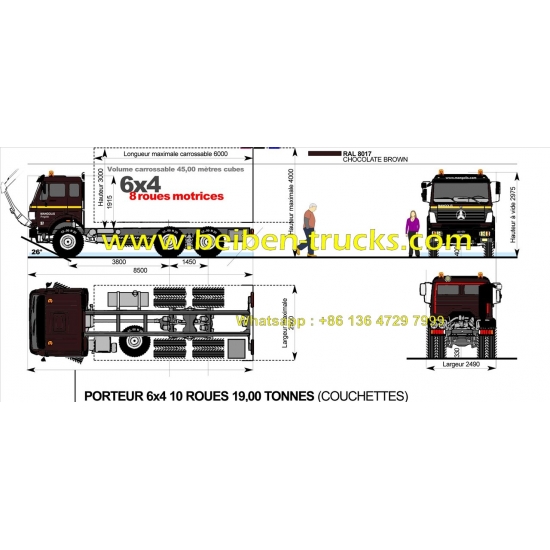

Dimension

8880*2500*3430mm

Cargo box

5600x2300x1350mm, HYVA hydraulic lifting system; thickness: bottom 8mm, side 6mm

Approaching angle/Departure angle

26/28°

Overhang(front/rear)

1410/1720mm

Wheel base

4100+1450mm

Max speed

85km/h

Curb weight

12650kg

Engine

Model

WP10.290E32, water-cooled, four strokes, 6 cylinders in line, turbocharged, directly injection


Displacement

9.726L/Diesel


Stroke

126/130mm


Max. power

213/2200 (kw/rpm)


Max.torque

1600/1800(N.m/rpm)


Emission

Euro III

Fuel tanker capacity

300L

Clutch

∮430, Single dry frictional disc,Hydraulic boosting

Gearbox

9JS180, mechanism, 9 forward gears, 1 reverse gear, manual operated

Gear ratio of gear box

12.65/8.38/6.22/4.57/3.4/2.46/1.83/1.34/1.00 R:13.22

Suspension system

Front

Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension , 10pcs


Rear

Non-free standing stabilization spring, balance suspension system, 13pcs

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system


Assistant brake

Engine exhaust brake


Park brake

Potential springs pressing on middle and rear wheels

Steering system

ZF8098 hydraulic steering with power assistance

Frame

Strengthened Straight beam

Front axle (Mercedes Technology)

Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle (Mercedes Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Tyre

315/80R22.5 tubeless tyres

Electrical system

Battery

2X12V/135Ah


Generator

28V-35A


Starter

5.4Kw/24V

Cabin

NG80B Long cabin one sleeper and inner A/C ;
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back with arm seat for driver, high back seat for co-driver; With inner A/C

100% factory to ensure the super quality for beiben 2529,2534,2538 dump trucks. As the most professinal beiben dump truck upper structure supplier, we aim at producing the most reliable for all the customer .

beiben 30 T dump truck manufacturer

beiben 30 T dump truck manufacturer

beiben 30 T dump truck manufacturer

beiben 30 T dump truck manufacturer

beiben 30 T dump truck manufacturer

Beiben 30 T dump trucks in our plant for exporting.

beiben 30 T dump truck manufacturer

beiben 30 T dump truck manufacturer

beiben 30 T dump truck manufacturer

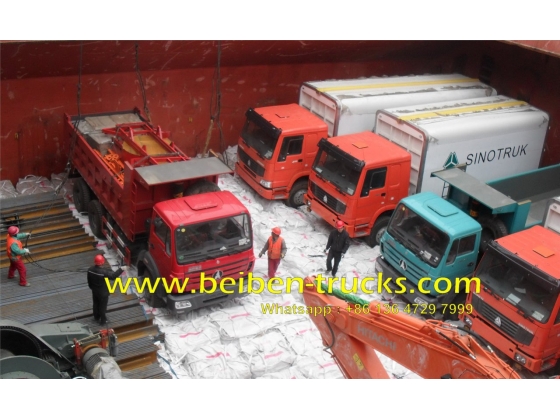

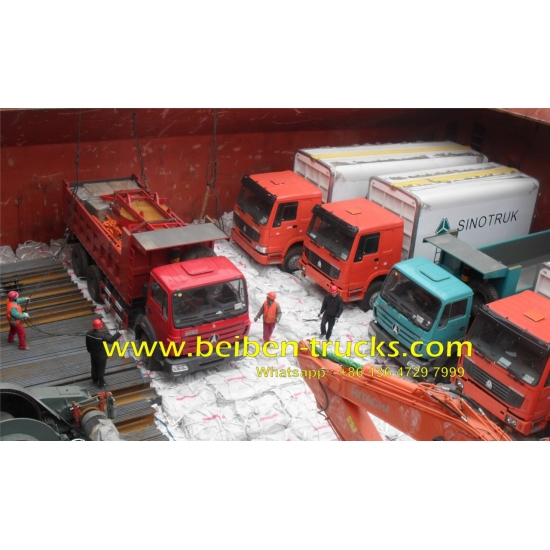

More than 15 years experience in exporting, shipping, customer clearance, SGS, BV, CONTECNA, GCC inspection and certificate, we ensure the whole shipping solution for different customer from overseas market.

beiben 30 T dump truck manufacturer

beiben 30 T dump truck manufacturer

Great satisfication from africa customer, we have exported more than 500 units beiben dump trucks to africa countries. Choose CEEC TRUCKS, for your success.

beiben 30 T dump truck manufacturer

beiben 30 T dump truck manufacturer

beiben 30 T dump truck manufacturer

beiben 30 T dump truck manufacturer
