Beiben 6*6 drive water truck 2538 cabin

Product Details

 Beiben 20 CBM water tanker truck with 6*6 drive system



beiben 20 CBM 2538 water tanker truck

1. Guaranteed 100% product quality & delivery on time

2. 24hours online service for your any questions

3. One year of warranty since B/L on board date

4. English operation manual, english maintance manual, english operation vedio

5. Free trainning in our factory if customer need. Oversea engineering service is available.

6. Professional truck exporting services over for 15 years

The best 100% manufacturer for beiben water tanker truck , we endeavour to supply best quality beiben 10 CBM, 20 CBM, 30 CBM, 40 CBM water tanker trucks. This kind of beiben 2538 water truck, is fully with right hand steering system, 6*6 drive system, benz technology front axle and doubel rear axle.



 The best beiben tanker trucks manufacturer in china, CEEC TRUCKS plant can produce good quality beiben 2527 water truck ,beiben 2529 water truck,beiben 3129 water truck ,beiben 3134 water tanker truck.

 Our beiben water trucks can be beiben 4*4 drive system, beiben 6*4 driving system, and beiben 6*6 drivie system.  Also the tanker capacity of our beiben trucks can be range from 10CBM, 20 CBM, 30 CBM and 40 CBM.

 beiben 20 CBM 2538 water tanker truck

Our beiben water tanker trucks feature:

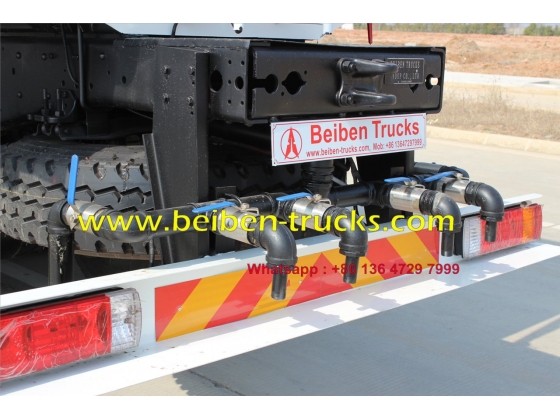

* Three patented items: Design patent, sde washing road device for vehicle and pneumatic pipe clean device.

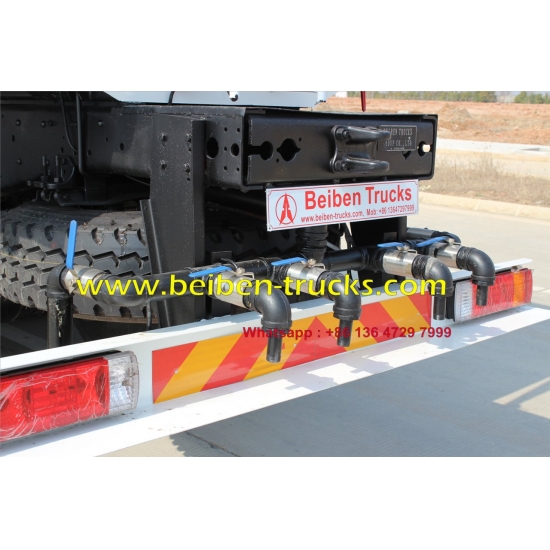

* Low& Flat high water flow washing, high speed and high efficiency.

* All pneumatic pressure system, no weakness of hydraulic pressure, like high price and complicated mainteance

*Metal printed inside the tank keeps the tanker from rusting, stainless steel tanker is optional .



Best design for beiben 4*2 water truck and beiben 6*4 water truck.

All the components for beiben water trucks are fully applied famous brand, very reliable quality. Currently, CEEC TRUCKS have sucessfully supplied more than thousands of beiben water tanker trucks to west africa, east africa, north africa and south africa.

Product Description



Beiben 2538 water tanker truck RHD system Main specification

Product model and name

BZ5250GSS  North Benz water tanker

Gross weight(Kg)

24990

Drive type

6X6

Payload(Kg)

13040

Overall dimension(mm)

10120×2490×3200

Curb weight(Kg)

11820

Cab seats

2

Approach/departure angle(°)

16/10

Front/rear hang(mm)

1410/2810

Axle No.

3

Wheelbase(mm)

4450+1450

Axle load(Kg)

6990/18000

Max speed(Km/h)

90

Chassis specification

Chassis model

ND1250F44

Manufacturer

Beiben Trucks Group Co.,Ltd

Brand name

Beiben

Dimension(mm)



Tyre specification

11.00-20,11.00R20. 12.00-20,12.00R20.

Tyre No.

10+1(spare one)

Steel spring number

13/13

Front track base(mm)

1995

Fuel type

Diesel

Rear track base(mm)

1800/1800

Emission standard

Euro 3

Transmission

9 forward gear,1 reverse gear

Cab

White(other colors are available) and flat. Other luxurious interior trim and seat, with air condition and power steering. Forward flip are all optional.

Engine model

Engine manufacturer

Displacement(ml)

Power(Kw)



WP615.38





Weichai Power Co.,Ltd

9726

280


Performance

Tank volume(m³)

20(20000liter)

Tank material

Carbon steel Q235

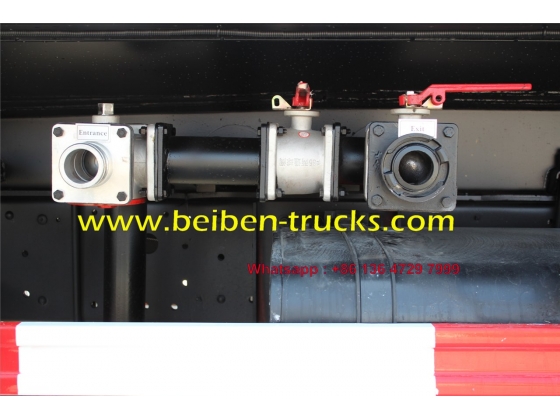

Water pump model

80QZF-60/90N

Water pump flow(m³/h)

60

Watering width(M)

≥14

Water cannon range (M)

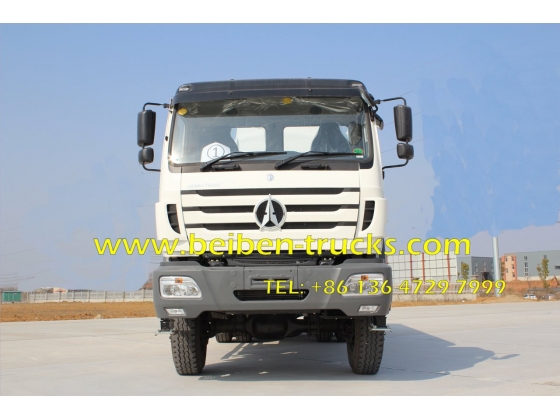

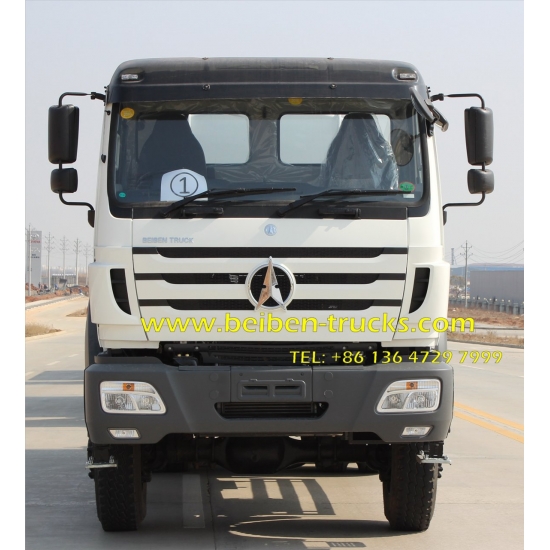

Beiben New design NG80B classis cabin, with updated technology. More confortable and good performance.

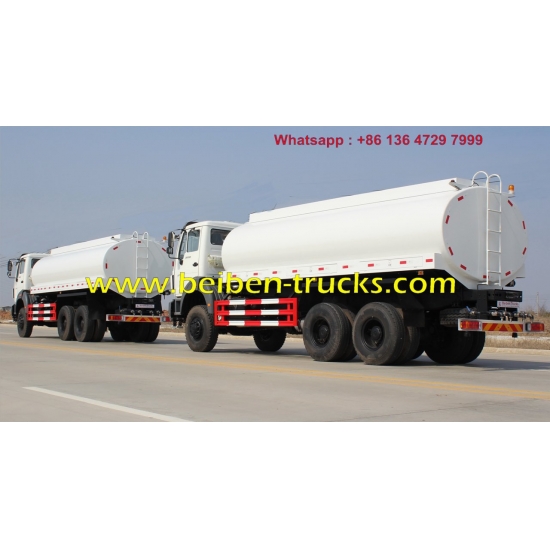

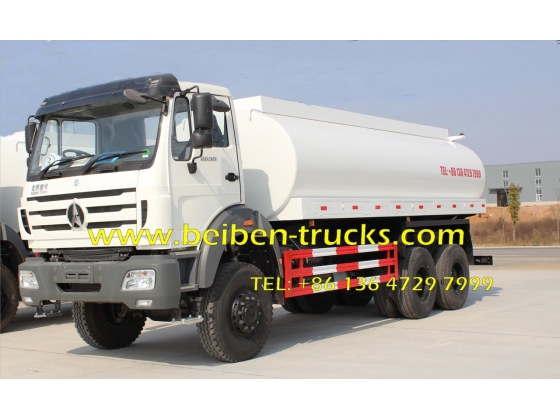

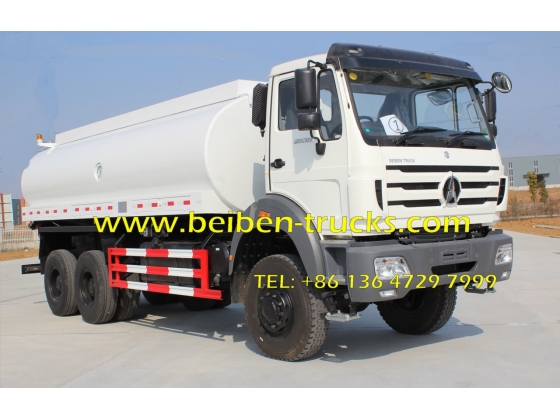

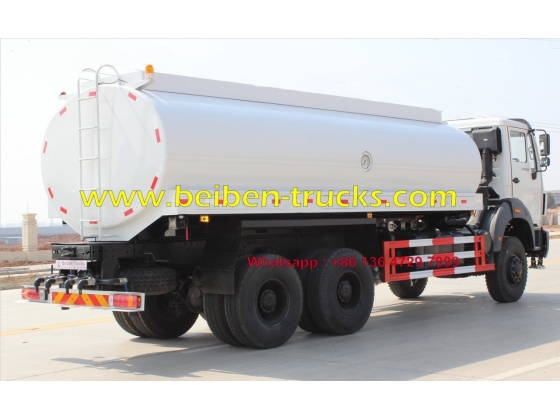

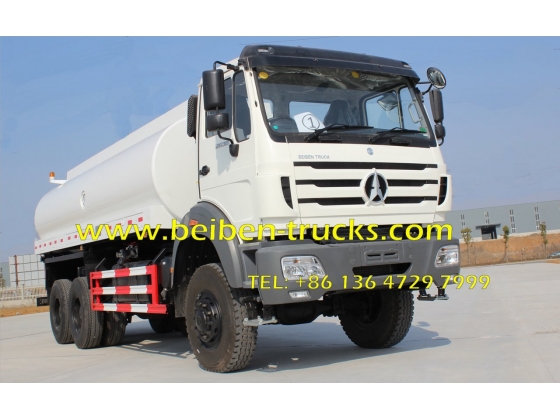

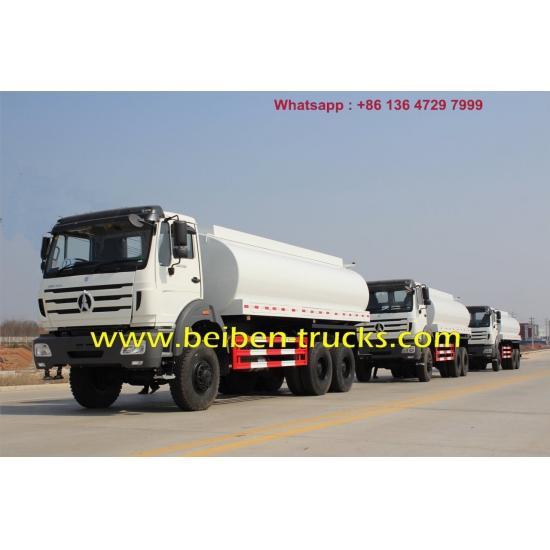

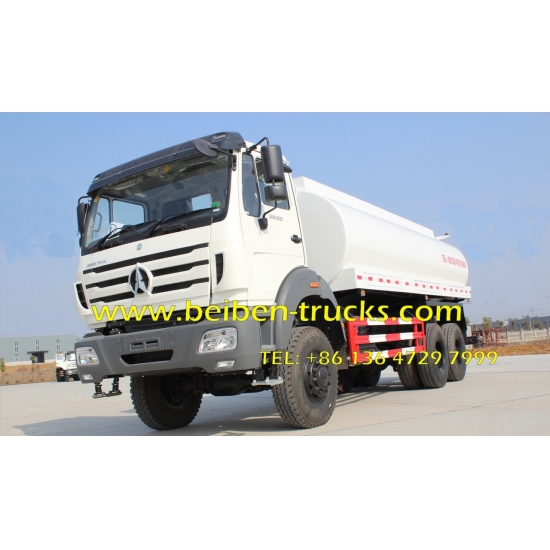

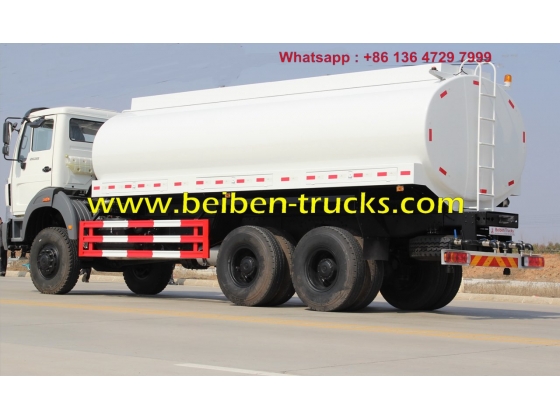

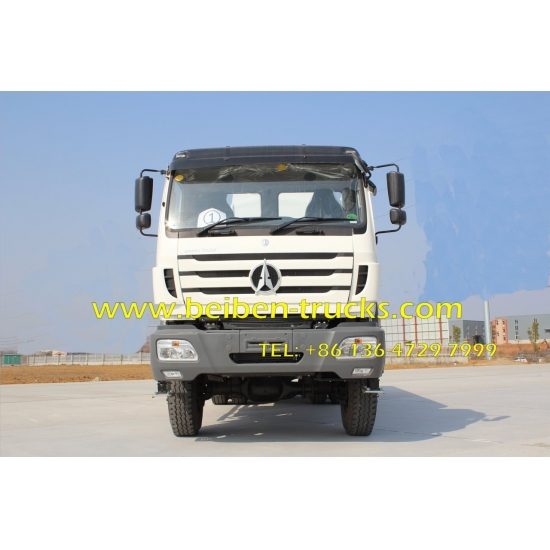

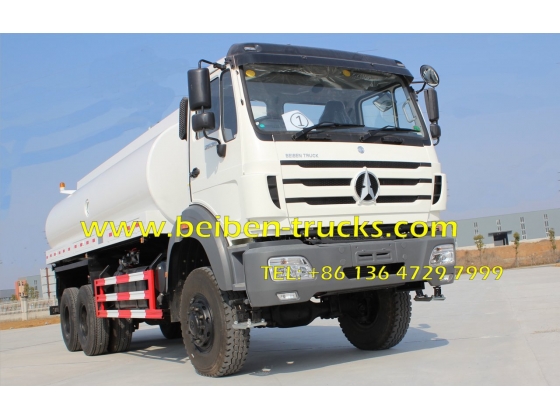

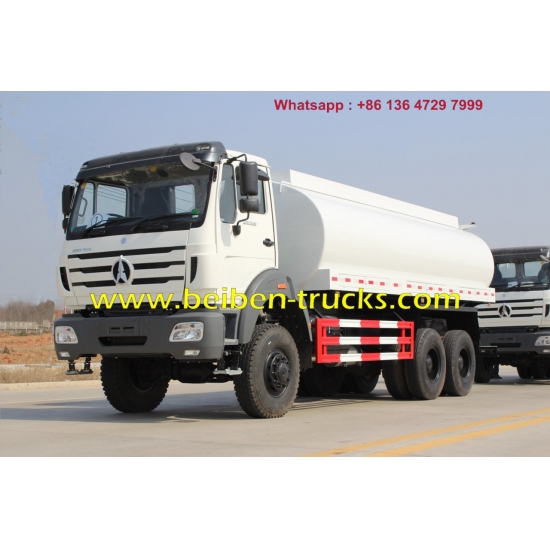

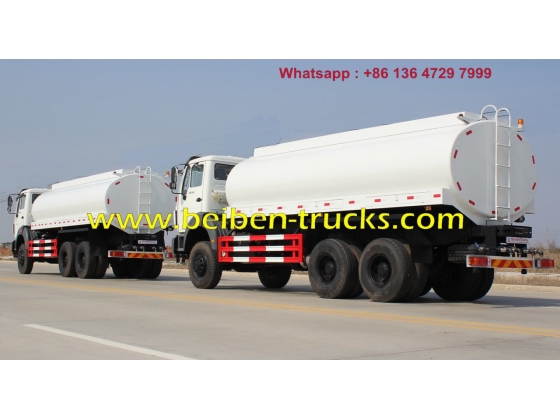

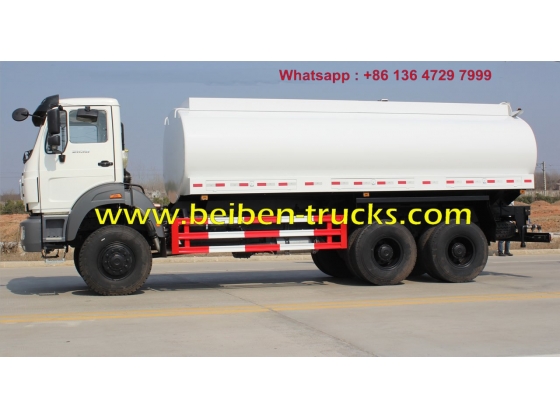

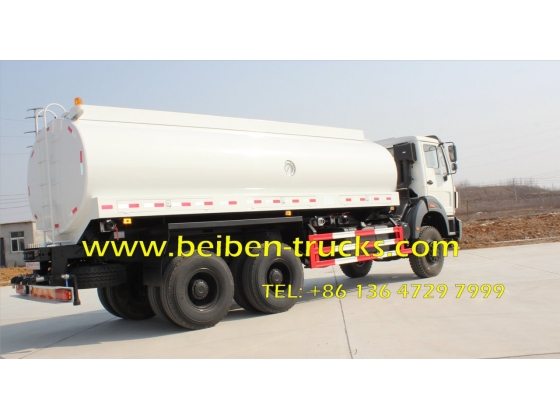

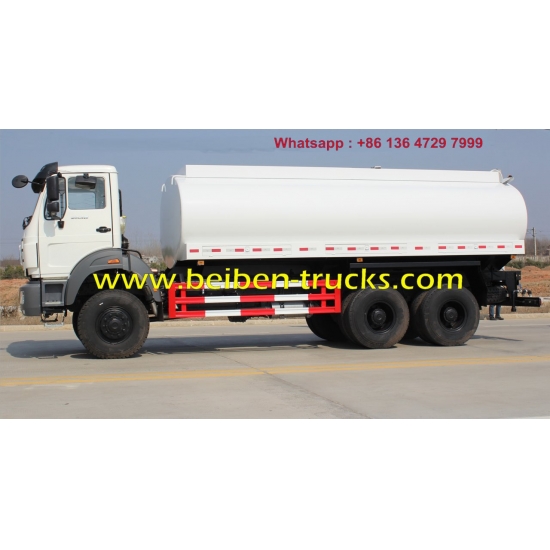

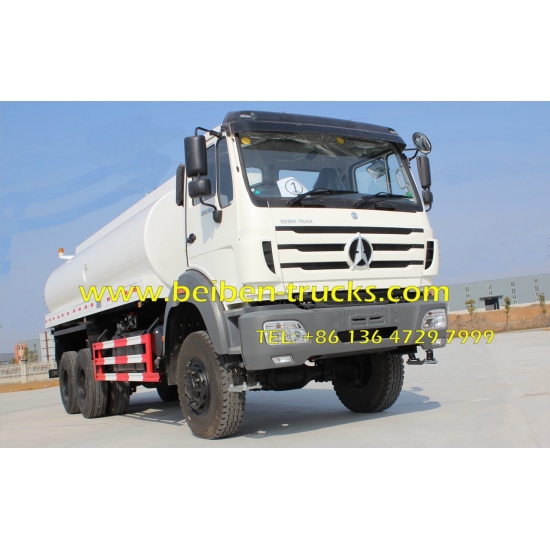

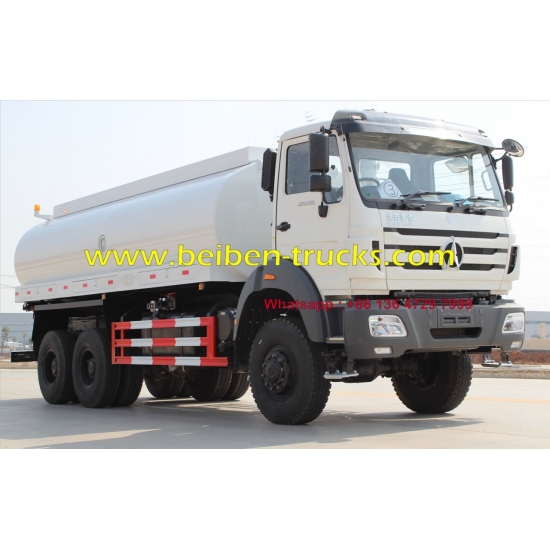

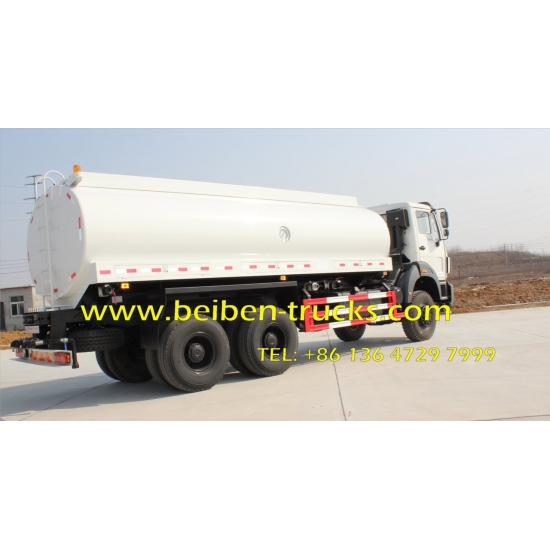

beiben 2538 water tanker truck

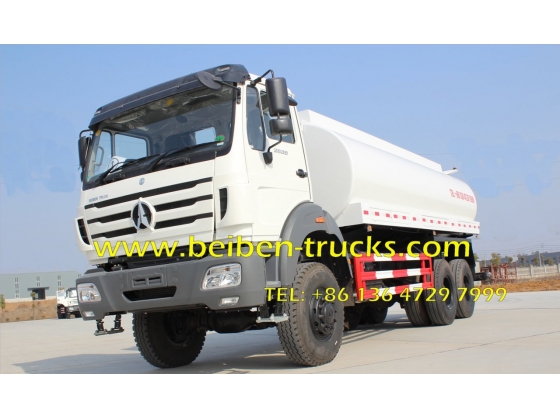

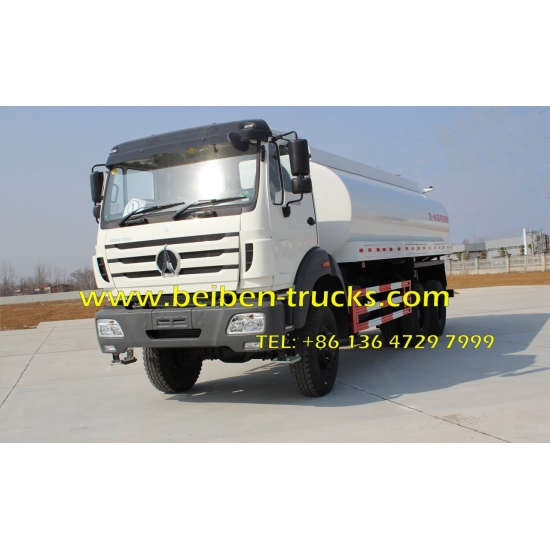

beiben 2538 water tanker truck

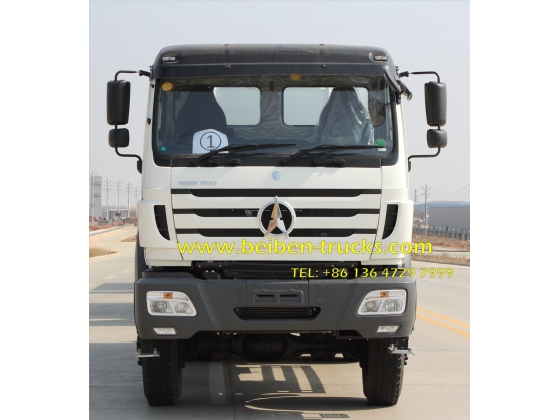

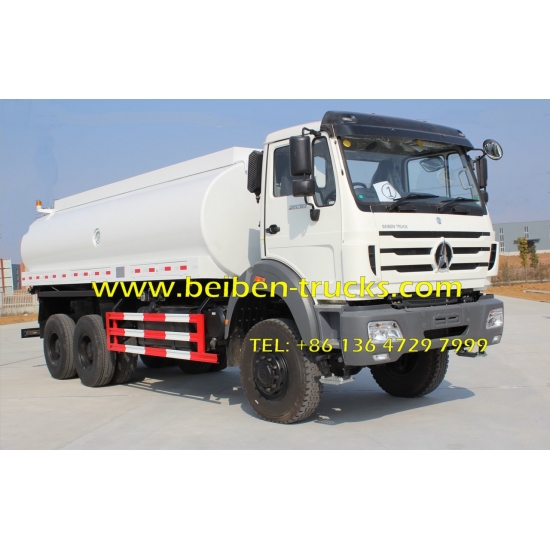

beiben 2538 water tanker truck

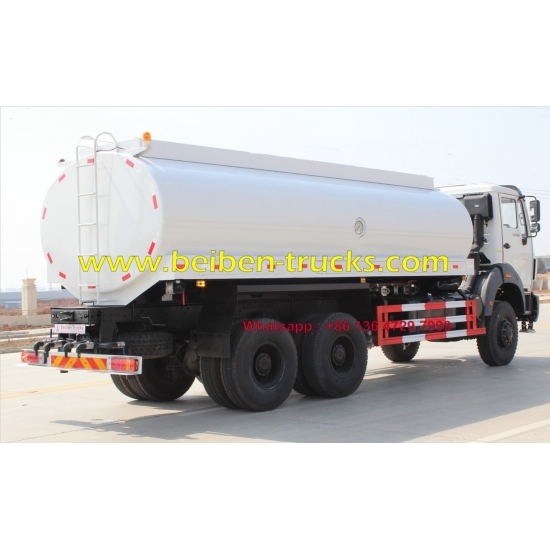

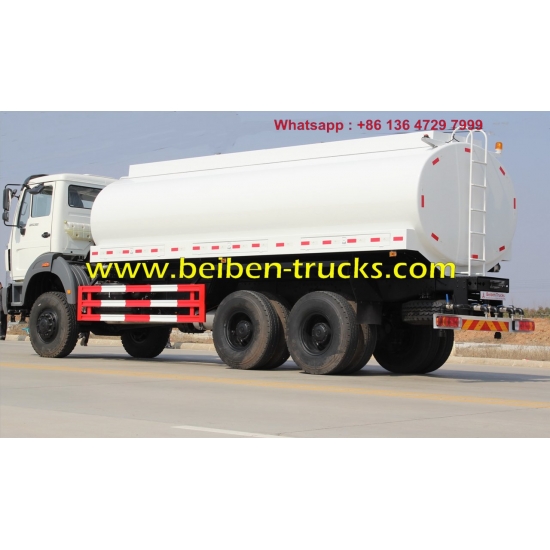

beiben 2538 water tanker truck

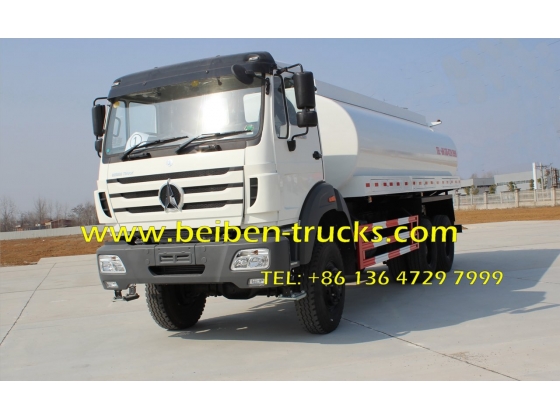

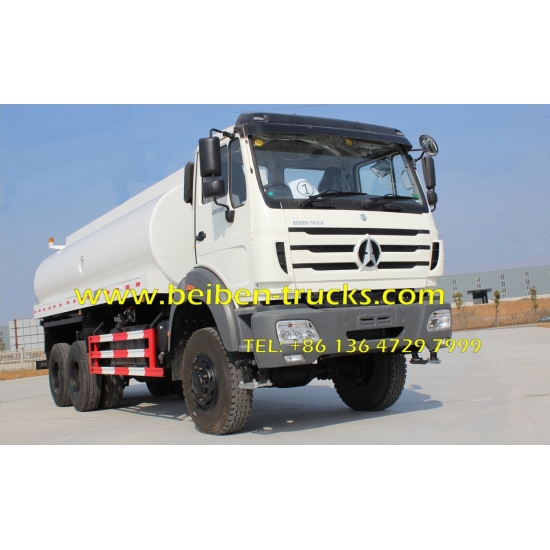

beiben 2538 water tanker truck

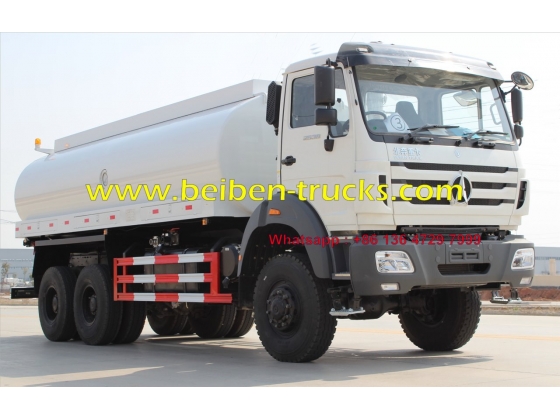

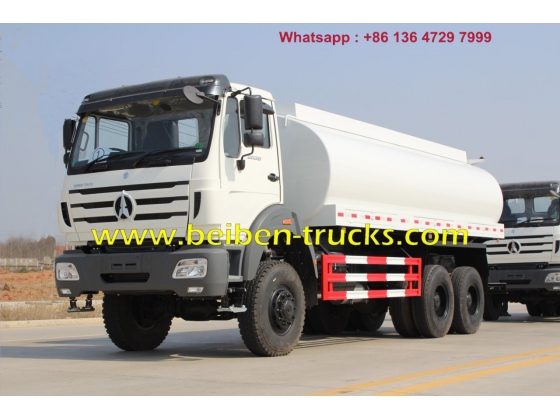

beiben 2538 water tanker truck

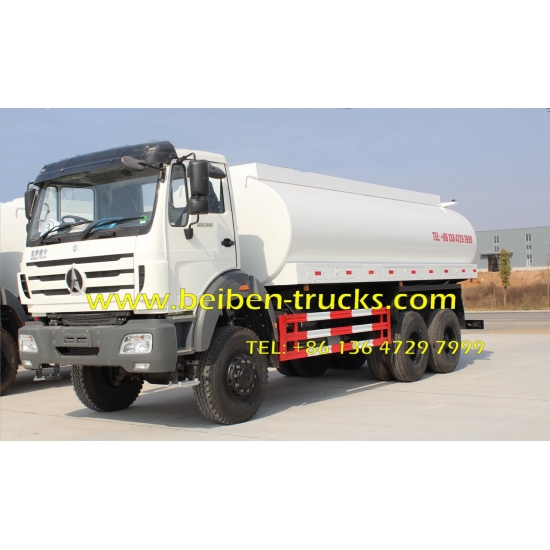

beiben 2538 water tanker truck

beiben RHD 2538 water tanker truck

beiben 2538 water tanker truck

beiben 2538 water tanker truck

beiben 2538 water tanker truck

beiben 2538 water tanker truck
