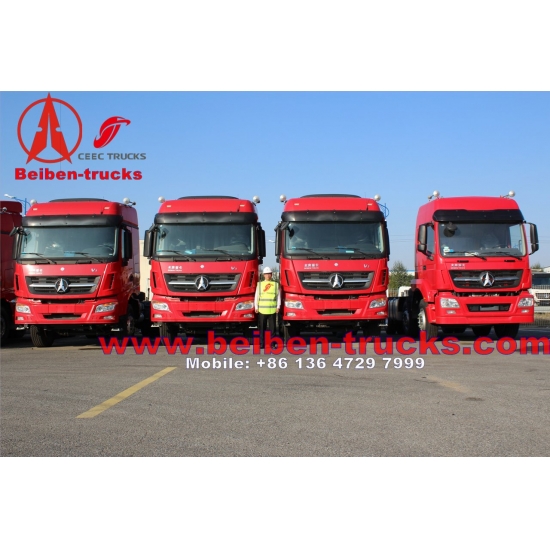

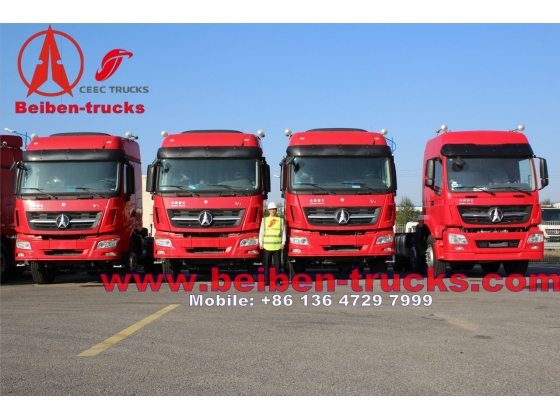

Beiben 6x4 336hp Mercedes Benz Technology North Benz/Beiben tractor truck
1.North Benz BEIBEN tractor truck
2.Mercedez-benz technology
3.480hp WEICHAI engine
4.FAST transmission
5.Military axles
Beiben 6x4 336hp Mercedes Benz Technology North Benz/Beiben tractor truck
We are the most professional supplier on beiben V3 tractor trucks, beiben V3 2534, 2538,2540,2542,2548 tractor trucks. The best full solution for customer logistic solutions on north benz V3 tractor trucks.
Our beiben V3 tractor trucks are ideal versions instead of imported benz actors. With outstanding performance and high quality, . Now our beiben V3 trucks are sold to the worldwide countries and areas, such as Kenya, Ethiopia, Libya, Turkmenistan, Kazakhstan, South Africa, Syria, and so forth.
|
Wheel base (mm) |
3450+1450 |
|
|
Curb weight kg |
9300 |
|
|
Engine |
Model |
WP12.480(WeiChai Engine Based on Styre technology, made in China),water-cooled,four strokes,6 cylinders straight in line,turbocharged, directly injection |
|
Displacement L |
12/Diesel |
|
|
Power, max kw/rpm |
309/2200 |
|
|
Emission |
EURO3 |
|
|
Fuel tanker capacity L |
300 |
|
|
Clutch |
Model |
φ430, Single dry frictional disc,Hydraulic boosting |
|
Gearbox |
Model |
12JS200T |
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
|
Steering system |
Model |
ZF8098 |
|
Frame |
Fish belly shape, variable width, variable sections |
|
|
Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, non-driving steering axle |
|
|
Middle and Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle |
|
|
Tyre |
12.00R20 |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-35A |
|
|
Starter |
5.4Kw/24V |
|
|
Cab |
Long cab, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure. |
|
|
The Fifth wheel |
90 #single |
|
The most professinal supplier on Beiben V3 tractor trucks, CEEC TRUCKS , For your Success.
| Model | Engine Model | Rated Power | Payload | Driving Mode |
| Beiben 2542 | WP10.420 | 420 Hp | 50 Ton | 6*4 |
| Beiben 2548 | WP12.480 | 480 Hp | 80 Ton | 6*4 |
| Beiben 2534 | WP10.340E32 | 340 Hp | 40 Ton | 6*4 |
| Beiben 2542 | WP12.420E32 | 420 Hp | 55 Ton | 6*4 |
| Beiben 2538 | WP10.380E32 | 380 Hp | 45 Ton | 6*4 |
