Beiben 6x4 Dump Truck 25t dumper tipper trucks

Product Details

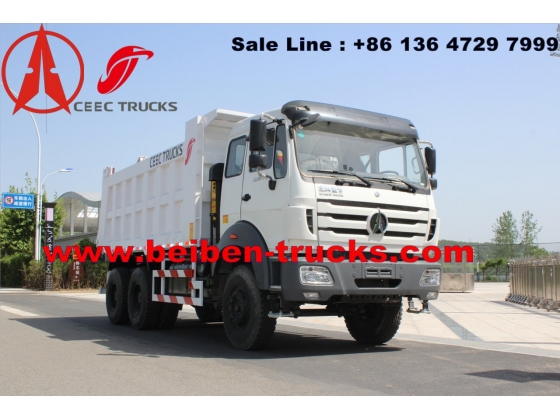

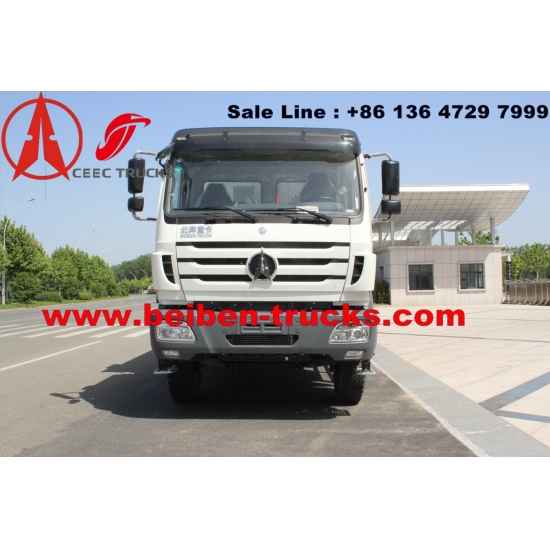

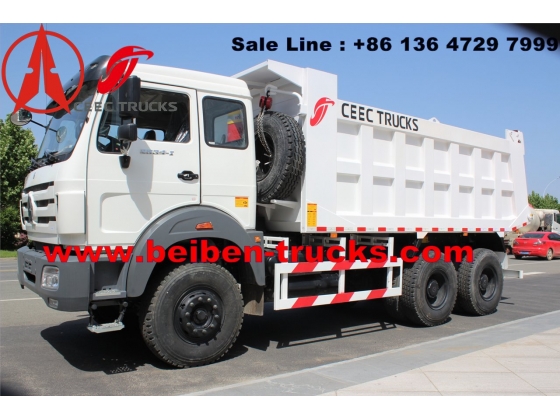

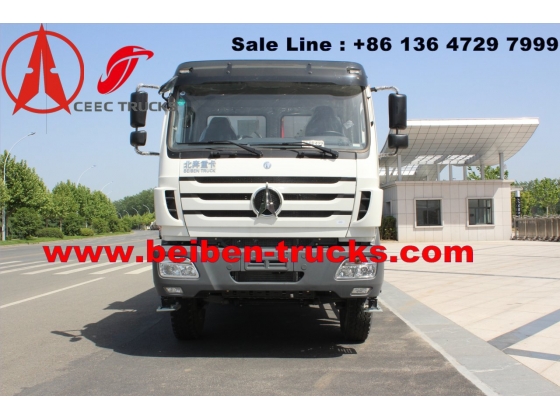

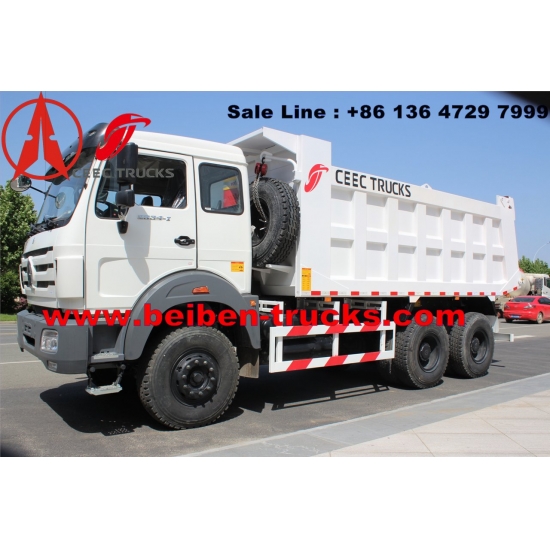

Beiben 6x4 Dump Truck 25t dumper tipper trucks
Mercedes Benz Technology
Good parts supply
Short delivery time

Beiben 6x4 Dump Truck 25t dumper tipper trucks



1.China 6x4/8x4 Dump Truck Beiben NG80/V3 best Tipper Truck with low price

2.Mercedes Benz Technology

3.Left hand drive/ right hand drive

4.Good parts supply

5.Short delivery time




NORTH BENZ



Traction type

LHD/RHD

Drive System

6×4

Cabin

NG80B   Short Cabin, Air Conditioner ,no sleeper

Engine

Brand

WEICHAI

Model

WP10.340E32 EGR

Rated power

340hp

Engine displacement

9.726   liters

Gearbox

FAST 9   Speeds (9JS150A)

Clutch

430   Diaphragm type

Steering

ZJ120D/ZF8098

Axle

Front

BEIEBN 7.5   Ton

Rear

BEIBEN 13 Ton double reduction axle, ratio:5.921

Max. running speed (km/h)

85

Tire

12.00R20

Spring

10/13

Fuel tank

300L

Kerb weight (kg)

12400

Total mass (kg)

25000

Wheel base (mm)

3800+1350

Overhang (mm) (front/rear)

1410/ 1870

Track (mm) (front/rear)

1995/1800

Approach / departure angle(°)

26/32

Dimensions(L*W*H)(mm)

Overall

8330x2500x3430

Dump body

5600x2300x1500

Thickness (mm)

Bottom 8   , front 6mm,side   4

Hydraulic lifting system

Middle   lifting(Made in China)
