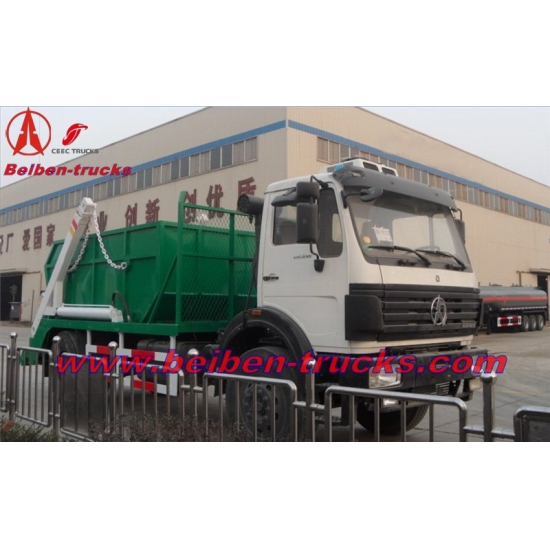

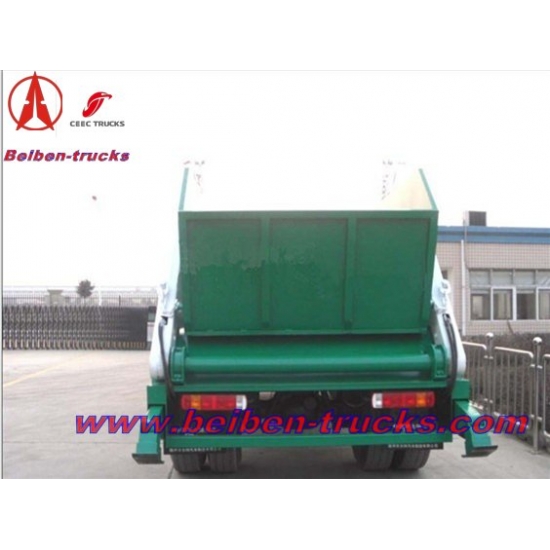

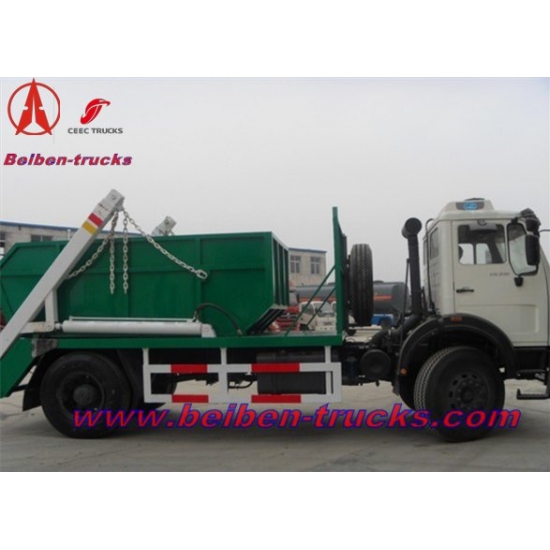

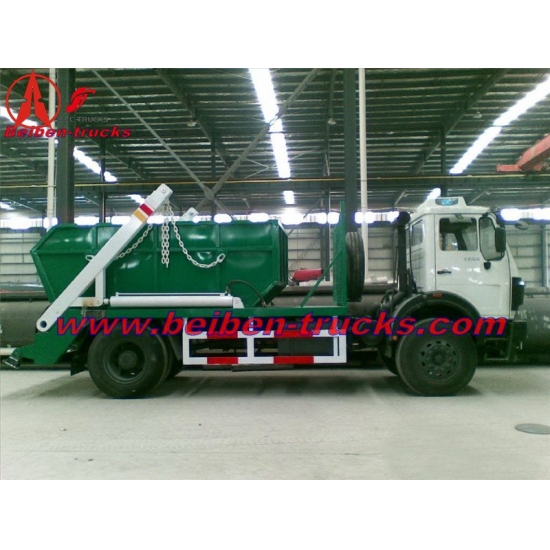

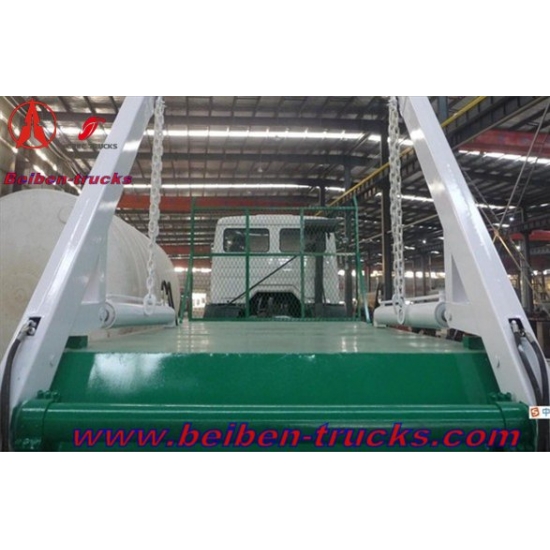

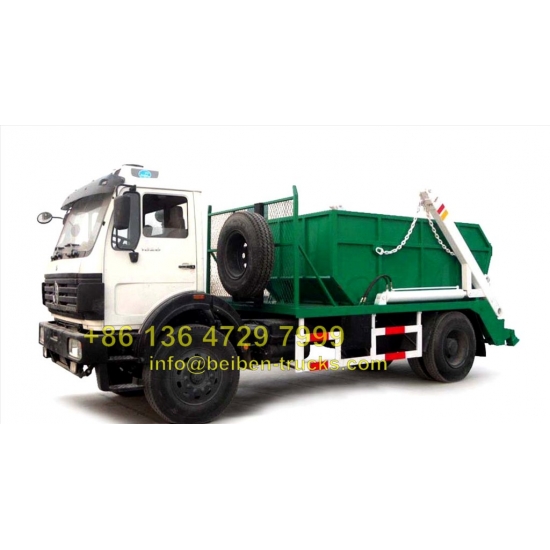

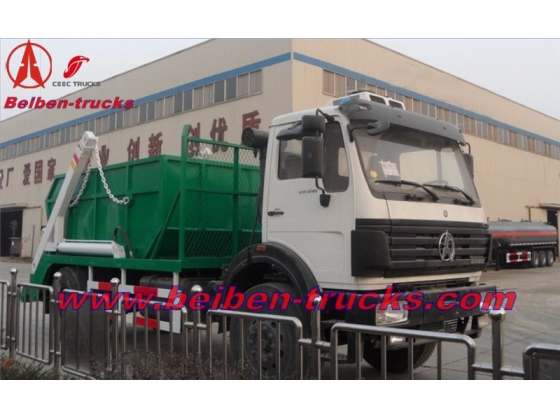

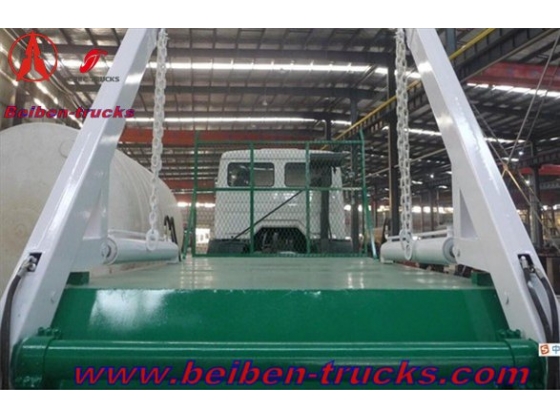

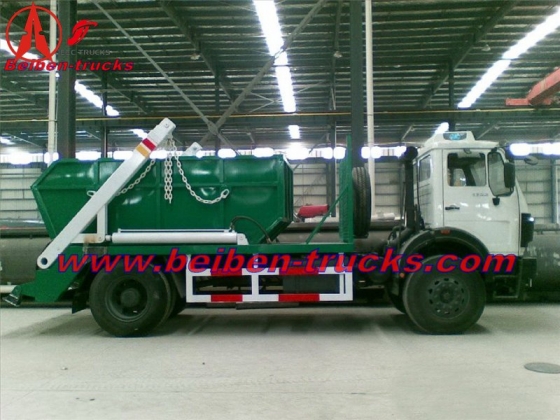

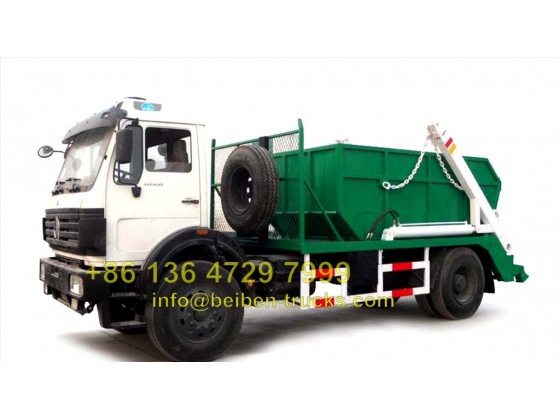

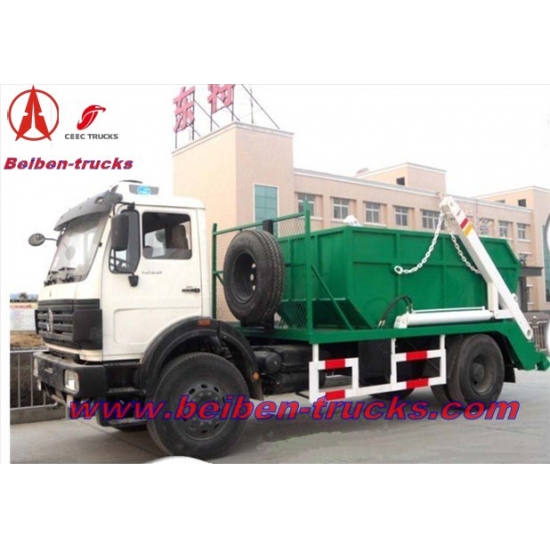

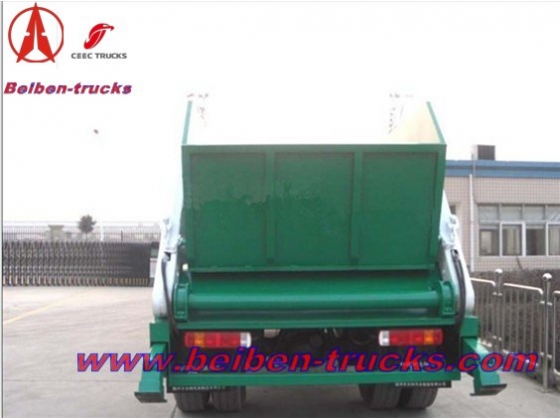

Beiben Skip loader 4x2 Northbenz waste truck container garbage truck
10 CBM BEIBEN SKIP REFUSETRUCK 4x2
◆The Beiben Skip loader cancircularly lift swing arms ON or OFF. It’s cycle time is 60s per time.
◆It’s dumping hopper isseparated from truck body, so the truck can work with several hoppers at thesame time. This also greatly improved the transport capacity of truck.
◆Equipped with dustbin,hydraulic system and operating system
◆Equipped with twoadvanced double acting hydraulically cylinders.
◆Our Skip loader withgood price is particularly for short-distance transport.
Detailed description:
Chassis type |
ND1161 |
|
Cubage( T ) |
7-8 |
|
Parameters |
Overall dimension length/width/height (mm) |
8800×2470×3250 |
Total Mass(kg) |
14800 |
|
Payload(kg) |
7000 |
|
Kerb Mass(kg) |
7450 |
|
Approach angle/ Departure angle(mm) |
34/20 |
|
Front suspension/rear suspension(mm) |
1245/1405 |
|
Fuel Type |
diesel |
|
Fuel Consumption/100 km |
22 |
|
Max Speed |
85 |
|
Engine |
Type |
WD615.58 supercharged six-cylinder inner-coolingdiesel engine |
Displacement/Power(kw) |
9726/175(240hp) |
|
Manufacturer |
Weichai Diesel Engine Co., Ltd |
|
Type |
6-in-line supercharged inner-cooling diesel engine |
|
Chassis |
Drive type |
4×2 |
Wheelbase(mm) |
3800 |
|
Tread(front/rear) |
1940/1860 |
|
Front axle |
5T |
|
Rear axle |
10T |
|
Steering gear |
Dual-armed steering wheel,power steering |
|
Transmission |
6 gear mechanical drive transmission |
|
Clutch |
Diaphragm clutch, hydraulic remote control,pneumatic serveo |
|
Braking system |
Split air braking system,spring breaking,exhaust braking |
|
Cab |
Non-longheaded one and a half row cab,whole metal-enclosed |
|
Number of spring axle(front/rear) |
9/11+8 |
|
Tire Type |
10.00-20 16PR |
|
Air-condition |
Choose to fix |
|
Special performance parameters |
Hydraulic system pressure |
16MPa |
Crane arm turn radius |
2400mm |
|
Hydraulic systemFlow capacity |
50L/min |
|
Crane arm maximum pivot angle |
145 |
|
Hoisting time |
30s |
|
Unloading time |
50s |
