SPECIFICATION

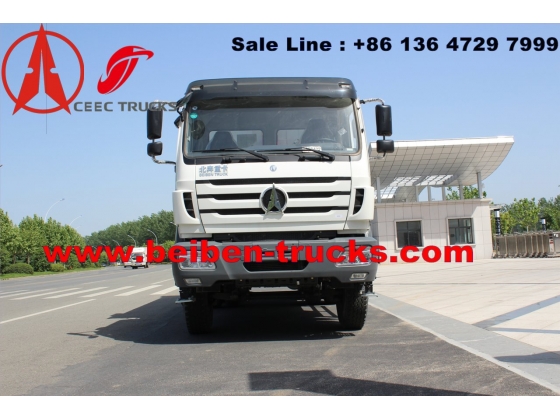

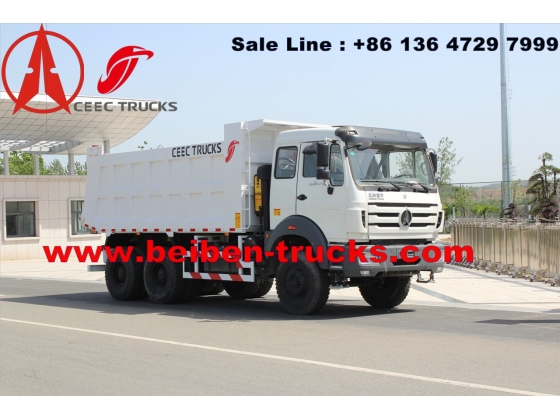

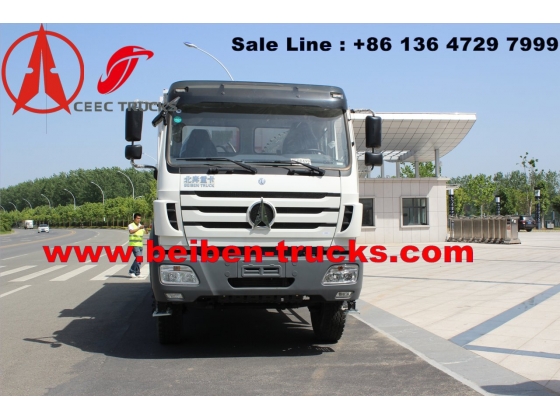

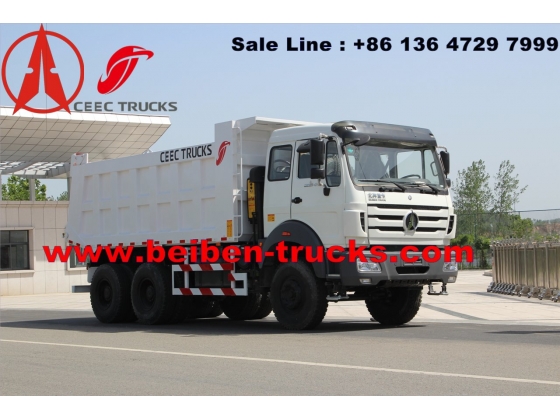

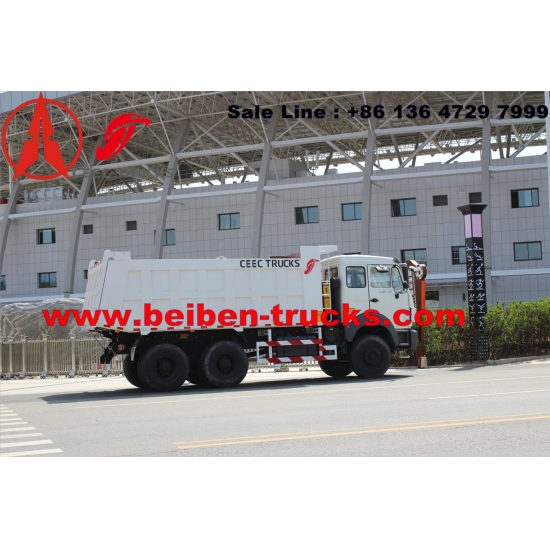

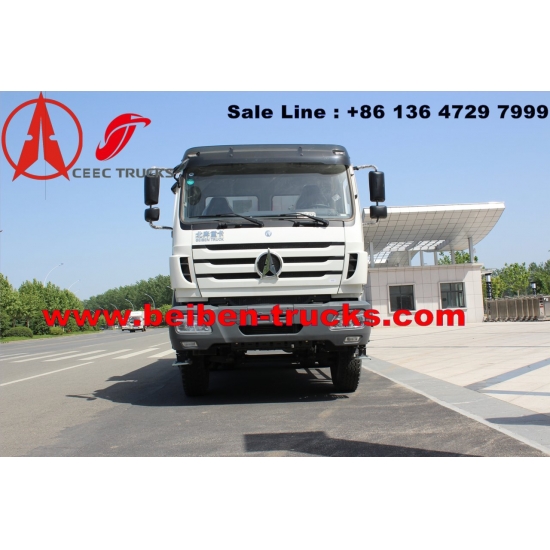

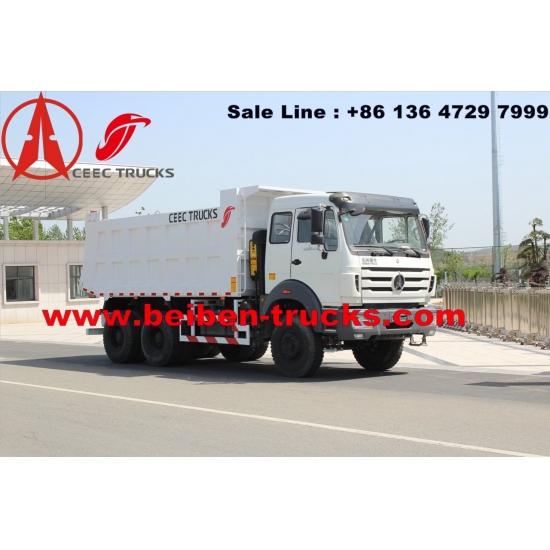

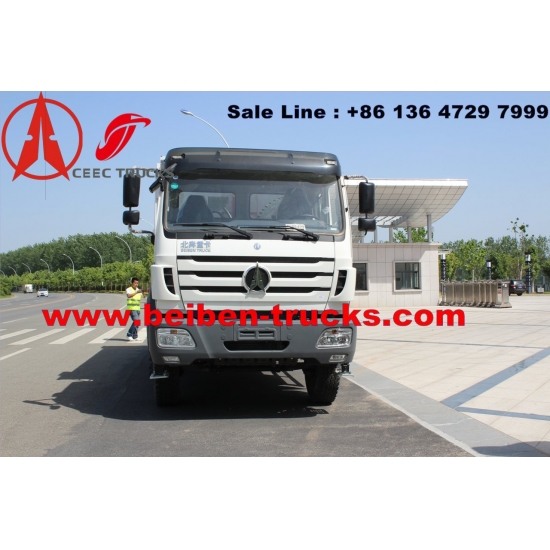

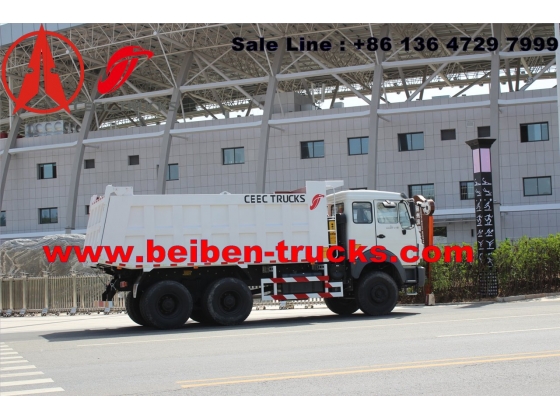

                  NORTH BENZ 6X4 DUMP TRUCK LHD DRIVE

Traction

6x4

Driving type

LHD (RHD is option)

Cabin

North Benz, V3 cabin, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure, high back and shock absorption seat for the driver, with One Sleeper

Major color of cab: Ice white lacquer+ color bar, yellow

Vehicle Main Dimensions

LxWxH(mm)

7800x2500x3430

Wheel base(mm)

3450+1550

Wheel track(front/rear)(mm)

Front track (mm): 1995

Rear track (mm): 1800/1800

Approach/Departure angle(°)

23/ 35°

Overhang (front/rear)(mm)

1410/1870

Weight

in KGS

Tare Weight(kg)

12300kg

Total mass(kg)

25000kg

Front axle loading capacity

7.5tons

Rear axle loading capacity

2x13tons

Driving Speed(km/h)

85

Engine

Brand

Wei chai

Model

 WP10.340

Emission

 Euro III

Engine type

Diesel 4-stroke direct injection engine, 6-cylinder in-line

with water cooling, turbo-charging & intercooling

Displacement

9.726 L /Diesel

Max. output

340hp@2200rpm

Max torque

1250NM@1400-1600rpm

Bore/Stroke(mm)

126/130

Specific fuel consumption

198g/Kwh

Gear box

Model

9JS150A

Brand

FAST 9 speeds

Type

Fuller transmission, mechanism, 9 forward gears, 1 reverse gear, manual, made in China

Clutch

Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting

Steering

ZJ120D

Tyre

Tyre

12.002-20 Bias tyres

No. of tyres

10+1spare

Fuel tank

300L  Aluminum Tank

Front axle

Mercedes Benz Technology, Double-shoe pneumatic brake, non-driving steering axle

Rear axle

Mercedes Benz Technology, Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Frame

Mercedes-Benz technology, Strengthened frame 300x90x8+6+8mm

Spring

10/13

Strengthened rear spring 7x25mm+6x22mm, 4-line U-bolt, Strengthened Push Rod, Strengthened Transmission Shaft
