Beiben NG80/V3 6X4 2529K 10 wheels 15cbm dump tipper truck

Product Details

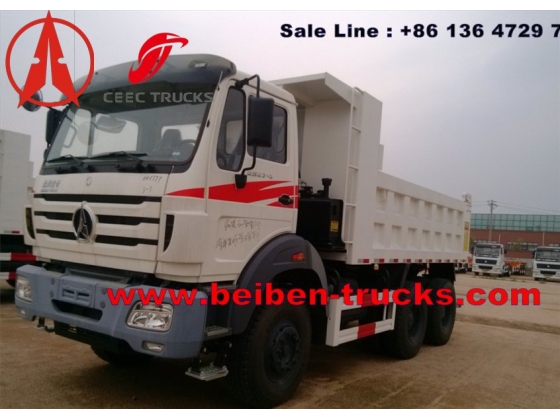

Beiben NG80/V3 6X4 2529K 10 wheels 15cbm dump tipper truck

China best quality beiben NG80B dump truck for congo customer, tanzania customer , kenya customer, mogolia customer to buy.



 Beiben NG80/V3 6X4 2529K 10 wheels 15cbm dump tipper truck



Our beiben 10 wheeler dump trucks for congo customer using .

beiben NG80B tractor truck supplier





china beiben 60 T tipper trucks supplier

china beiben 60 T tipper trucks supplier

uzbekistan beiben asphalt distributor supplier

china beiben 60 T tipper trucks supplier

Traction type

6X4

Driving type

Left hand driving

(Right hand driving can be optional)

Cabin

short cabin

Full steel skeleton structure, covered with double layer steel plate;

Can be tipped forwardly;

With inner A/C

Engine

Steyr technology, made in China

Model WP10.290NE32

Diesel 4-stroke direct injection engine, 6-cylinder in-line, water cooling, turbo-charging, inter-cooling and EGR (exhaust gas recycling)

Displacement(L)

9.726/Diesel

Bore X stroke(mm)

126/130

Max power(kw/rpm)

213/1900 (290hp)

Max torque(Nm/rpm)

1250/1100-1600

Emission

EURO III

Fuel tanker(L)

300

Clutch

Model

430 diaphragm

Gearbox

Model

9JS150A

Type:mechanism (Manual)

9gears,1reverse gear

Steering system

Model

ZJ120D

Frame

Fish belly, shape, variable width, variable sections, side beam structure

Front axle

7.5T Double-shoe pneumatic brake, non-driving steering axle



Middle and Rear axle

13T Double-shoe pneumatic brake, casting, double reduction driving axles with inter-wheel & inter-axle differential locks



Tyre

12.00R20 Radial tire

Number of tires

10+1 spare tire
