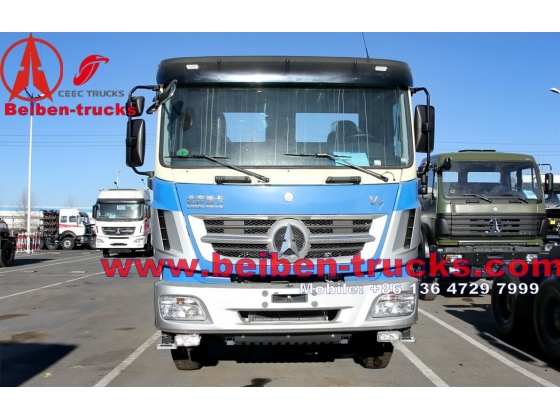

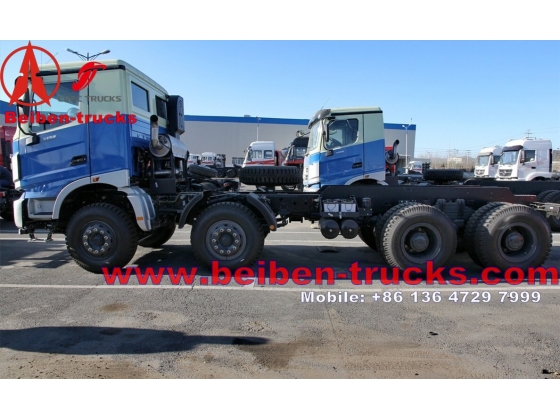

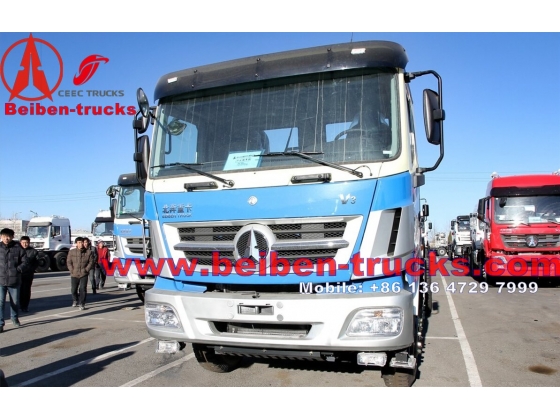

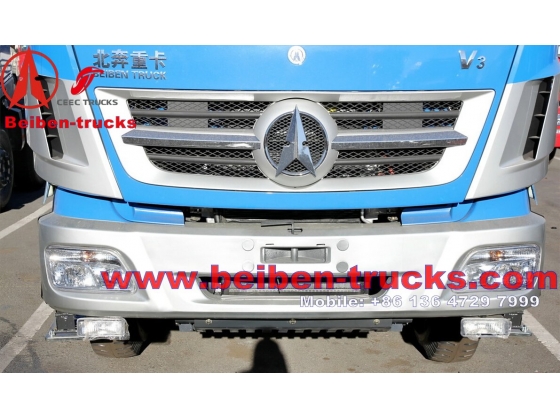

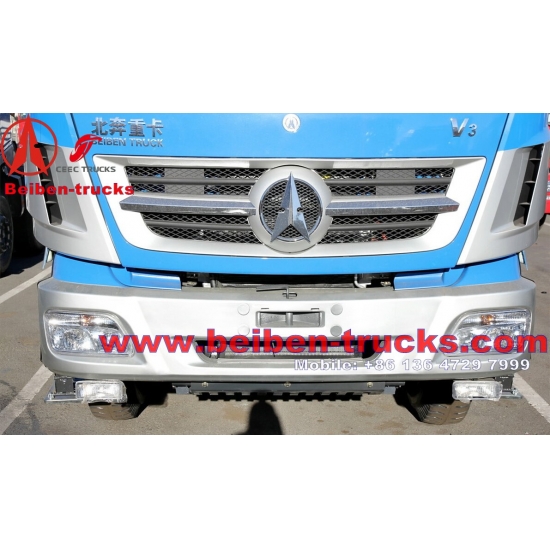

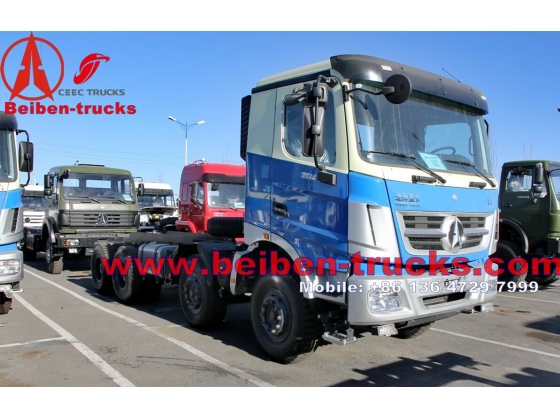

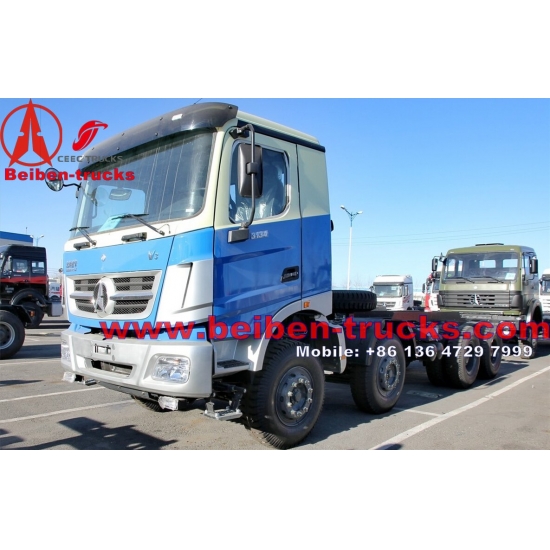

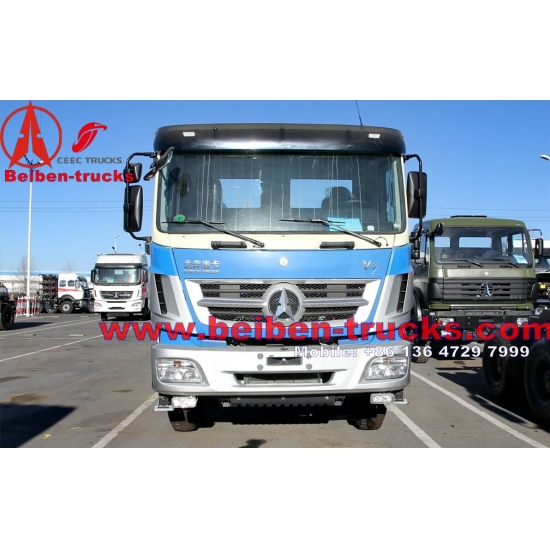

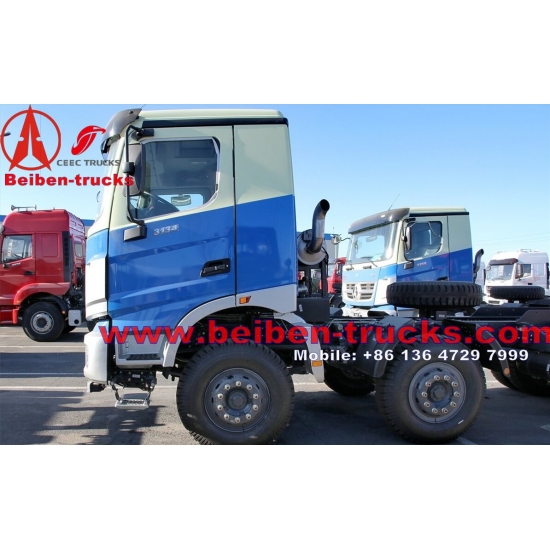

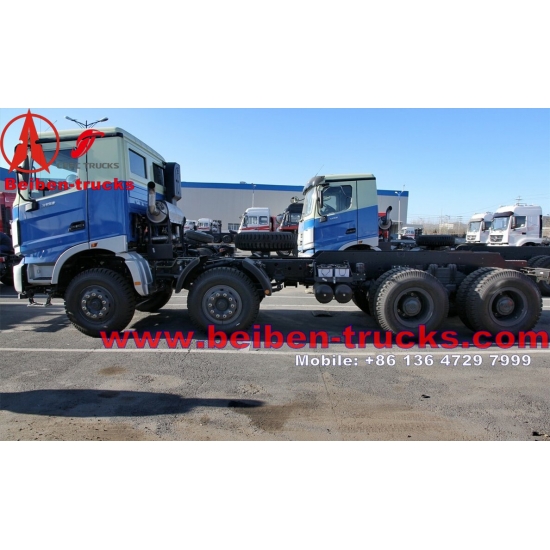

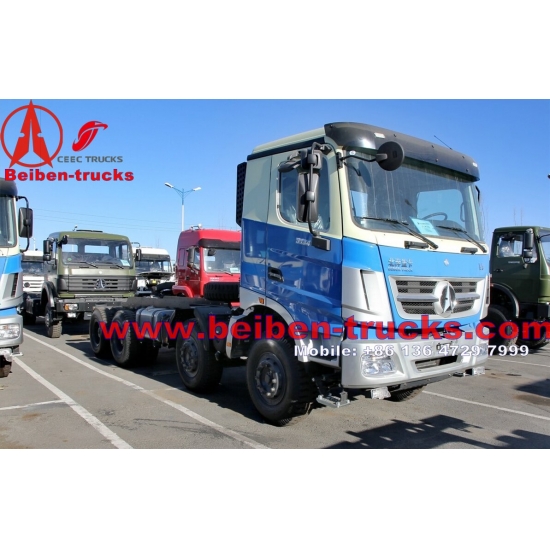

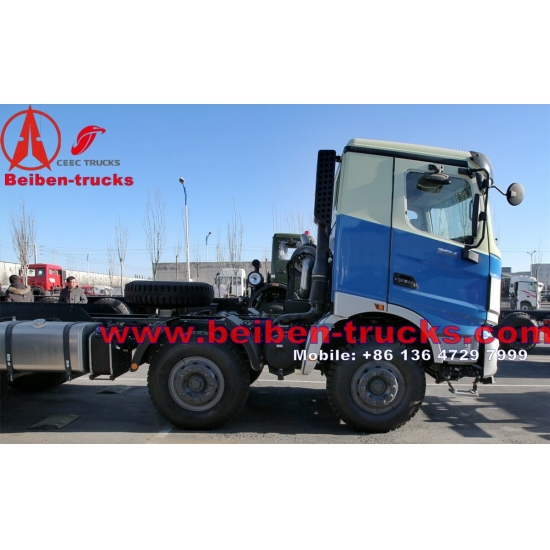

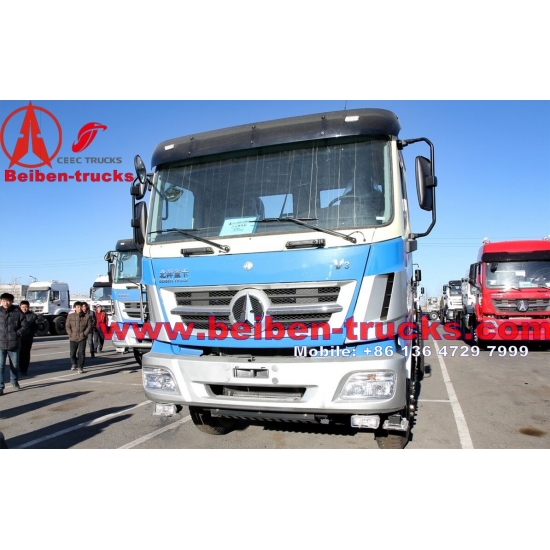

North benz V3 cabin 3138KY /8×4/1950+4600+1450/Long-Flat Roof Cab

Dimension

11680*2500*3484mm

Upper body inner dimension

8900x2300x950 sand body, Hyva hydralic lifting system, thickness: bottom 8mm, side 6mm

Approaching angle/Departure angle

16/32°

Overhang(front/rear)

1515/2215mm

Wheel base

1500+4750+1450mm

Max speed

90km/h

Curb weight

15080kg

Loading capacity

15790kg

Slope climbing capability

Max.40%

Engine

Model

WP10.375，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection

Displacement

9.726L/Diesel

Stroke

126/130mm

Max. power

276/2200 (kw/rpm)

Max.torque

1460/1200-1600（Nm/rpm）

Emission stantard

EuroⅢ

Fuel tanker capacity

300L

Clutch

∮430, Single dry frictional disc，Hydraulic boosting

Gearbox

12JS200T, mechanism,12 forward gears,2 reverse gear, manual operated,

Gear ratio of gear box

15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.10/1.64/1.28/1.00 R:14.86/3.33

Suspension system

Front

Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs

Rear

Non-free standing stablization spring, balance suspension system, 13pcs

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

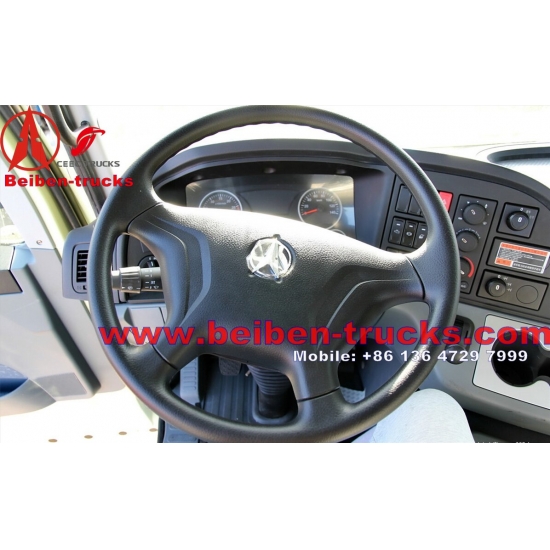

Steering system

TAS85,whole circulation in ball, hydraulic booster

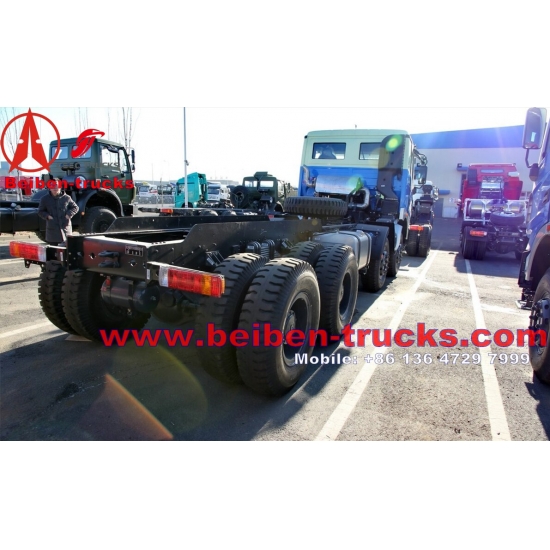

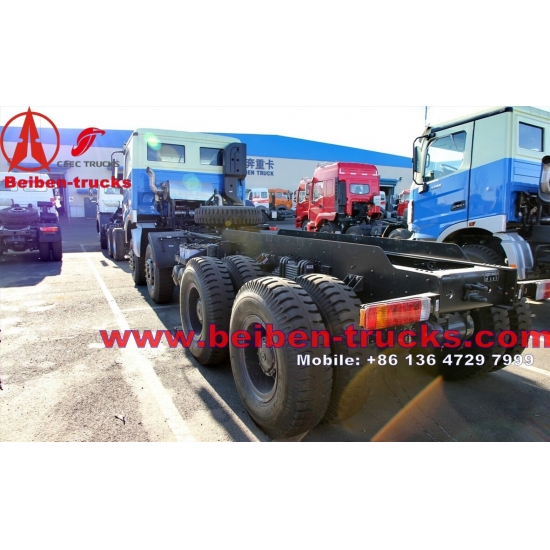

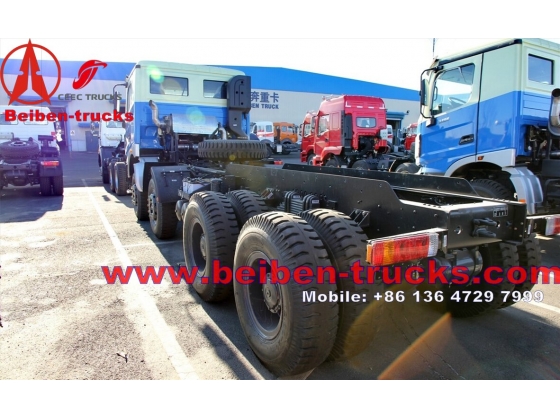

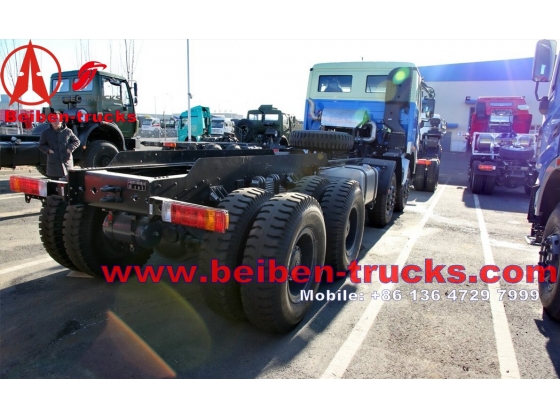

Frame

Fish belly shape, variable width, variable sections

Front axle (Mercedes Technology)

Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle (Mercedes Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Tyre

12.00R20 Radial

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

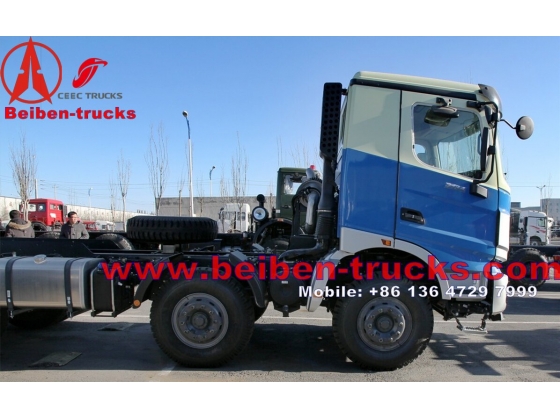

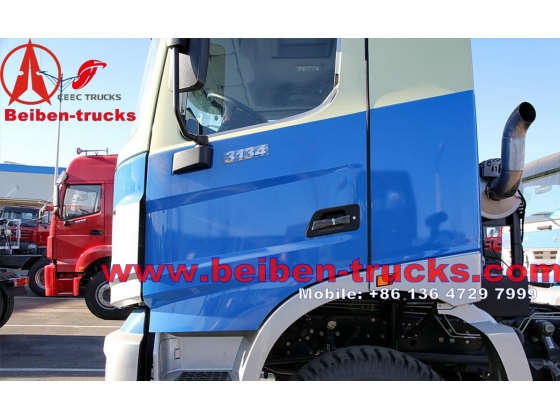

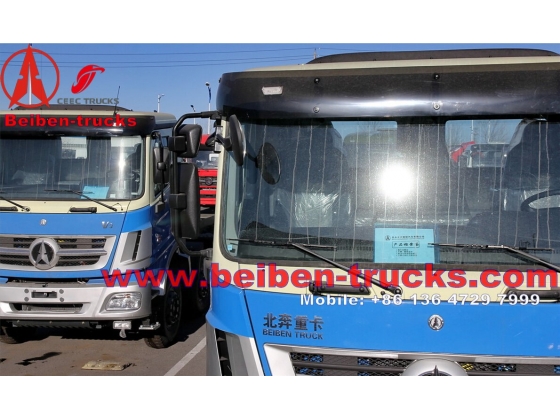

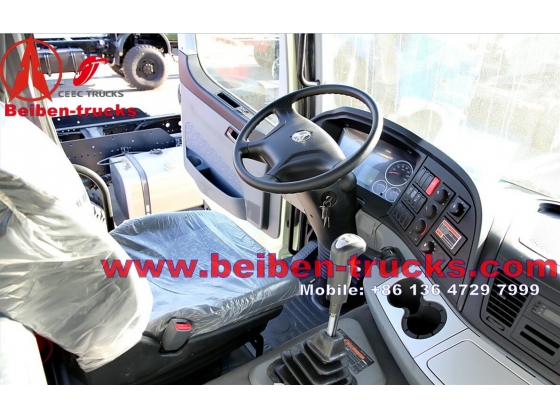

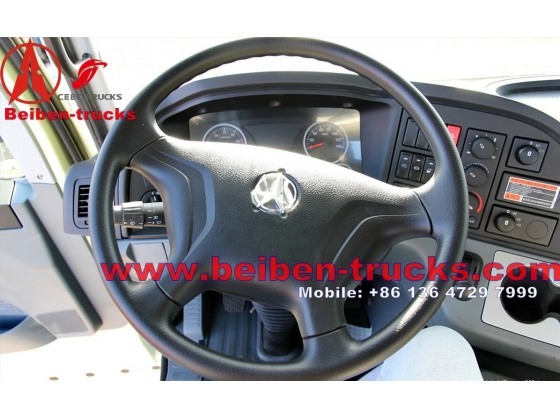

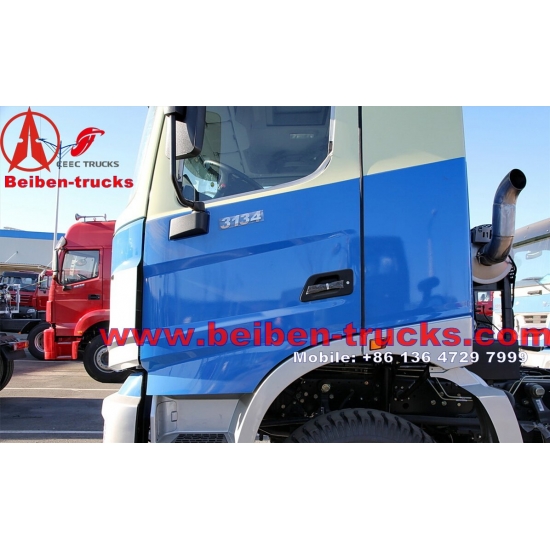

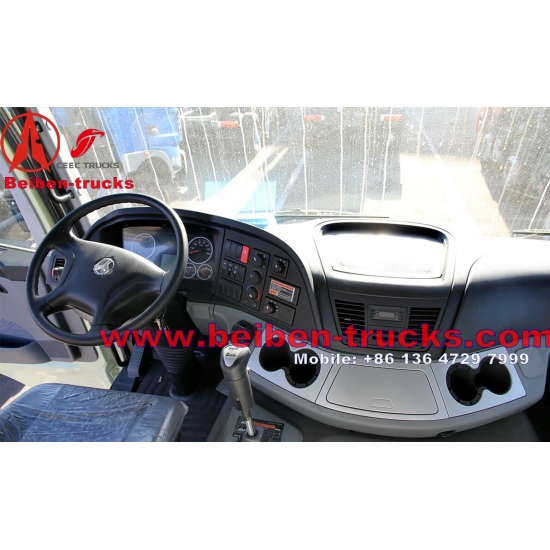

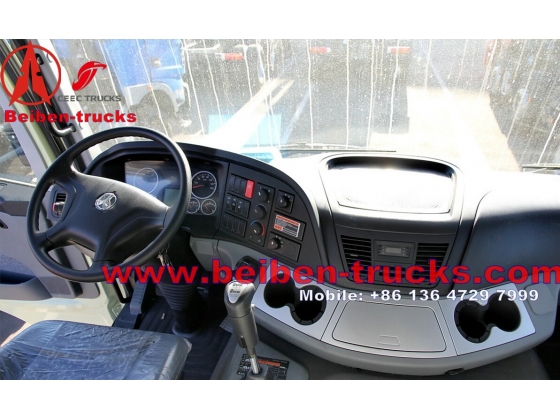

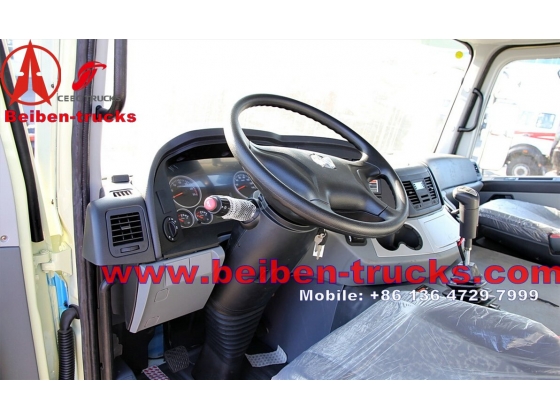

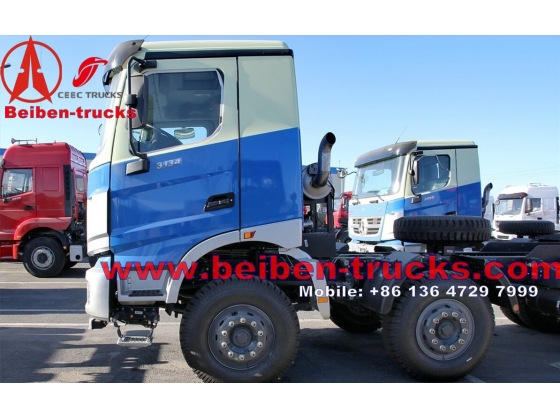

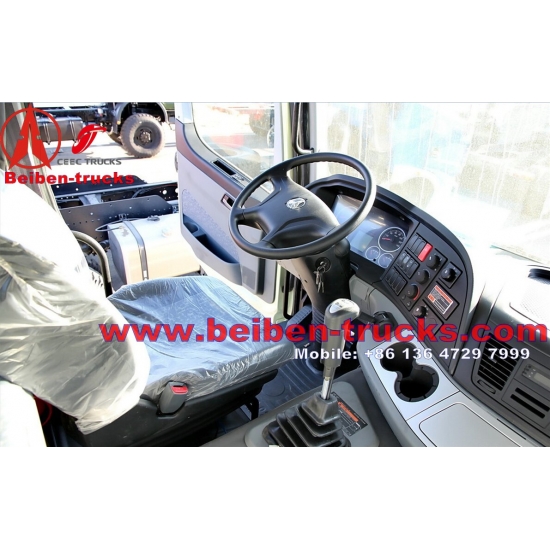

Cabin

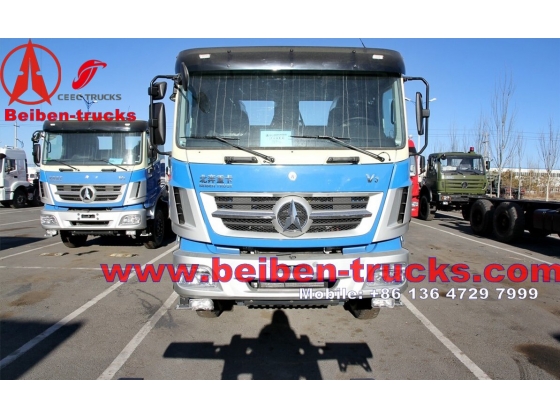

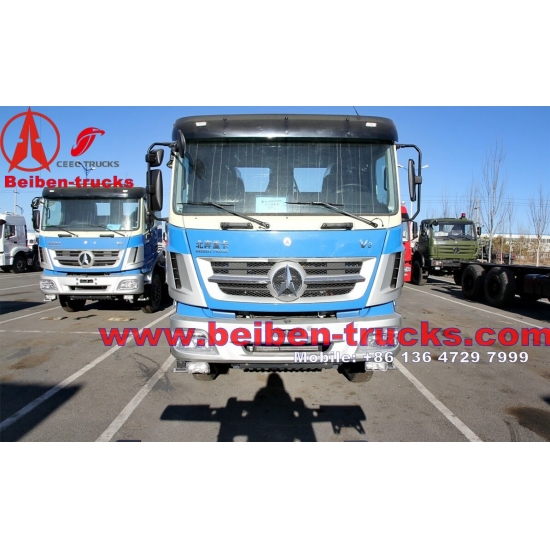

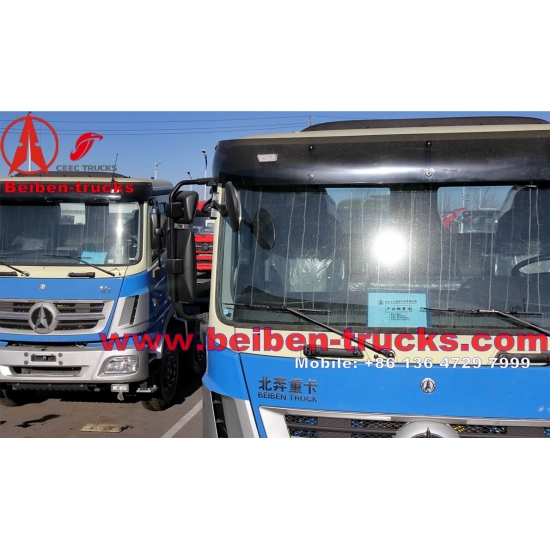

V3 Long-Flat roof cabin with single sleeper
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;

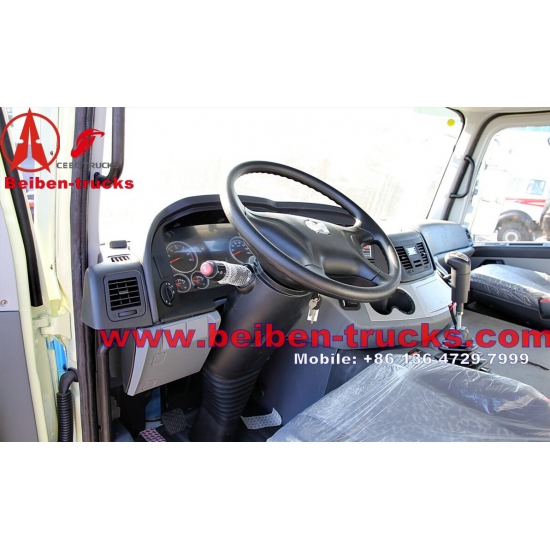

High back seat for driver;Electric lifting window ;
With inner A/C
